• Inventory number：80416

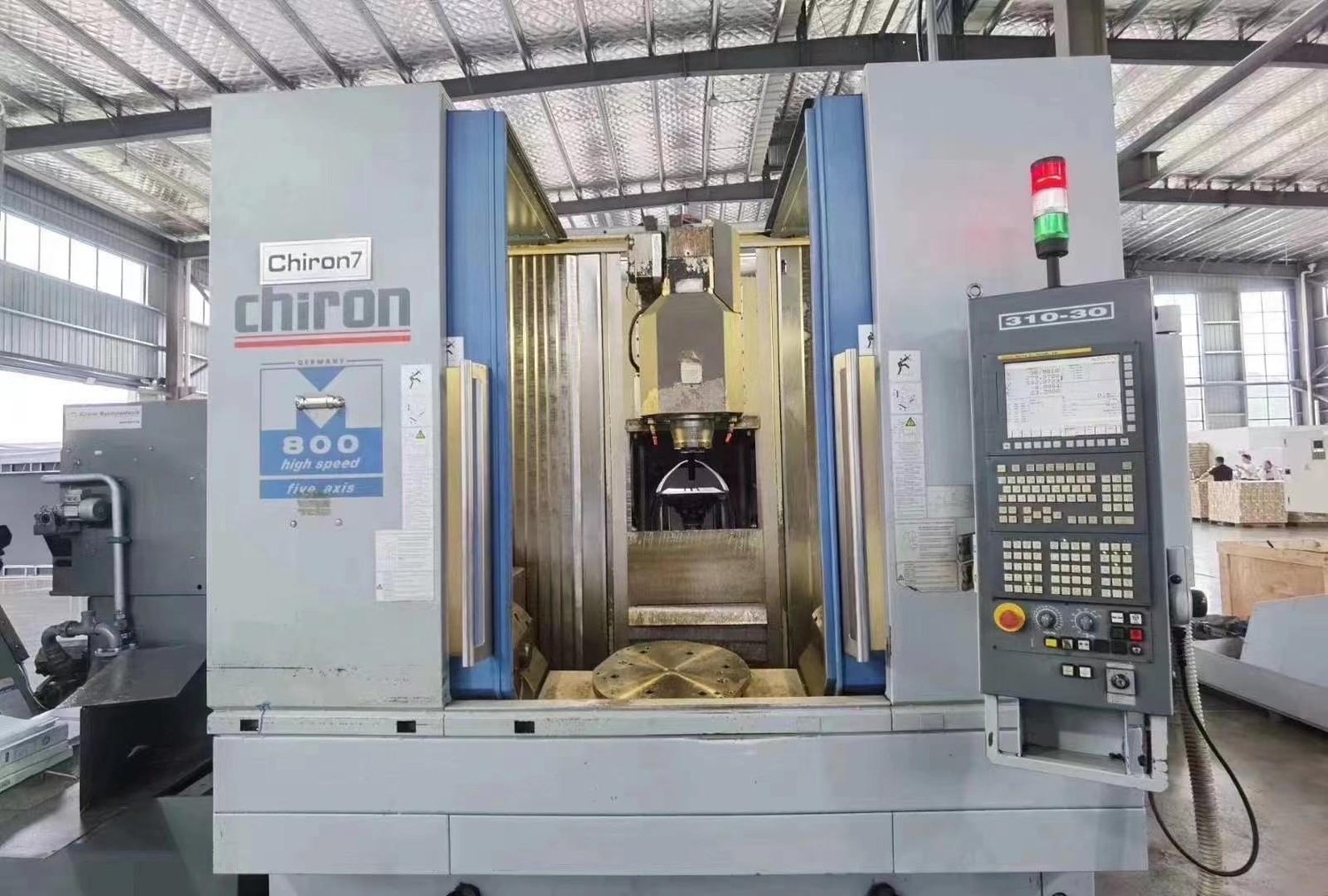

• Brand：Chiron
• Model：MILLFX800
• Origin：Germany
• Location：China
• Year：
• Create Time：2023-03-02

Specifications:

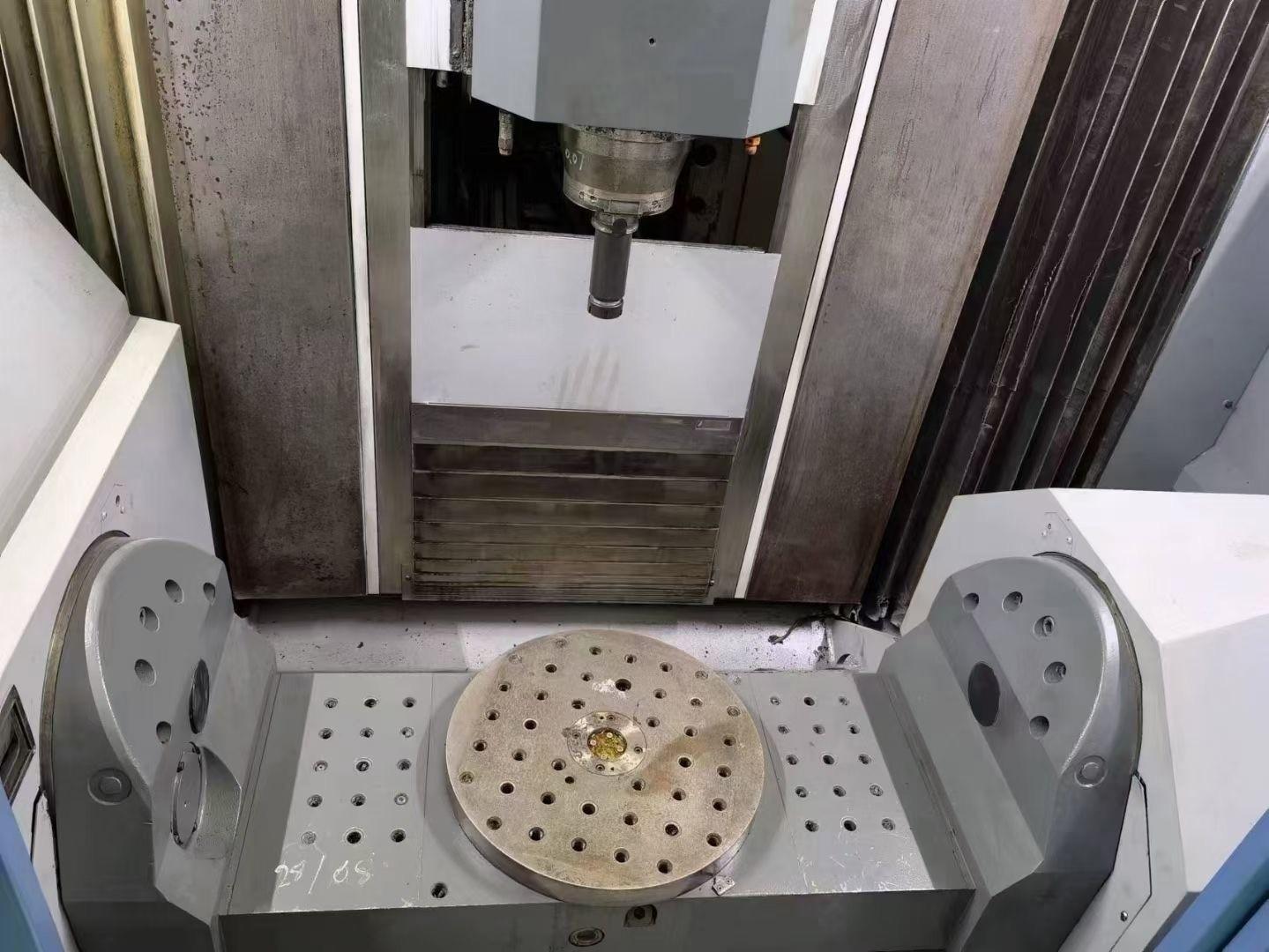

• Worktable size 940mmX430mm (cradle type worktable)


  Turning diameter 750mm

  Worktable load 320kg

  X axis travel 800mm

  Y-axis travel 630mm

  Z-axis travel 550mm

  B-axis rotation range  -100deg/+100deg

  C axis rotation range  360deg（arbitrary indexing resolution）

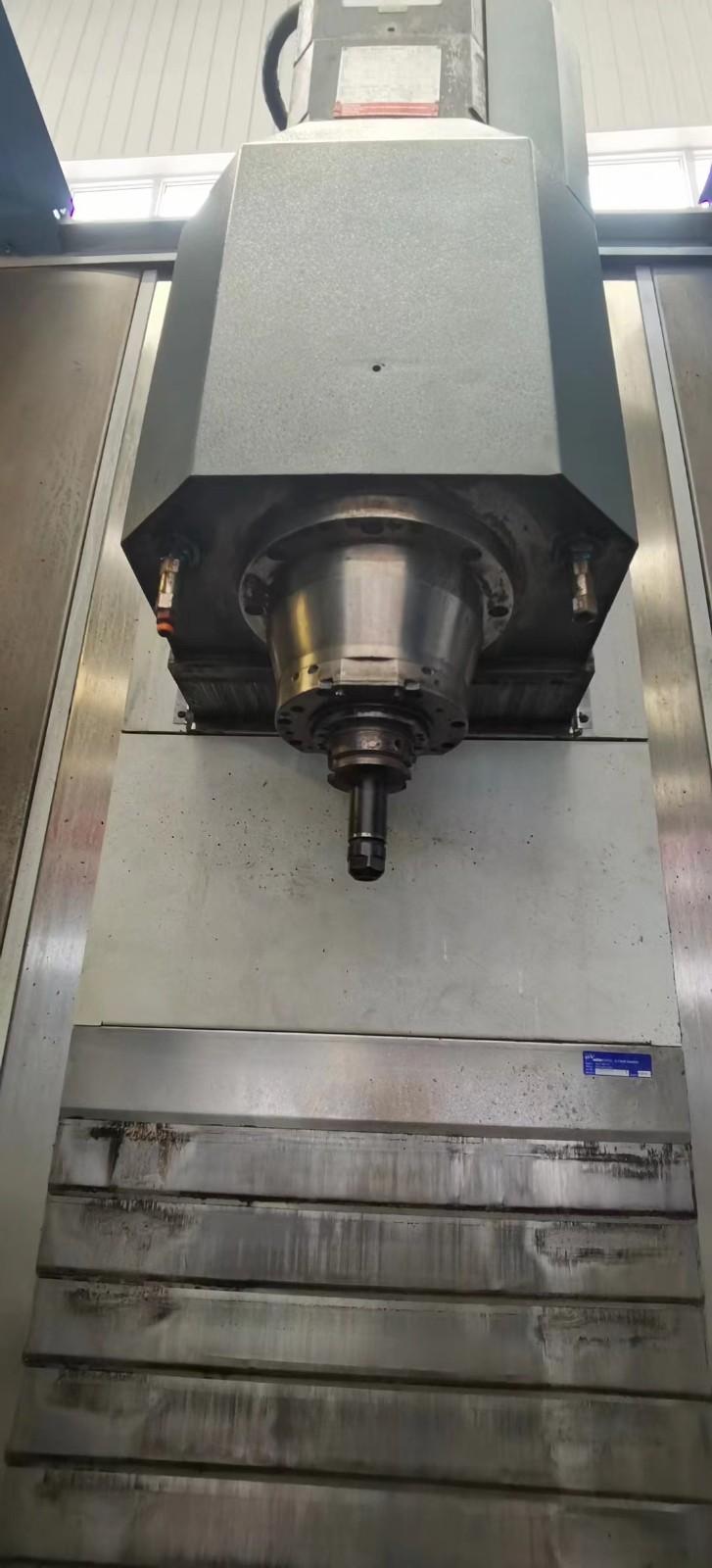

  Spindle speed  12000rpm

  Spindle power  22.5Kw

  Chain type ATC magazine of 40 tools, tool holder type HSK-A-63,

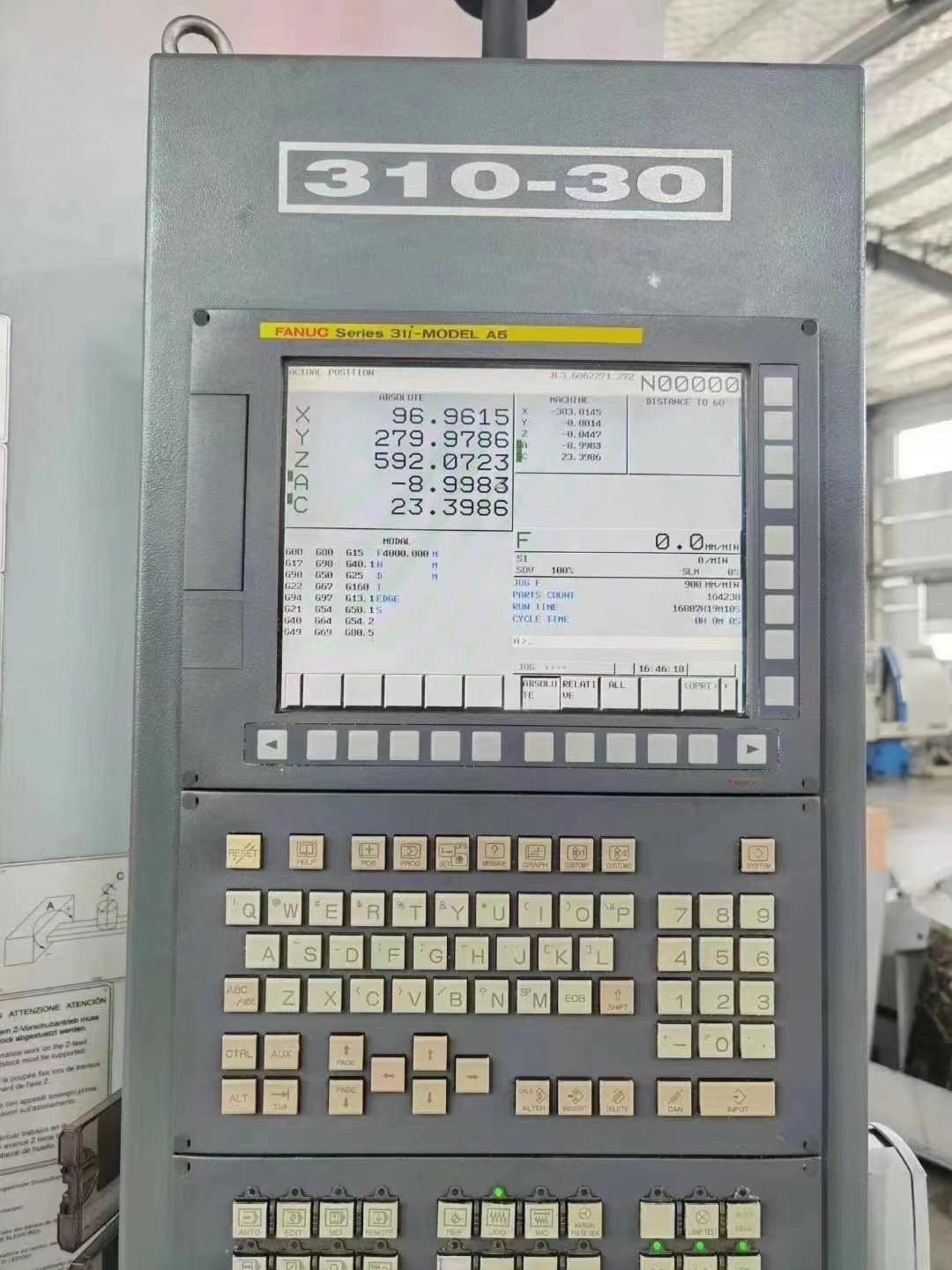

  FANUC Series 31i MODEL A5 system, with hydraulic interface technical function, suitable for rocket impeller, aircraft impeller, turbocharger impeller, aircraft engine manufacturing
