Specifications:

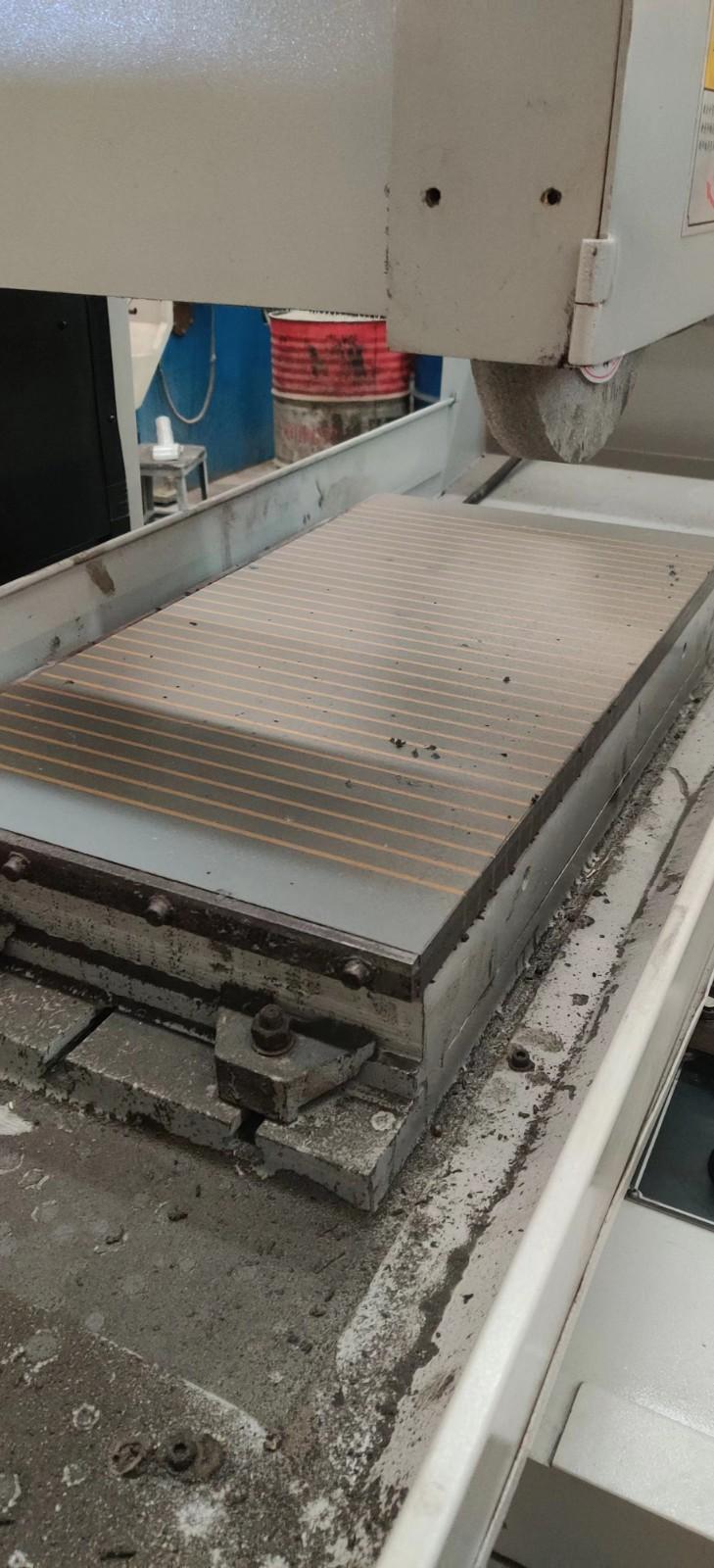

Worktable size (length x width) 800x400mm
Maximum travel of worktable (left and right/front and rear) 920/450mm
Maximum distance from worktable to spindle center 580mm
Maximum worktable load (including magnetic pallet) 700 kg
T-slot of worktable (size * quantity) 14x3 mm
Workable speed 5-25m/min
Front and rear automatic feeding rate 0.1~10mm
Fast front and rear movement (50HZ) 990mm/min
Fast front and rear movement (60HZ) 1190mm/min
Up and down automatic feed 0.005-0.025mm
Up and down Rapid movement 230mm/min

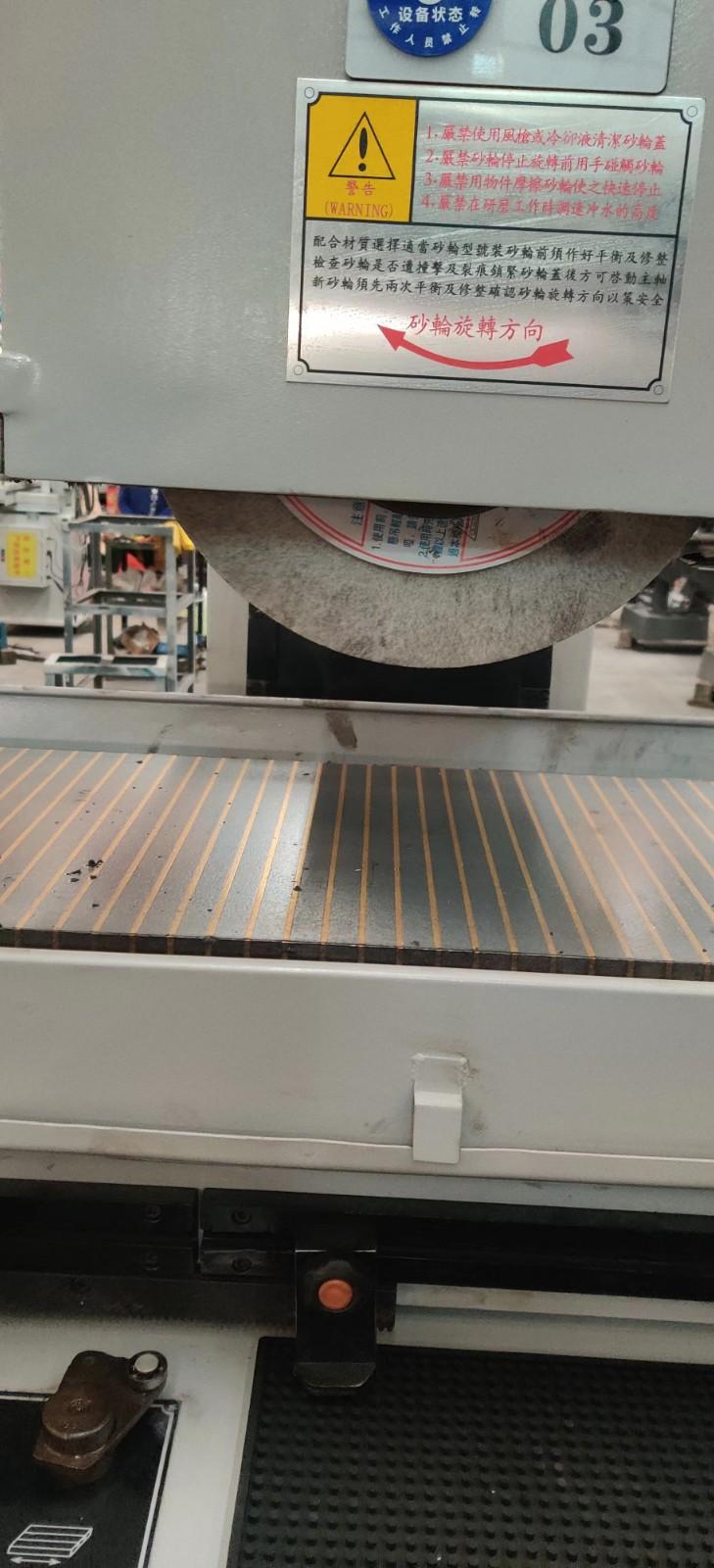

Grinding wheel size (external diameter x thickness x internal diameter)355x20~40x127 mm
Grinding wheel spindle speed (50HZ/60HZ) 1450/1740 rpm
