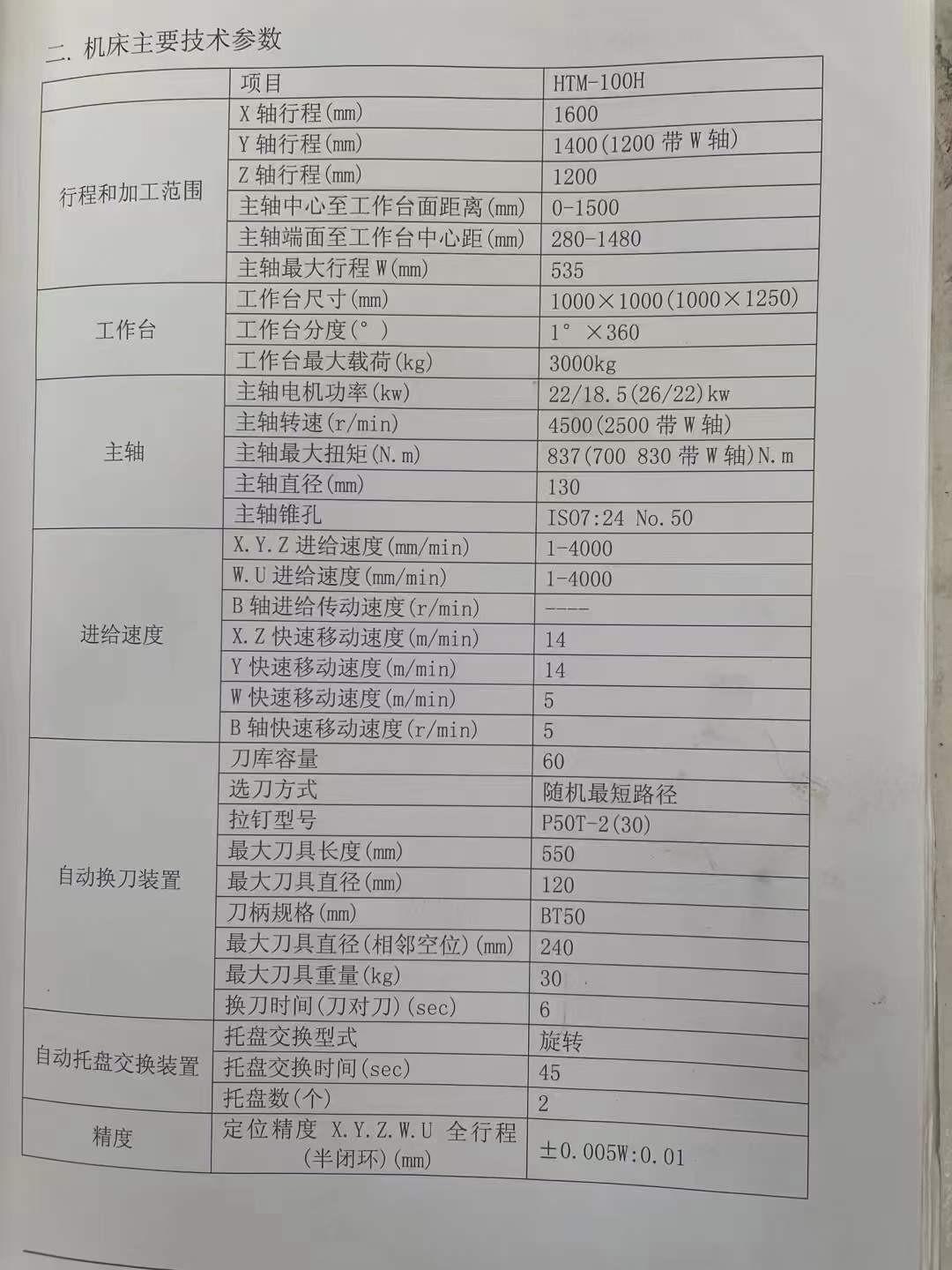

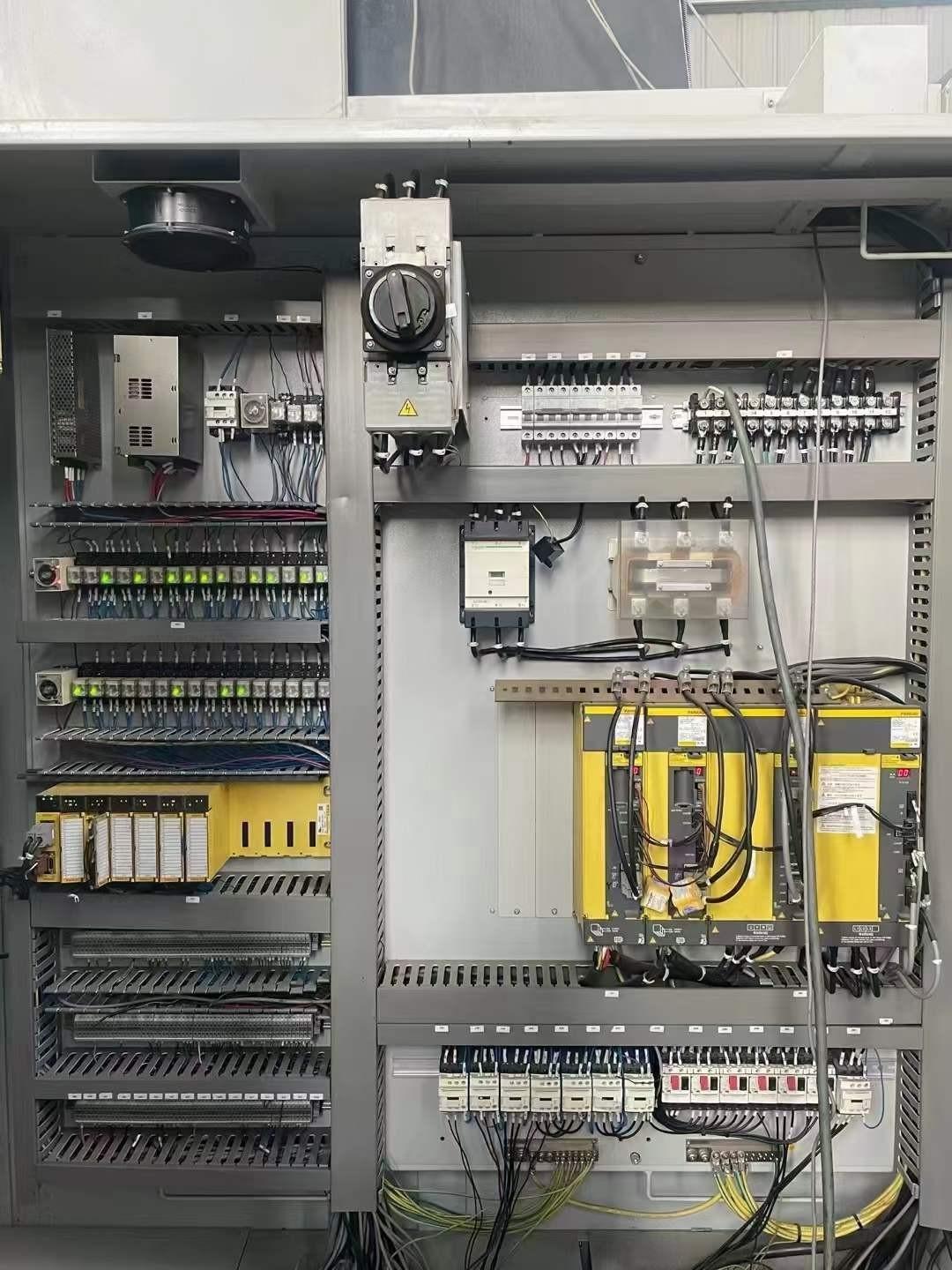

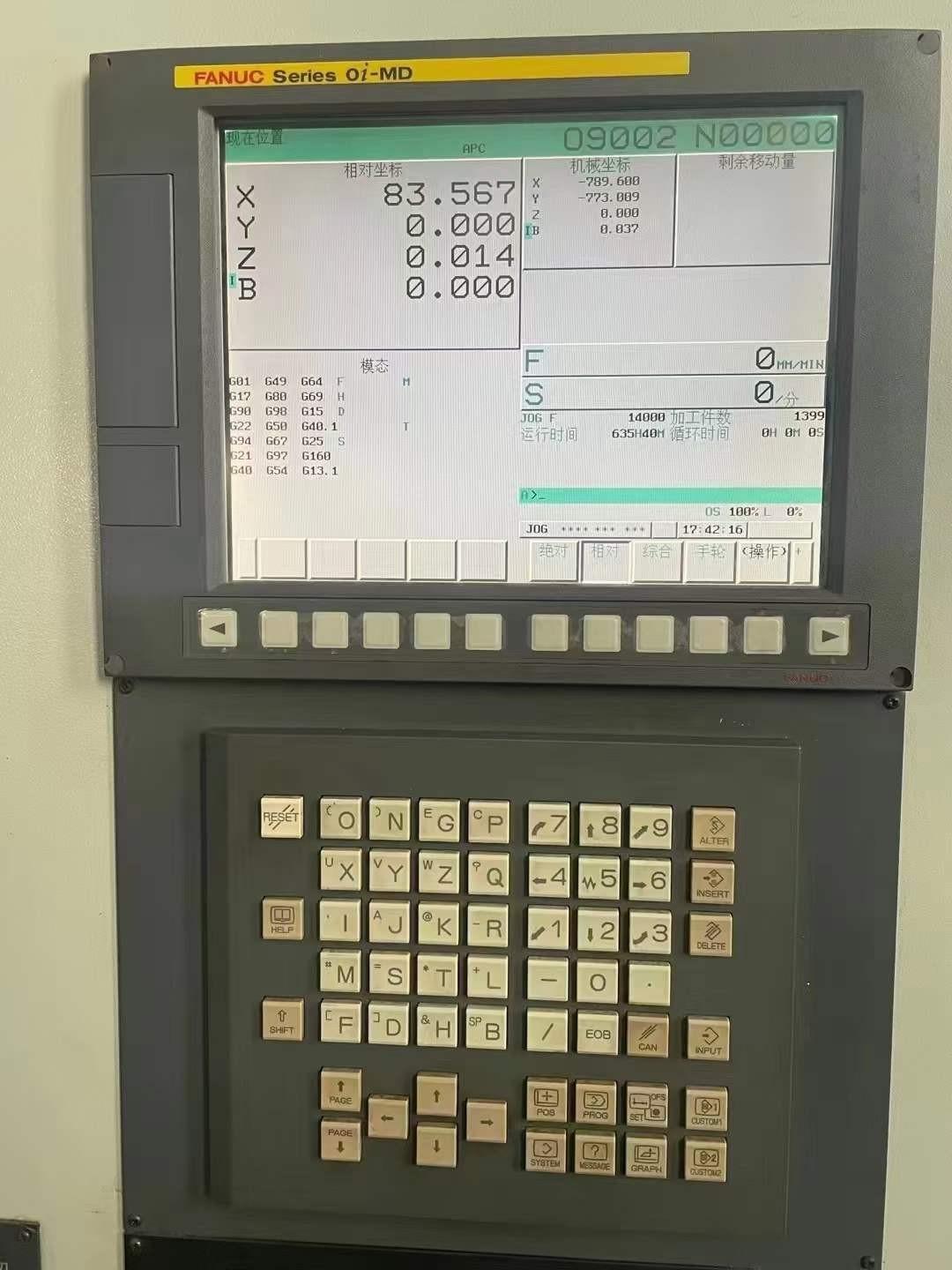

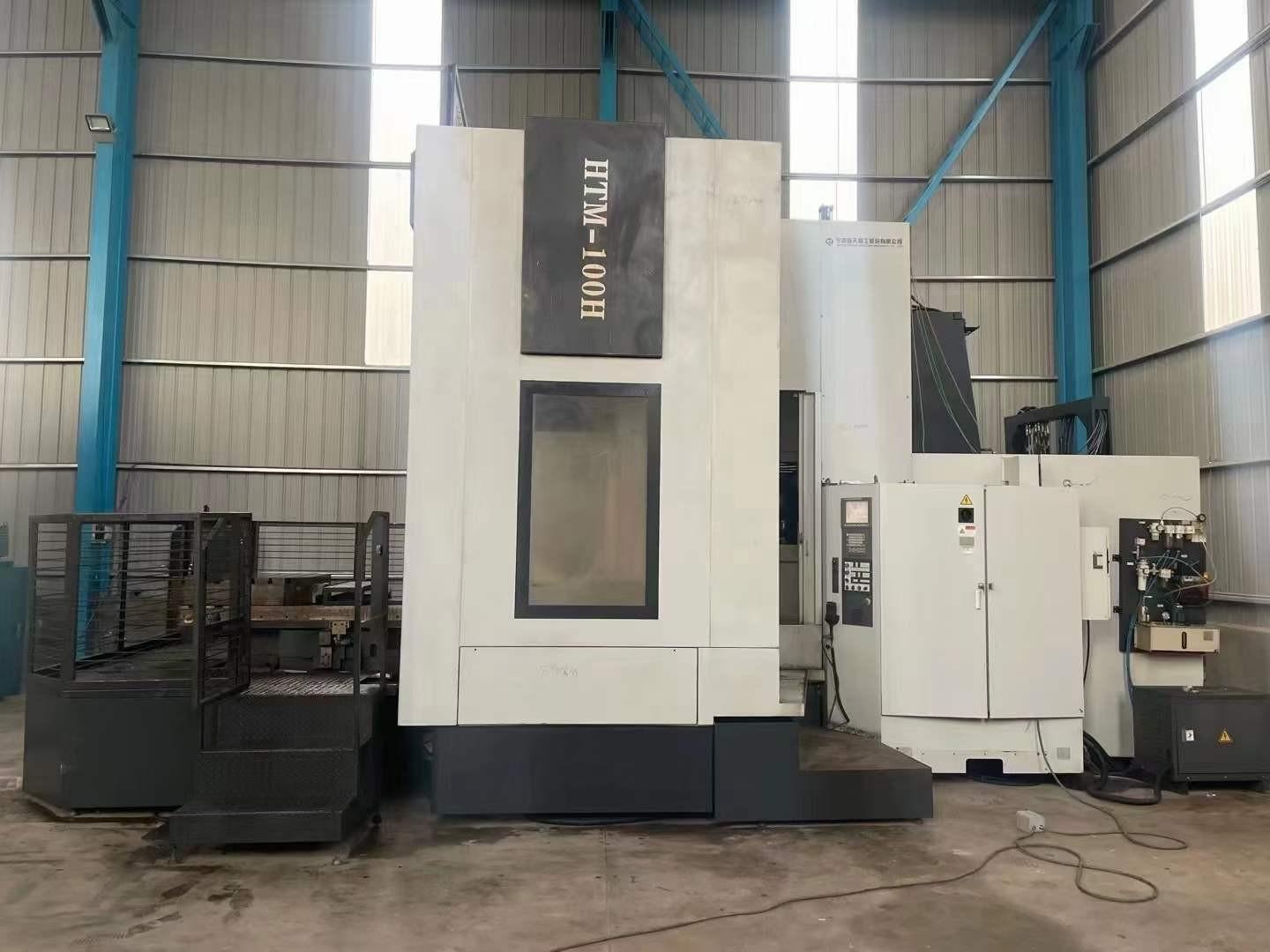

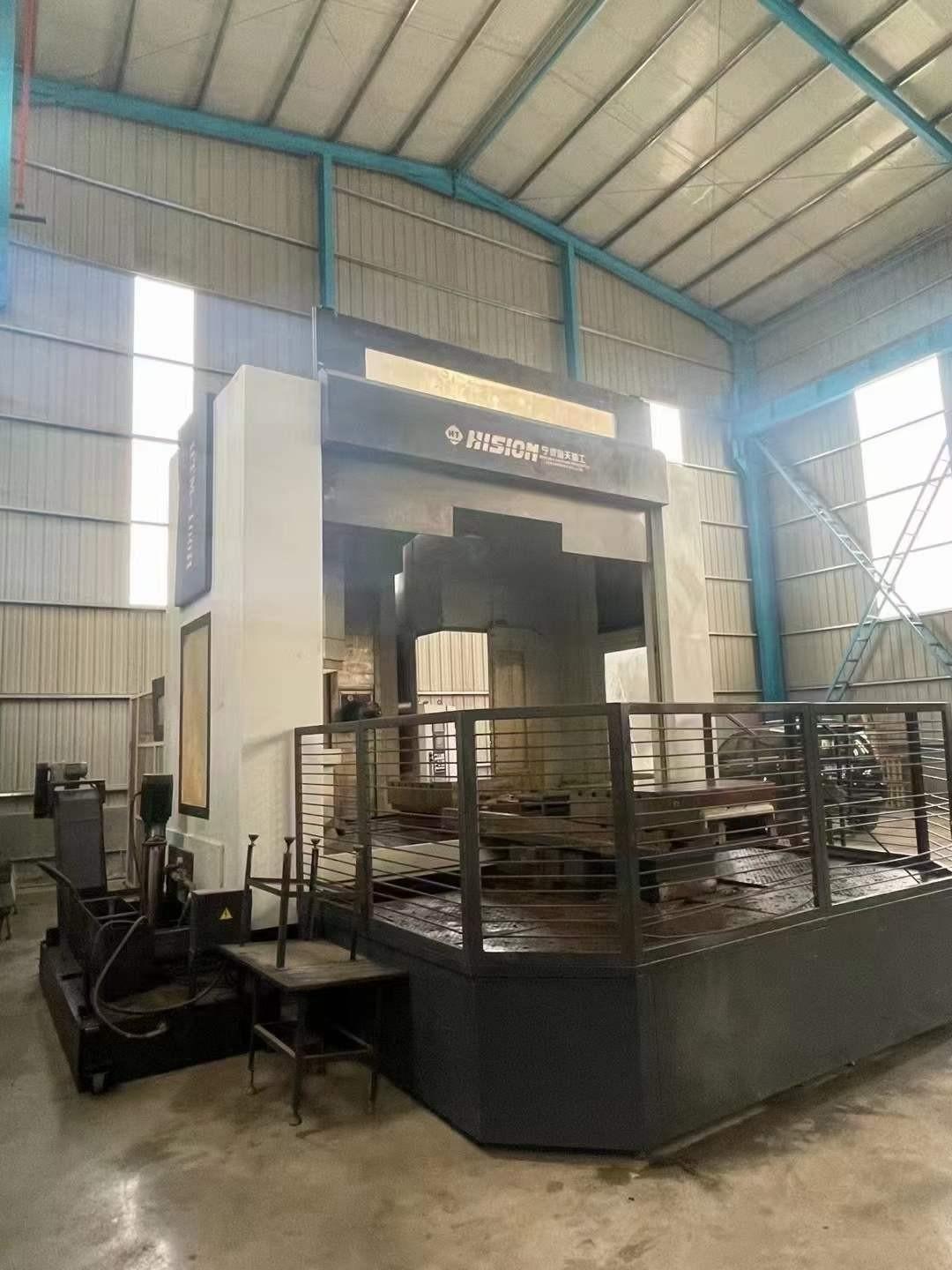

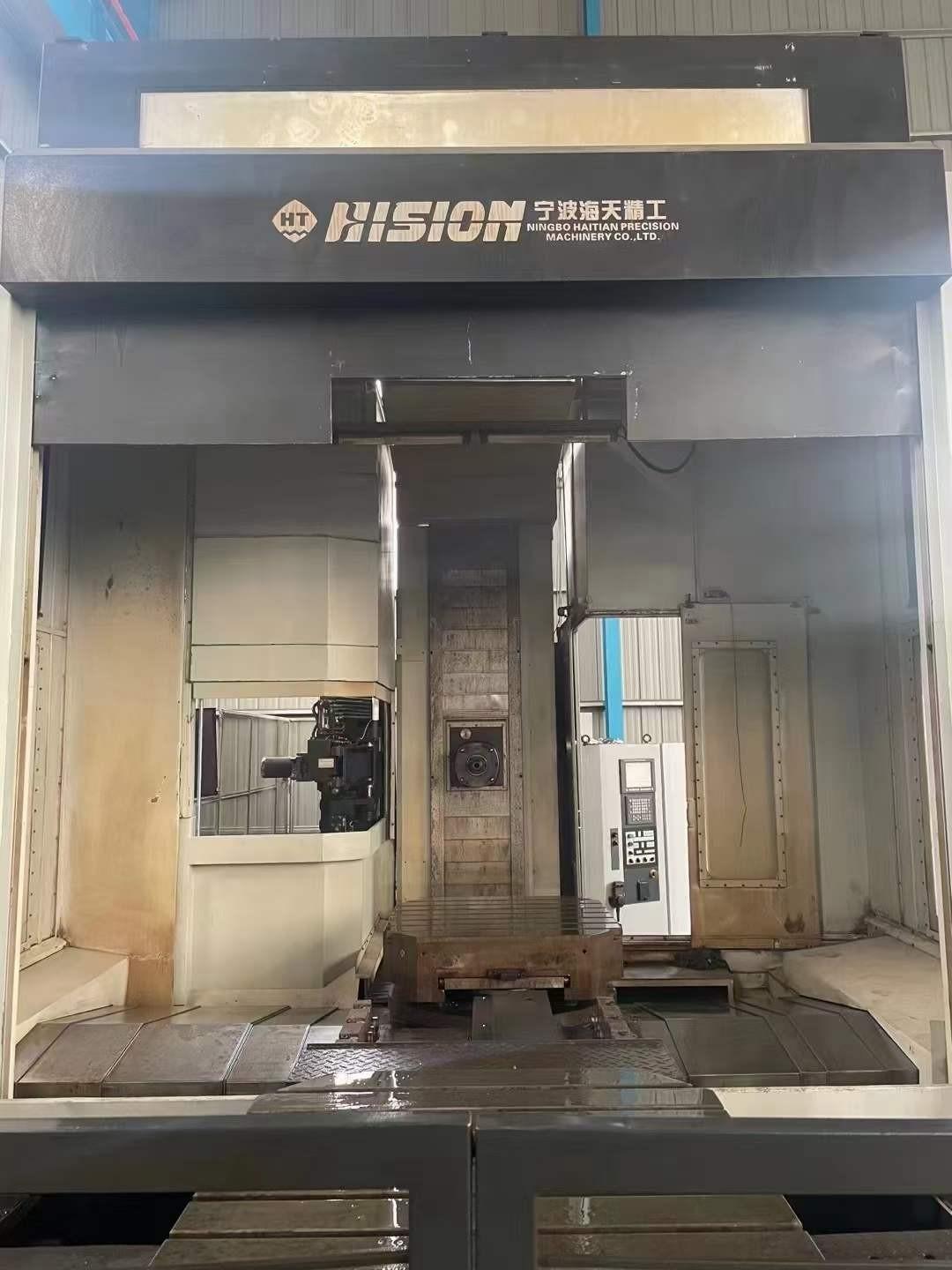

Specifications:

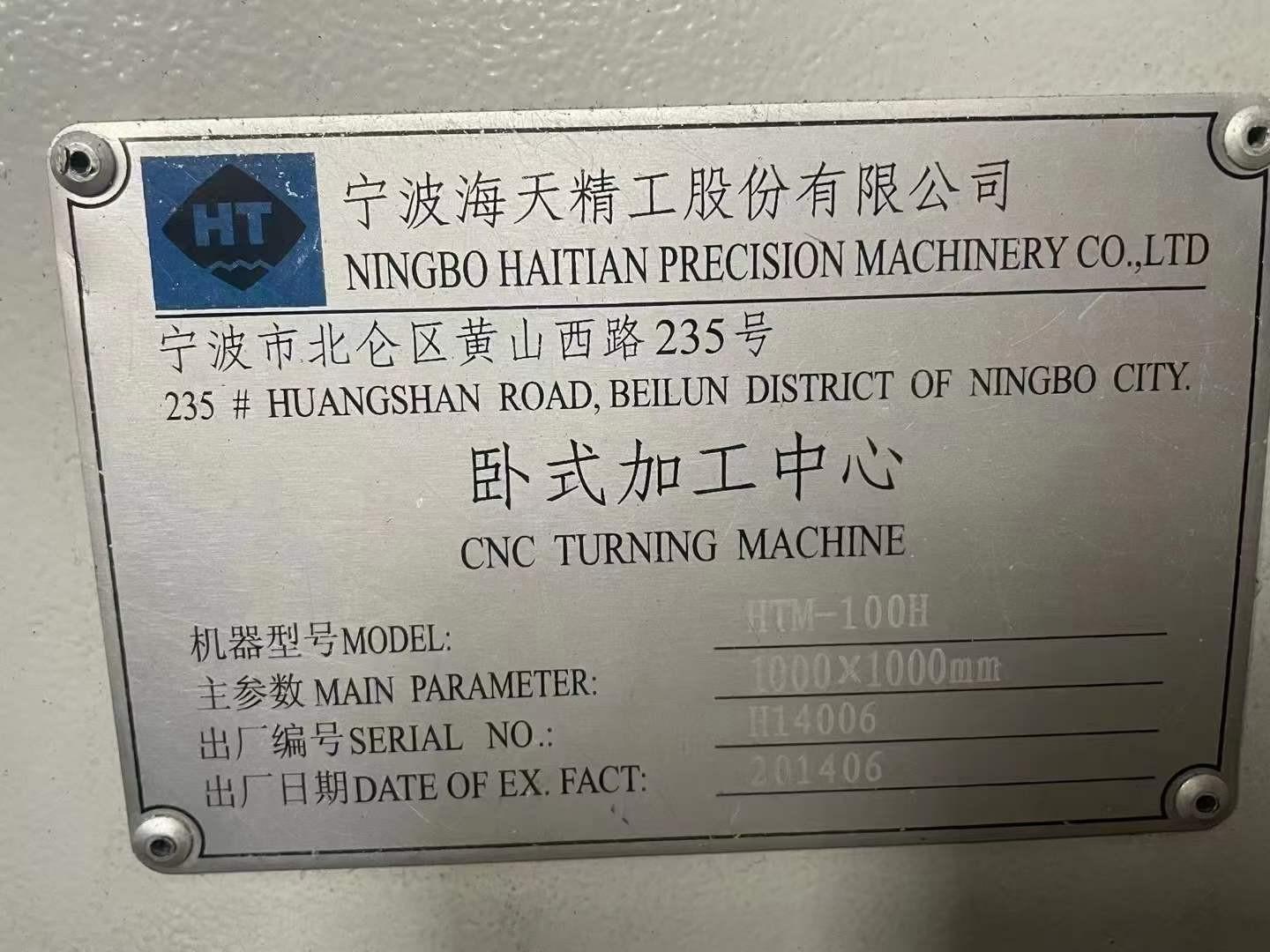

Brand HISION
Model HTM-100H
X-axis travel 1600 (mm)
Y-axis travel 1400 (mm) (1200 with W-axis)
Z-axis travel 1200 (mm)
W-axis travel 535 (mm)
Distance from spindle center to worktable surface 0-1500(mm)
Distance between spindle nose and worktable center 280-1480 (mm)

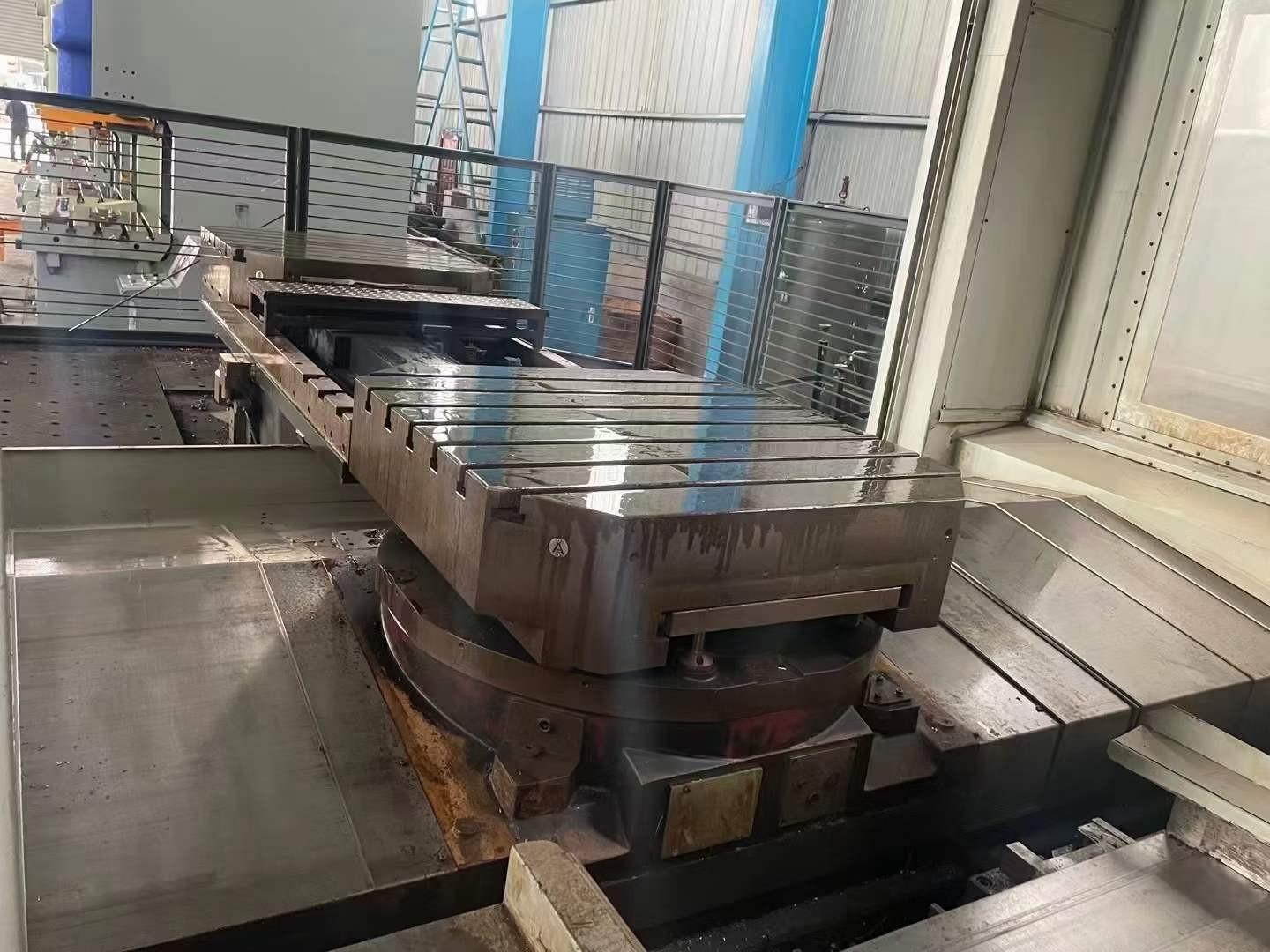

Worktable size 1000x1000 (1000x1250) (mm)
Worktable indexing resolution 1 ° x360 (°)
Maximum worktable load 3000 (kg)
Spindle motor power 22/18.5 (26/22) (kw)
Spindle speed 4500rpm (2500 with W shaft)
Maximum torque of spindle 837 (N.m)
Spindle diameter 130 (mm)
Spindle taper ISO7:24 No.50
Feed rate of X.Y.Z axis 1-4000 (mm/min)
W.U axis feed rate 1-4000 (mm/min)
X.Z fast moving rate 14 (m/min)
Y-axis fast moving rate 14(m/min)
W axis fast moving rate 5 (m/min)
Fast moving rate of B axis 5 (m/min)
Tools magazine 60
Tool selection mode random shortest path
Pop rivet type P50T-2 (30)
Maximum tool length 550 (mm)
Maximum tool diameter 120 (mm)
Tool holder type BT50 (mm)
Maximum tool diameter 240 (mm)
Maximum tool weight 30 (kg)
Tools changing time (tool to tool) 6 (s)
Pallet exchanging time 45 (s)
Number of pallets 2
Positioning accuracy X.Y.Z.W.U full travels (half closed-loop) ± 0.005W: 0.01 (mm)
