• Inventory number：80198
• Brand：WIA
• Model：KH50G
• Origin：South Korea
• Location：China
• Year：
• Create Time：2022-12-01

Specifications:

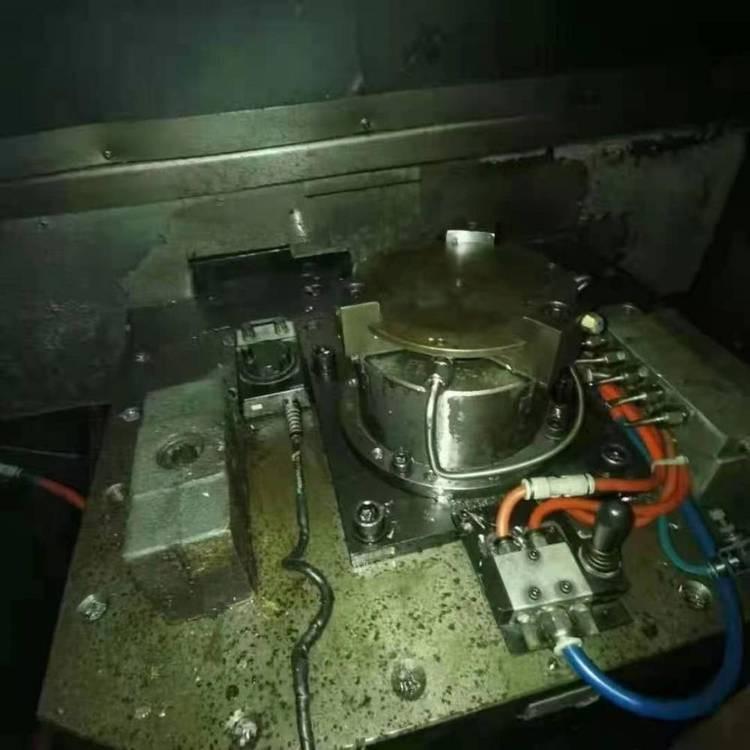

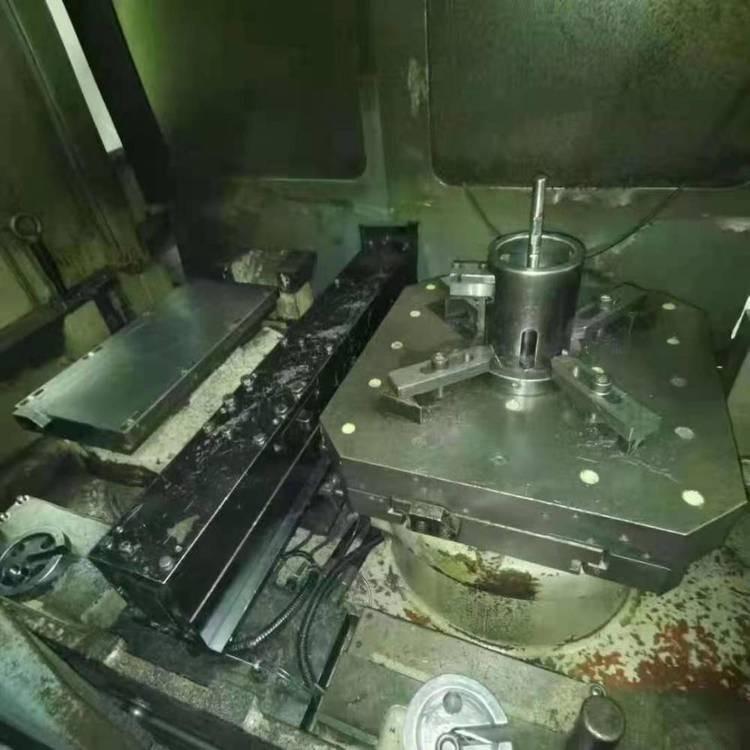

• Worktable size 500X500mm

  Worktable drive HyD. CylINDER

  Worktable load: 2-800kgf

  Worktable indexing 0.001deg

  Maximum workpiece size Ø 900xH780mm

  Gear Spindle BT50

  Spindle taper NT # 50

  Spindle speed 20~4500 [8000] r/min

  Spindle power 18.5/15 [18.5/15] kW

  Spindle torque 901/730 [657/532] N.m

  Maximum travel (X/N/Z) 760/705/650mm

  Distance from worktable surface to spindle nose 0~705mm

  Distance from column surface to spindle center 135~785mm

  Rapid feed speed (X/N/Z) 20/20/20 m/min

  Cutting feed rate (X/Y/Z) 5m/min

  Tool magazine 60, accuracy 0.01mm

  Voltage 220/60 (200/50) V/Hz

  Floor area (LxW) 2890X4340mm

  Height (h) 3076mm

  Machine weight 12000 kg

  With full glass scales

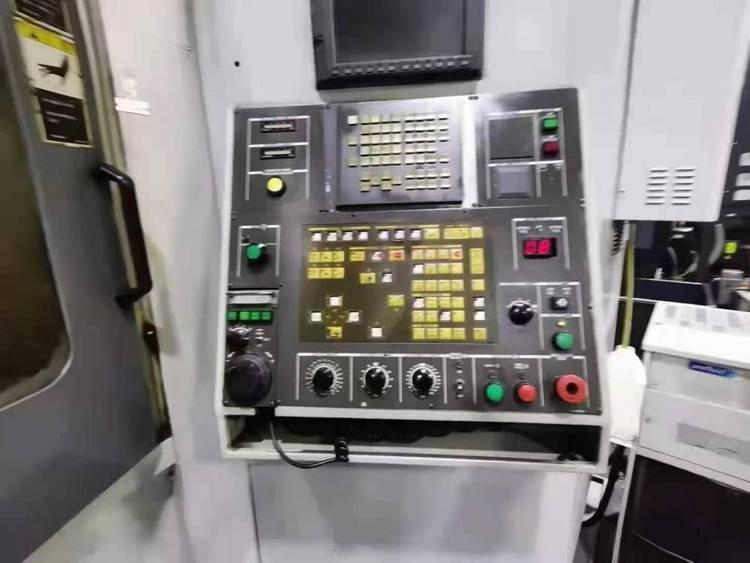

  Fanuc 31i Control
