• Inventory number：70275
• Brand：DMU
• Model：60mono BLOCK
• Origin：Germany
• Location：China
• Year：
• Create Time：2022-12-01

Specifications:

• Origin: Germany

  Ex-factory date: 2010

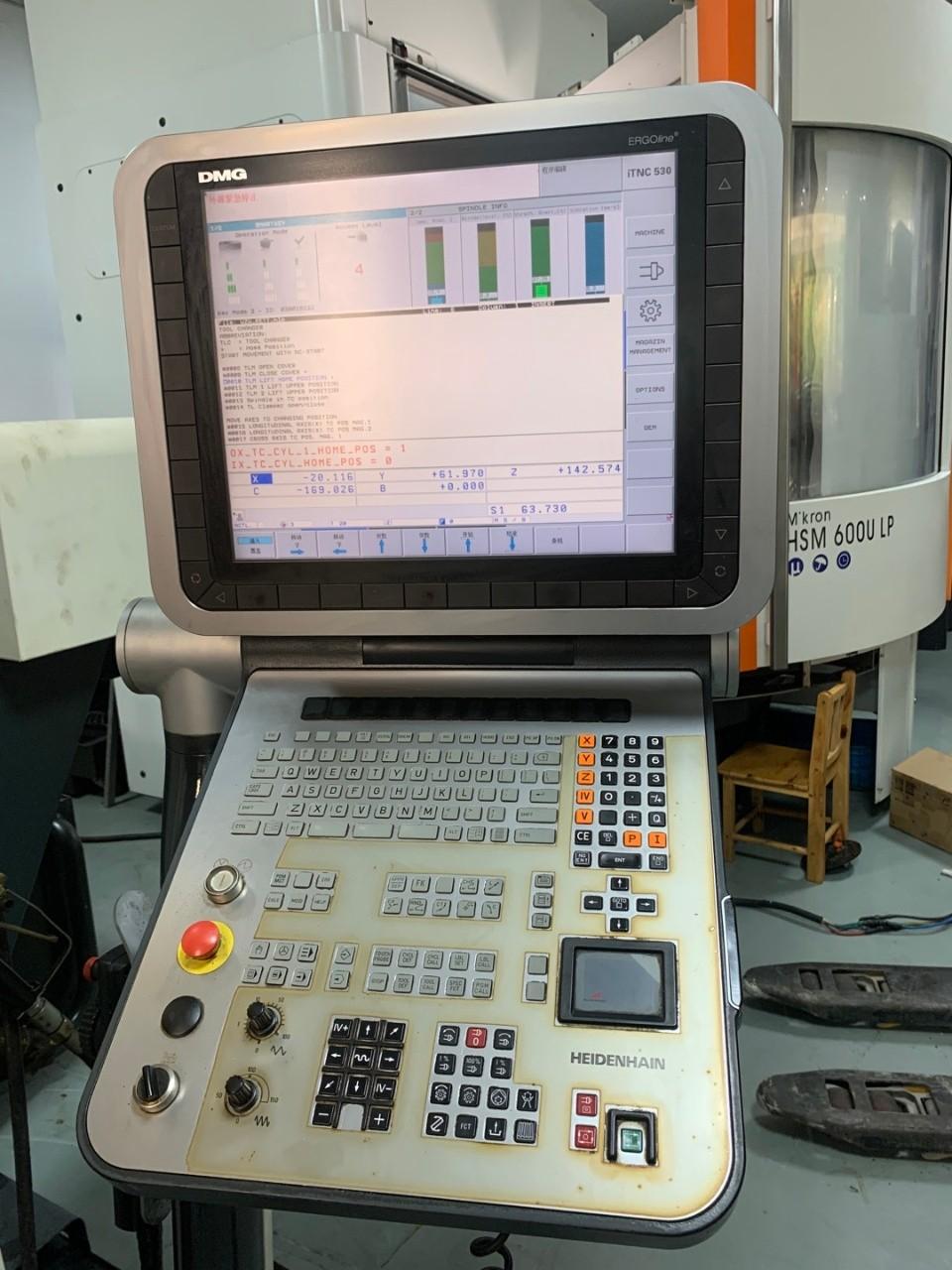

  Control system: Heidenhain iTNC 530

  X-axis travel: 730 mm

  Y-axis travel: 560 mm

  Z-axis travel: 560 mm

  B-axis swing angle : - 120/+30degrees

  C-axis: 360 x 0,001 degrees

  Rapid feed: 30/30/30 m/min

  Tool magazine: 24

  Tool holder: SK40

  Spindle speed: 18000rpm

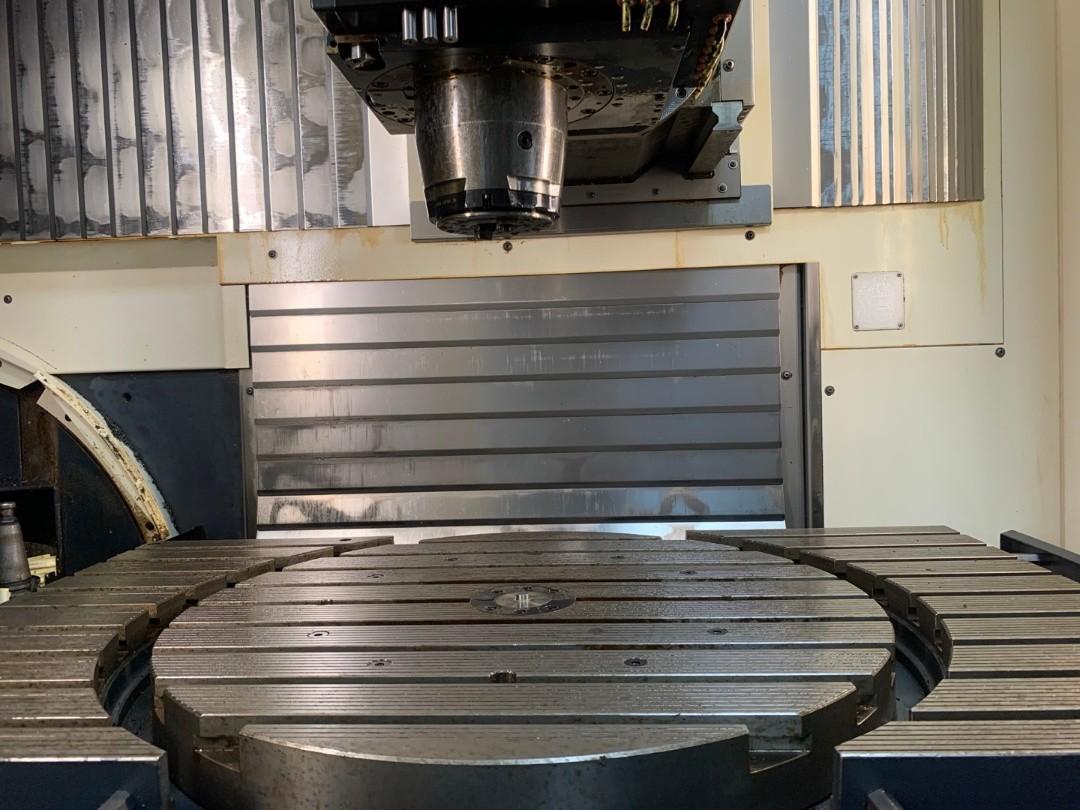

  Worktable size: 600 mm

  Rigid worktable: 1000 mm x 600 mm

  Worktable load: 500 Kg

  T-slot width: 14 mm

  Number of T-slots: 7

  Tool clamping DIN 69872

  T-slots distance: 63 mm

  Weight: 6800 Kg

  With water tank and chip conveyor.
