• Inventory number：70288
• Brand：The wines

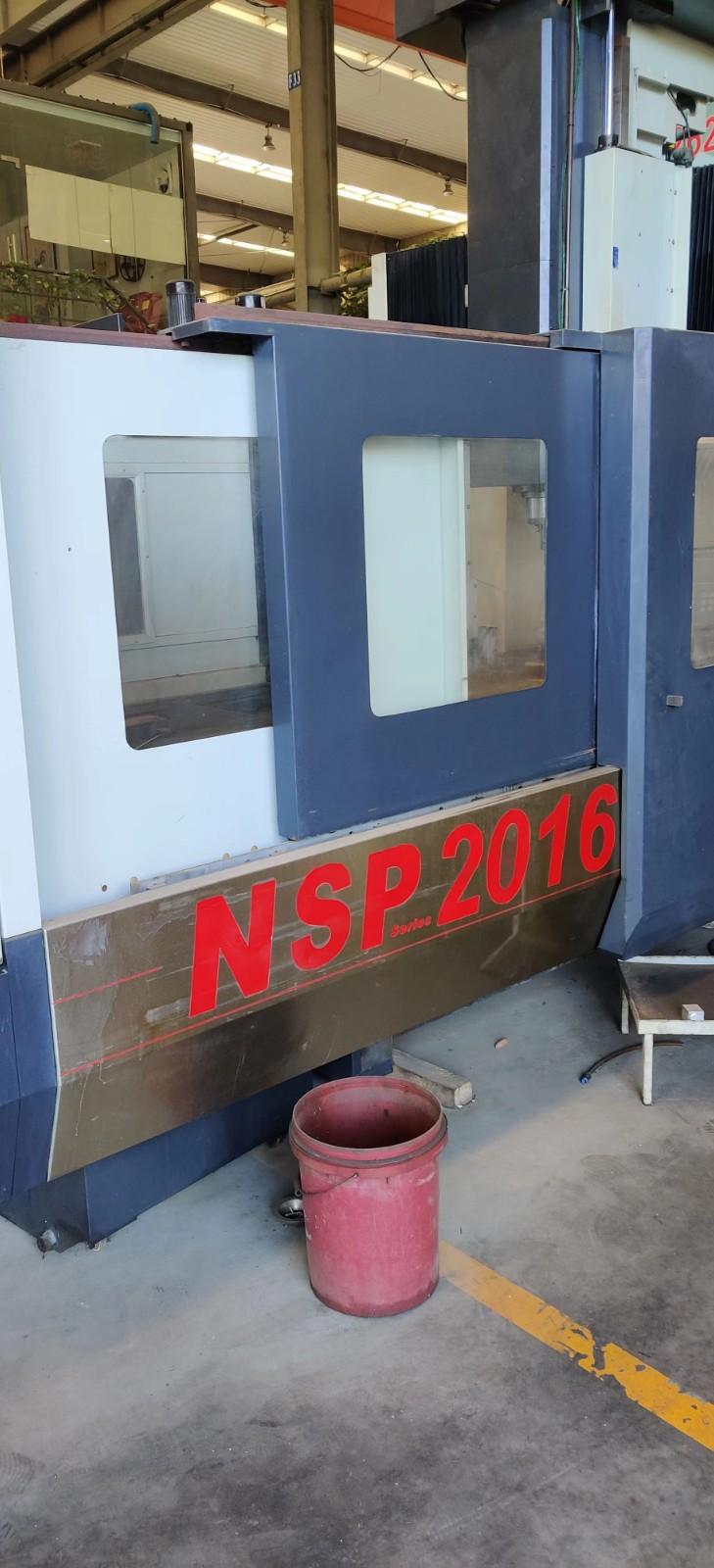

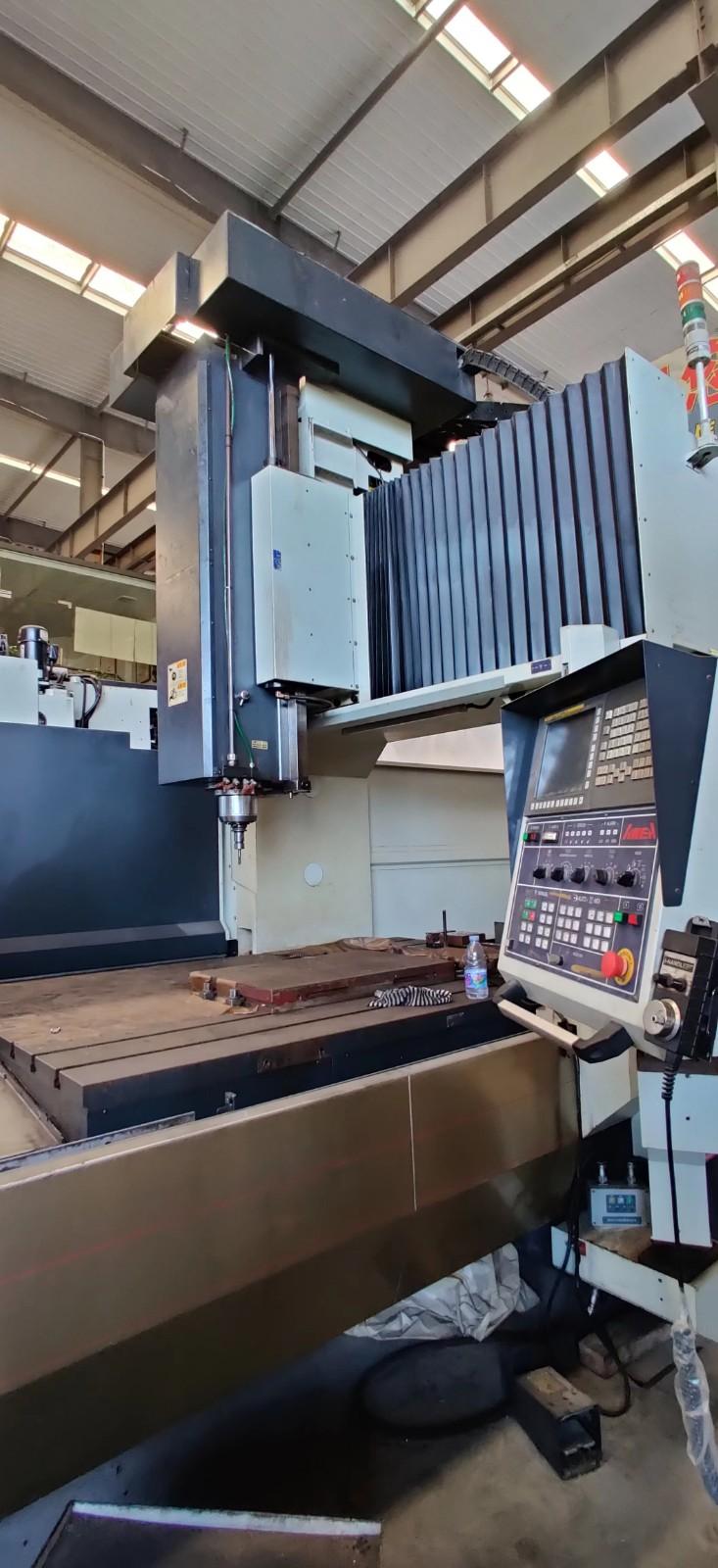

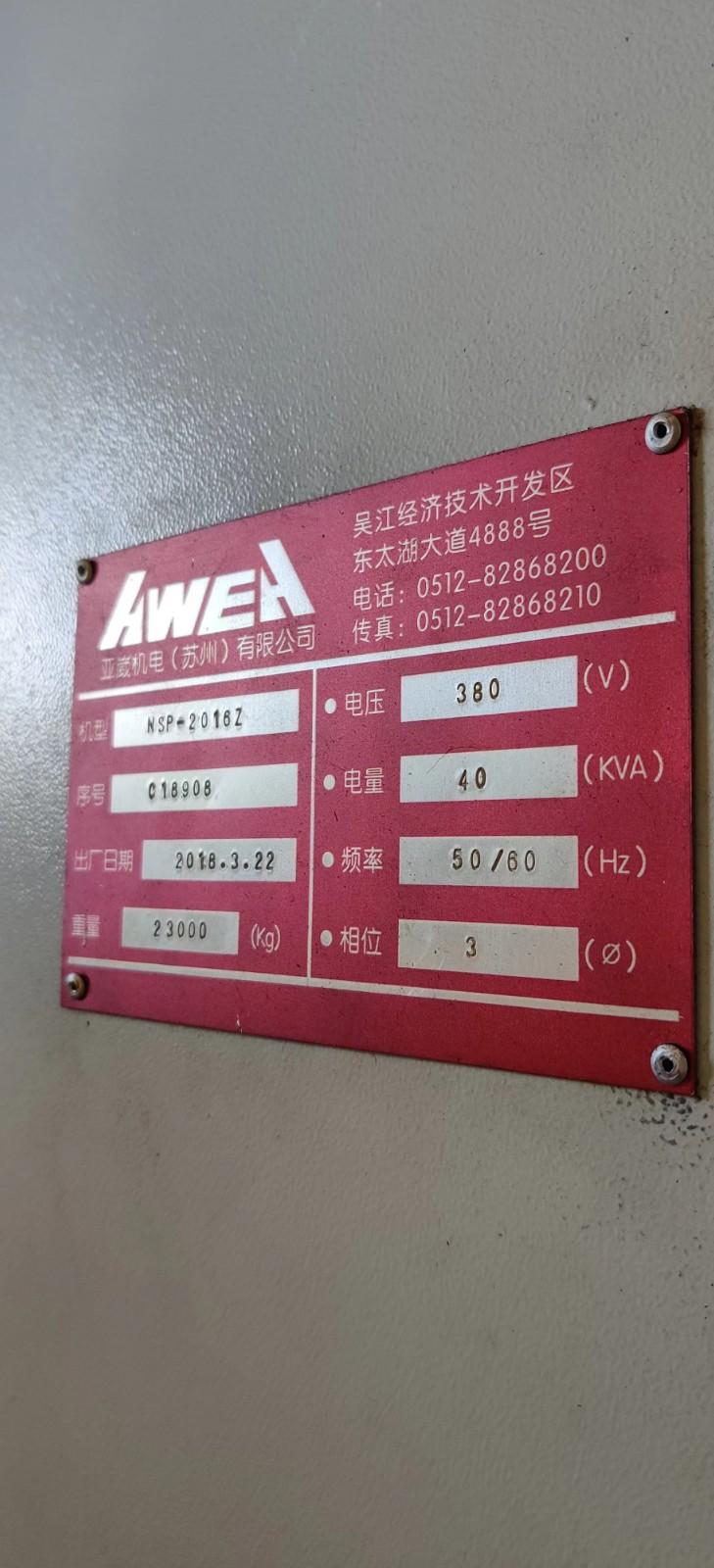

• Model：NSP-2016Z
• Origin：Taiwan
• Location：China
• Year：
• Create Time：2022-12-01

Specifications:

• XYZ axis travel: 2100 * 1600 * 760mm

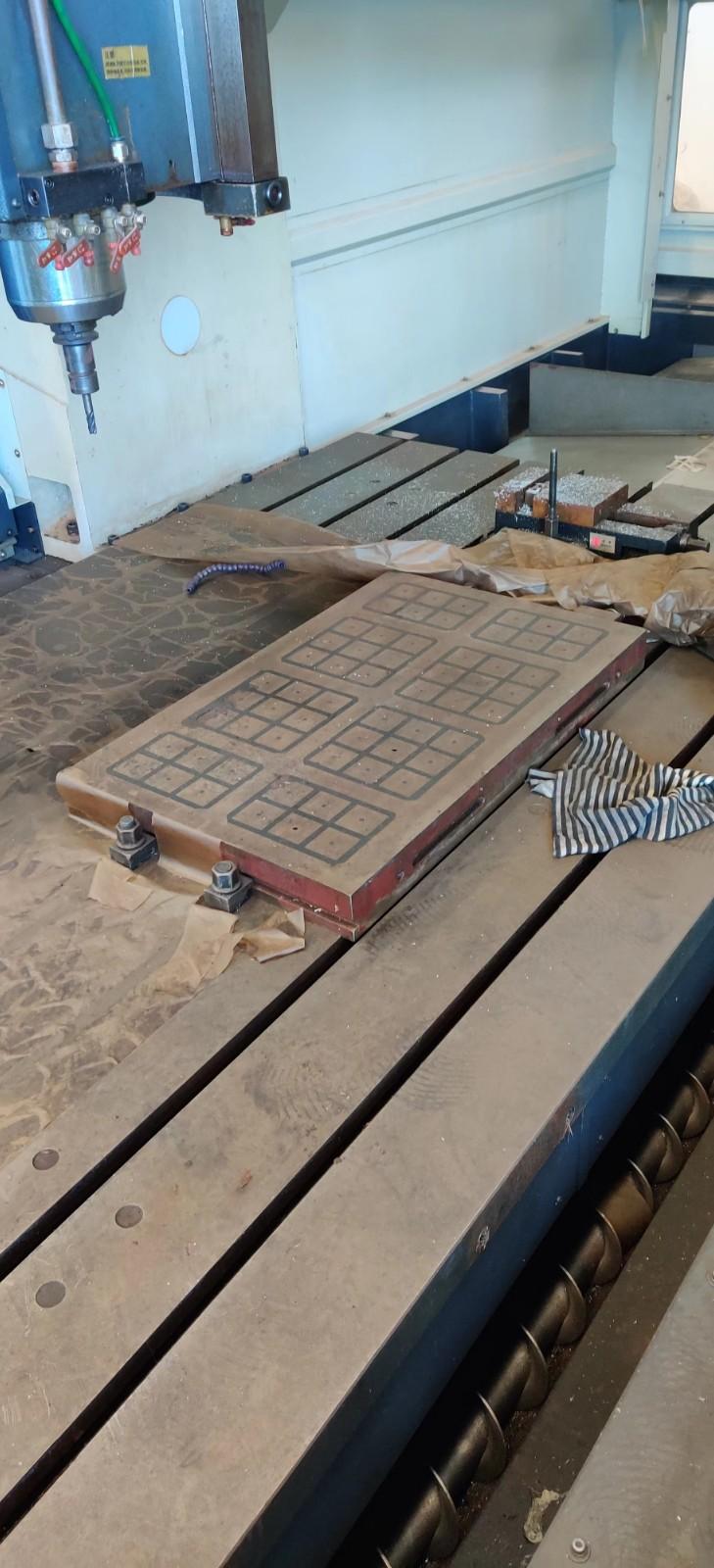

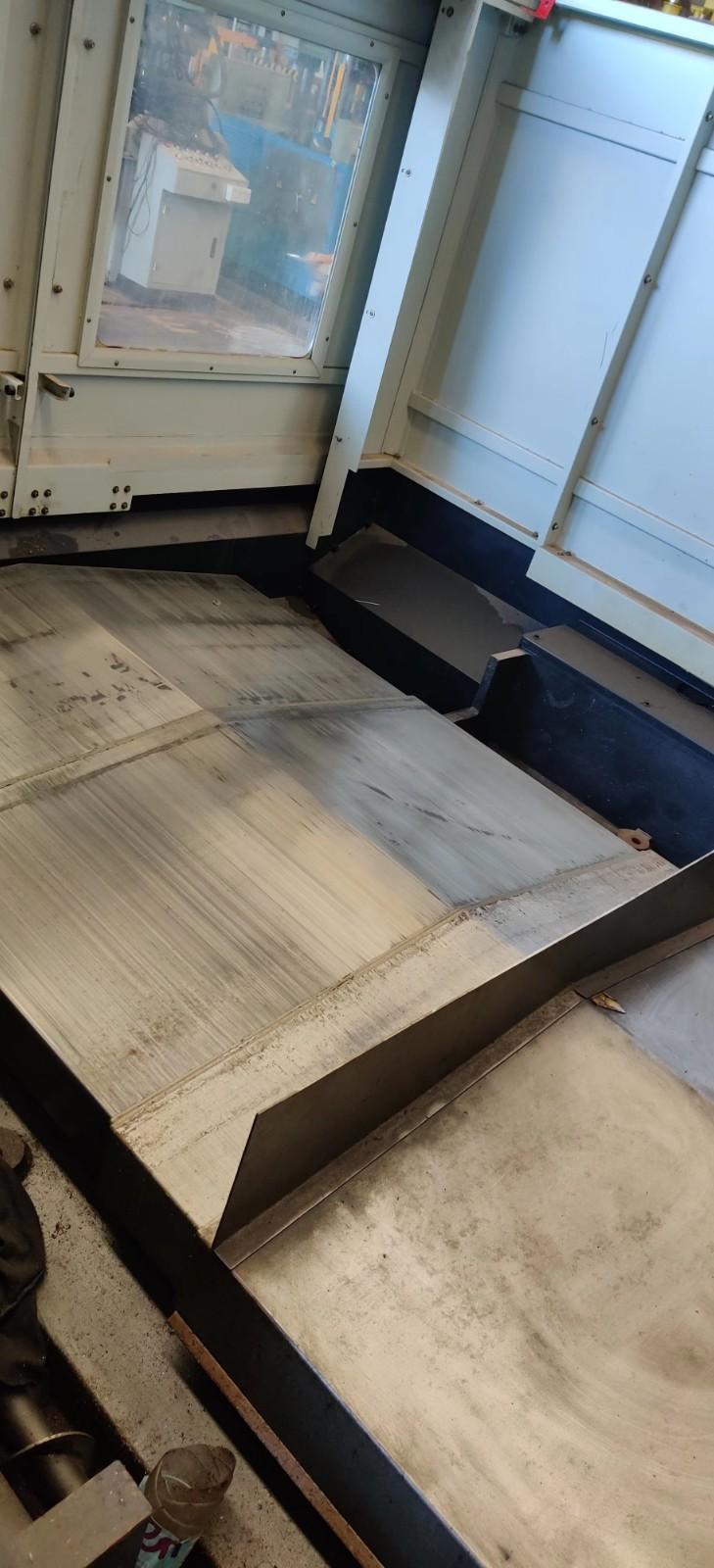

  Worktable size: 2310 * 1500mm

  Two linear guideways and one rigid guideway

  Main motor power: 22/26kw

  Spindle speed: 6000/15000rpm

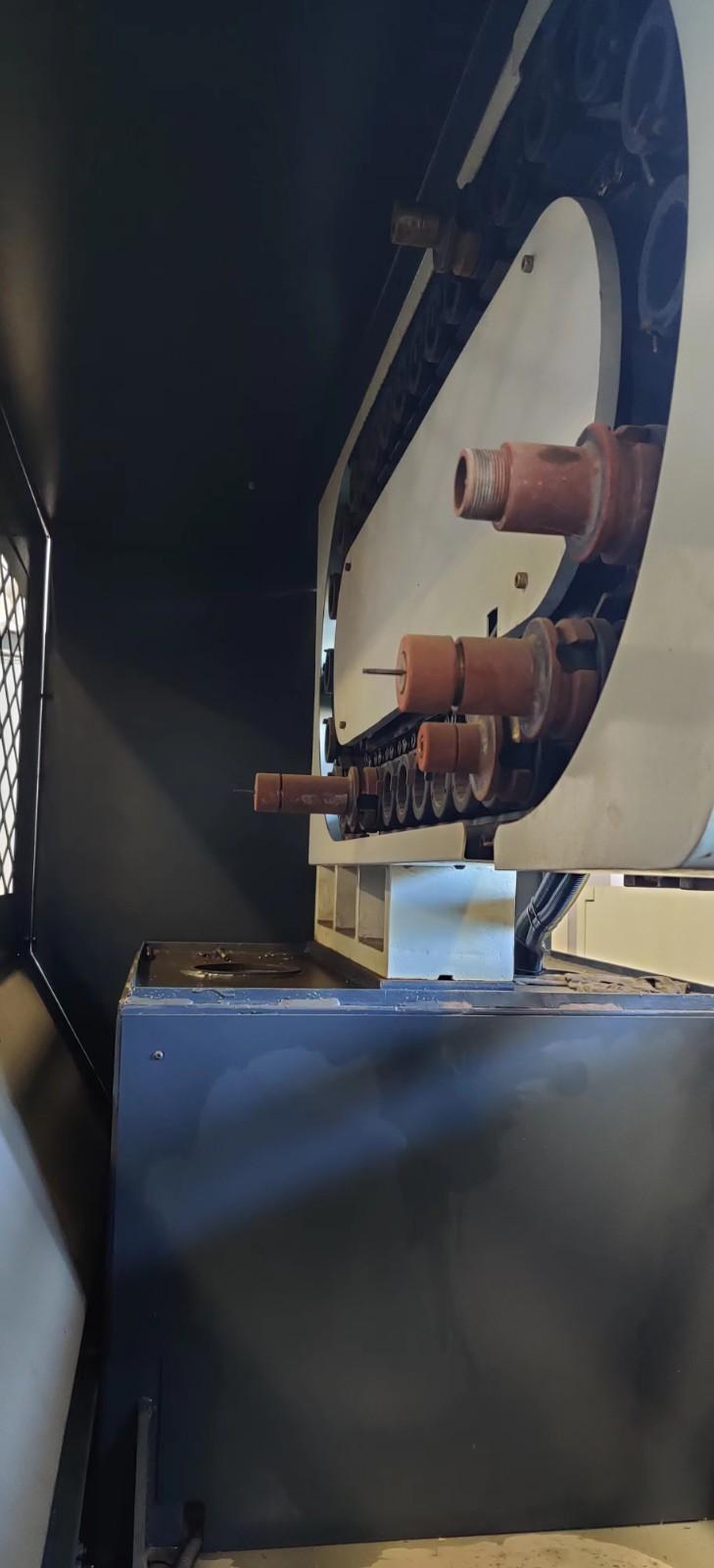

  Tool magazine: 32

  Tool holder: BT40

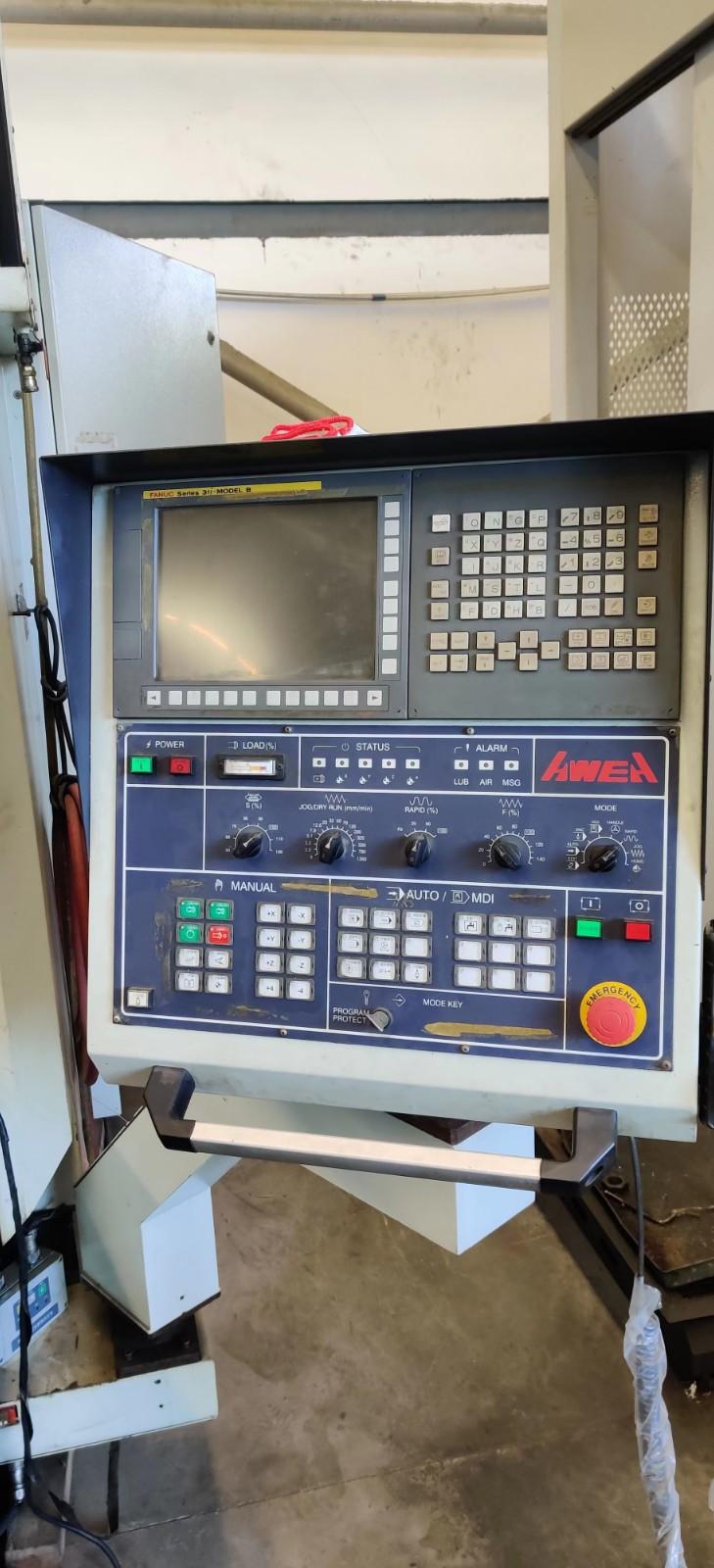

  System: Fanuc 31i model B

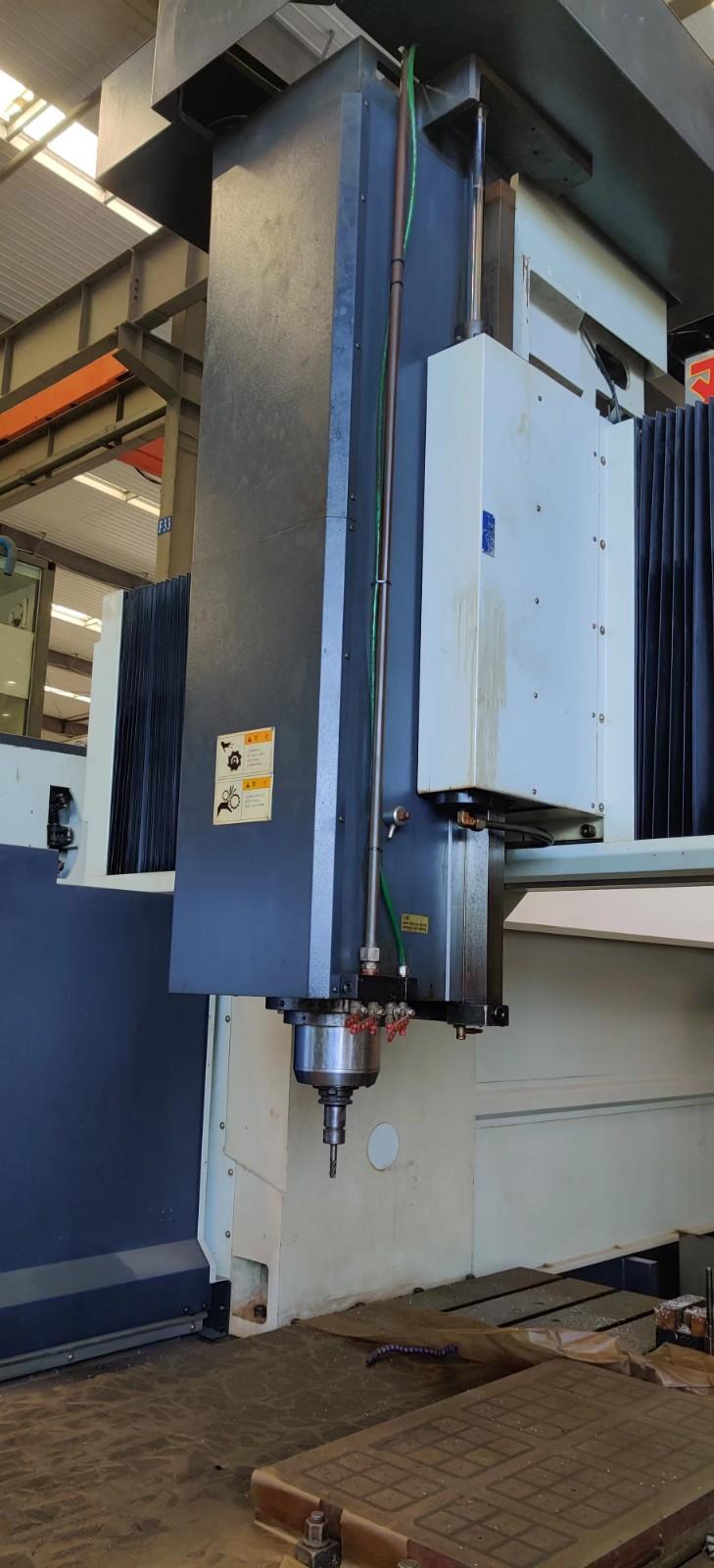

  Distance from spindle nose to worktable surface: 240-1000 mm

  Spindle power: 26kw

  Machine weight: 5800kg

  Machine overall dimensions 5600 * 3600mm
