• Inventory number：70289
• Brand：AgieCharmilles
• Model：HEM 800
• Origin：Switzerland
• Location：China
• Year：
• Create Time：2022-12-01

Specifications:

• Three axes travel: 850x530x600mm

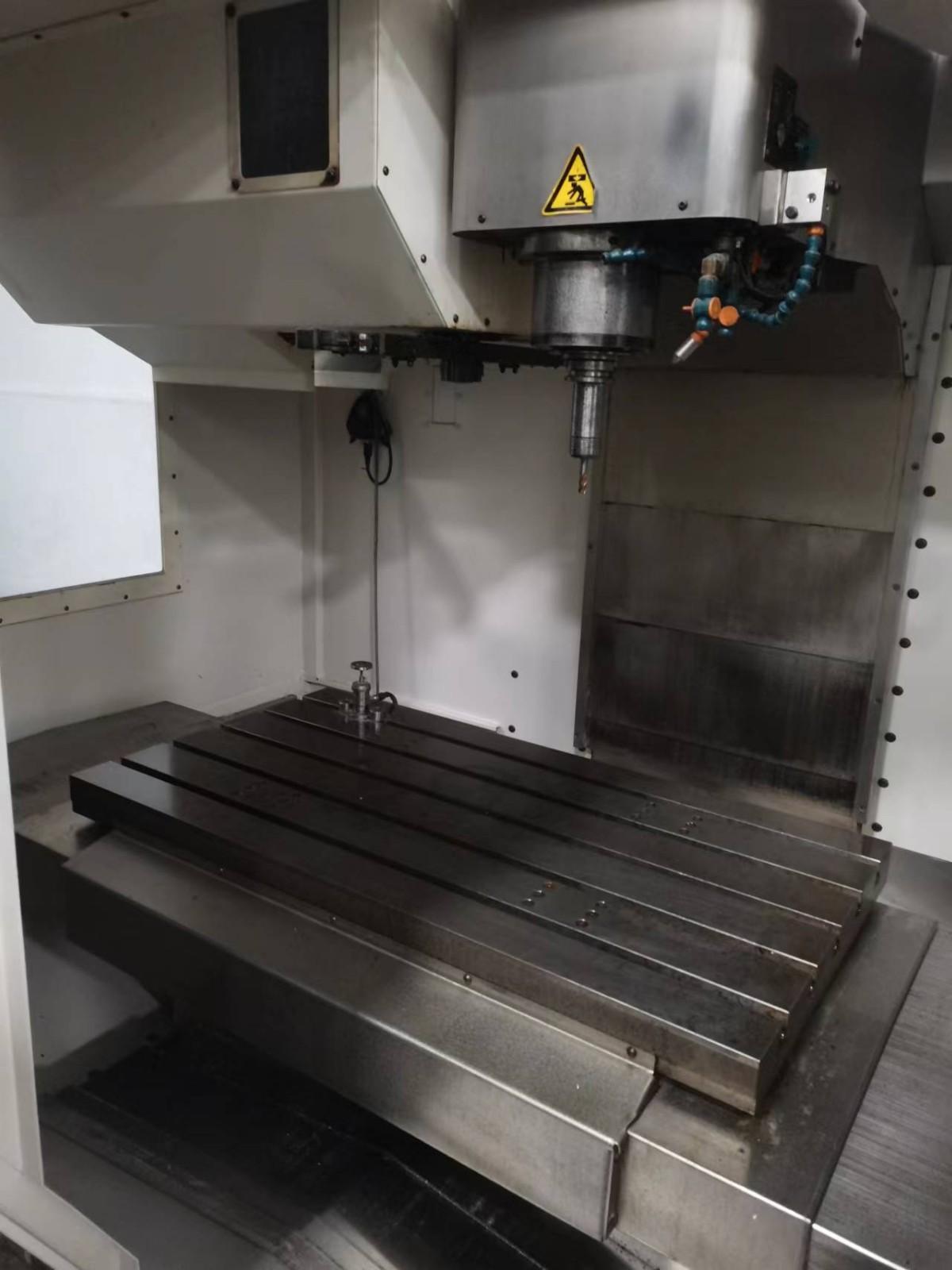

  Worktable size: 1050x560mm

  Worktable load: 1000kg

  Distance between worktable surface and spindle nose: 150-750mm

  Main motor power: 9.5kw

  Spindle speed: 9000/18000rpm

  Working feed: 30-30-30-min

  Rapid feed: 30m min

  Ex-factory date: 2016

  Tool weight: 7100kg

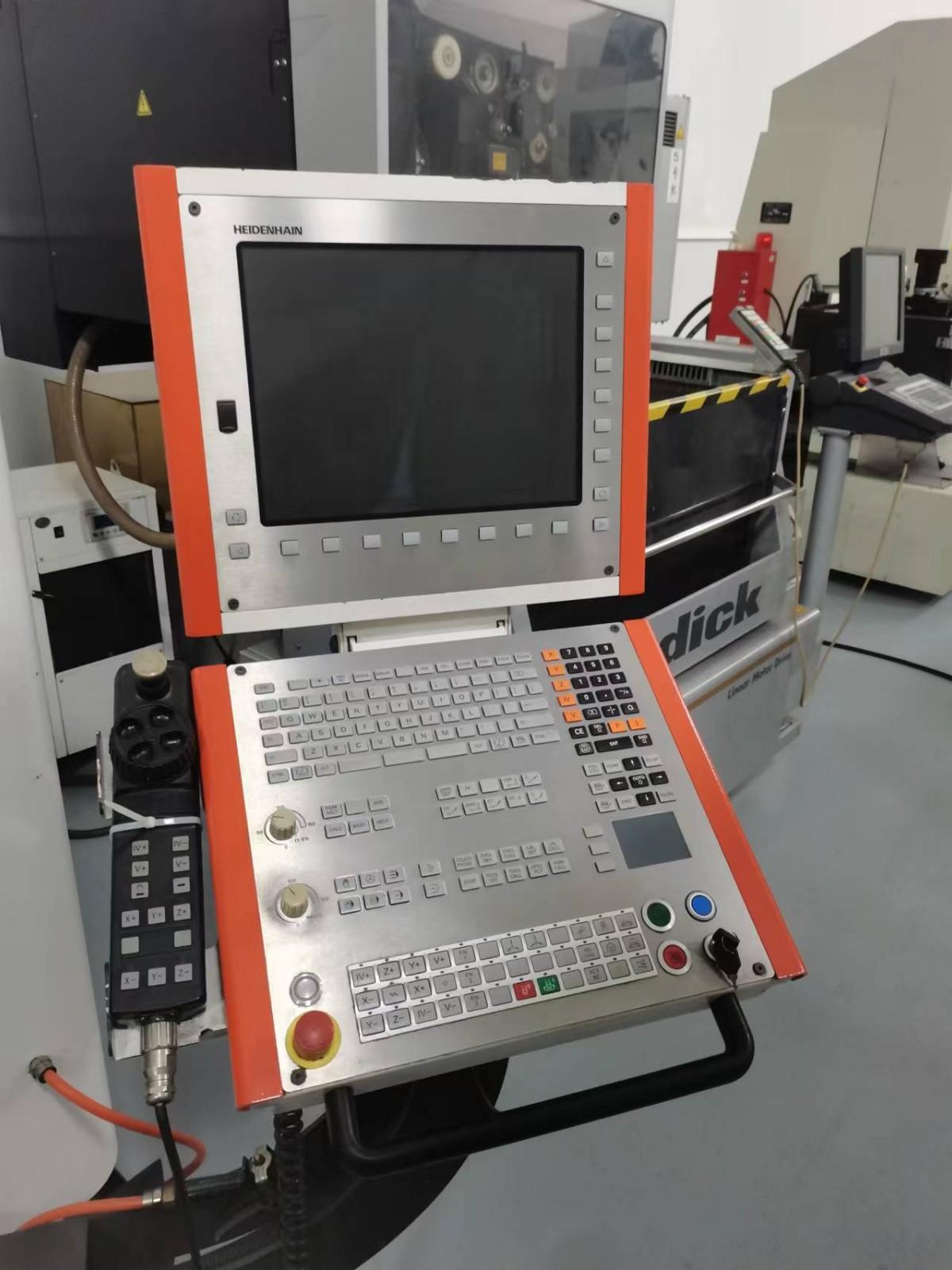

  System: Heidenhain TNC620 system

  Magazine: 24 disc type BT40 spindles

  Remote jog handle

  Spiral chip conveyor

  three linear guideways

  three axes with glass scale
