Specifications:
X-axis travel: 1020mm
Y-axis travel: 510mm
Z-axis travel: 510mm
Machining size: 800mm
Worktable size (length × Width) 1200 × 510mm
Distance between worktable surface and spindle nose: 160-670mm
Worktable load: 500kg
Spindle taper 7/24 taper, No.40
Spindle bearing inner diameter : 70mm
Rapid movement: 20/20/15m/min
Main motor power: 11kw
Spindle speed: 8000rpm

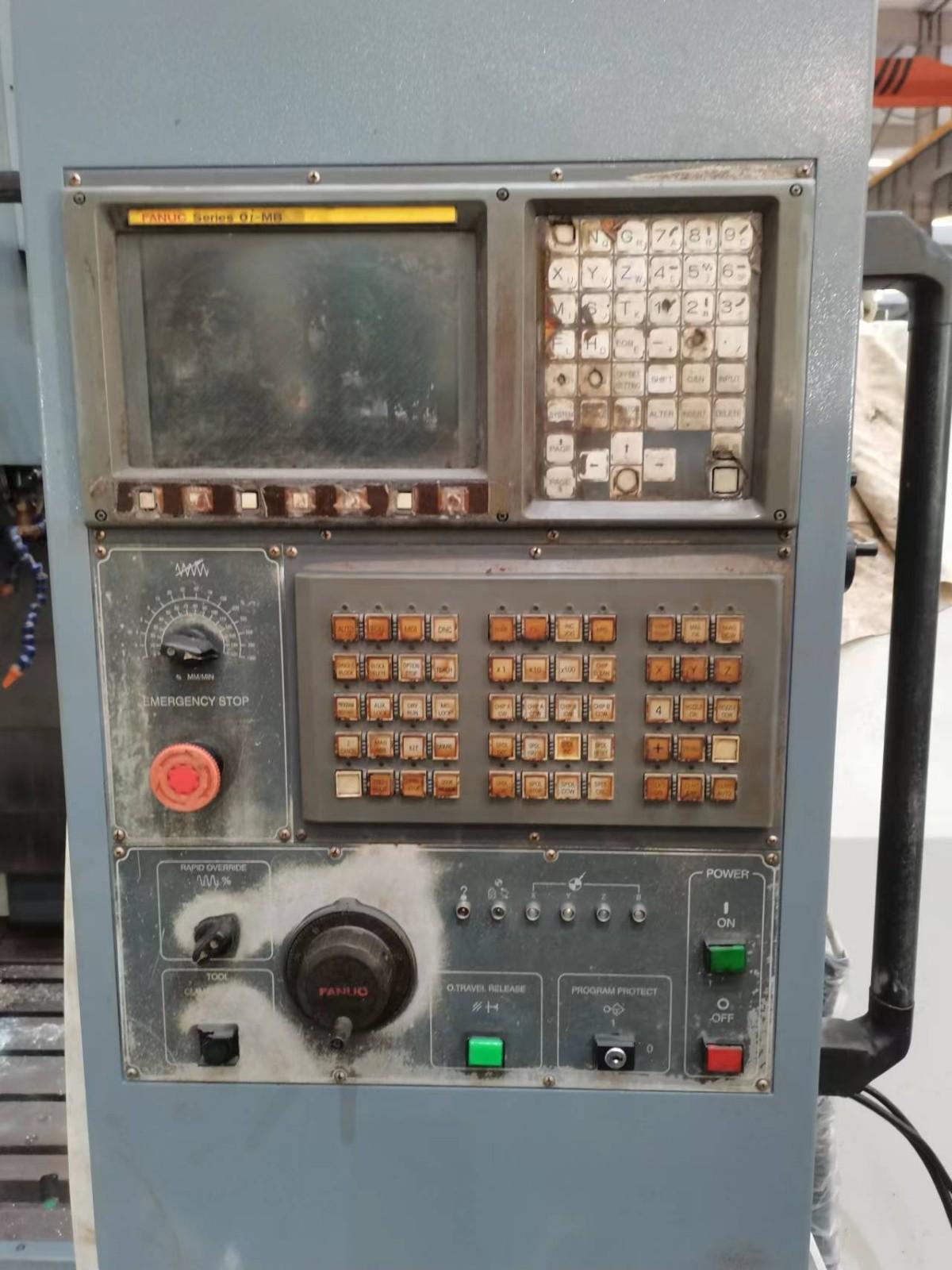

Control system: fanuc knd
With automatic tool changing system
