• Inventory number：70227
• Brand：DMU
• Model：70 evo
• Origin：Germany
• Location：China
• Year：
• Create Time：2022-12-01

Specifications:

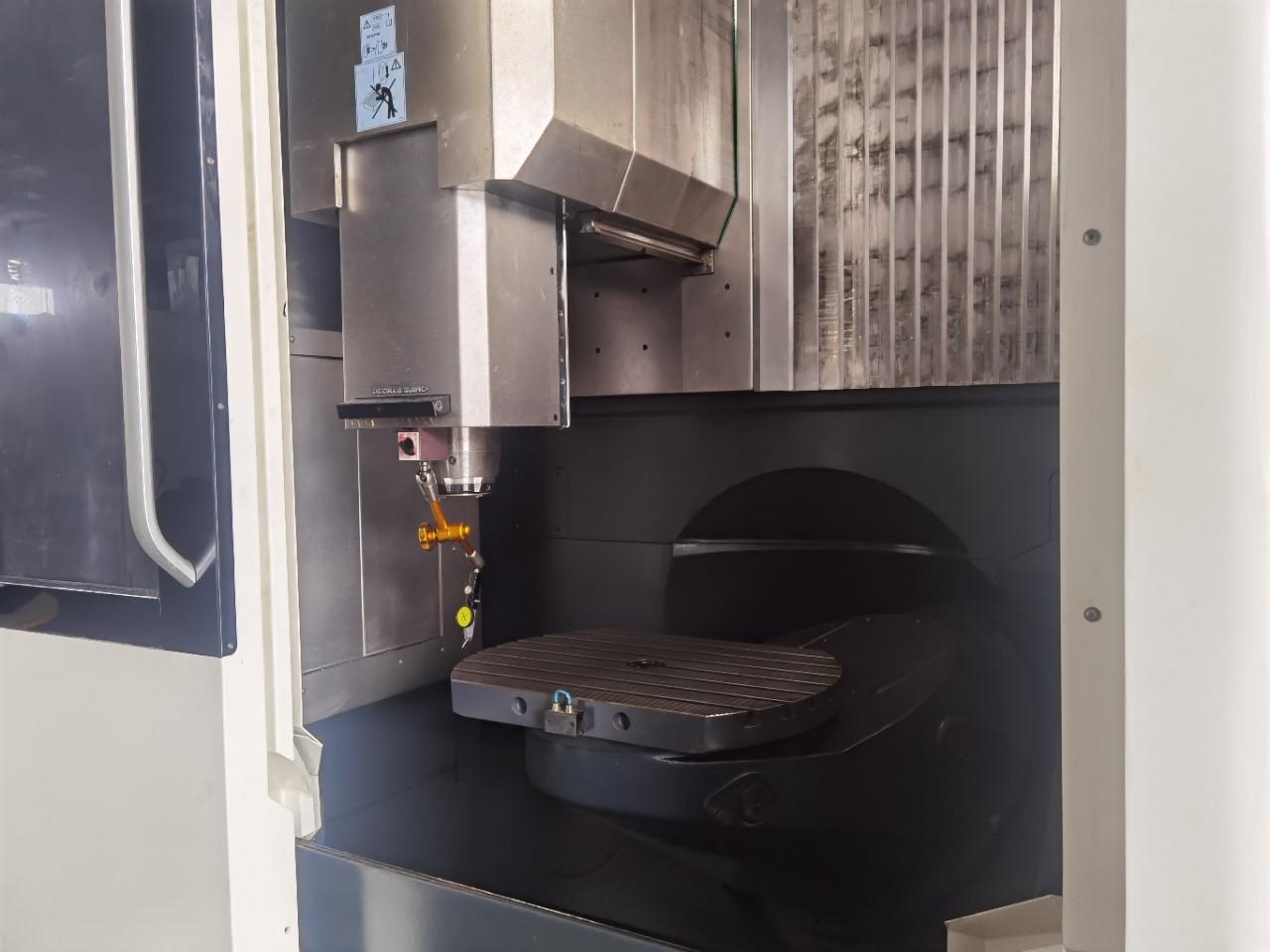

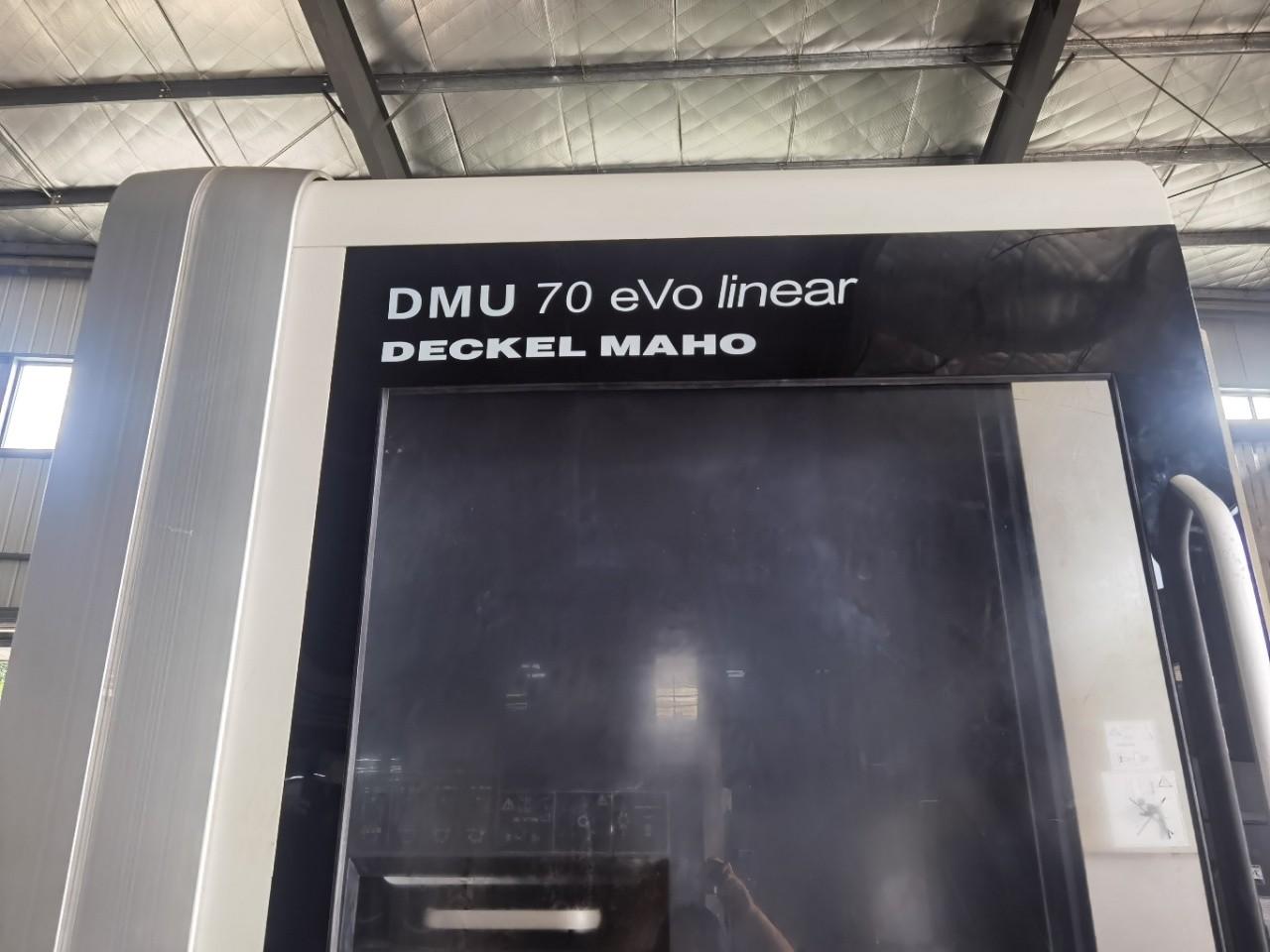

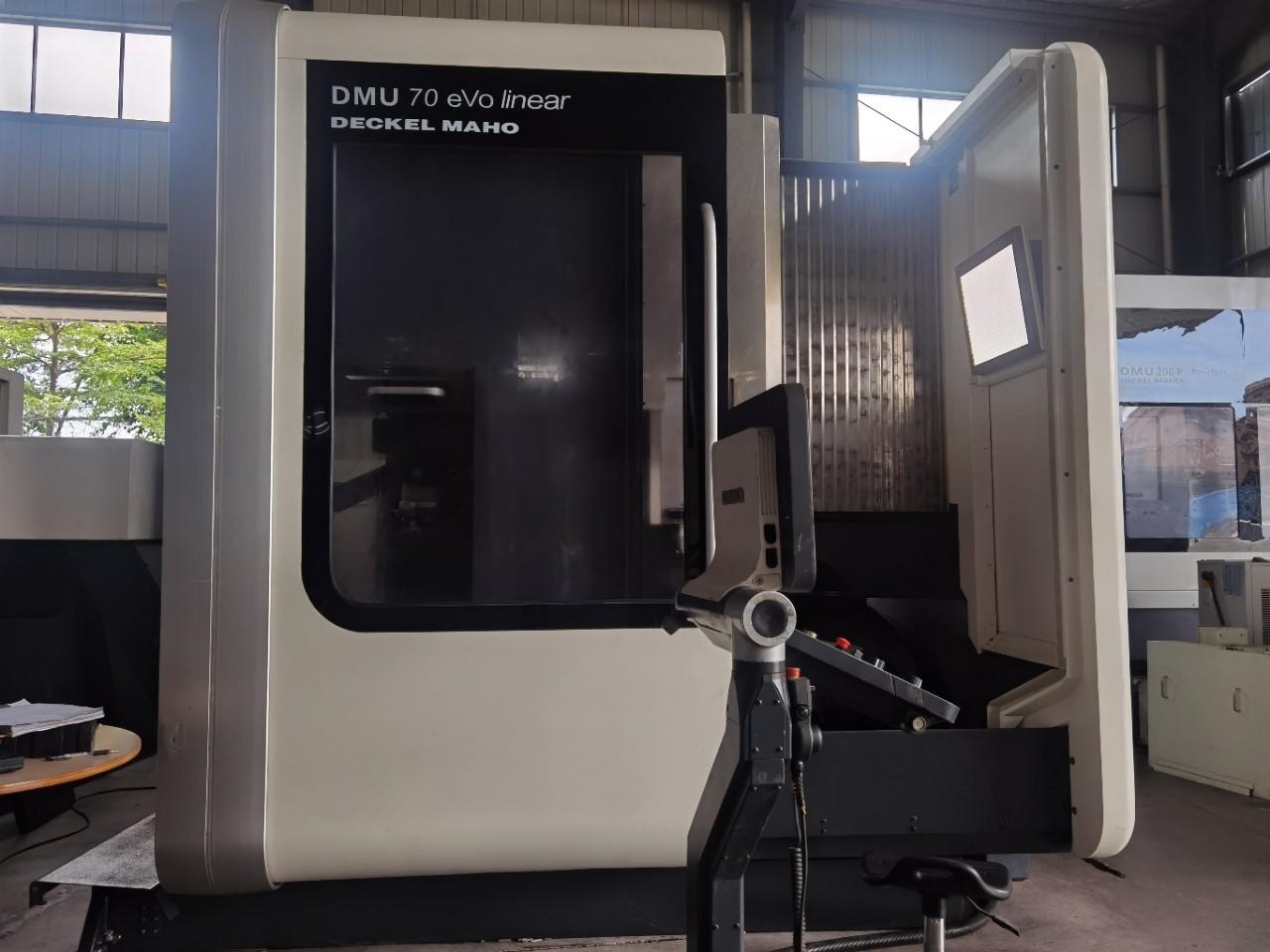

• Brand: DMG five-axis machining center

  Model: DMU 70 evo

  Origin: Germany

  X-axis: 750mm

  Y-axis: 600mm

  Z-axis: 520mm

  B-axis: - 5/+102 degrees

  C-axis: 360 degrees

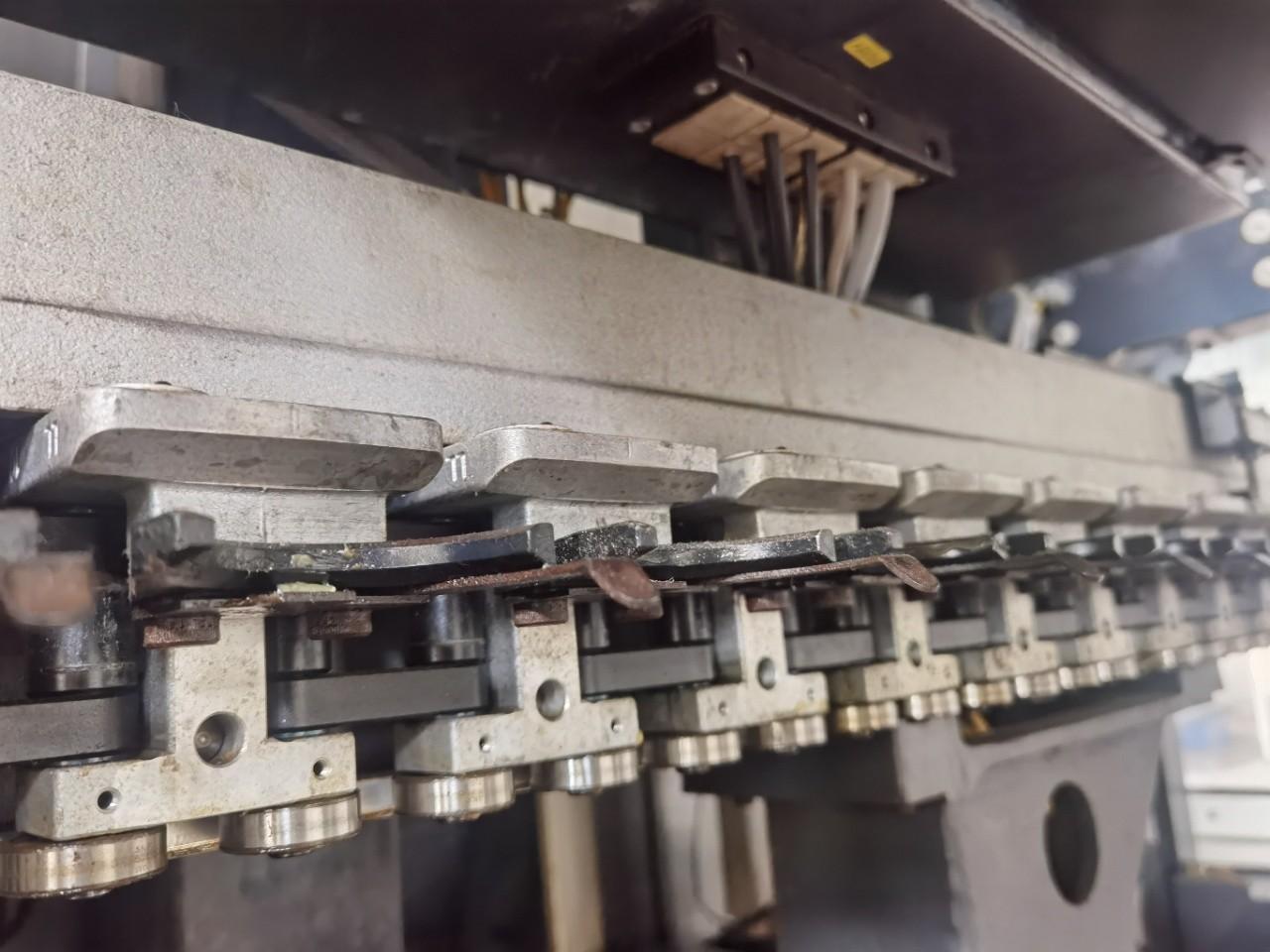

  Tool magazine: 30

  Maximum tool weight: 6 kg

  Maximum tool diameter: 80 mm

  Maximum tool length: 300mm

  Tool holder: SK40

  Spindle speed range: 18000 rpm

  Tool tension: 25kN

  Fast motion speed X/Y/Z/: 80 m/50m/50m/min

  System: Siemens 840D

  Maximum torque of main spindle: 130NM

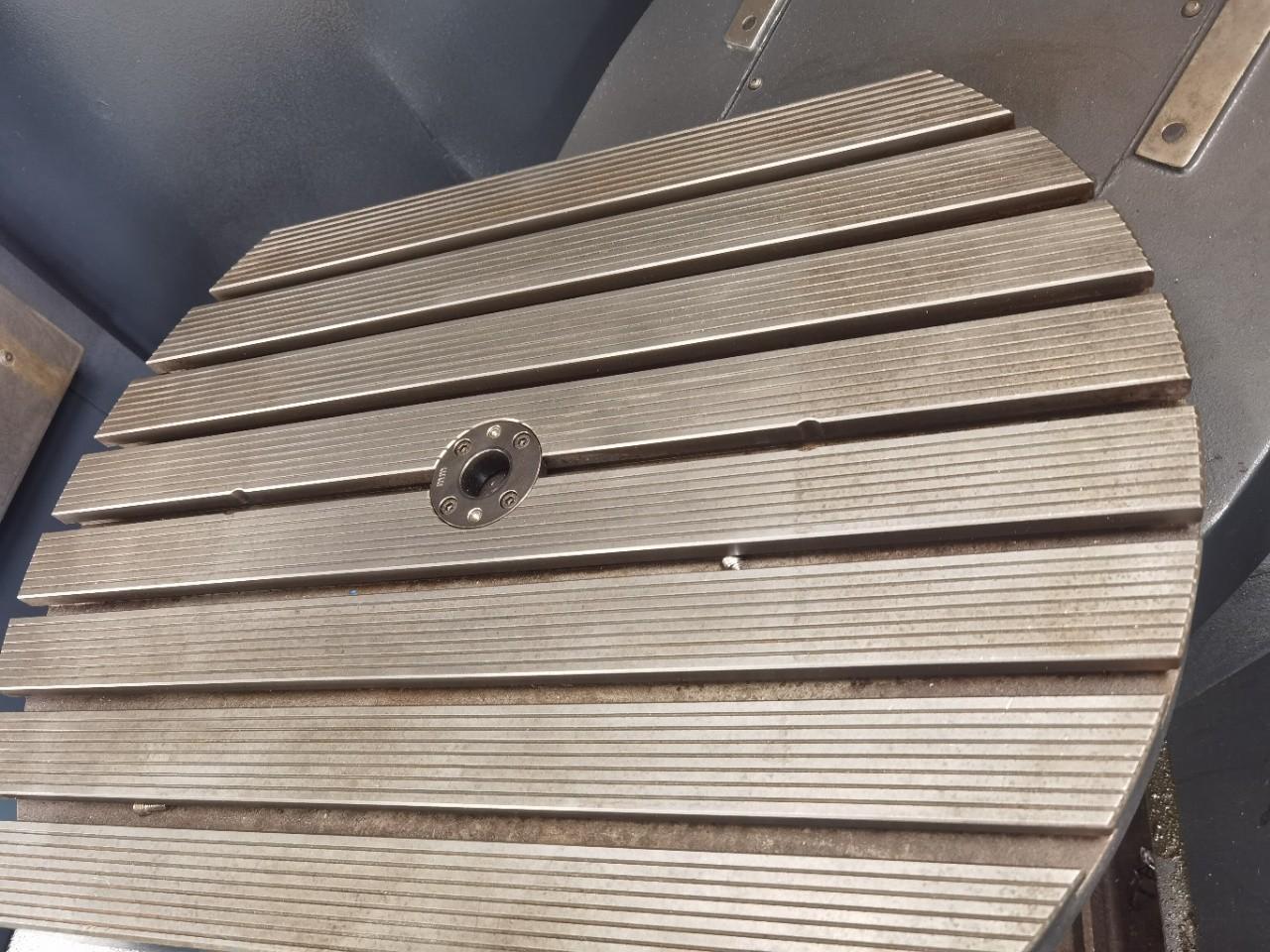

  Worktable size: 700 x 500mm

  Worktable load : 350kg

  Weight: 9500KG

  Ex-factory date: 2012

  Accessories: three-axis glass scale, absolute value system, X-axis linear motor drive, B-axis/C-axis cooling.
