ZOJE   GMC3080MR2

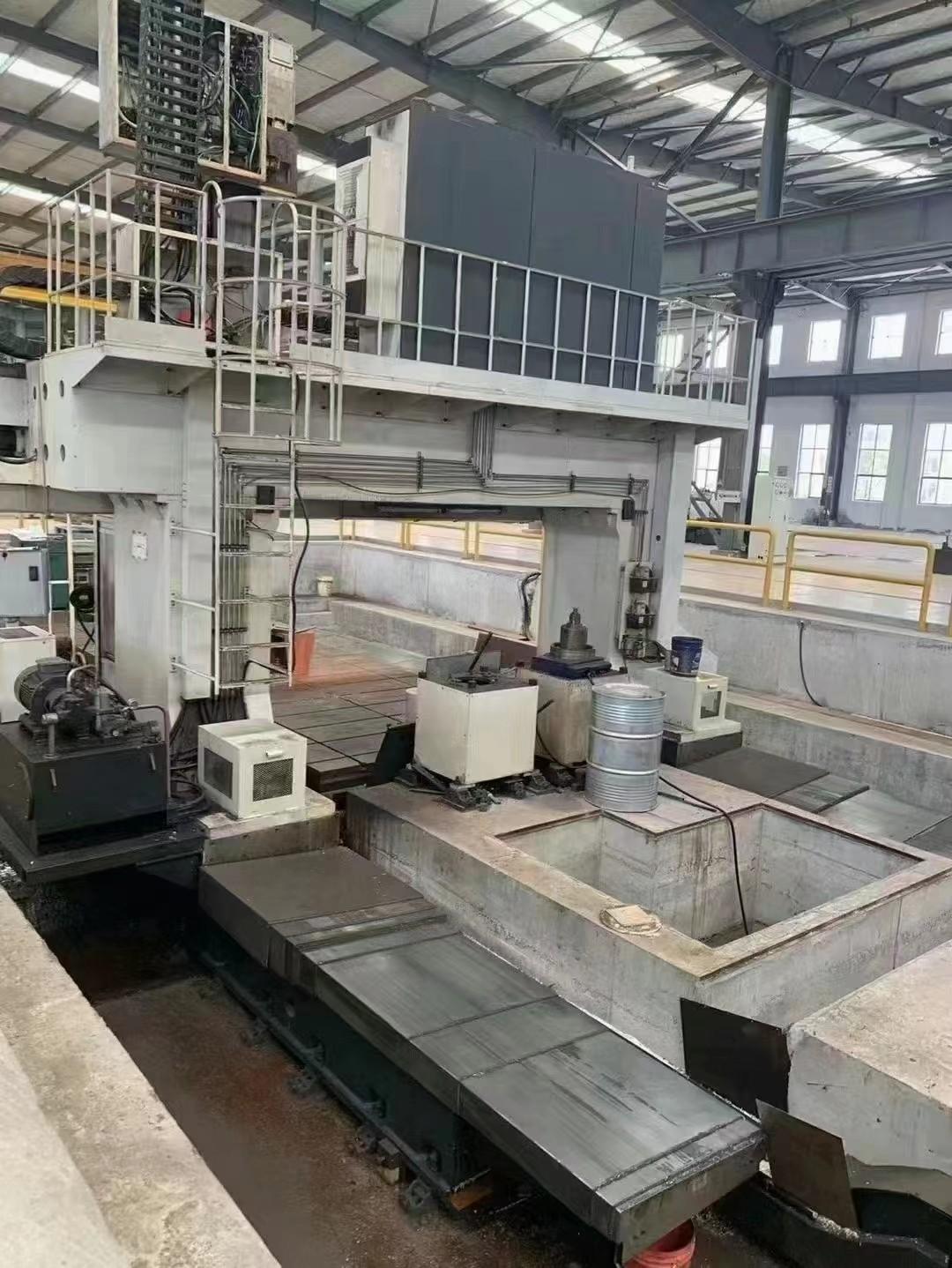

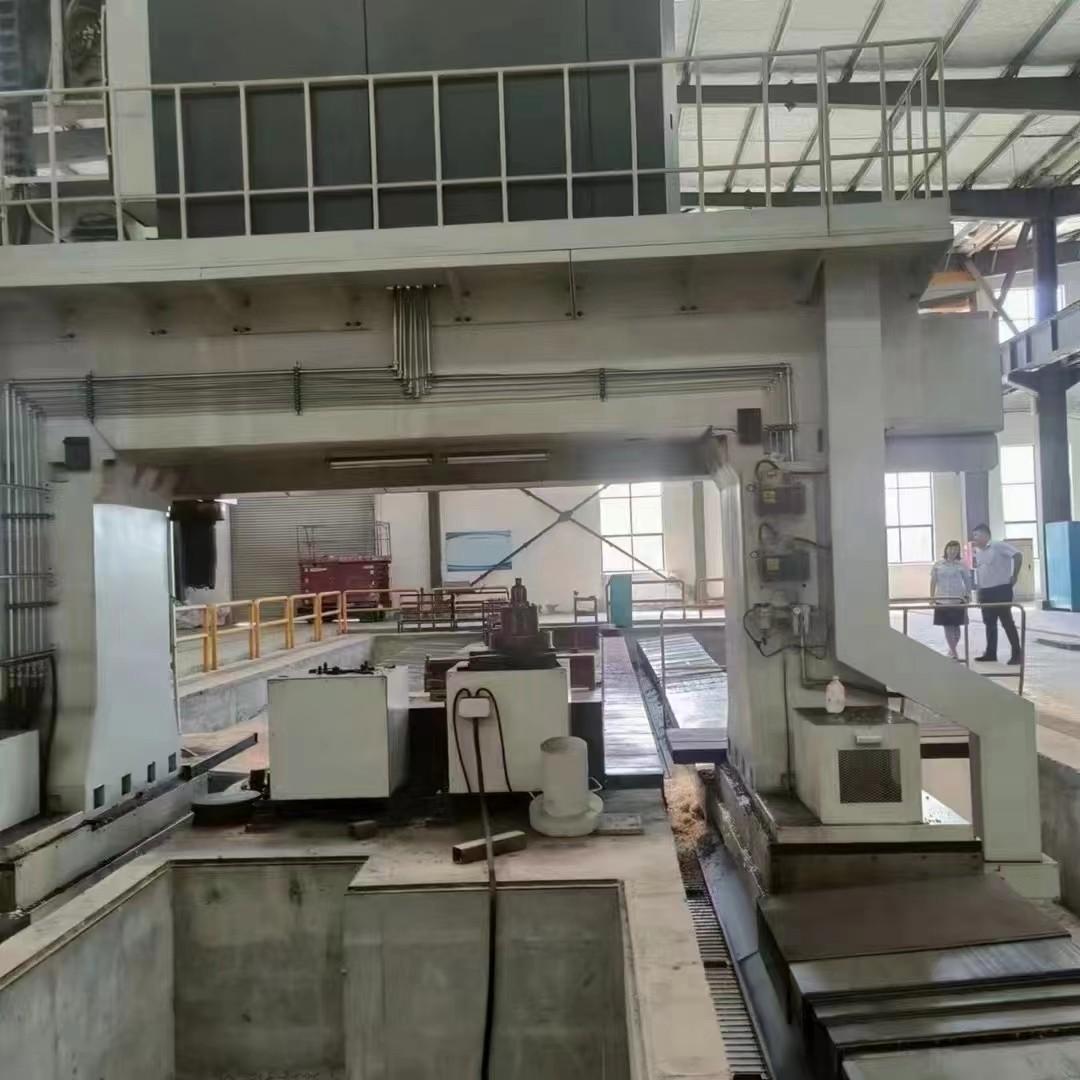

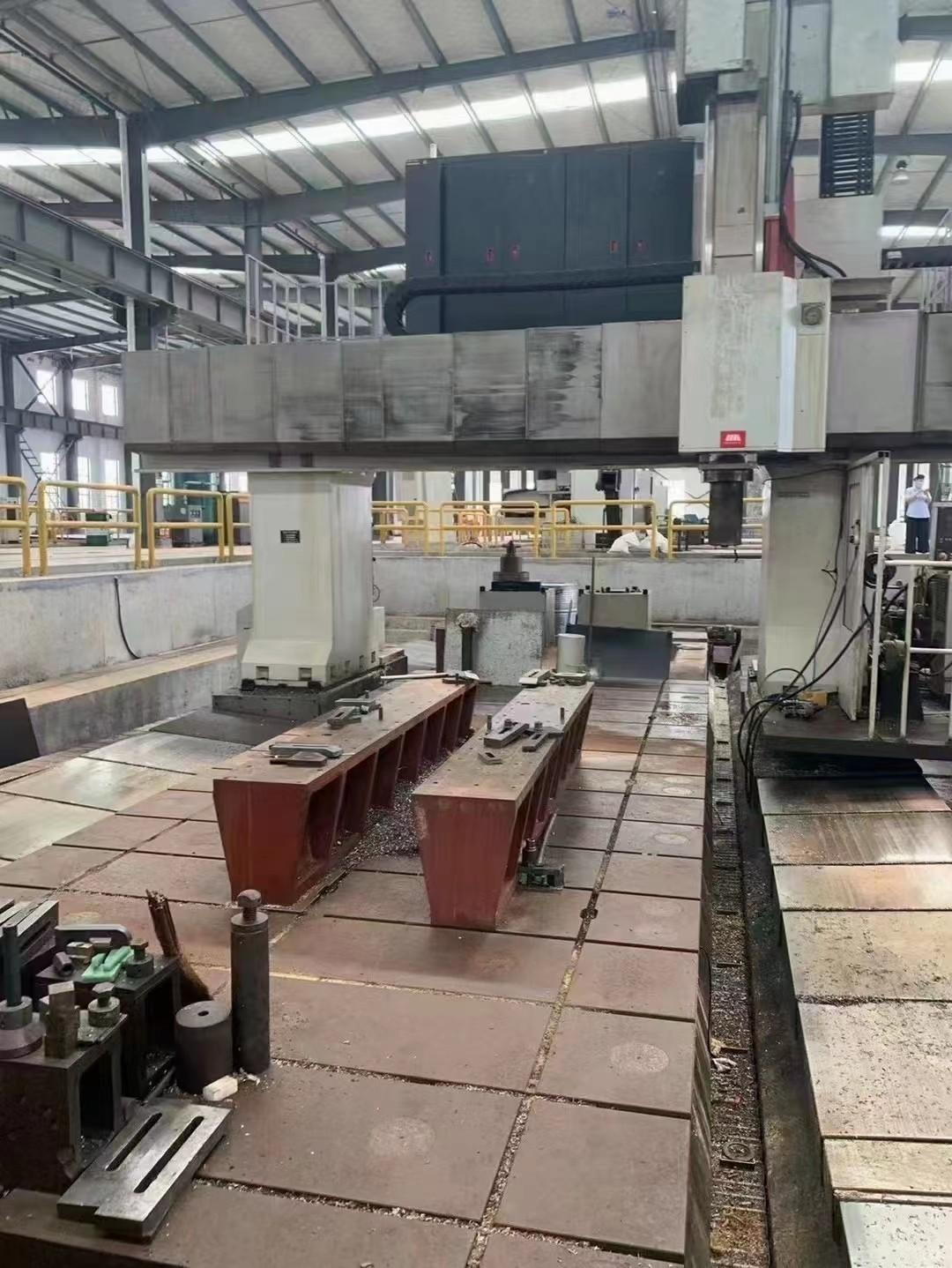

Gantry boring and milling machine
[Product Information:]
  • Inventory number：10091
  • Brand：ZOJE
  • Model：GMC3080MR2
  • Origin：China
  • Location：China
  • Year：
  • Create Time：2022-12-01

Specifications:

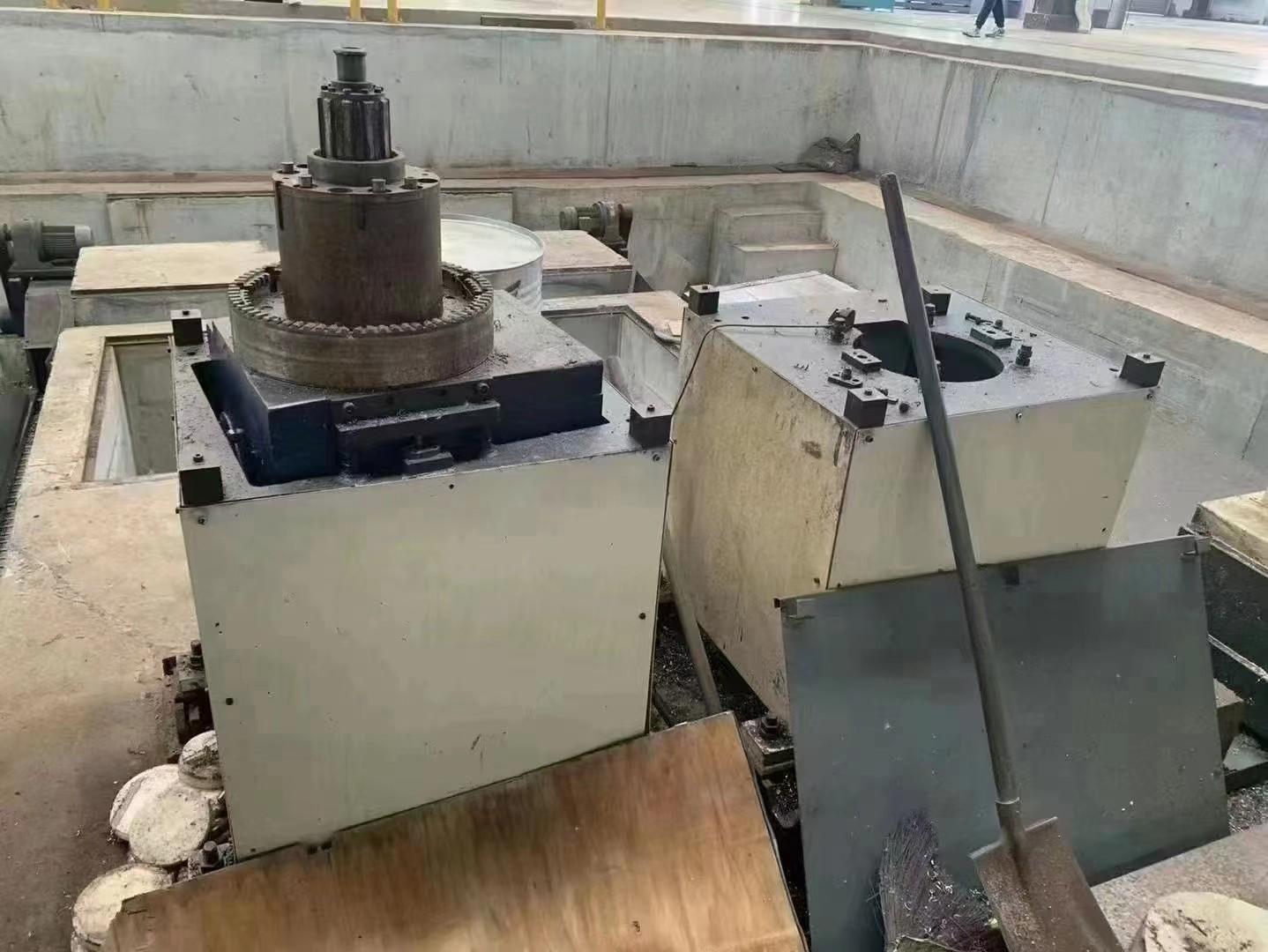

  • 3.9x8m Shenyang ZOJE CNC movable gantry boring and milling machine GMC3080MR2, 3-axis with glass scale and 2 angle head

    Model: GMC3080MR2

    Origin: Shenyang ZOJE

    Ex-factory date: November 2014

    System: SIEMENS 840D,

    Worktable size 3000x8000mm

    Gantry width: 3900mm

    Spindle taper hole: BT50

    Main shaft power: 37/51kw

    Spindle speed: 2000rpm

    Ram size: 500x500mm

    X-axis travel: 8500mm

    Y-axis travel: 4100mm

    Z-axis travel: 1500mm

    Distance from spindle nose to worktable: 500-2000mm

    Load per meter of machine: 7000kg/m
