• Inventory number：80165
• Brand：DMG
• Model：DMU 80 evo
• Origin：
• Location：China
• Year：
• Create Time：2022-12-01

Specifications:

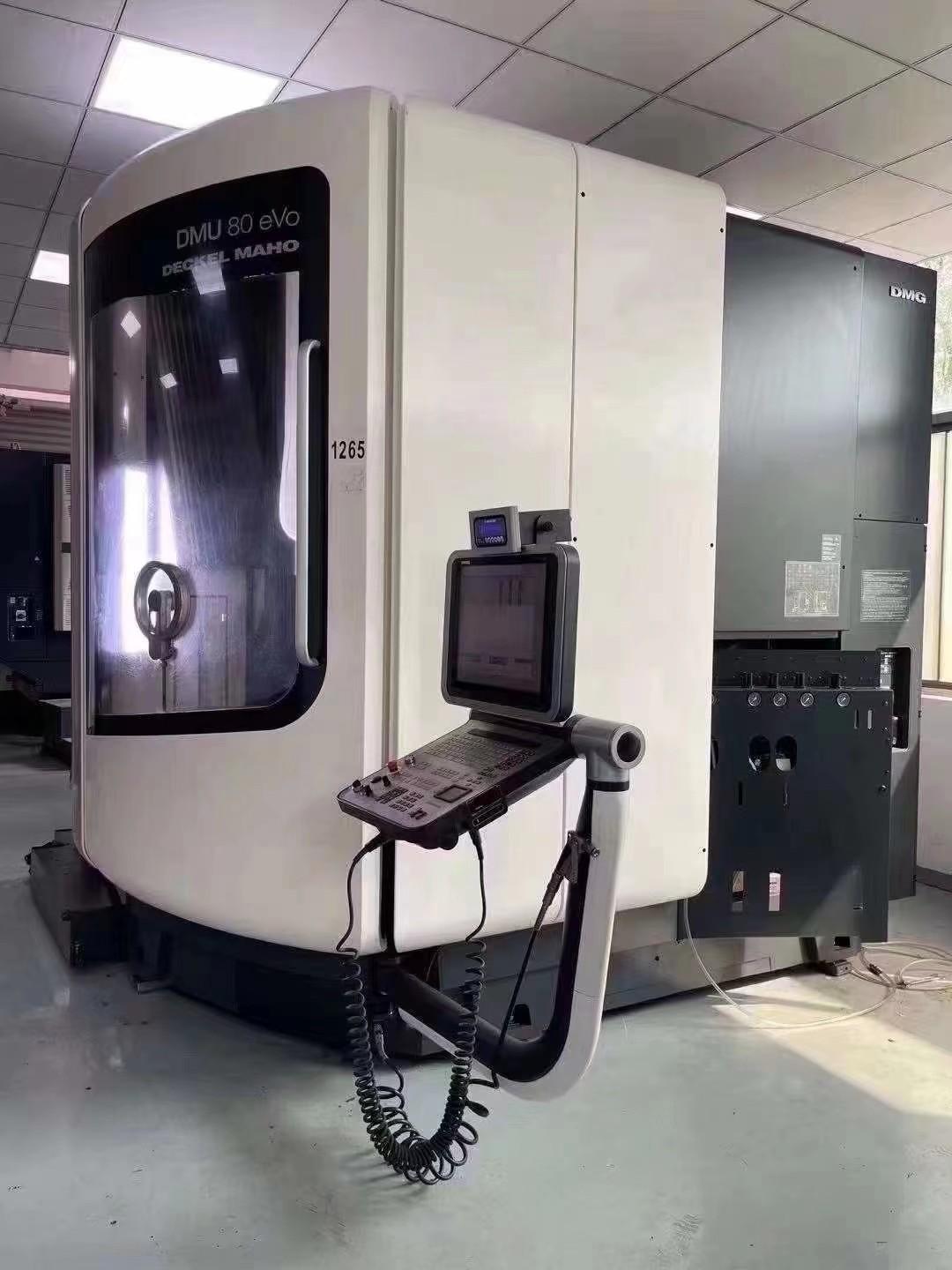

• DMG five-axis simultaneous movement machining center

  Model: DMU 80 evo

  Origin: Germany

  X axis: 850mm

  Y-axis: 650mm

  Z-axis: 550mm

  B-axis : - 5/+110 degrees

  C-axis: 360 degrees

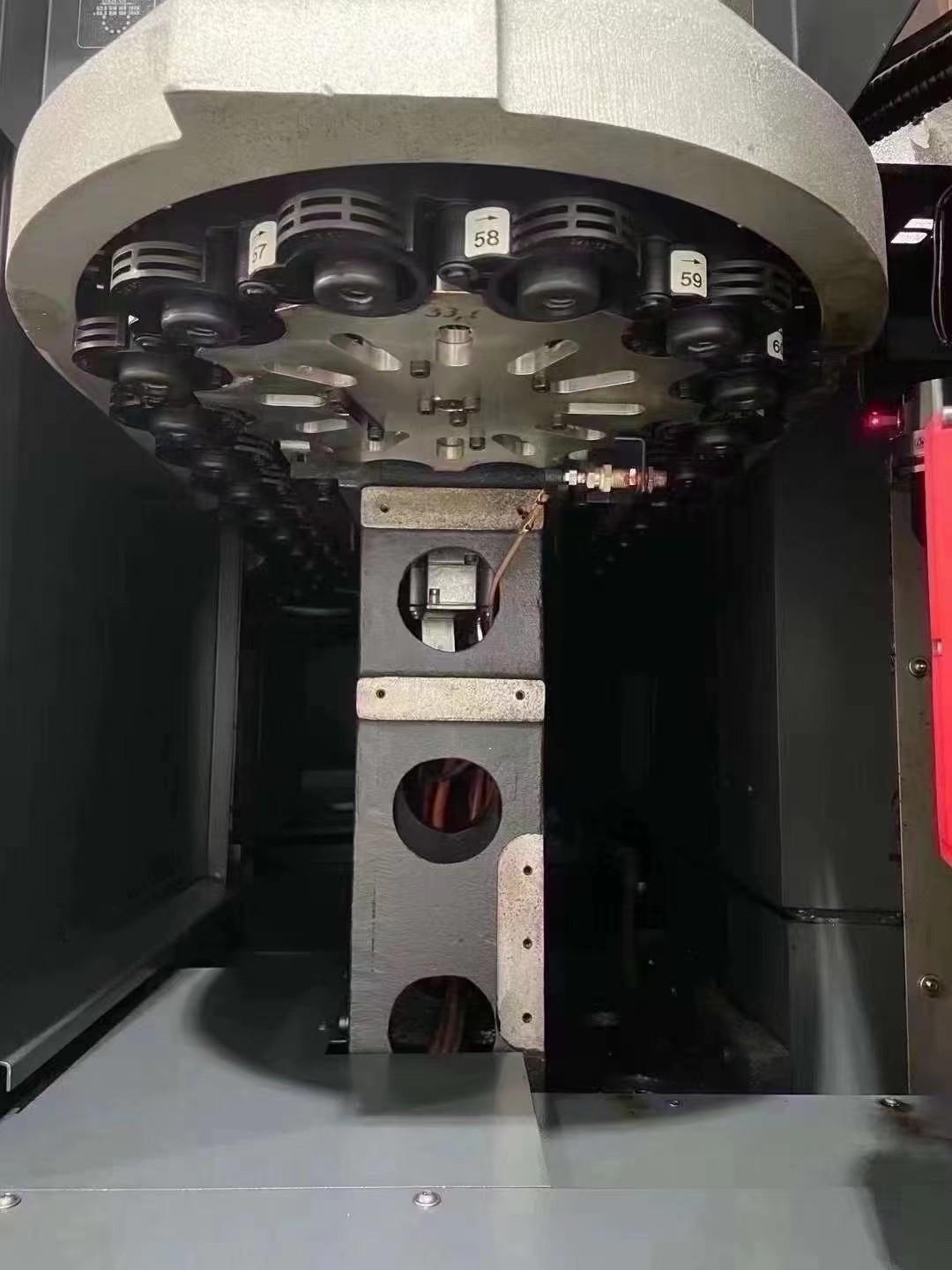

  Tool magazine: 60

  Max. tool weight: 6 kg

  Max. tool diameter: 80 mm

  Max. tool length: 300mm

  Tool holder: HSK-A63

  Spindle speed range: 18000 rpm

  Tool tension: 25kN

  Fast moving speed X/Y/Z/: 80 m/min

  Feed range (linear): 80,000 mm/min

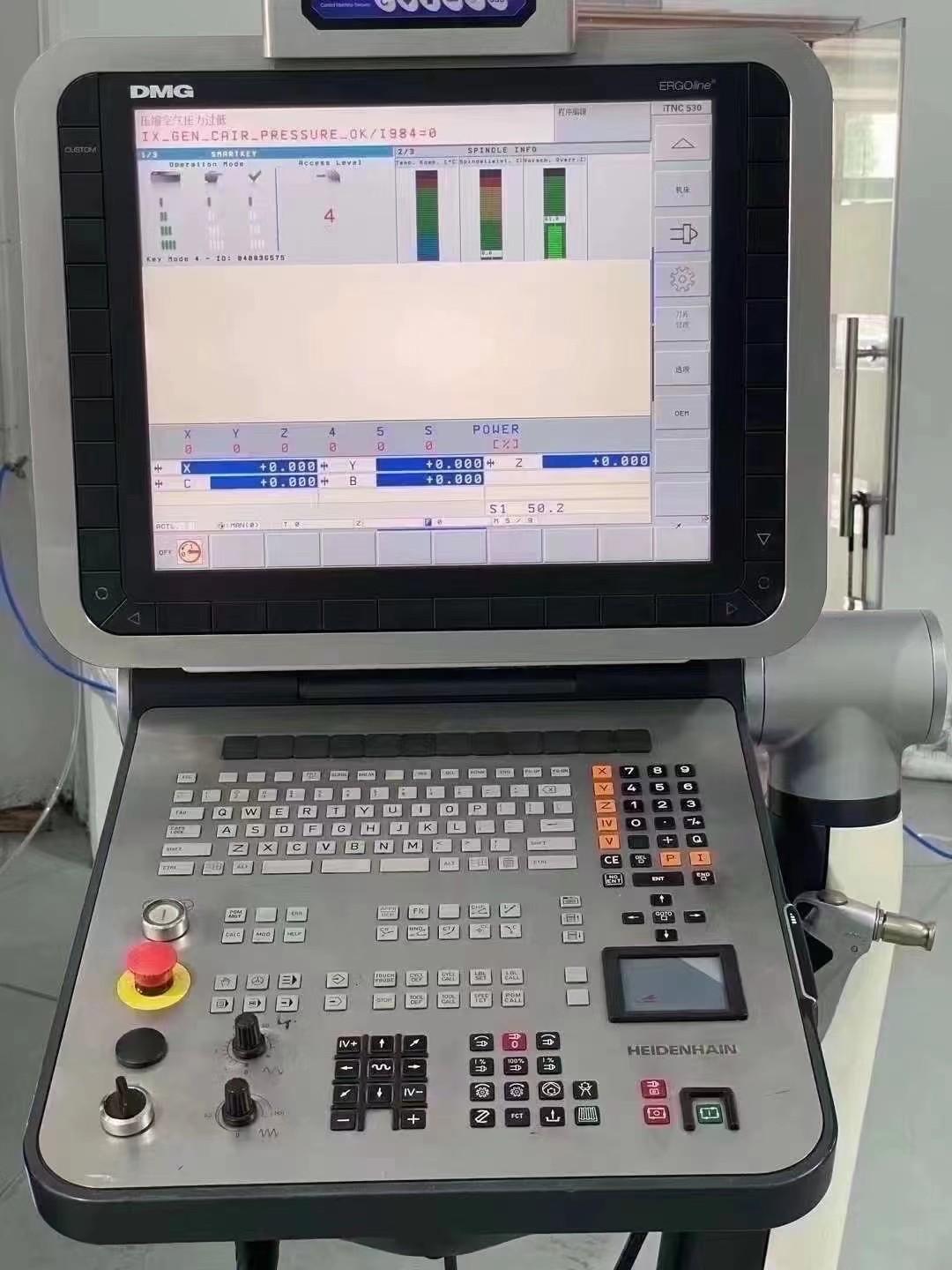

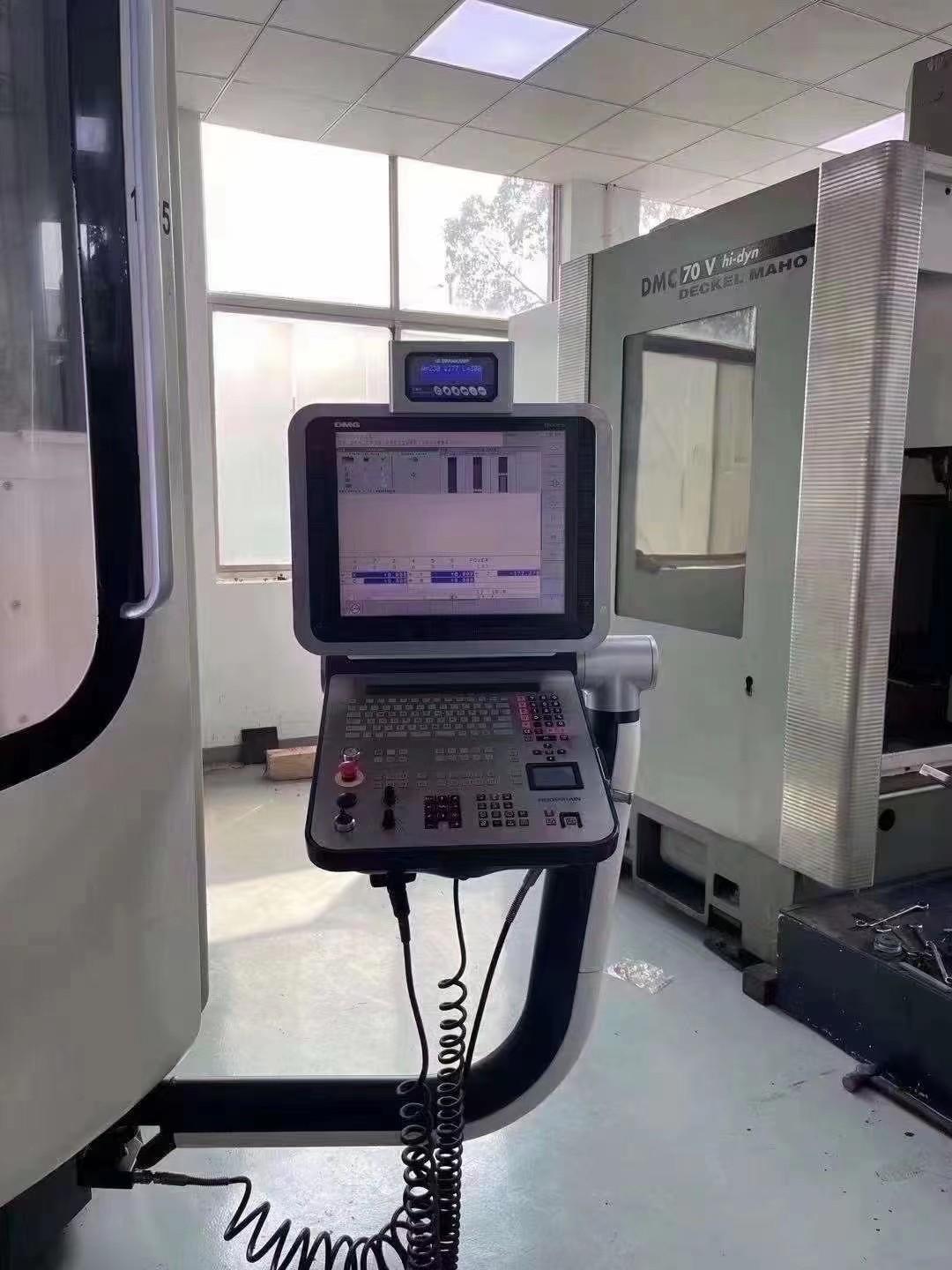

  System: Heidenhain ITNC 530

  Resolution: 0.001mm

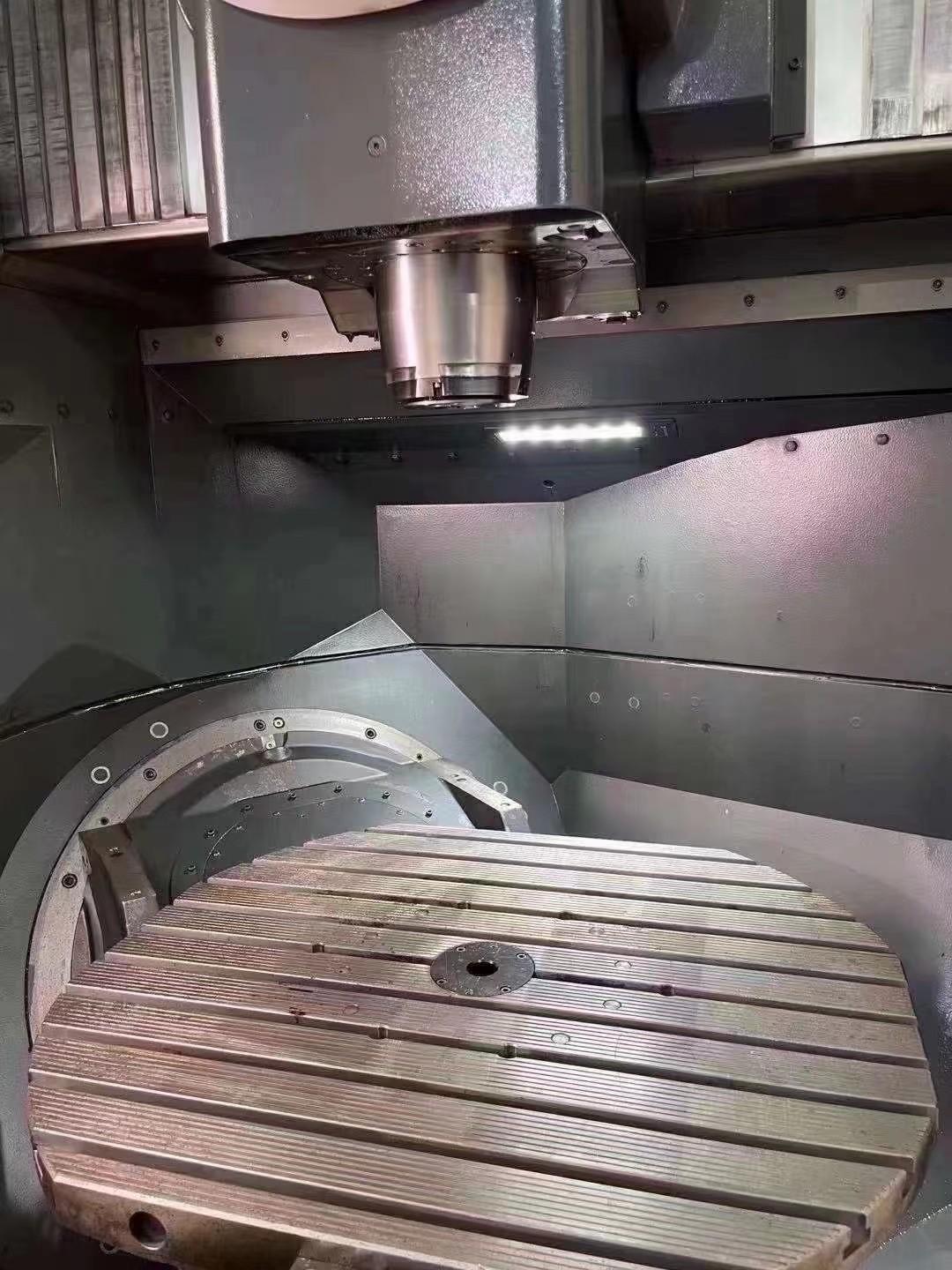

  Fixed worktable size: 800 x 700mm

  Worktable load(bearing capacity): 600kg

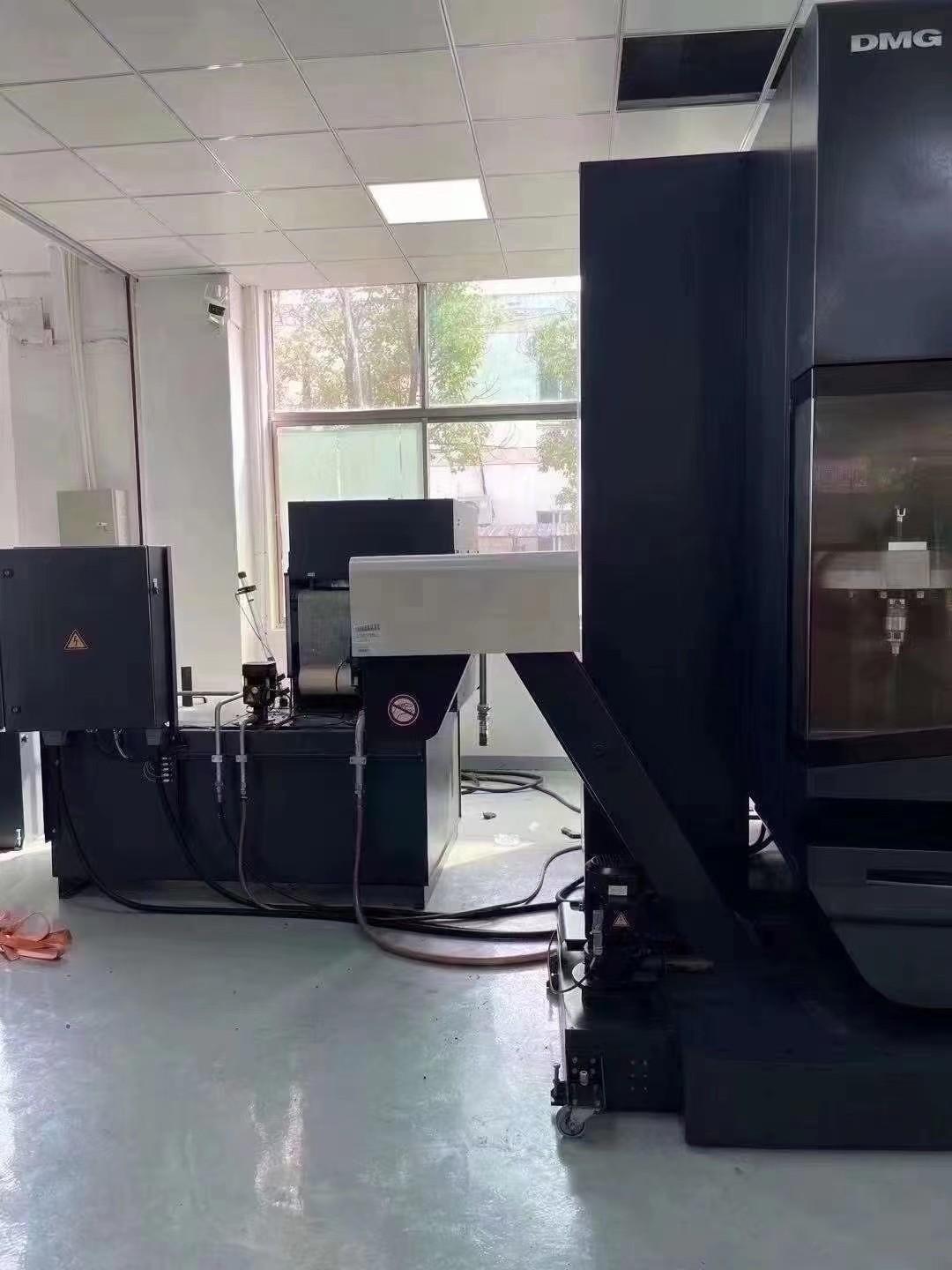

  Additional functions: central flushing, chip conveyor, oil purifier, ruby probe.
