Specifications:

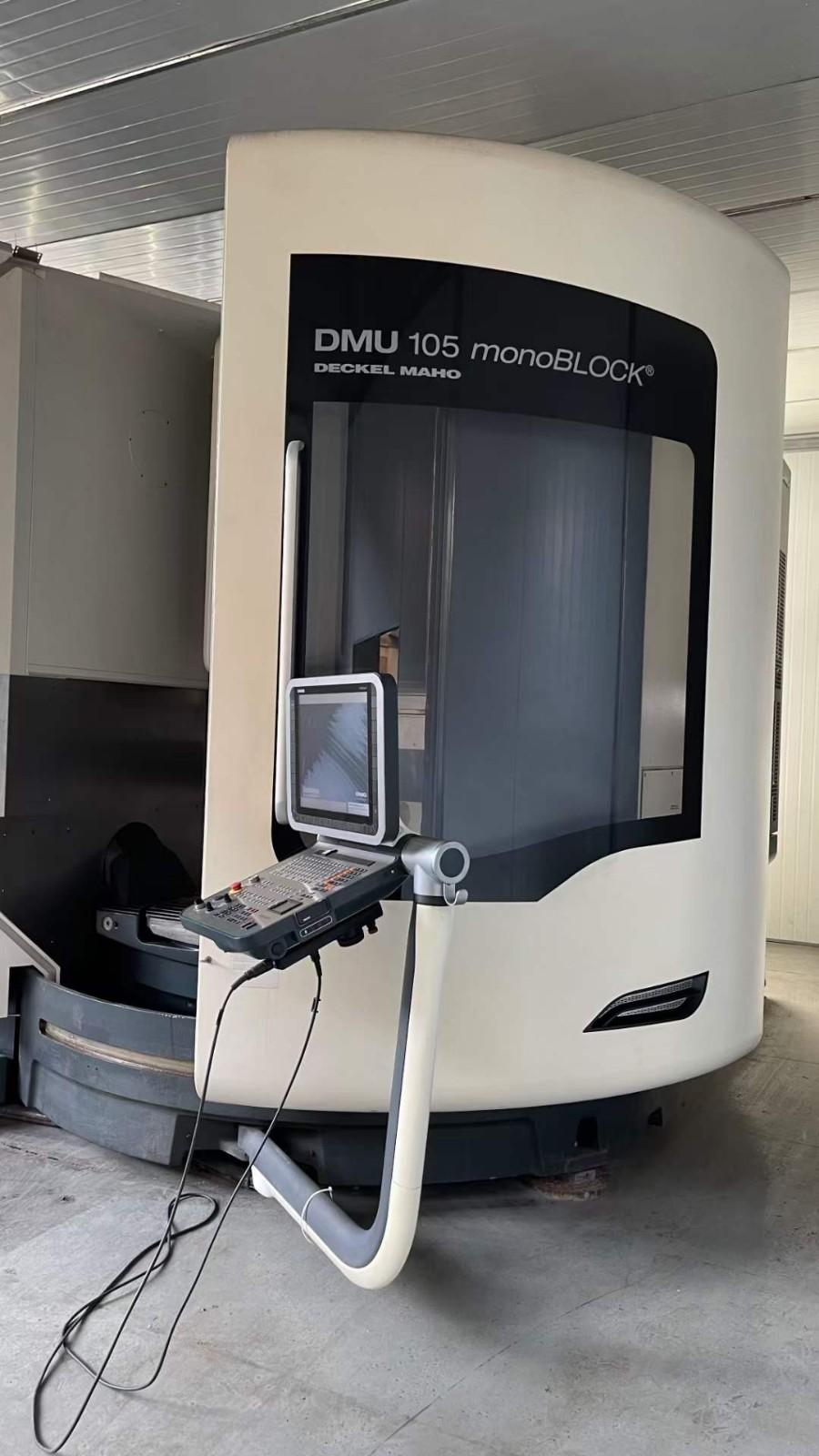

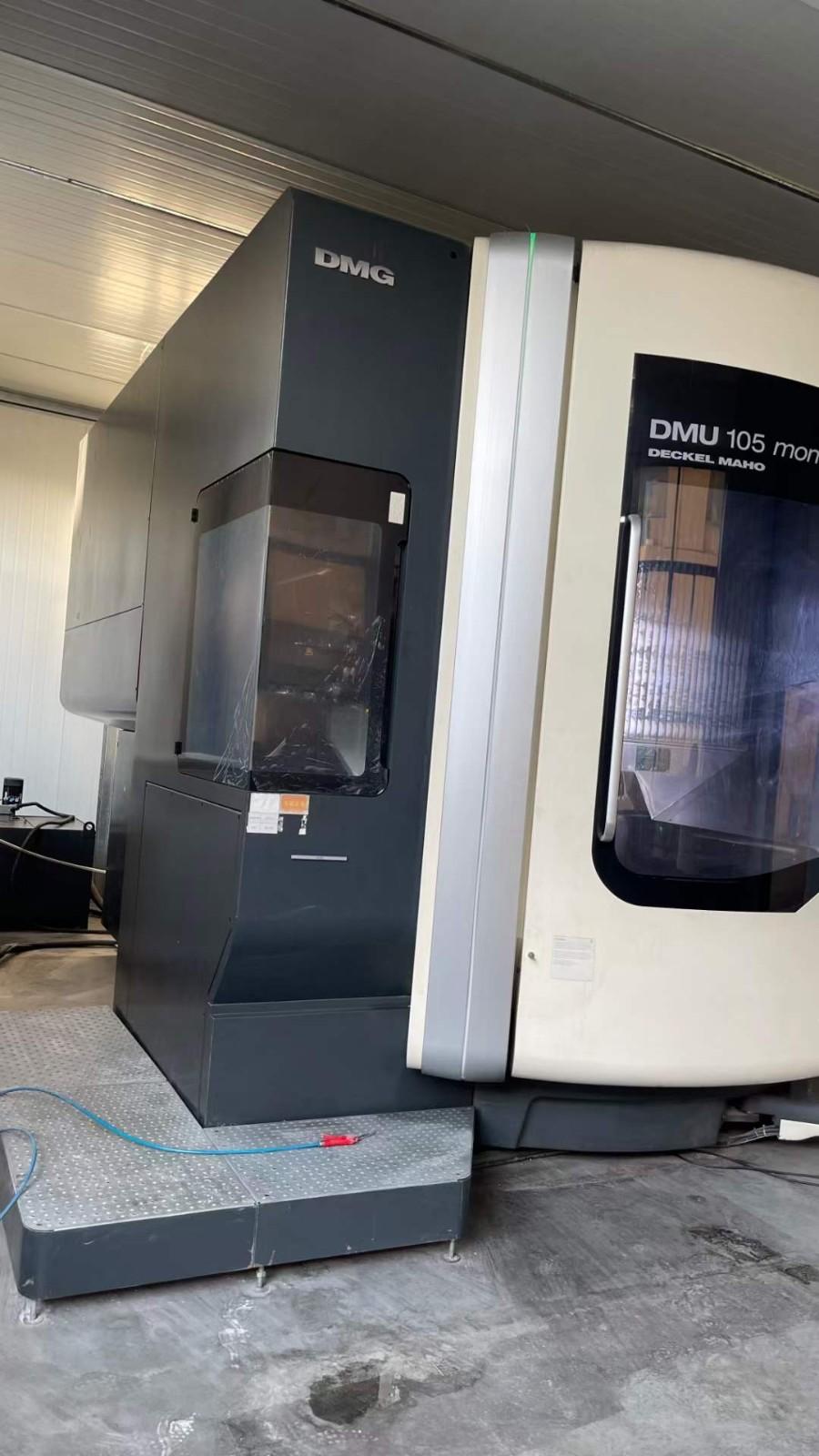

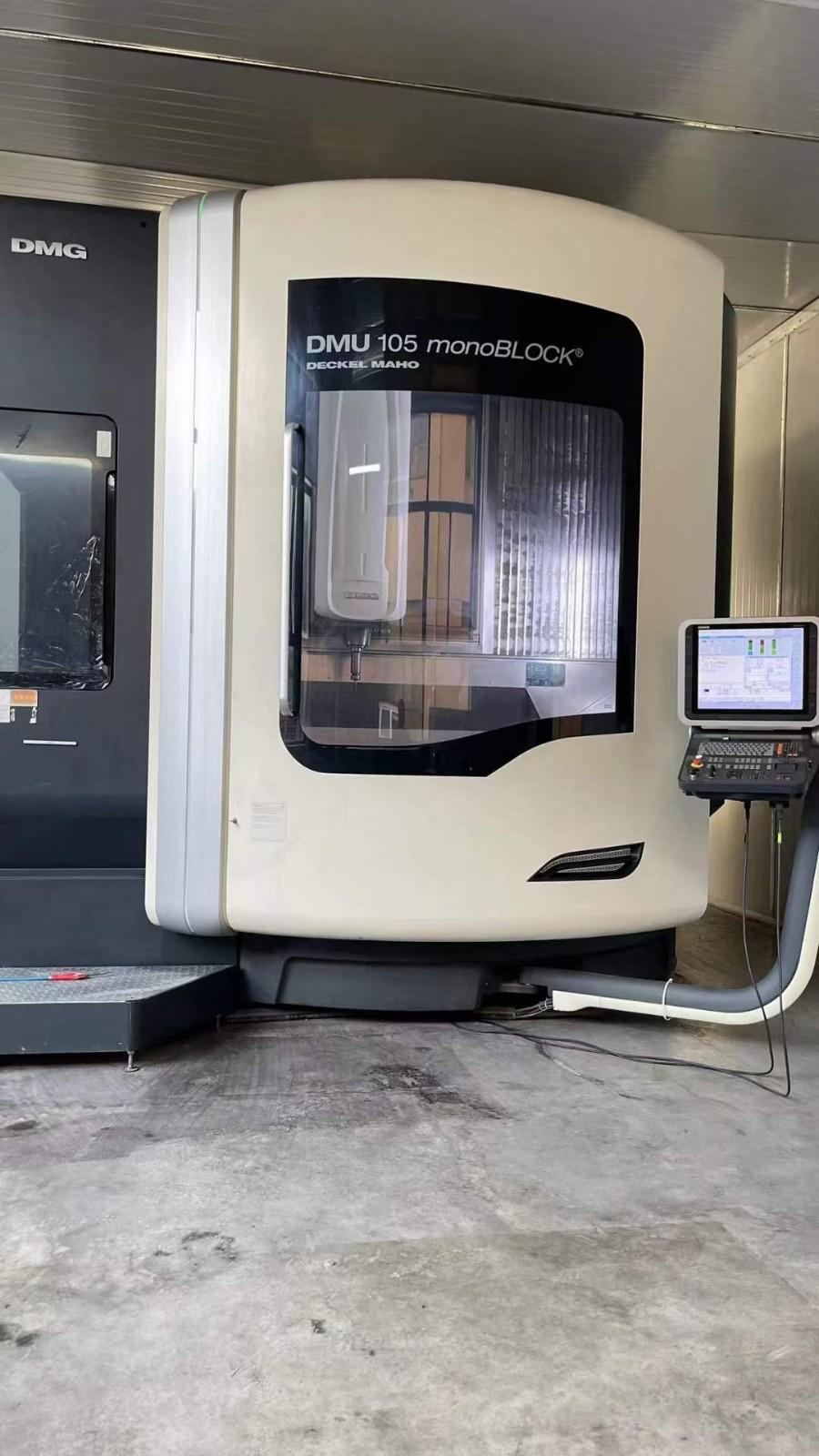

DMG five-axis simultaneous movement machining center DMU 105 MONOBLOCK
The parameters are as follows:
Model: DMU 105 MONOBLOCK

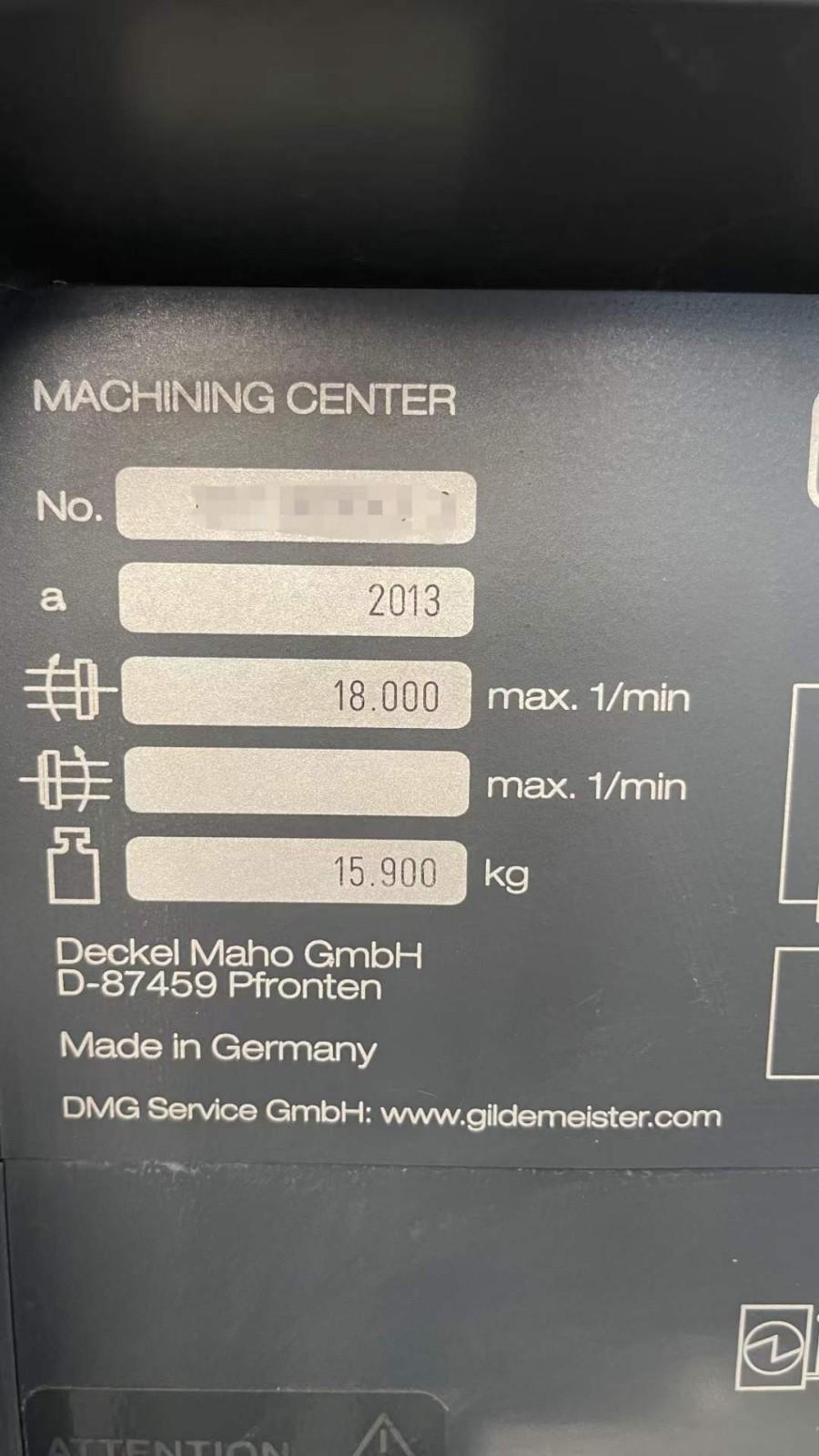

Ex-factory time: 2013

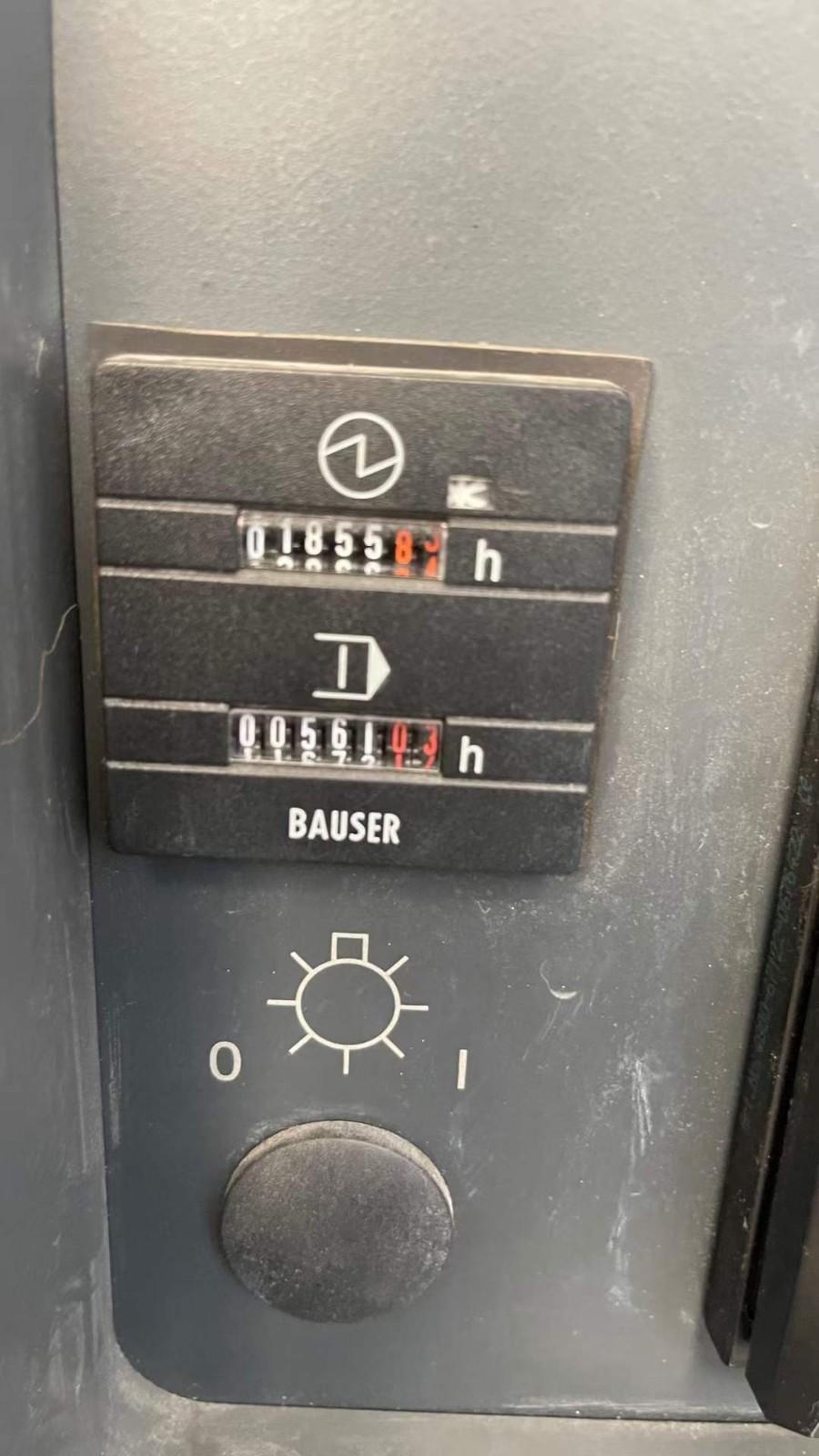

Working time: only 561 hours

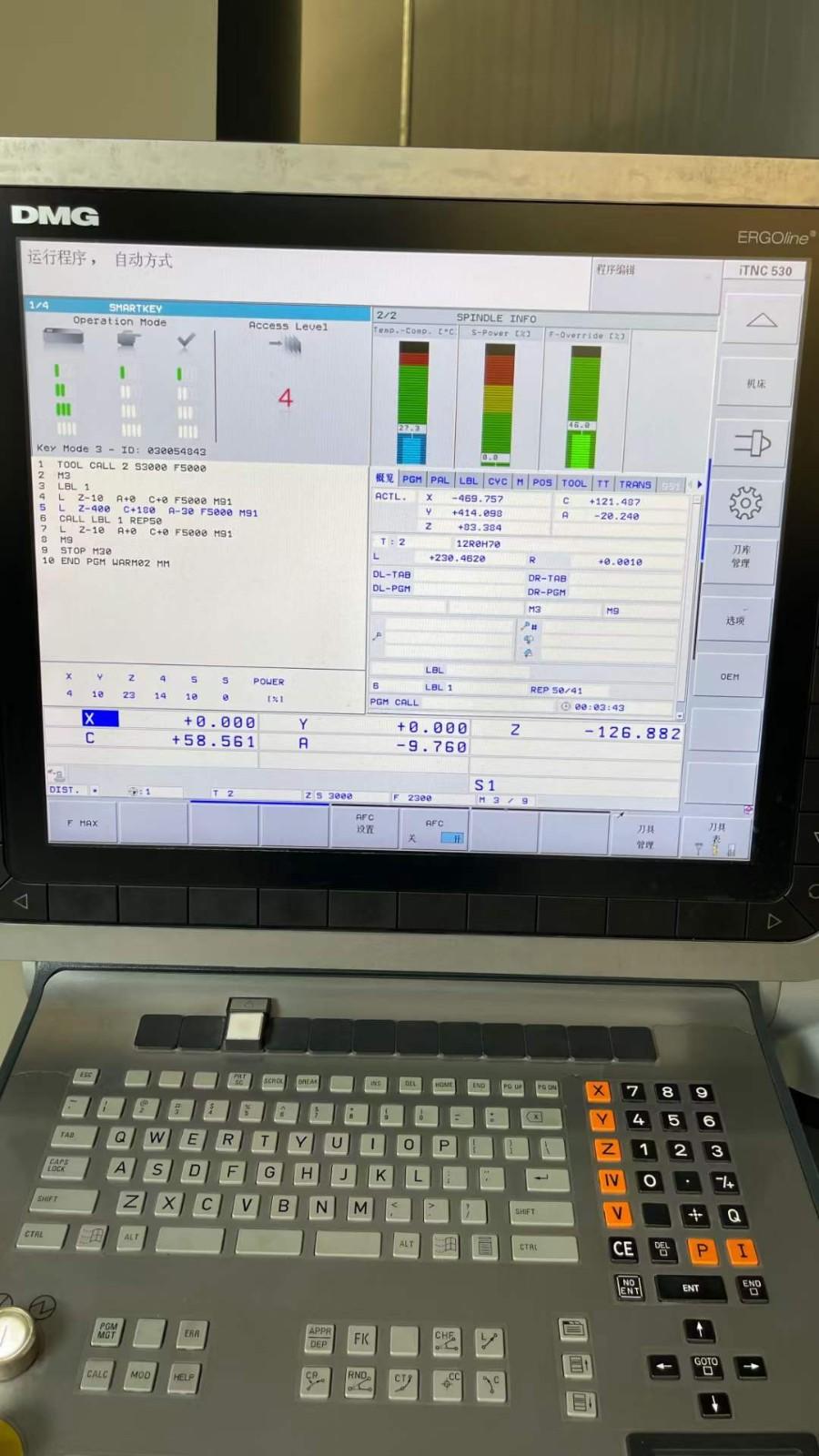

Control : Heidelberg TNC I530
X axis travel: 1135 mm
Y-axis travel: 1050mm
Z-axis travel: 750 mm
A-axis rotation range:+120 degrees/- 120 degrees
C-axis rotation range: 360 degrees

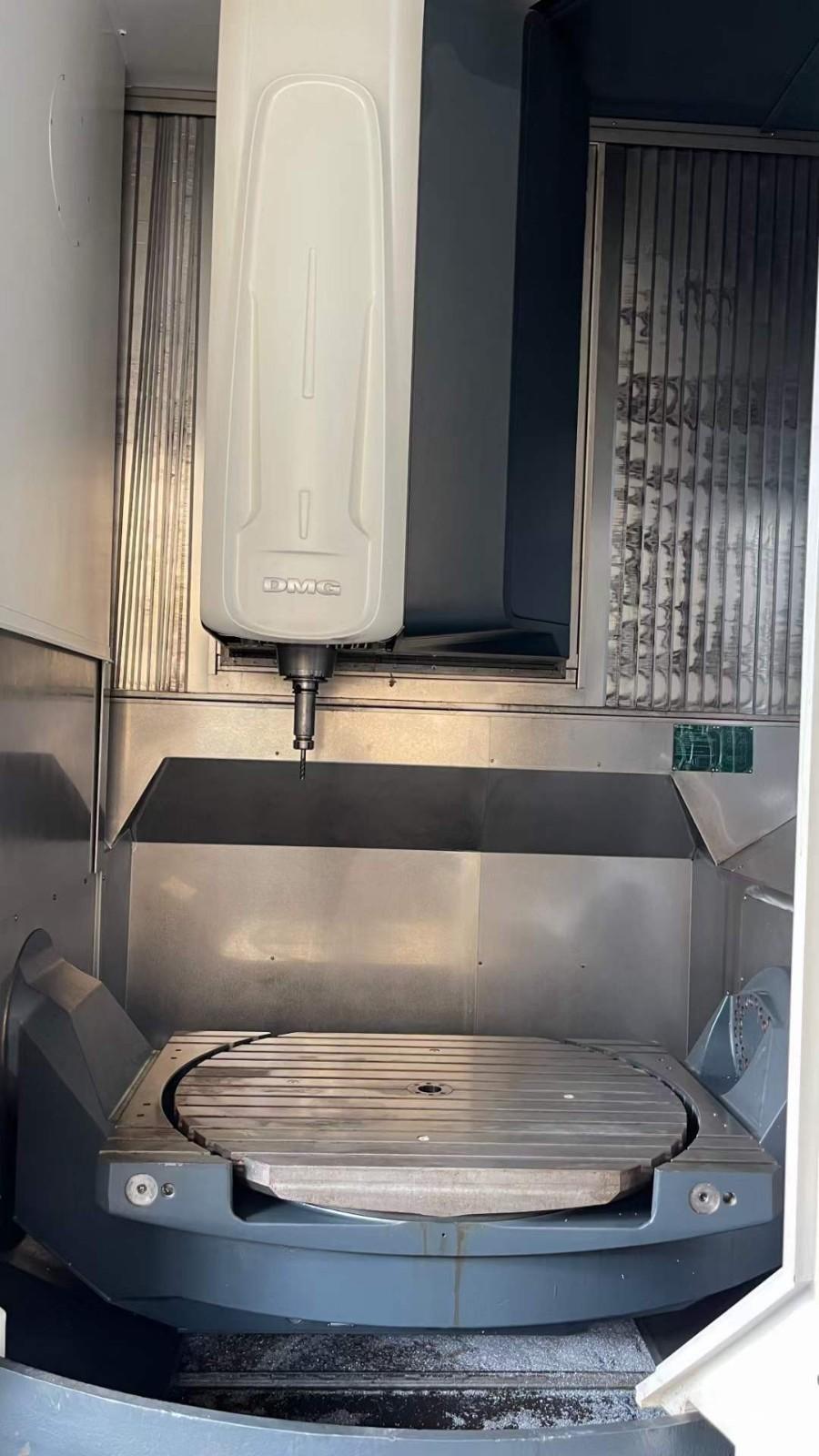

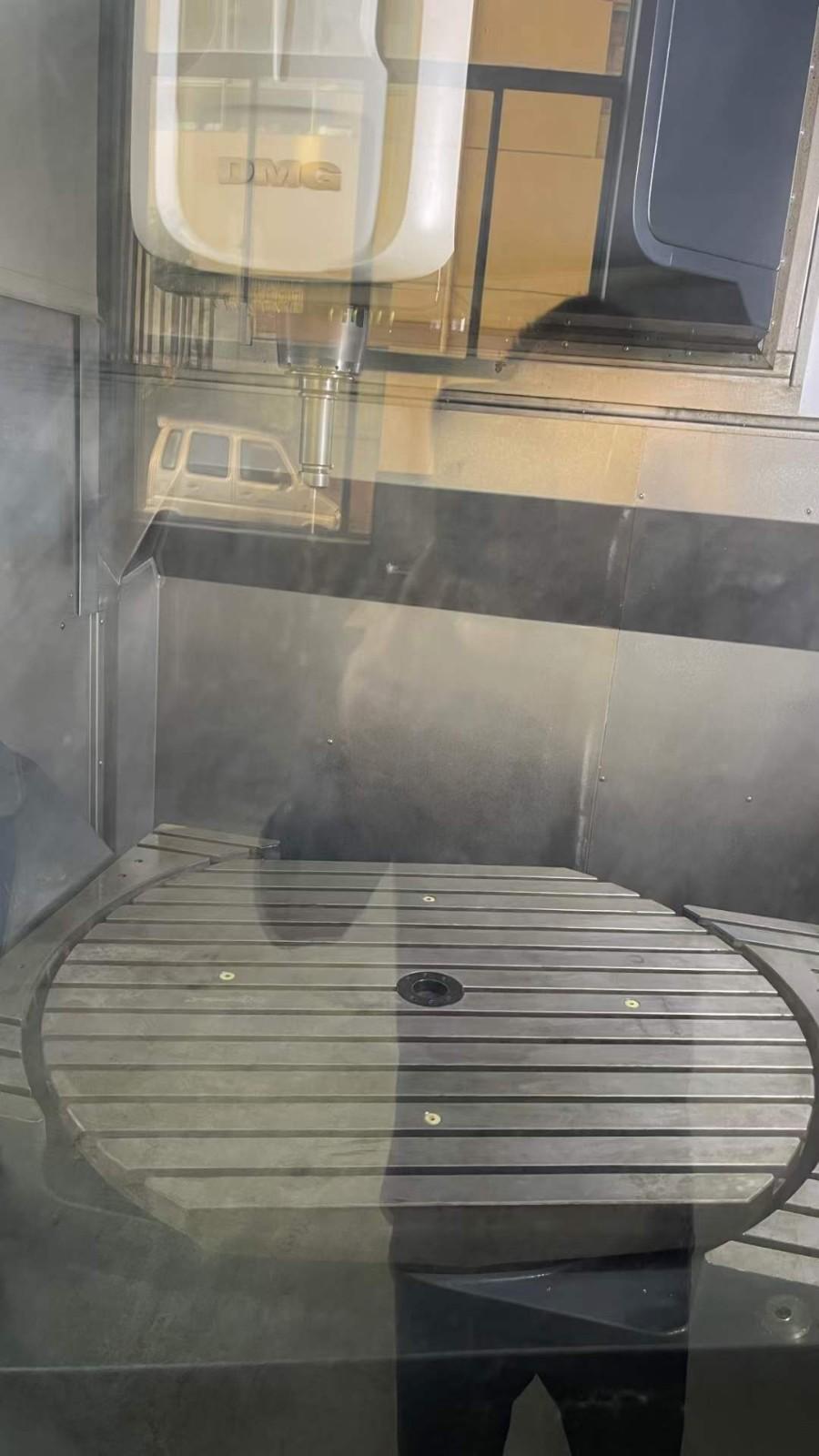

Worktable:
Worktable surface (left and right): 1045mm
Worktable surface (front and rear): 860mm
Clamping surface diameter: 1045 mm
Workpiece load (maximum): 1500 kg
Rotation axis: C
Operation mode: Automatic
Positioning/indexing: 0.001 degrees
One cradle shaft
Operation mode Automatic
Milling spindle/head
Spindle type: vertical
Spindle speed (maximum): 10000/min
Tool holder: HSK 63
Drive power S6 40%: 44 kW
Drive power S6 40%: 9 kW
Magazine tool position: 30
Size/weight
Space required - left/right: 4700 mm
Space required - front/rear: 3400mm
Overall height: 3300 mm
Total weight: 16000kg
Accessories:
Tool damage detector
Workpiece sensor
Chip conveyor
Cooling system
Belt filter
Main spindle coolant accessory
Closed door
European CE standards.
