Specifications:

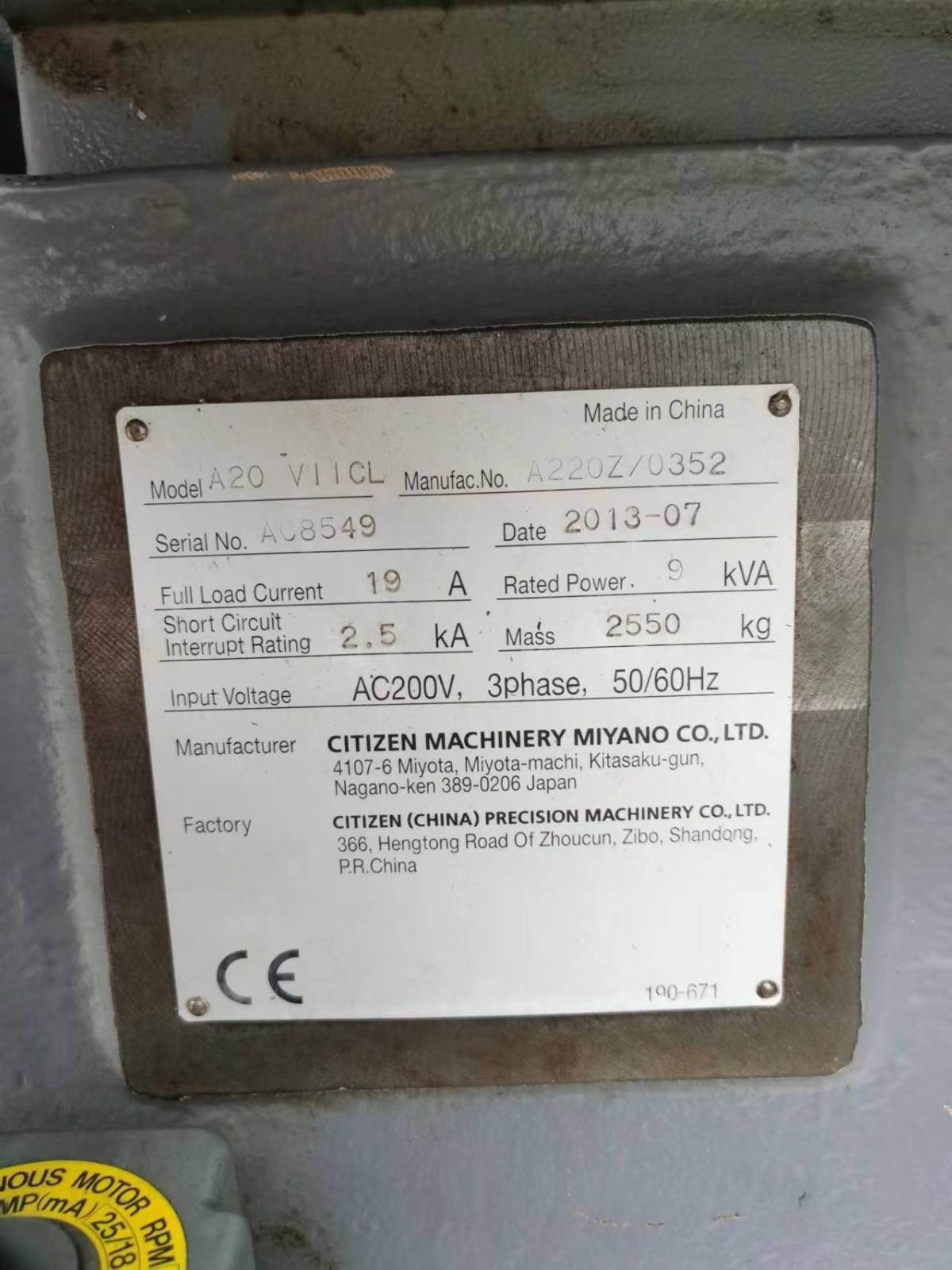

Model Number A20 West Iron City
Maximum machining diameter ø 20 mm
Model without guide sleeve 2.5 D
Maximum borehole diameter ø 10 mm
Maximum Tapping Diameter (tapping, die) M8
Spindle rotation speed Max. 10000 min - 1
Maximum drilling diameter of rotary tool for row cutter ø 7 mm
Maximum Tapping Diameter of rotary tool M6
Spindle rotation speed of row tool rotating tool Max.6,000min-1(standard 4,800min-1)
Maximum clamping diameter of rear spindle ø 10 mm
Maximum extension of back spindle workpiece 50mm
Maximum borehole diameter for back machining ø 8 mm
Maximum tapping diameter of back shaft M6
Back spindle rotation speed Max. 8000 min - 1
Number of tool installations The 21
Tool size 12mm,13mm,16mm
Fast feed rate X1 axis 18m/min
X2 axis 32m/min
Y axis 32m/min
Z1 axis 32m/min
Z2 axis 32m/min
Motor Spindle drive 2.2/3.7 kW
Tool spindle drive 0.75 kW
Back spindle drive 1.1/1.5 kW
Cutting oil 0.25 kW
Input power 6kVA
Weight 2550 kg
