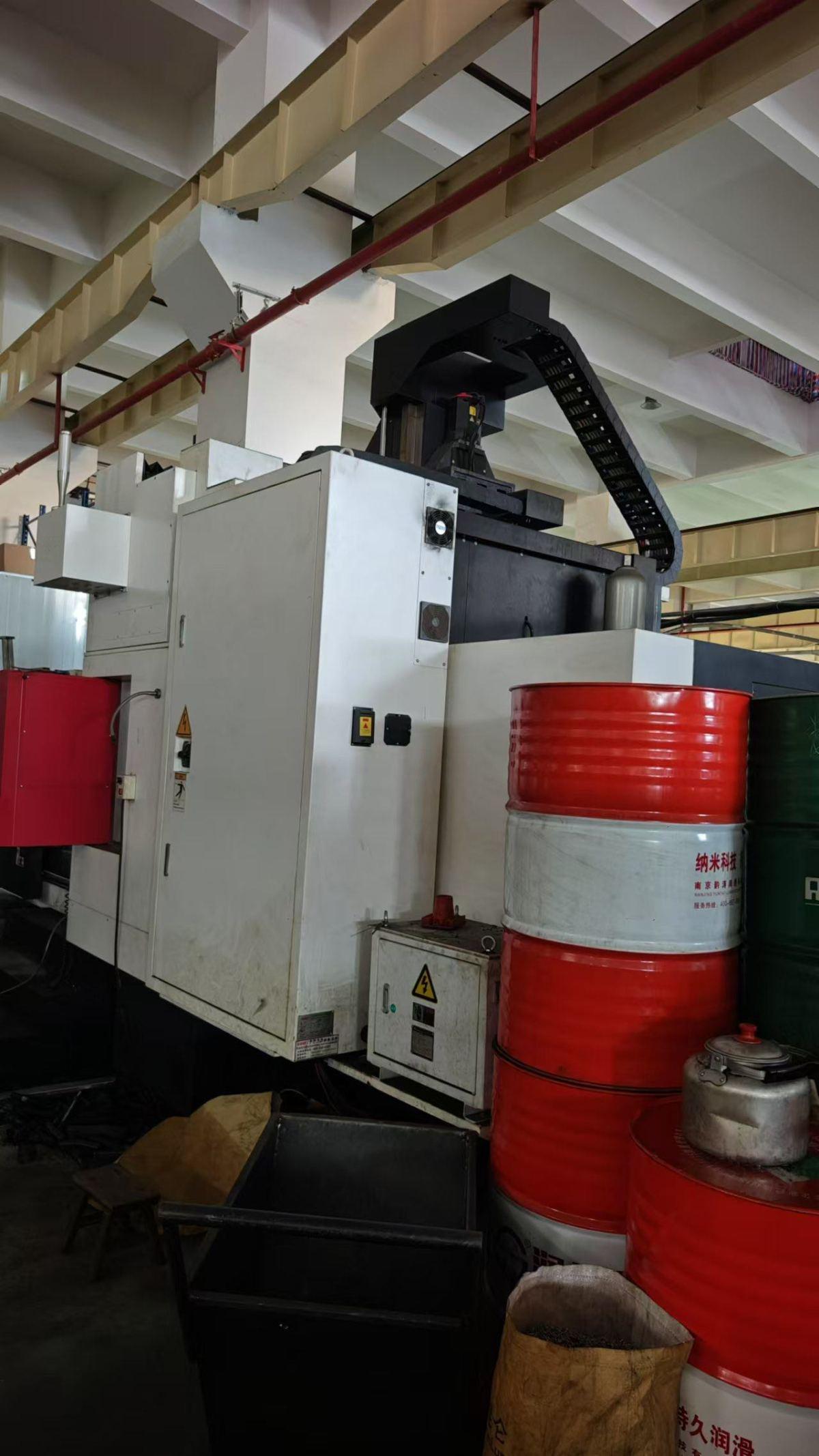

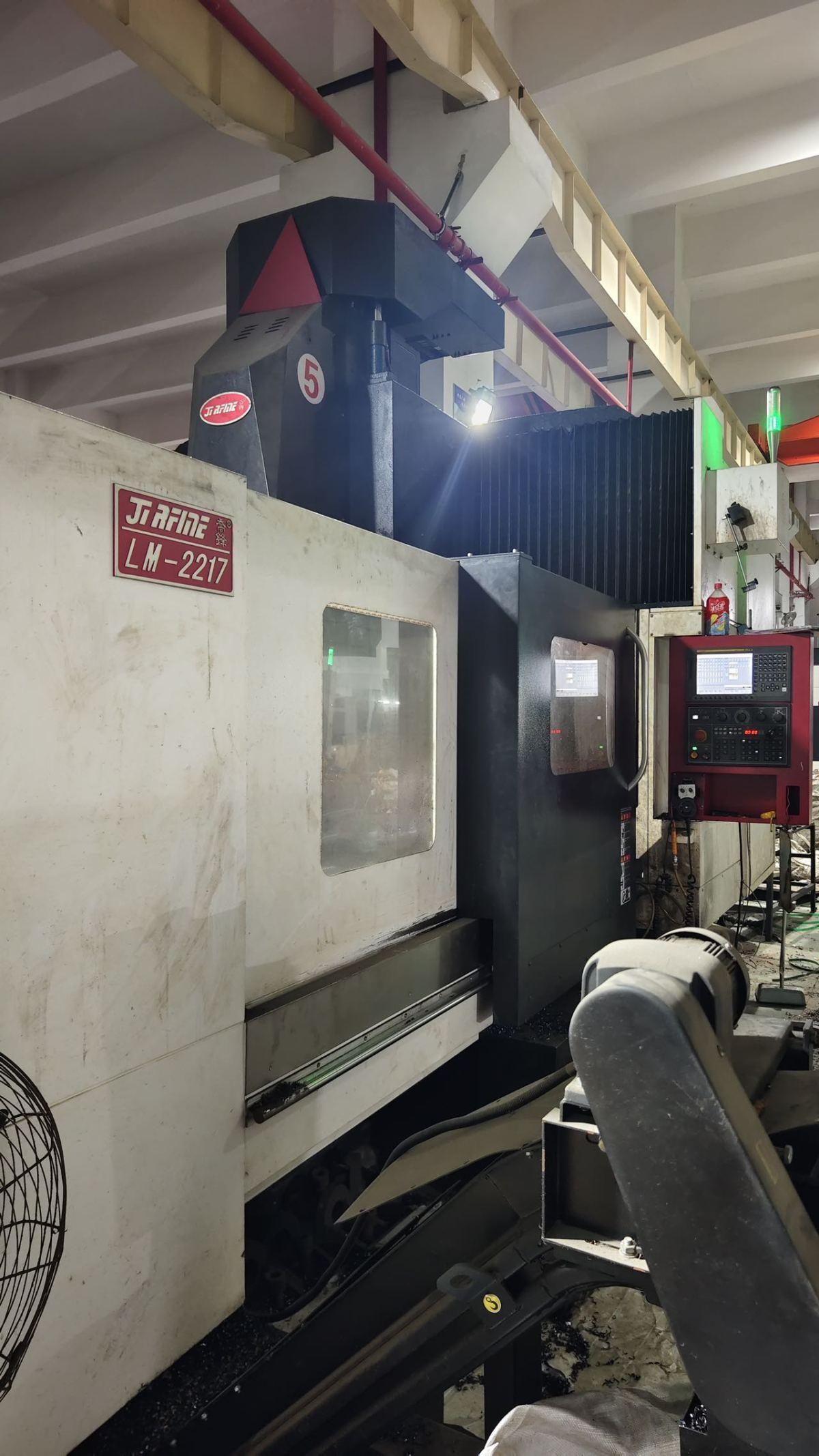

JIRFINE LM-2217 CNC gantry milling machine

[Product Information]:

Inventory number：813514
Brand：JIRFINE
Model：LM-2217
Origin：Taiwan, China
Location：China
Year：2022
Create Time：2026-10-29

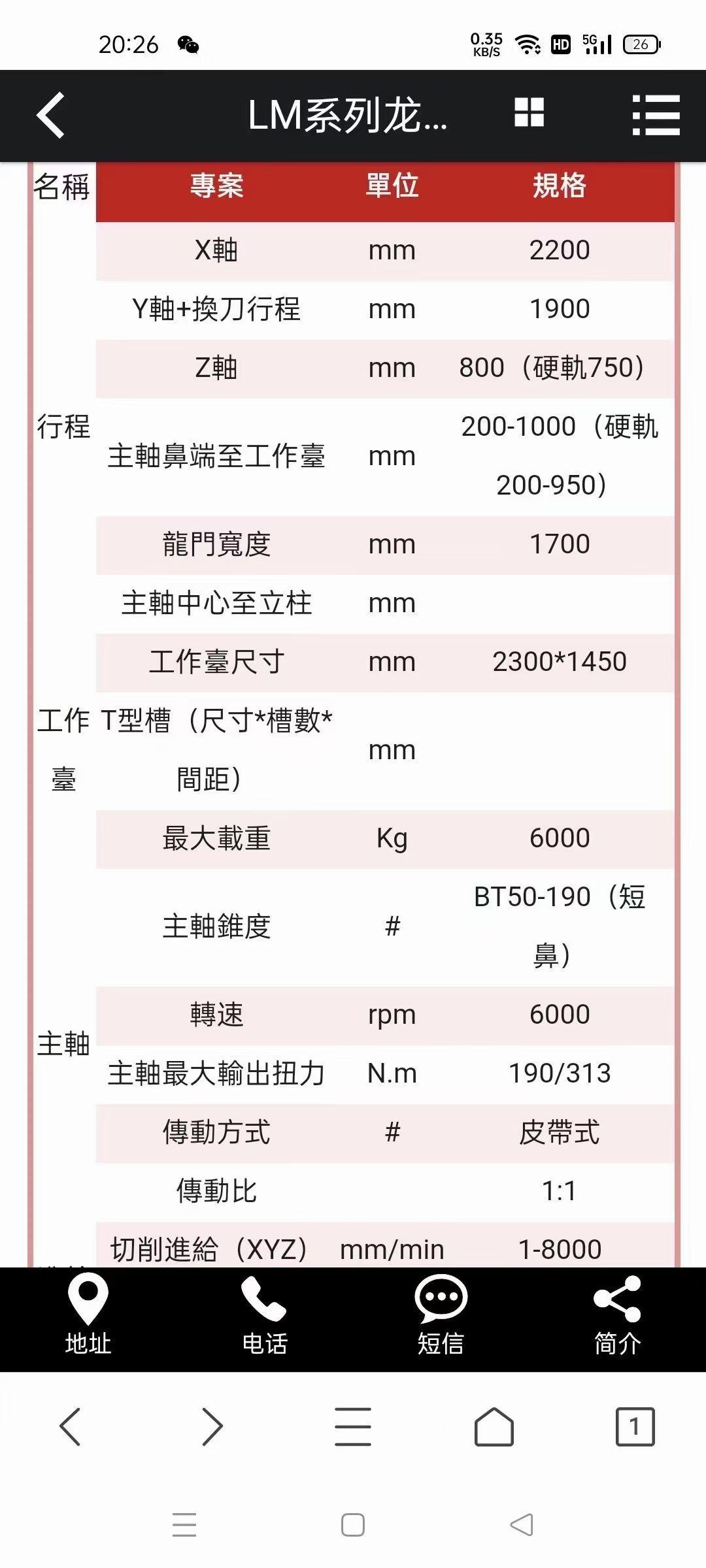

Specifications:

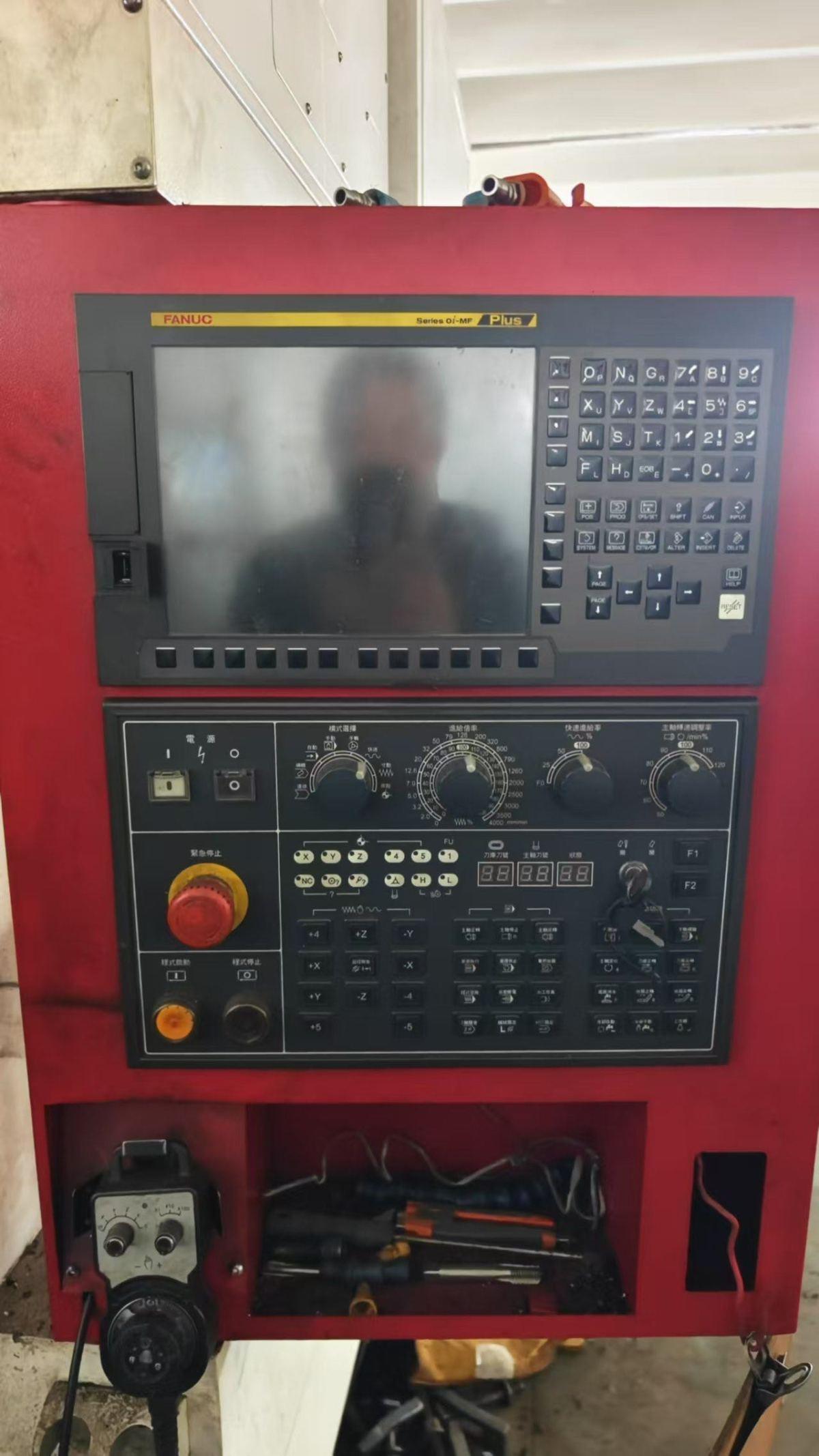

CNC System: FANUC MF-Plus
Three-axis travel: 2,200 × 1,900 × 800 mm
Guideway structure: Two linear guideways and one box guideway
Spindle taper: BT50
Spindle speed: 6,000 rpm
Worktable size: 2,300 × 1,450 mm
Gantry height: 1,040 mm
Gantry width: 1,700 mm
Distance from worktable surface to spindle nose: 950 mm

PDF Download Click to Contact Seller
