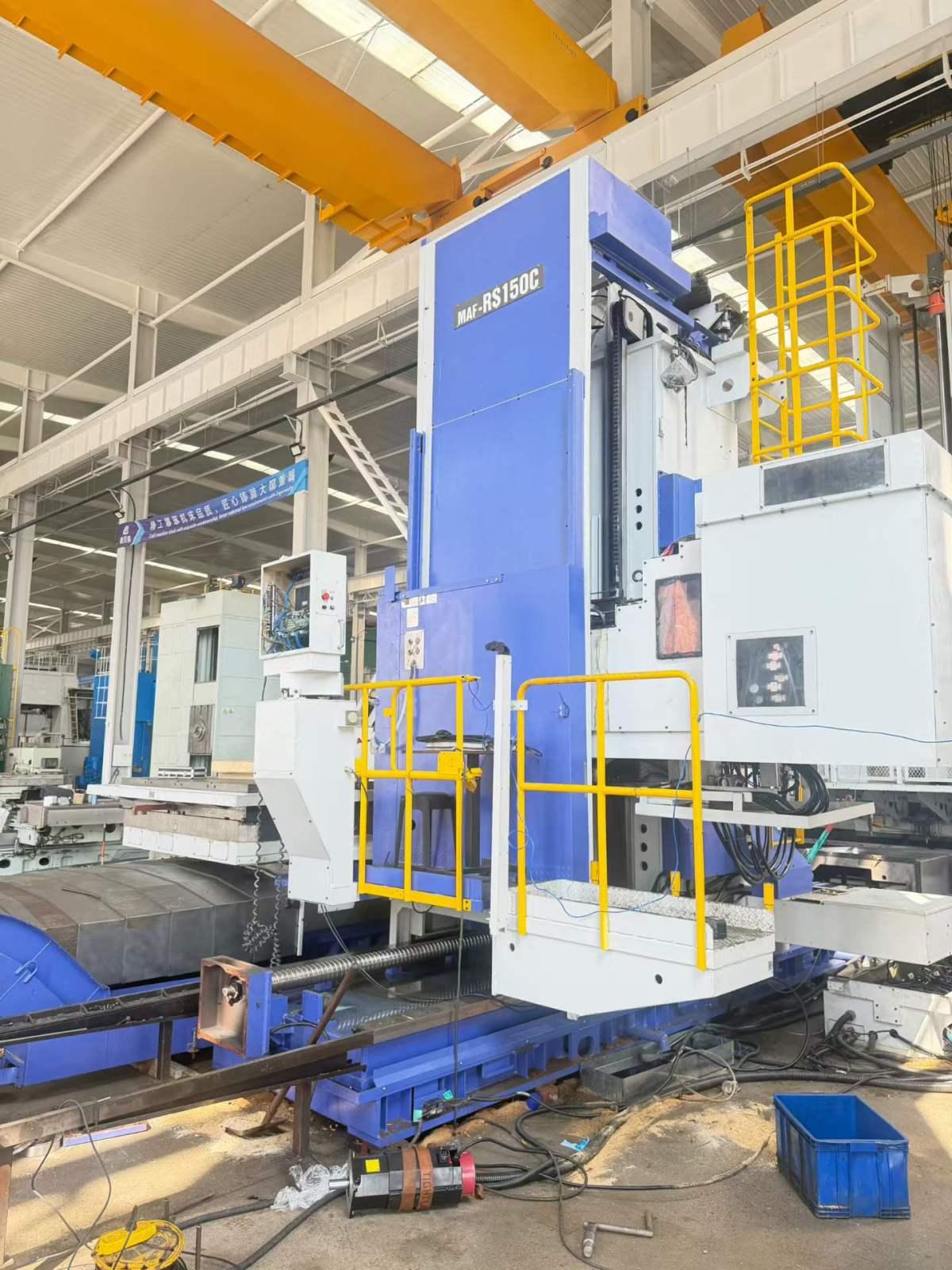

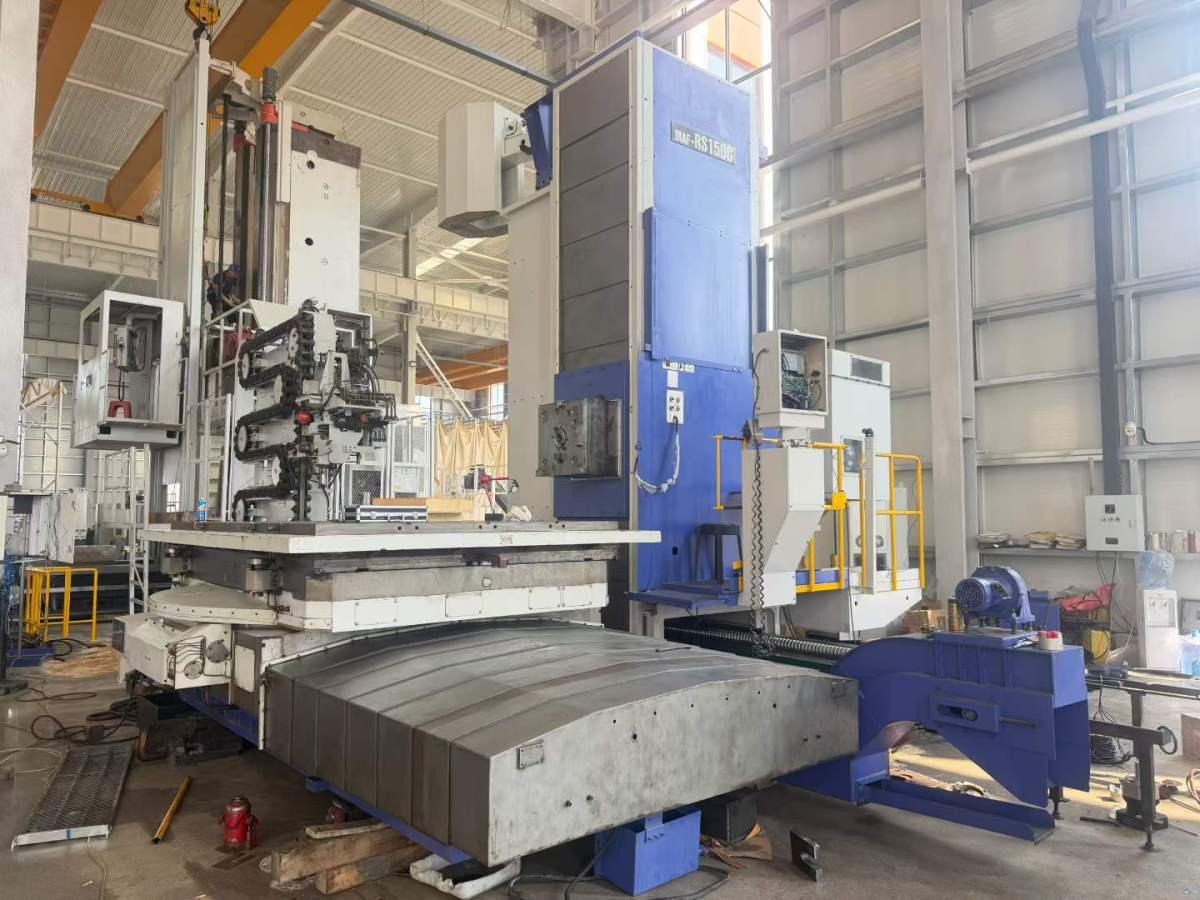

Mitsubishi MAF-RS150CS Boring and milling machine

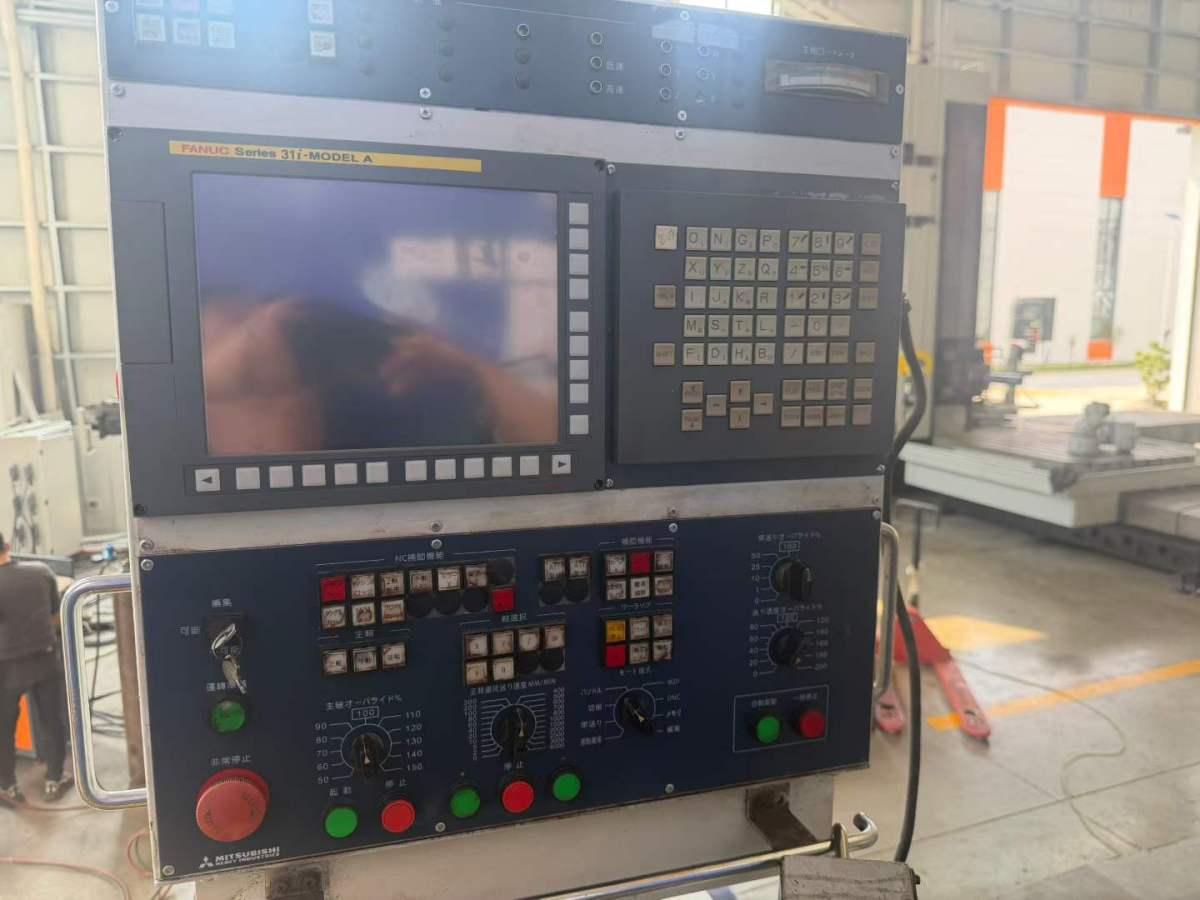

CNC System: FANUC 150i-MB
X-axis Travel: 5,250 mm
Y-axis Travel: 2,500 mm
Square Ram Travel: 1,100 mm
W-axis Travel: 900 mm
V-axis Travel (Rotary Table Feed): 1,500 mm
Rotary Table Size: 2,000 × 3,000 mm
Maximum Rotary Table Load Capacity: 30,000 kg (30 tons)
Indexing Resolution: 0.001°
Tool Magazine Capacity (ATC): 400 tools

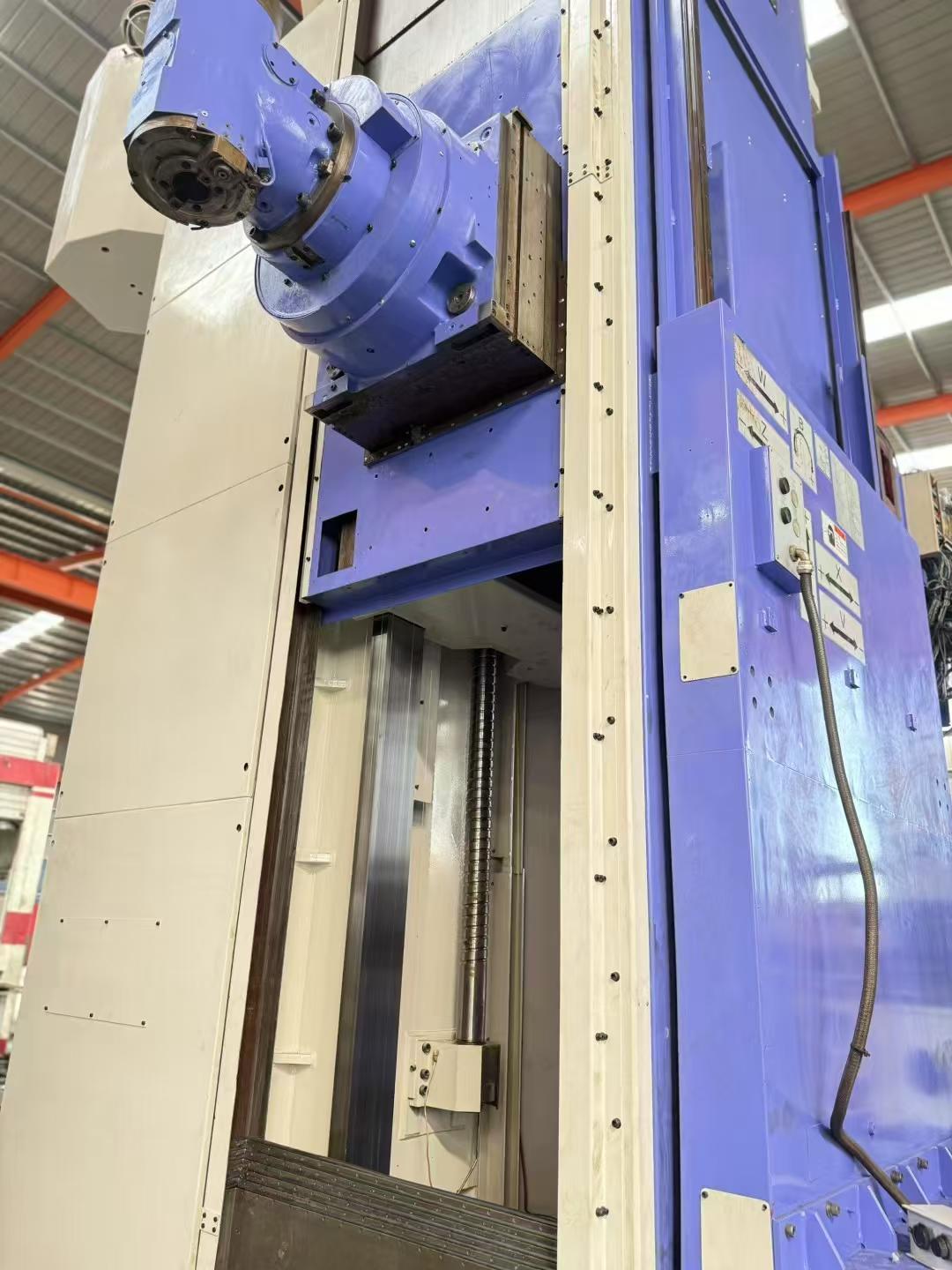

Milling Head Configuration: AAC 1° Indexing Milling Head with 15° Automatic Clamping
Maximum Spindle Speed: 3,000 rpm
Axis Accuracy: Within ±0.015 mm
Spindle Extension Length: 600 mm
Spindle Runout at 600 mm Extension: Within 0.01 mm
