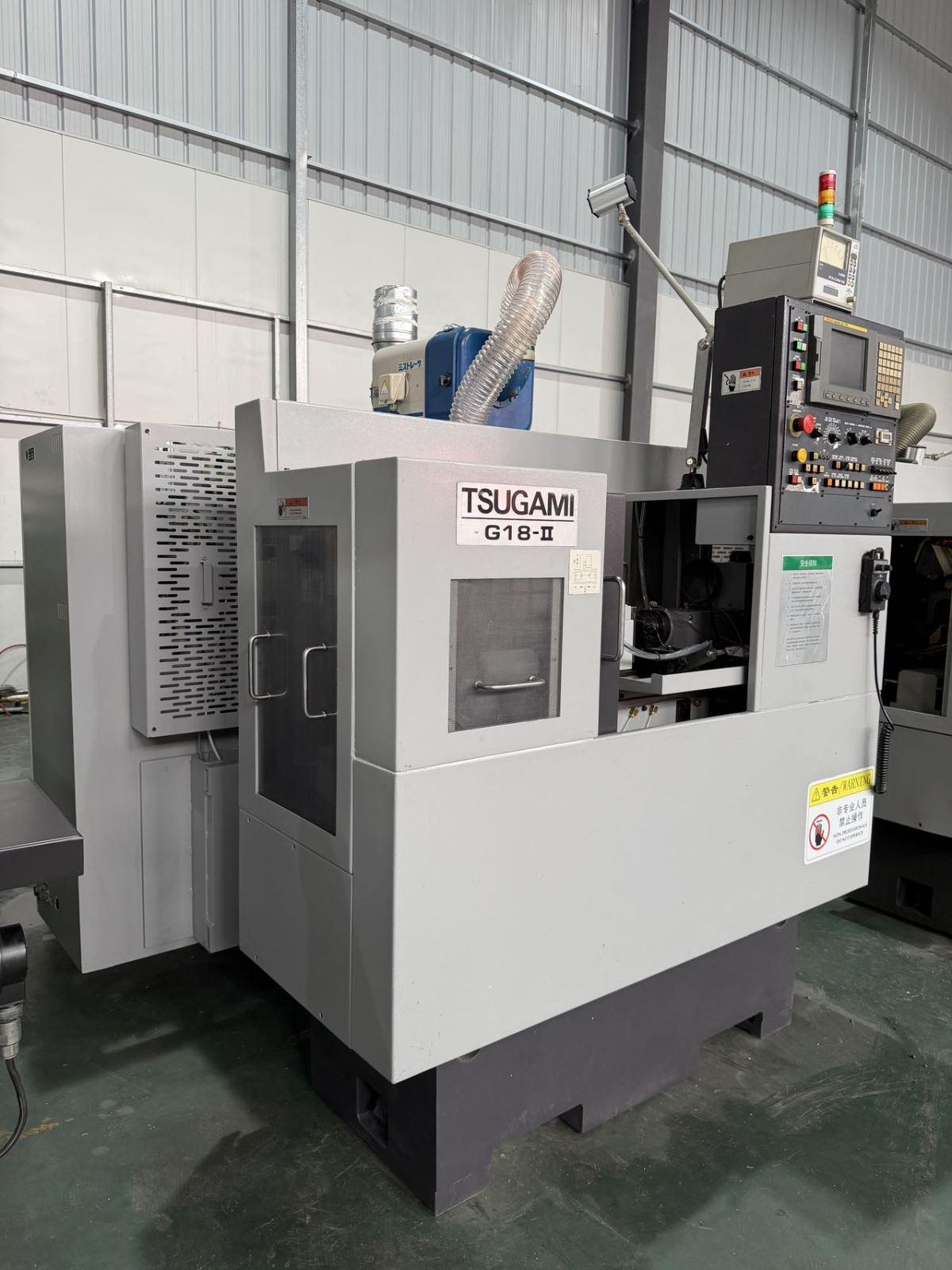

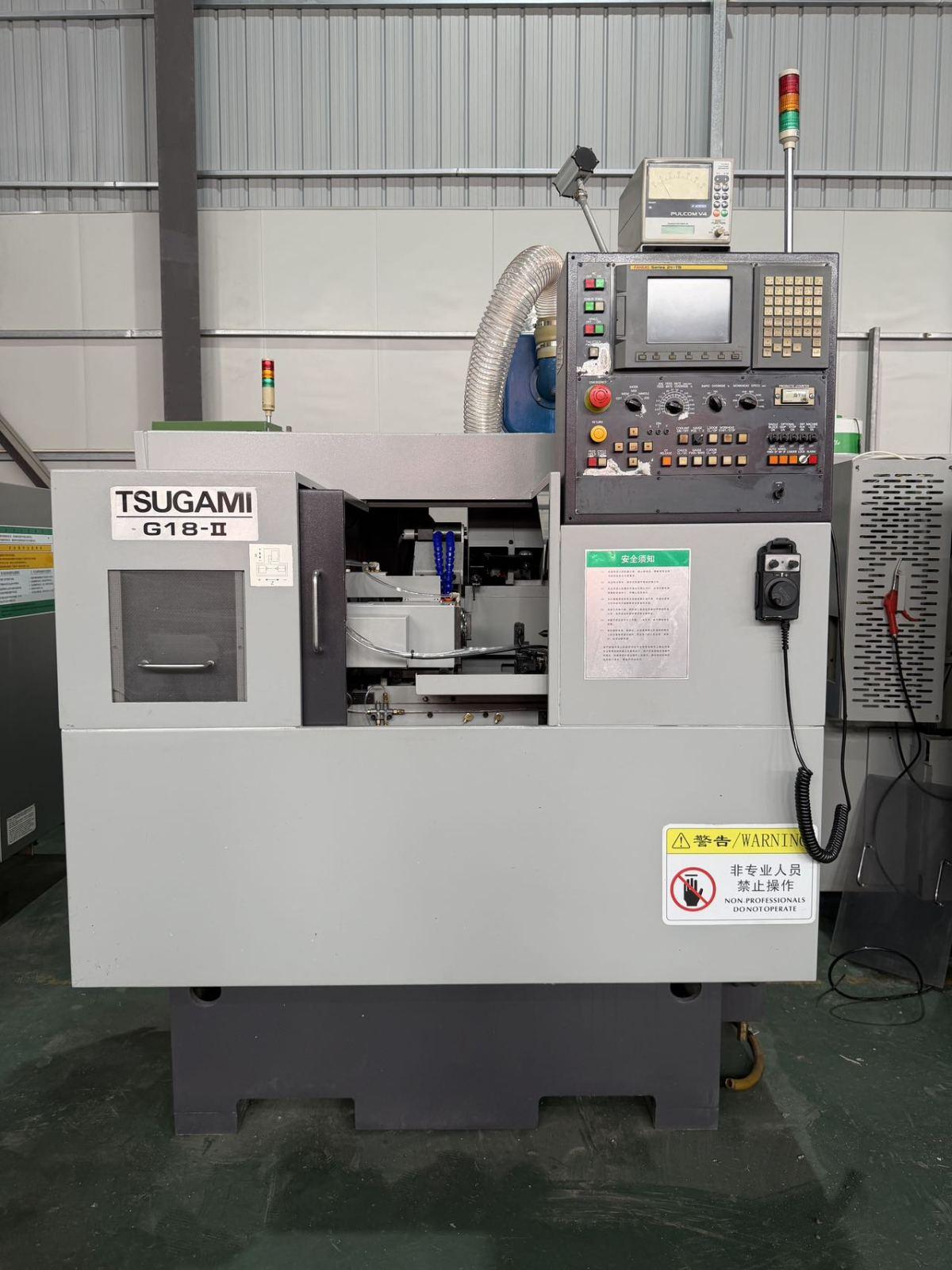

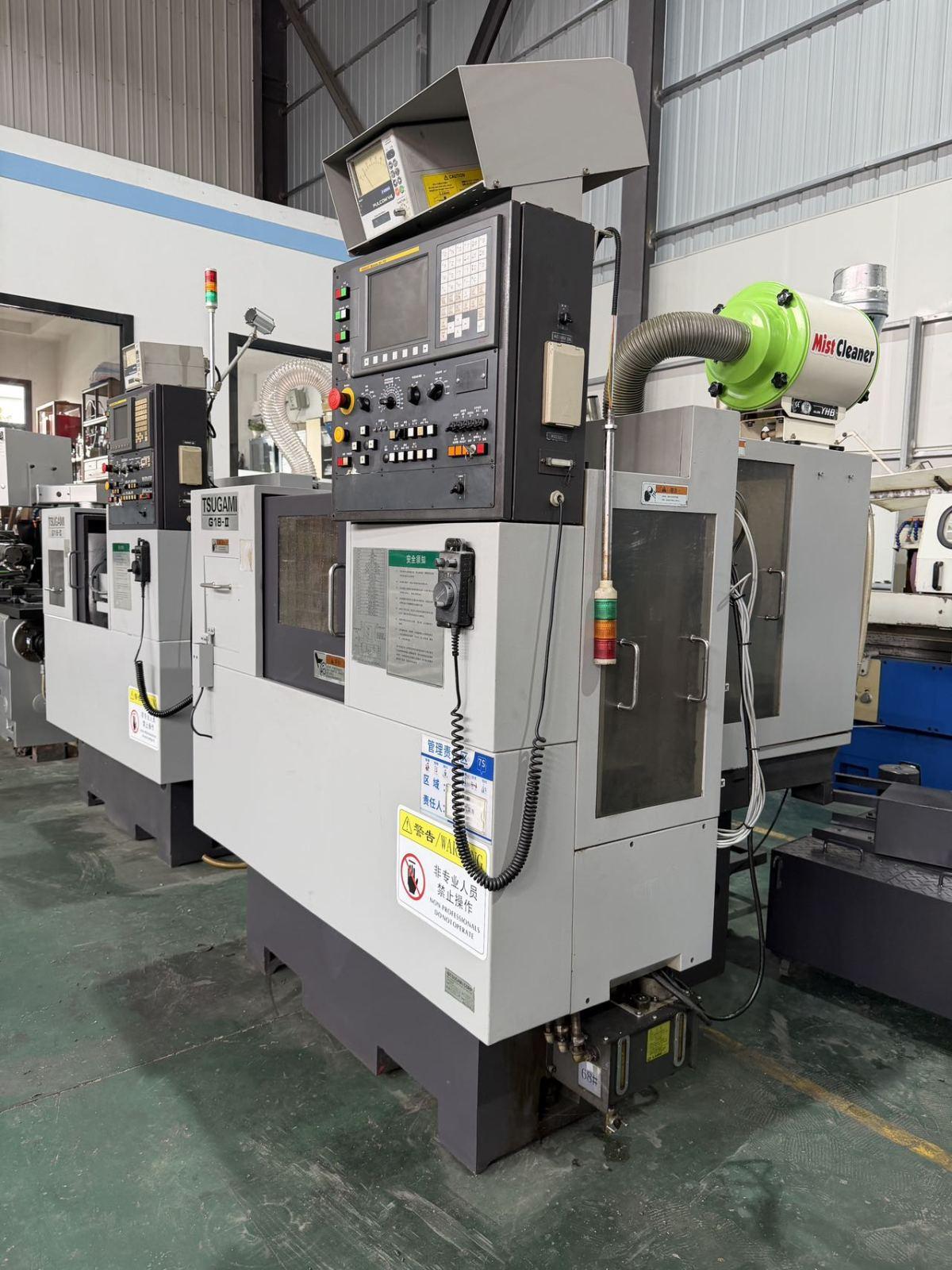

Tsugami G18II SB CNC Cylindrical grinder

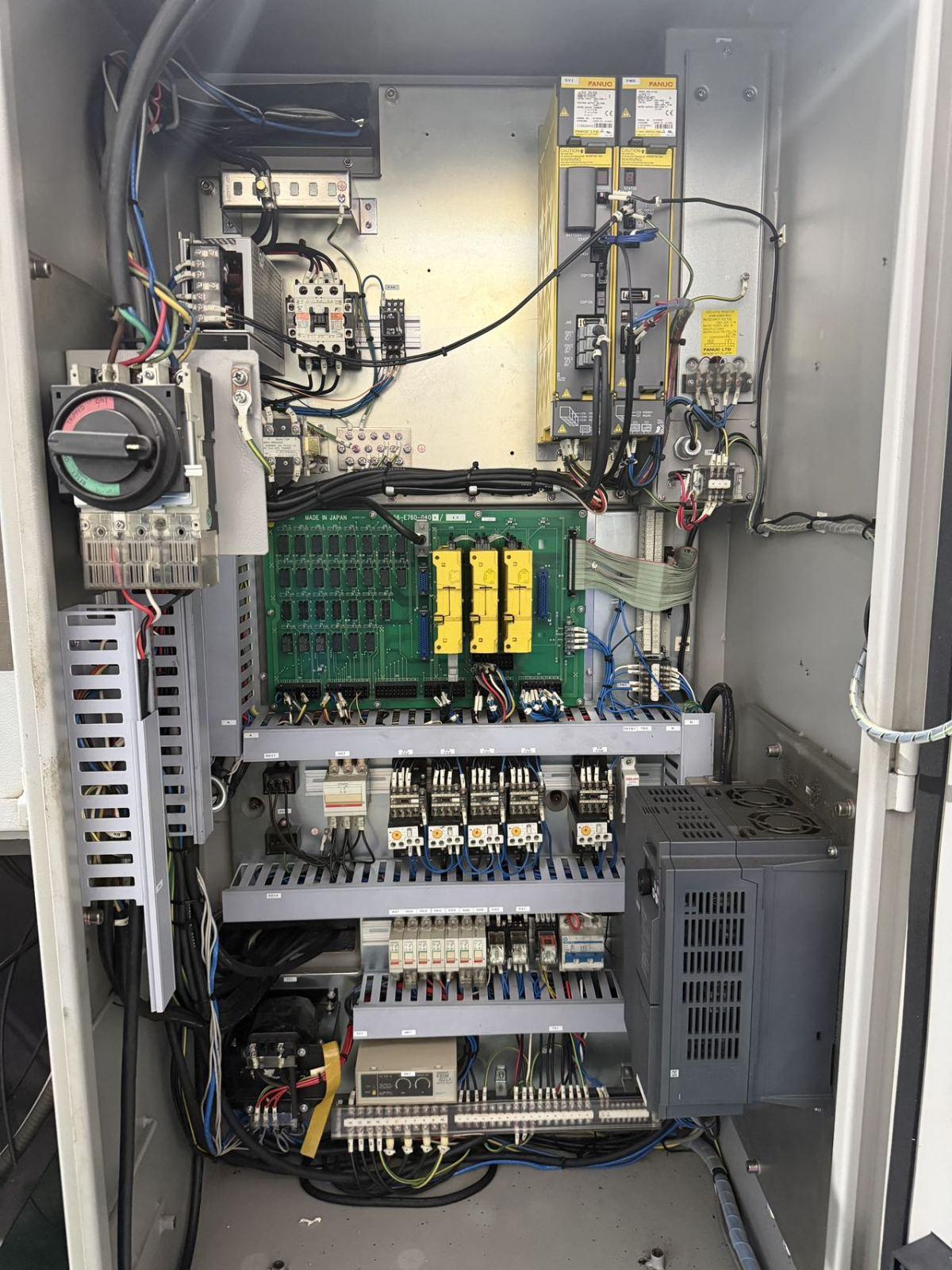

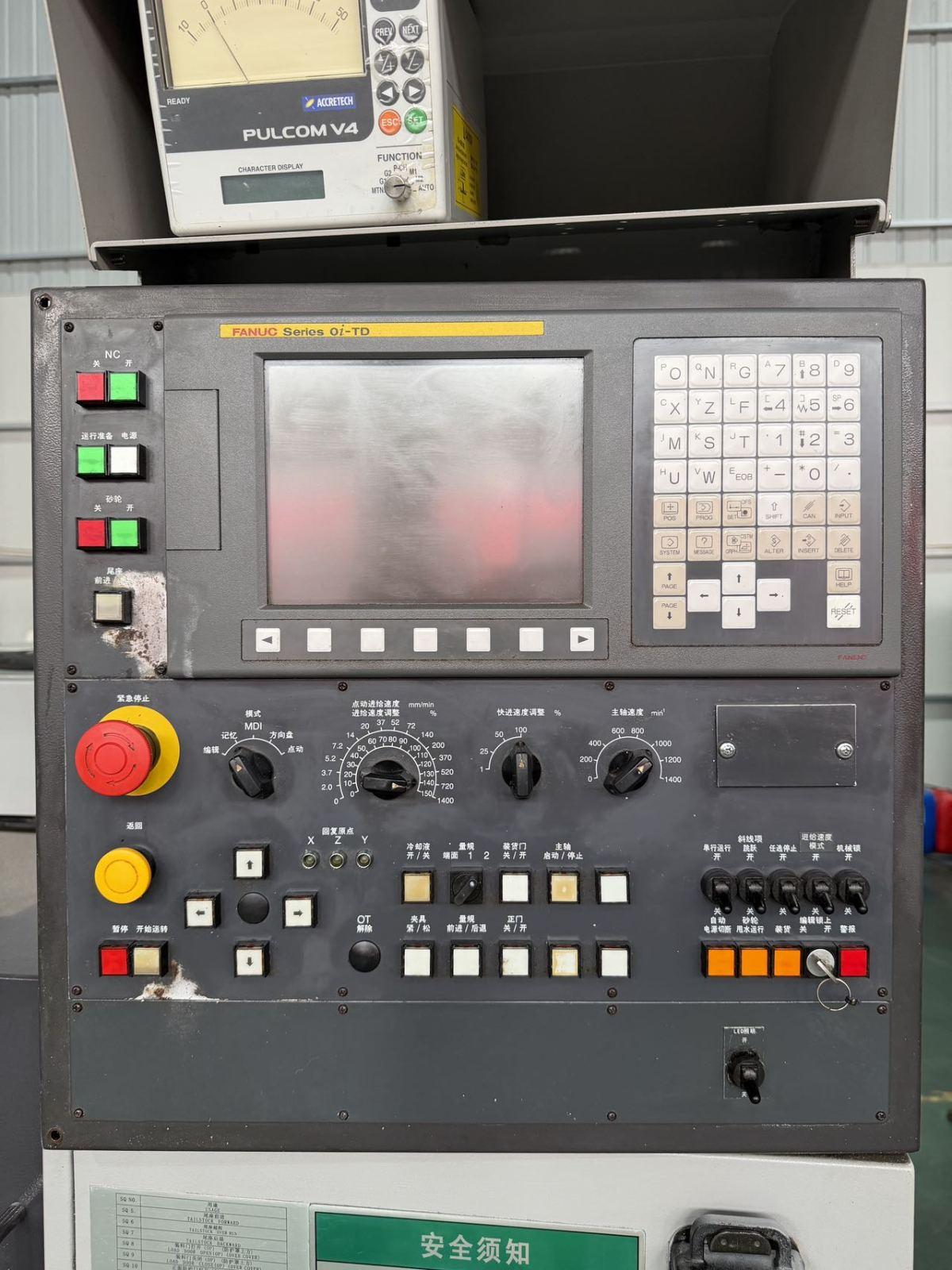

CNC System: FANUC
Swing Diameter: 180 mm
Distance Between Centers: 250 mm
Maximum Machining Diameter: 50 mm
Maximum Workpiece Weight Between Centers: 20 kg

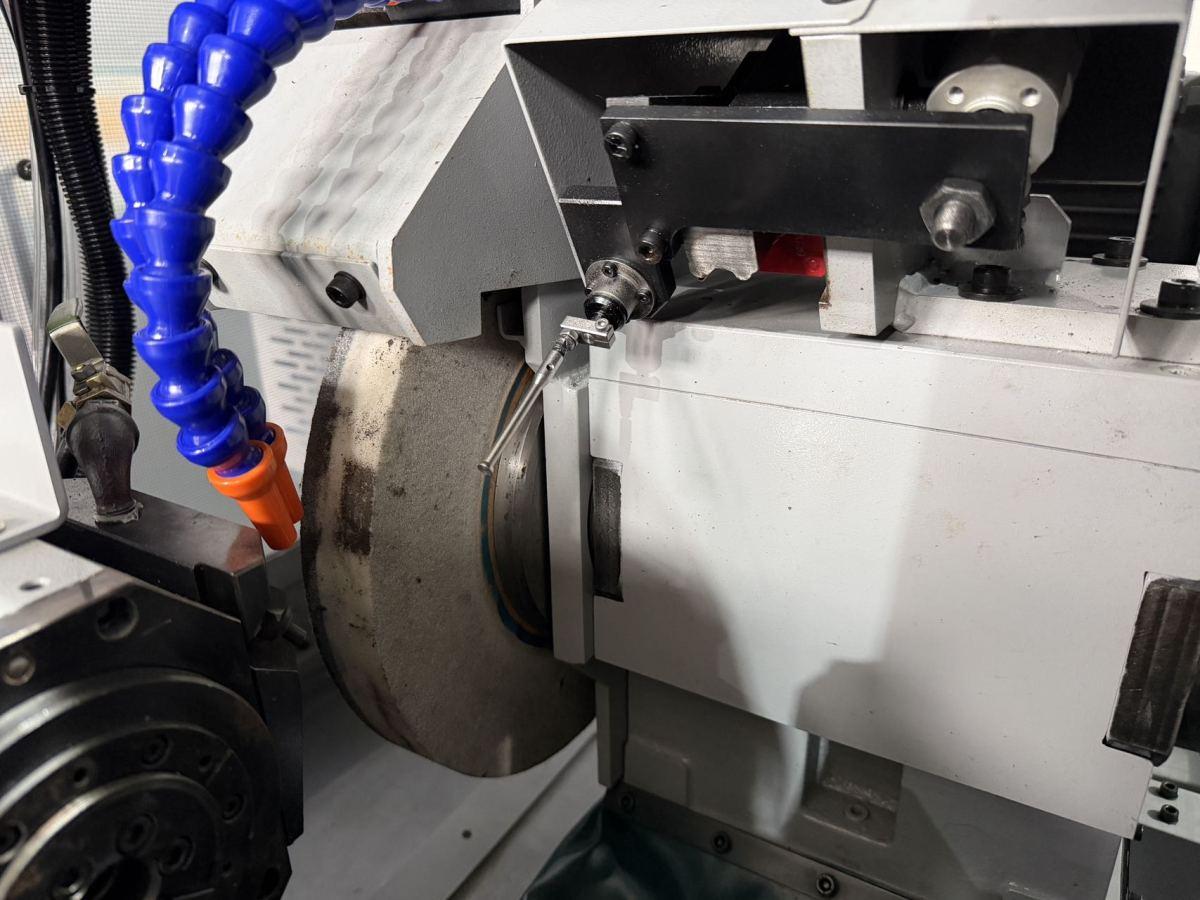

Grinding Wheel Dimensions (Outer Diameter × Width × Bore Diameter): 355 × 50 × 127 mm
Grinding Wheel Peripheral Speed: 2,700 m/min
Grinding Wheelhead X-axis Travel: 170 mm
Grinding Wheelhead Swivel Angle: 0°
Spindle Speed: 50–1,400 rpm

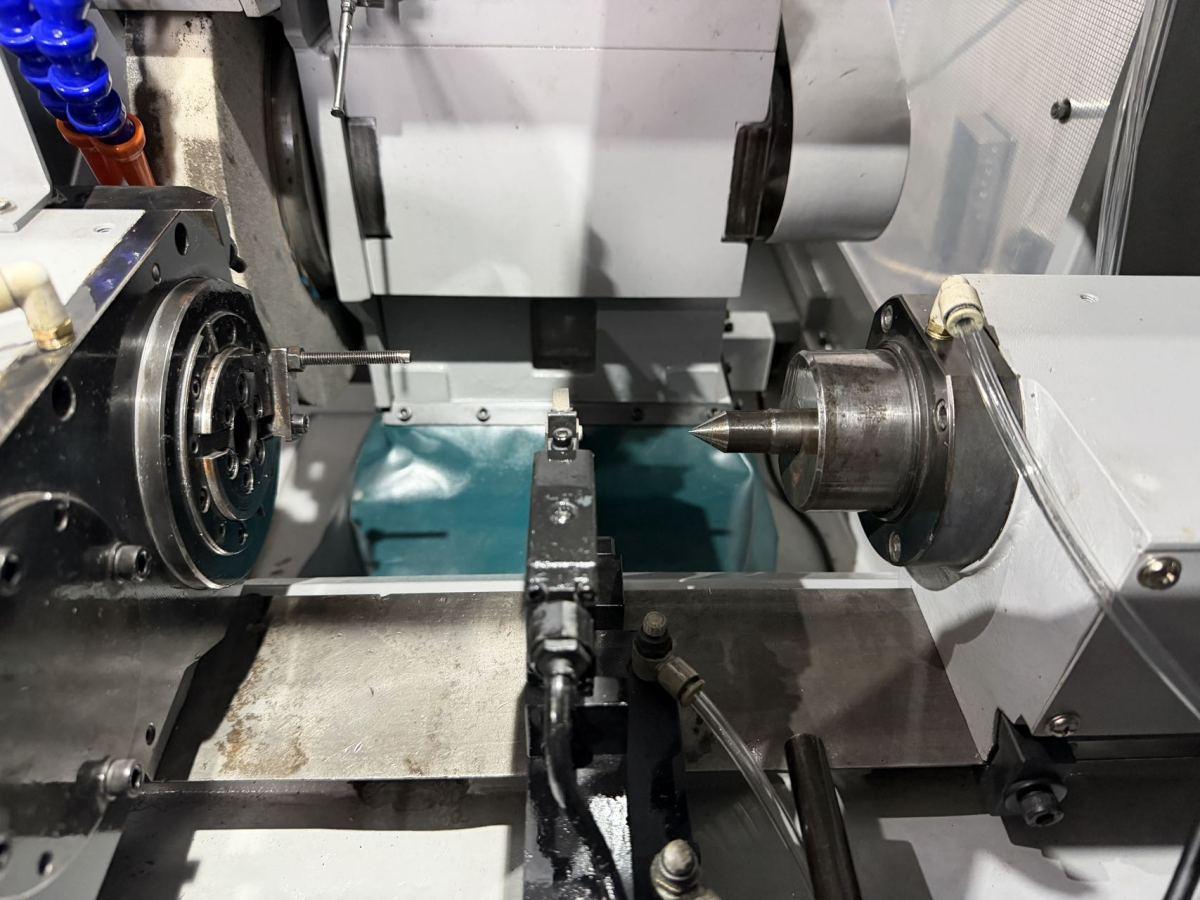

Tailstock Quill Travel: 30 mm
Floor Space (Length × Width): 1,450 × 2,085 mm
Center Height Above Floor: 1,050 mm
Machine Weight: 2,000 kg
