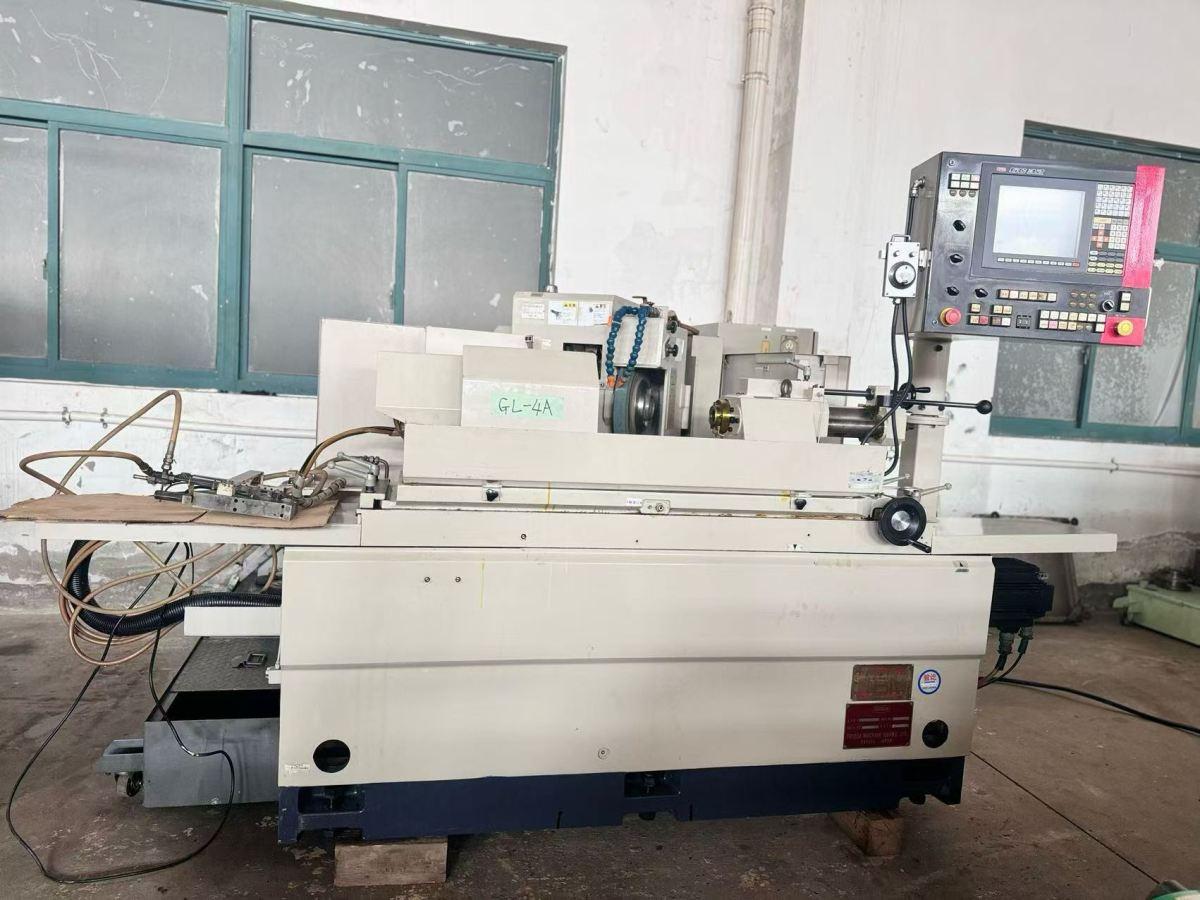

Toyota GL4A-50II Cylindrical grinder

Maximum Swing diameter Over Table: Ø320 mm
Distance Between Centers: 500 mm
Maximum Grinding Diameter: Ø300 mm
Grinding Wheel Dimensions (OD × Width × Bore): Ø455 × 75 × Ø127 mm
Workhead and Tailstock Taper: MT4 (Morse Taper No. 4)
Grinding Wheel Speed: Approx. 1,380 rpm
Workhead Spindle Speed: 16–500 rpm
Maximum Workpiece Weight: 150 kg
Machine Weight: Approx. 4,000 kg
Machine Footprint (L × W): Approx. 3,560 × 2,130 mm
