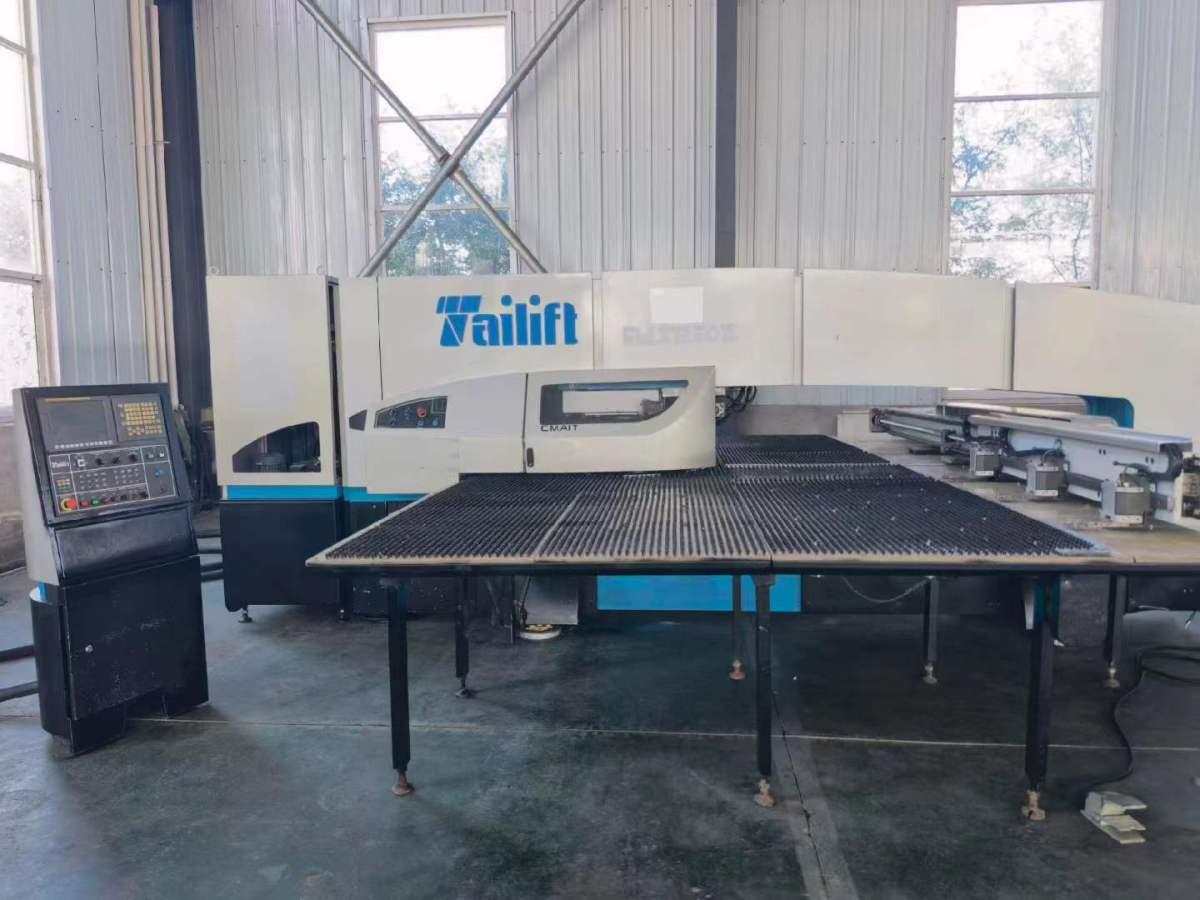

TAILIFT MAX1250x Punch / press

Maximum Punching Pressure (Max punching pressure) : 300 KN (approximately 30 tons)
The maximum machining Width (Max Sheet width) is 1250mm
The maximum machining Length (Max Sheet length) is 2500 mm
X-axis travel: 1280mm
Y-axis travel (Y-axis Travel) 2500 mm
Maximum Punch Diameter: Φ 50.8mm (2 inches)

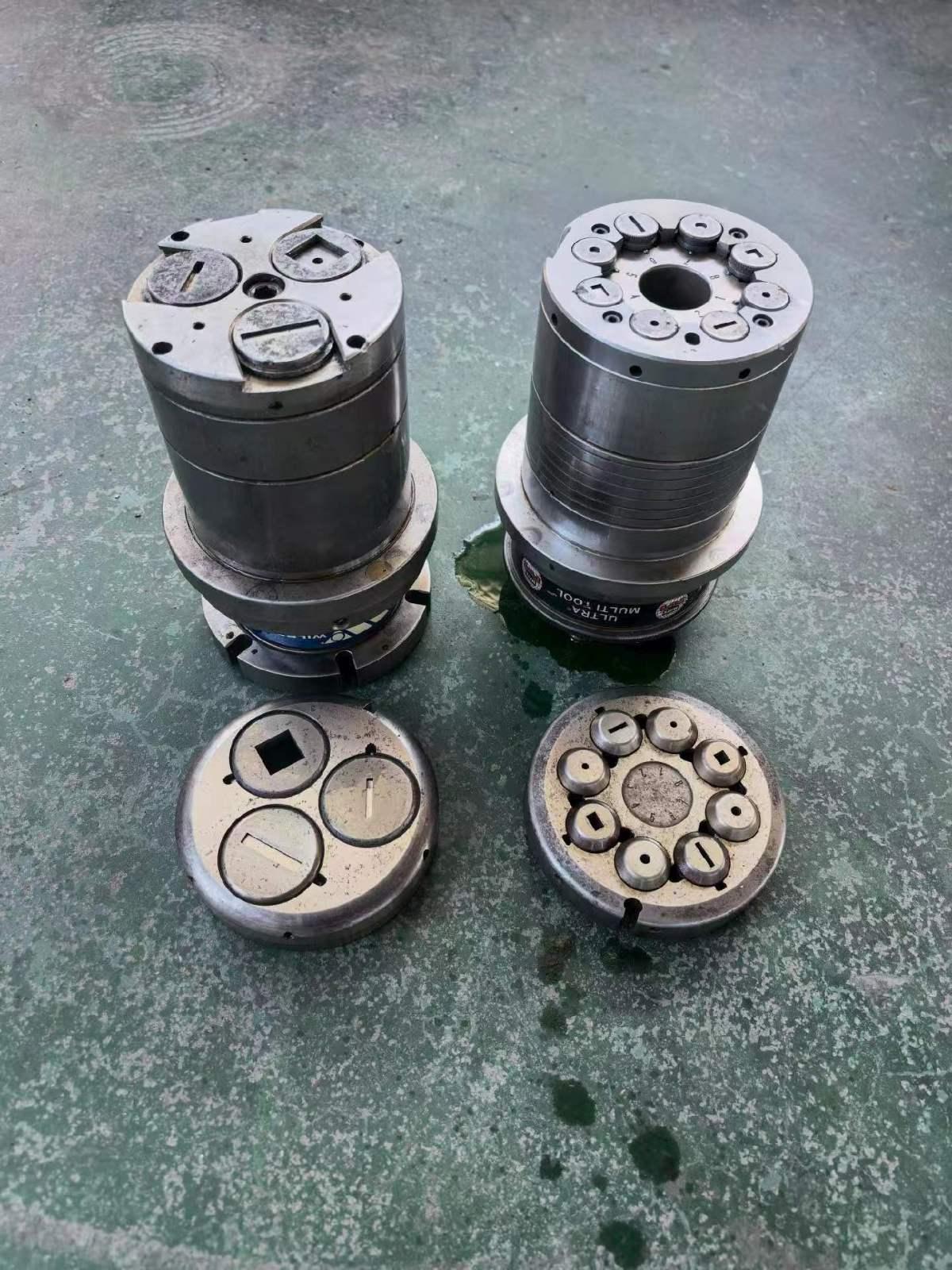

Standard Die Sizes: Round die (Φ12.7/Φ25.4/Φ31.75/Φ50.8)/square/long hole
The maximum Punching travel (Max punching travel) is 30 mm
The Positioning precision is ± 0.05mm
X/Y Rapid Traverse 90 m/min

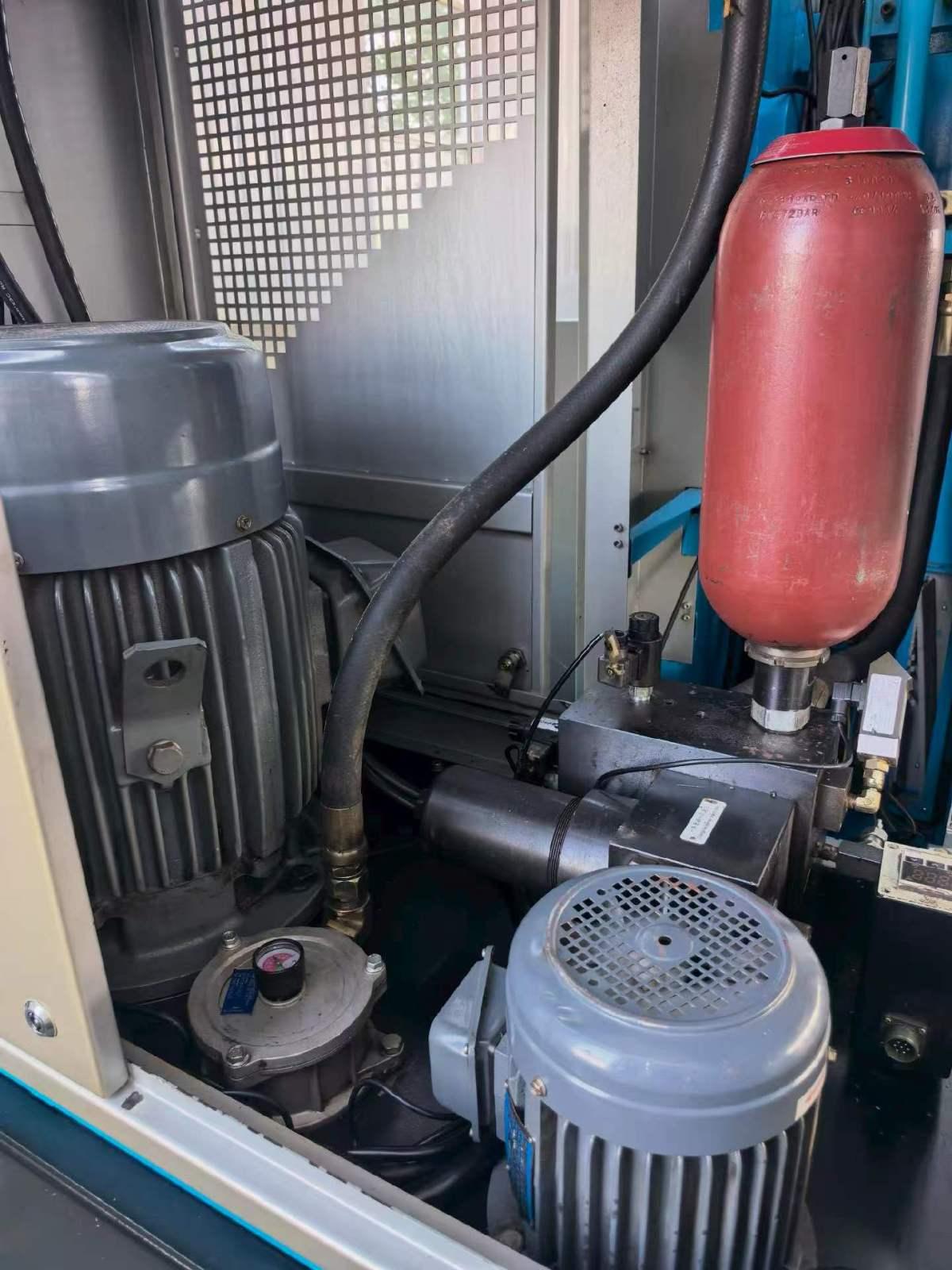

The power of spindle Motor is 7.5 KW
Machine Weight: 14,530 kg (main unit) + 650 kg (control cabinet)
The Power Supply requirement is 25 KVA
