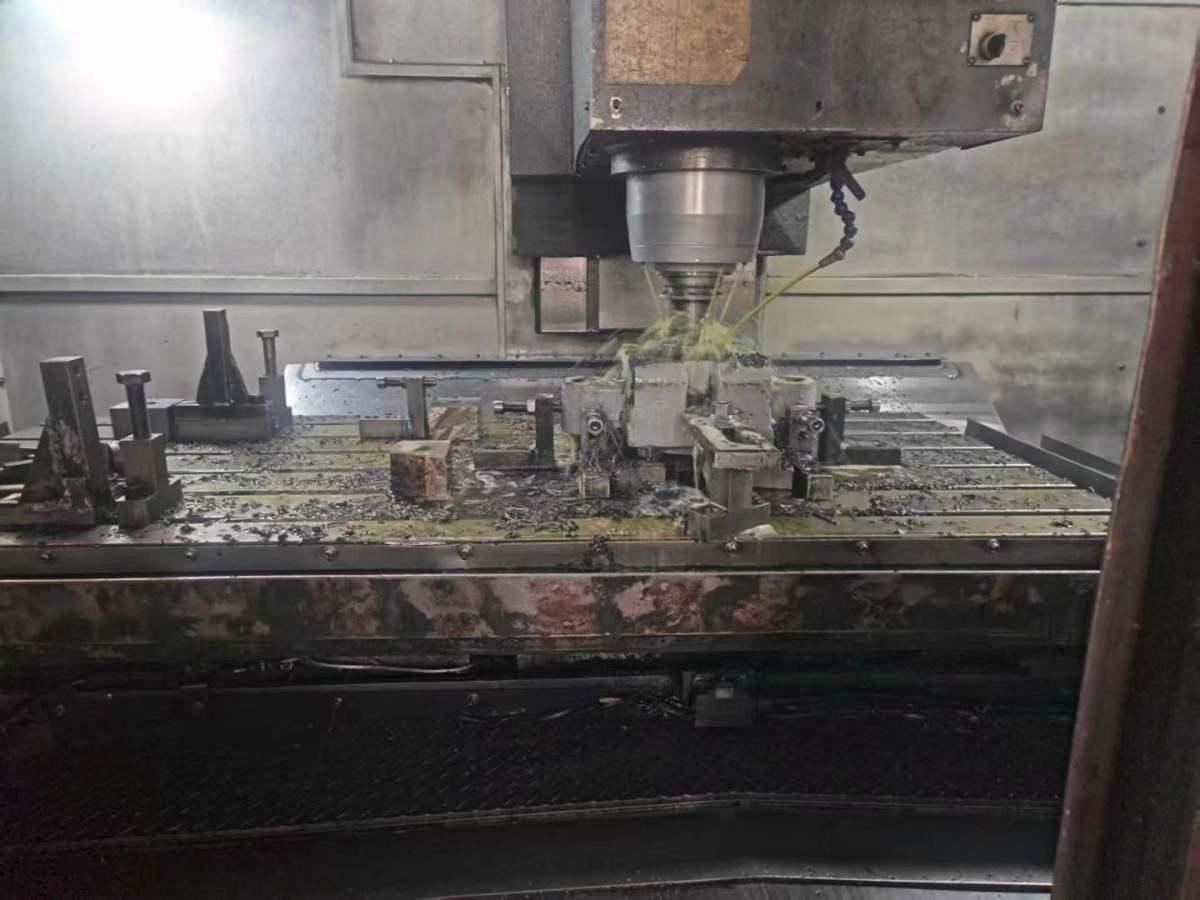

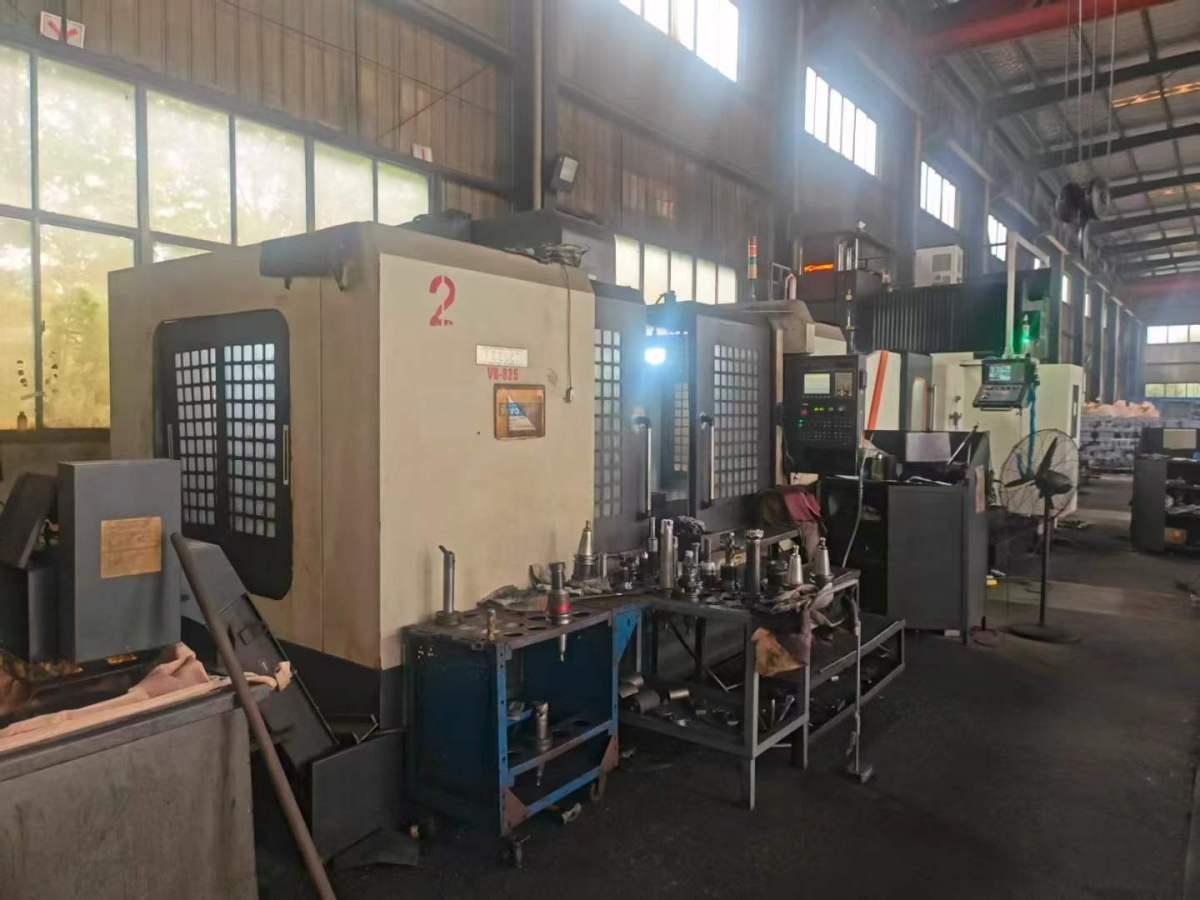

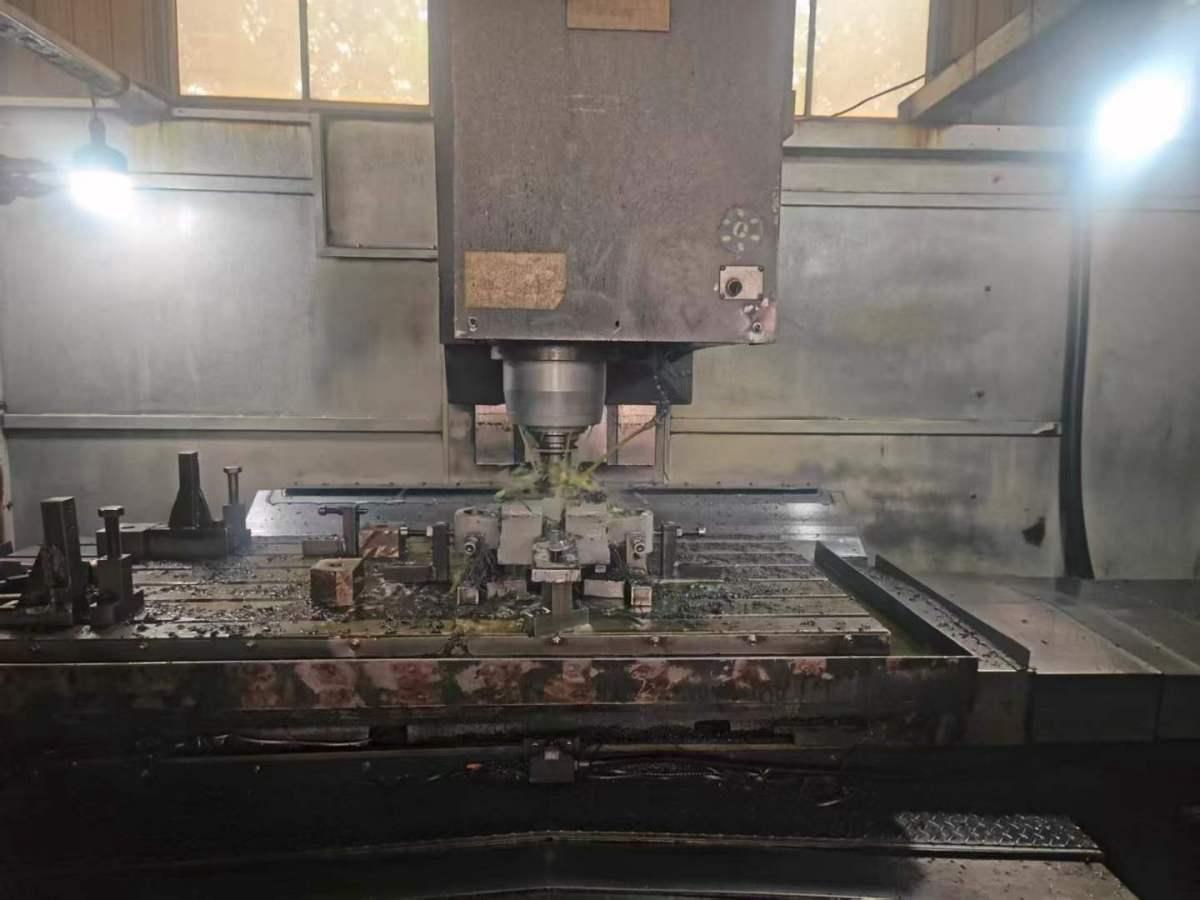

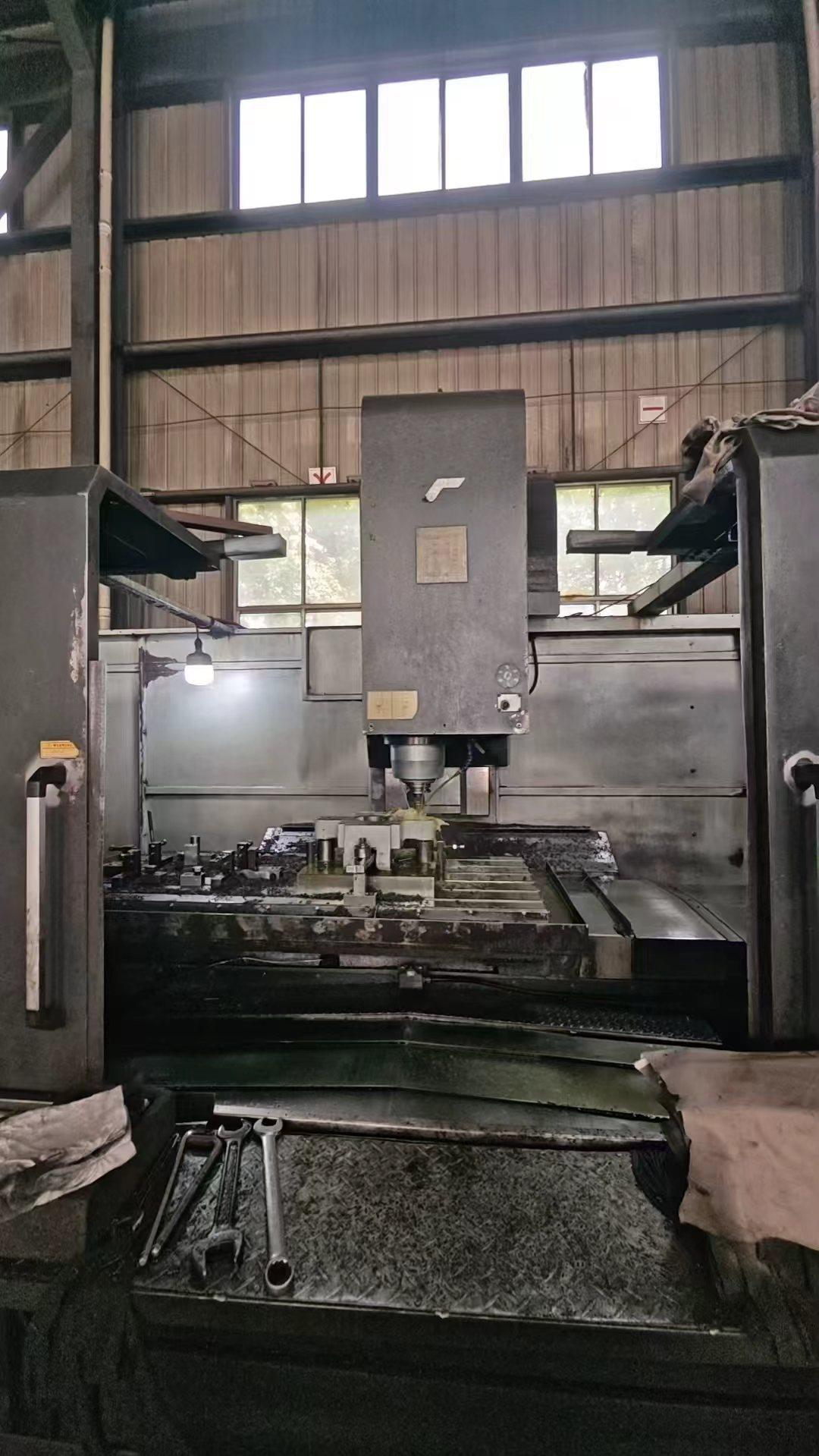

FEELER VB-825 Machining centre

Worktable size (Worktable size) : 1900 × 800 mm
The maximum Worktable load is 1800 kg
X-axis travel (X-axis Travel) 1400 mm
Y-axis travel: 825mm
Z-axis travel is 700 mm
spindle Taper BT50
spindle speed Range is 20 to 4000 RPM
The power of spindle Motor is 11/15 kW
Rapid Positioning feed velocity (Rapid Traverse) 15/15/12 m/min (X/Y/Z)
The Cutting Feedrate is 1 to 5000 mm/min
magazine capacity (ATC Capacity) 24 (Arm Type)
The Power Capacity is 30 KVA
The required air pressure is 5 to 6 bar
The Weight of machine tool is 13,000 kg
