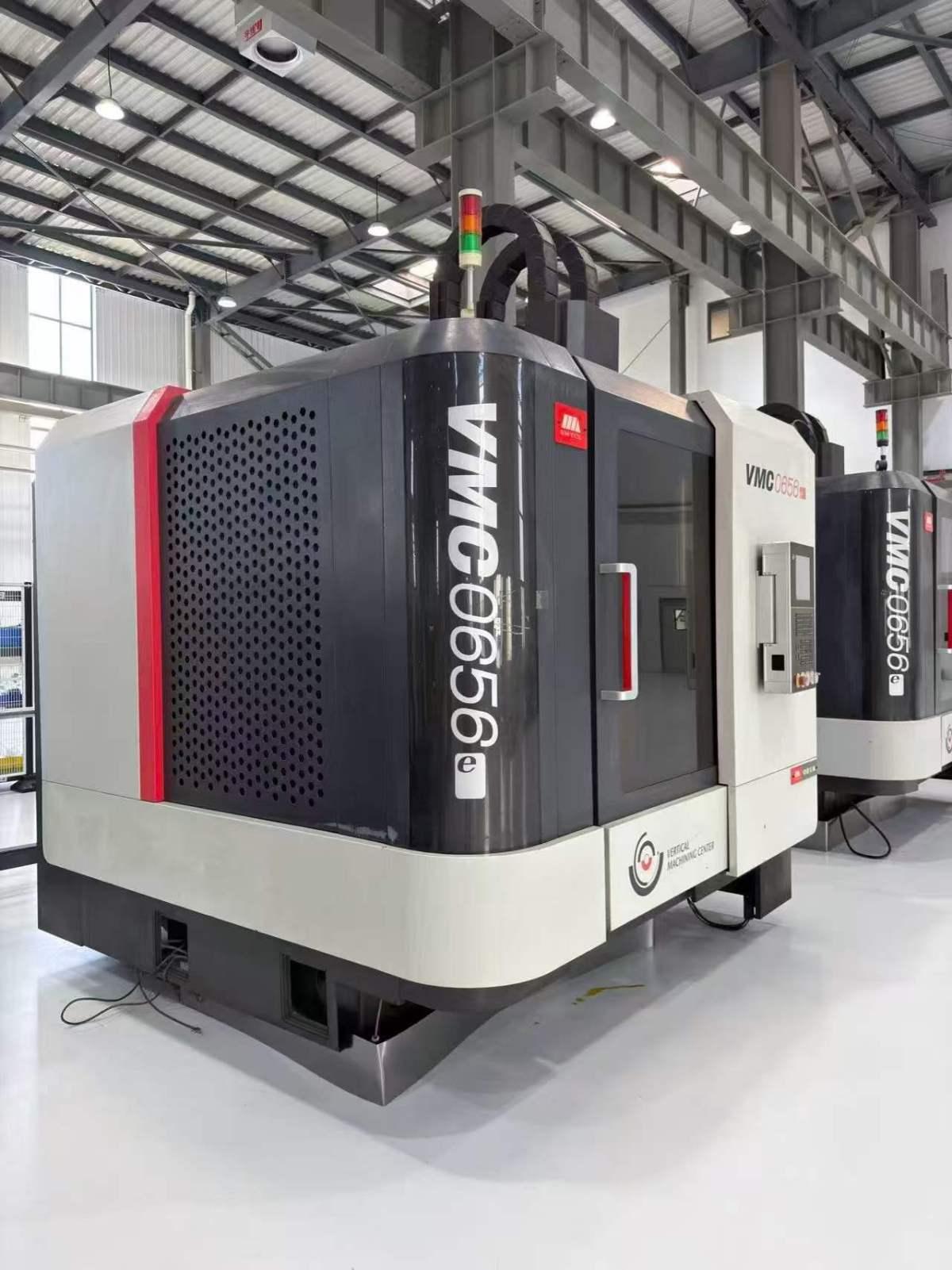

SMTCL VMC0656e 5 axis machining centre

Worktable Diameter: Ø400 mm
Worktable Swivel Angle: +105° / −120°
Worktable Rotation: 360° continuous rotation
Worktable Swivel Speed: 16.6 rpm
Worktable Rotation Speed: 33.3 rpm
Worktable Swivel / Rotation Accuracy: ±5″ / ±5″
Maximum Worktable Load Capacity: 250 kg
X-Axis Travel: 600 mm
Y-Axis Travel: 560 mm
Z-Axis Travel: 450 mm
Distance from Spindle Nose to Worktable Surface: 80–530 mm
Spindle Speed: 0–8,000 rpm
Spindle Motor Power: 9 / 11 kW
Spindle Taper: BT40
