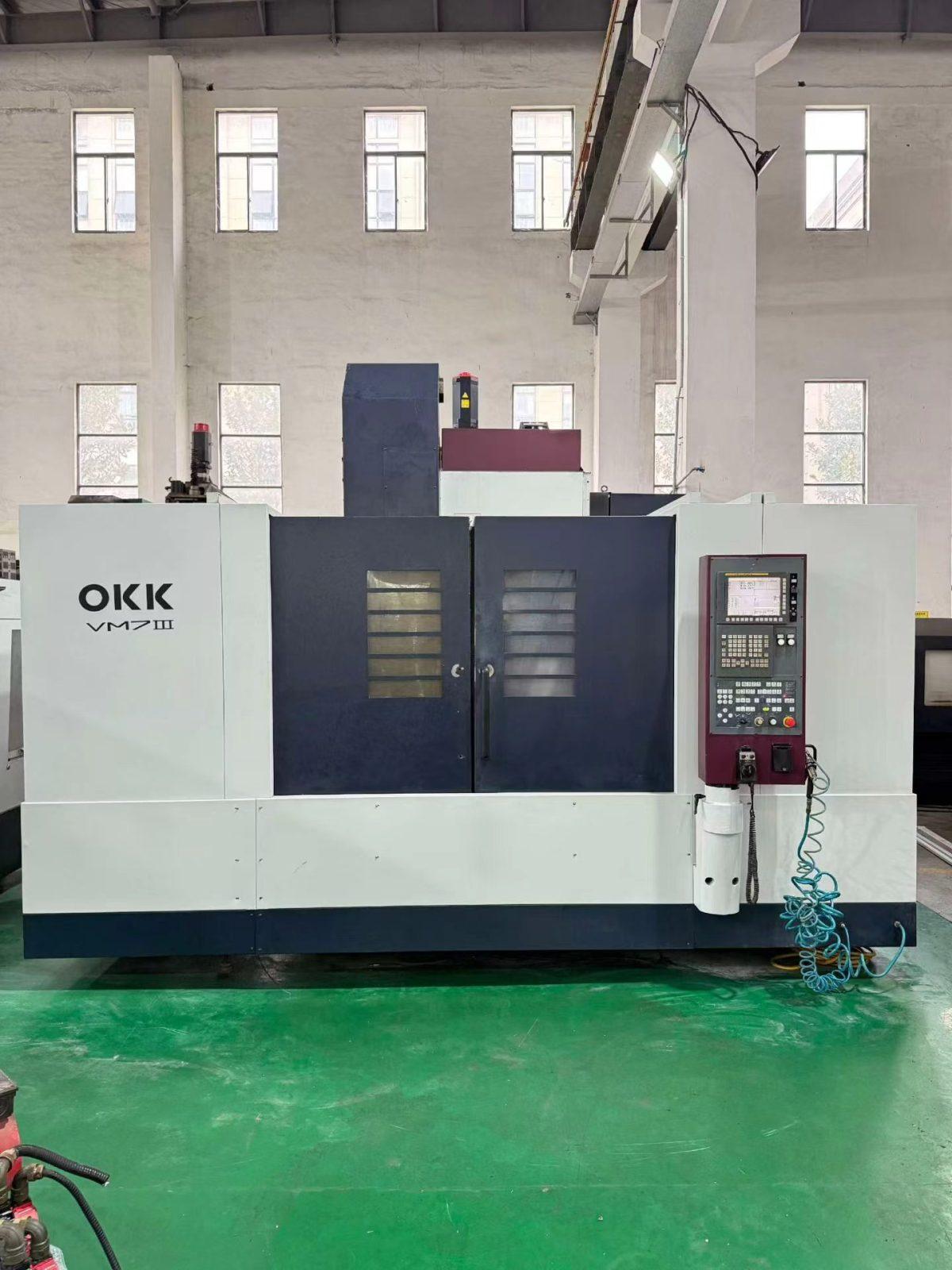

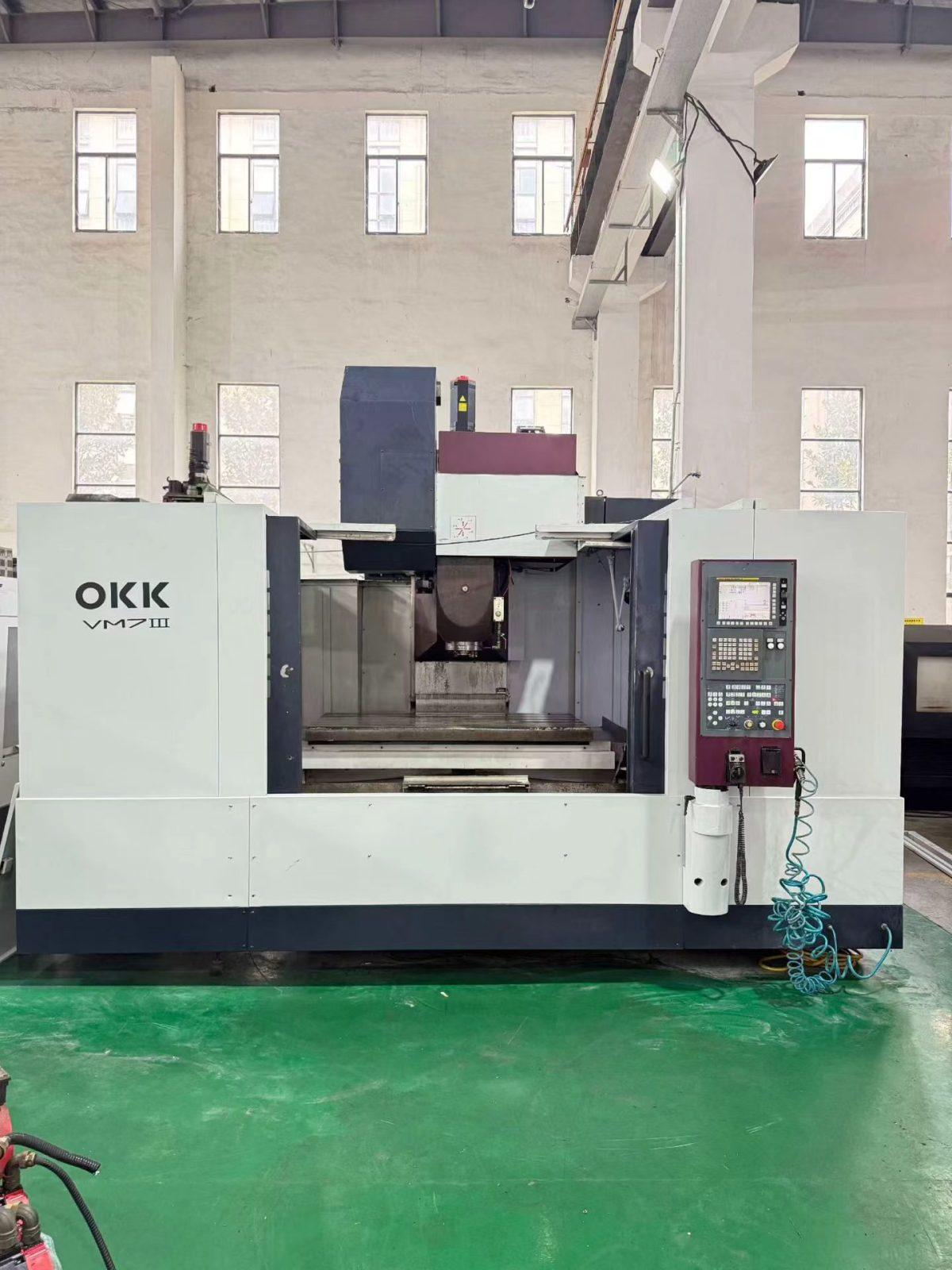

OKK VM7III Vertical Machining centre

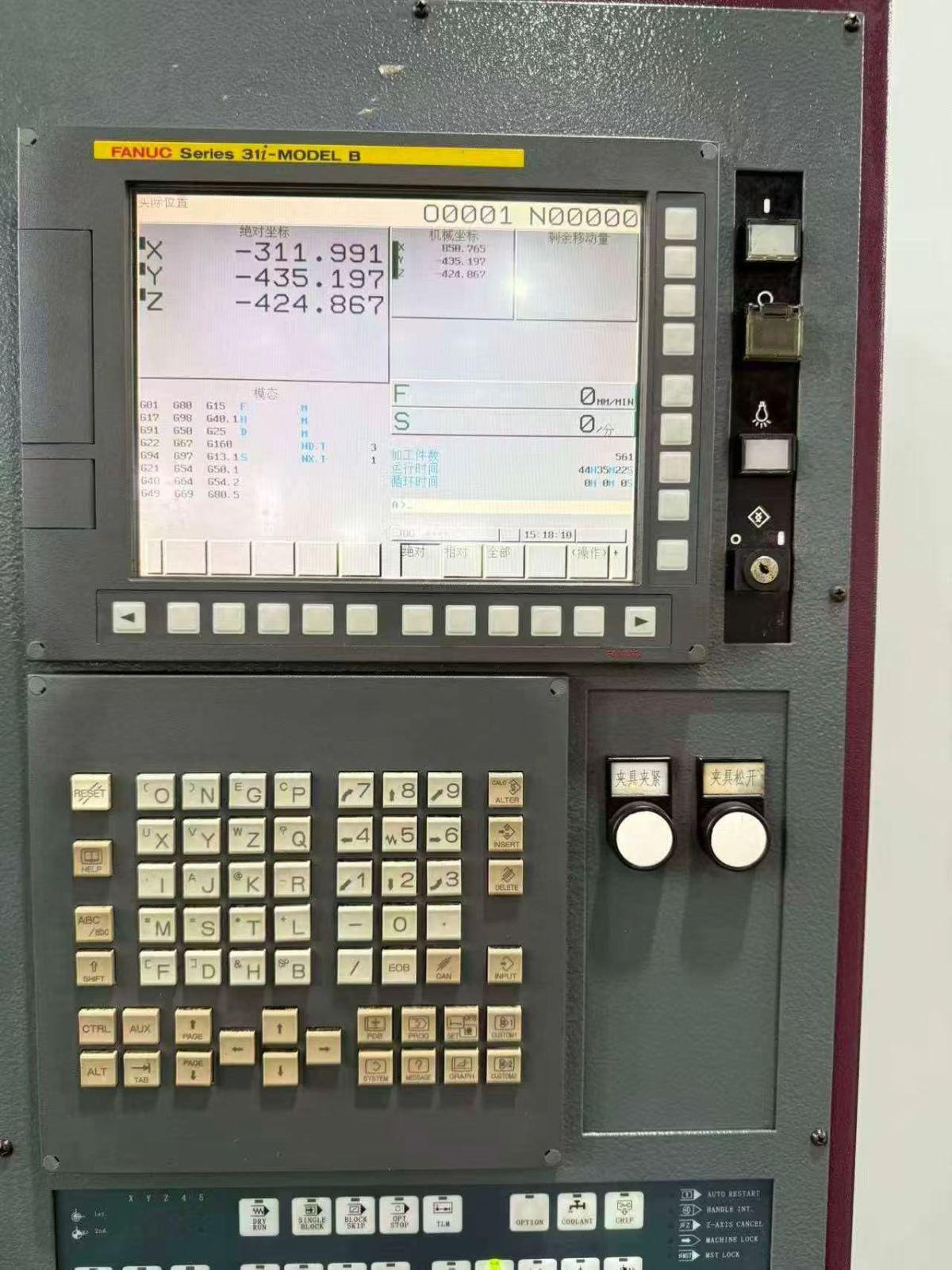

CNC System: FANUC 31i-Model B
Three-Axis Travel（X/Y/Z）: 1531 × 740 × 660 mm

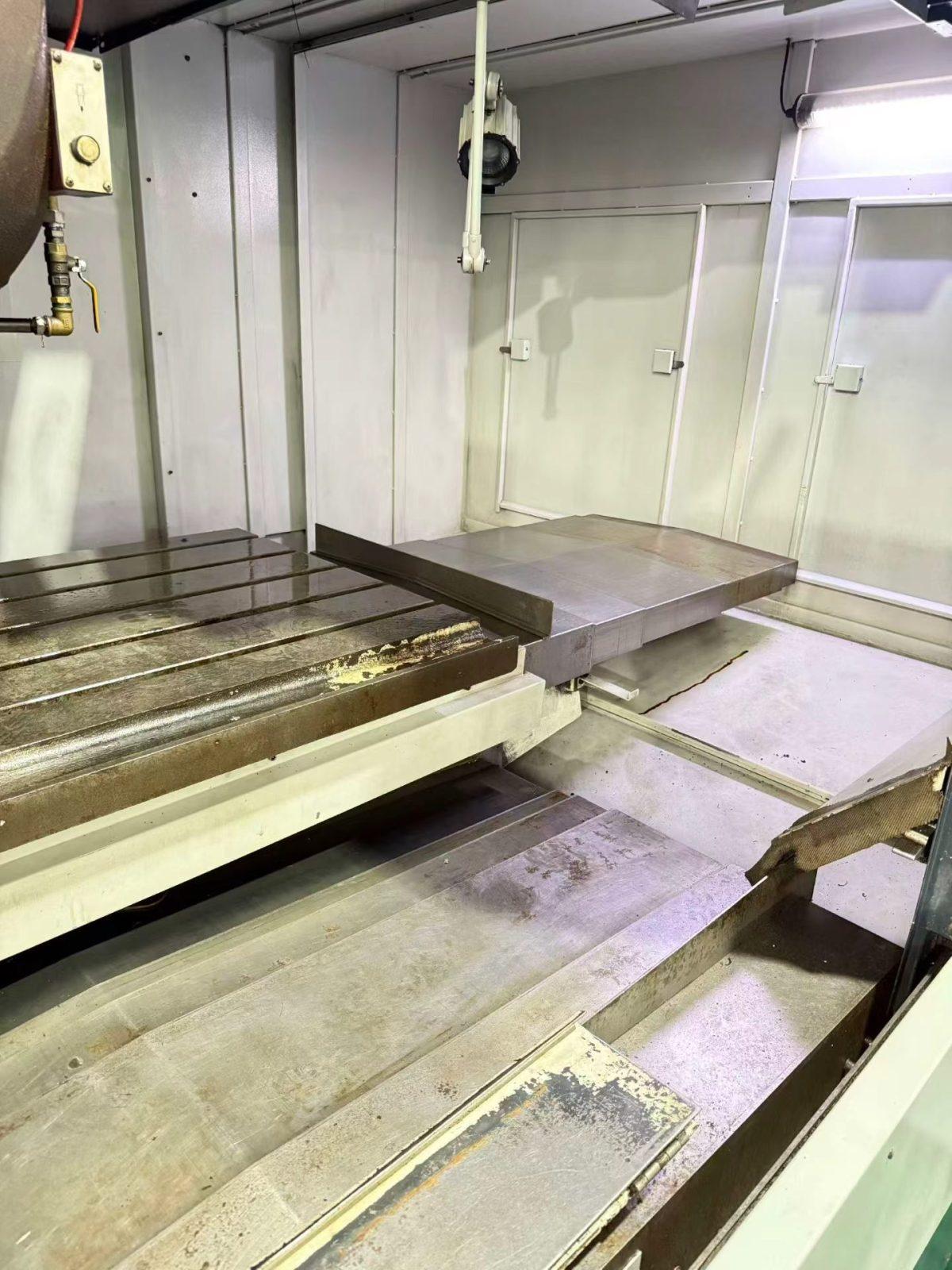

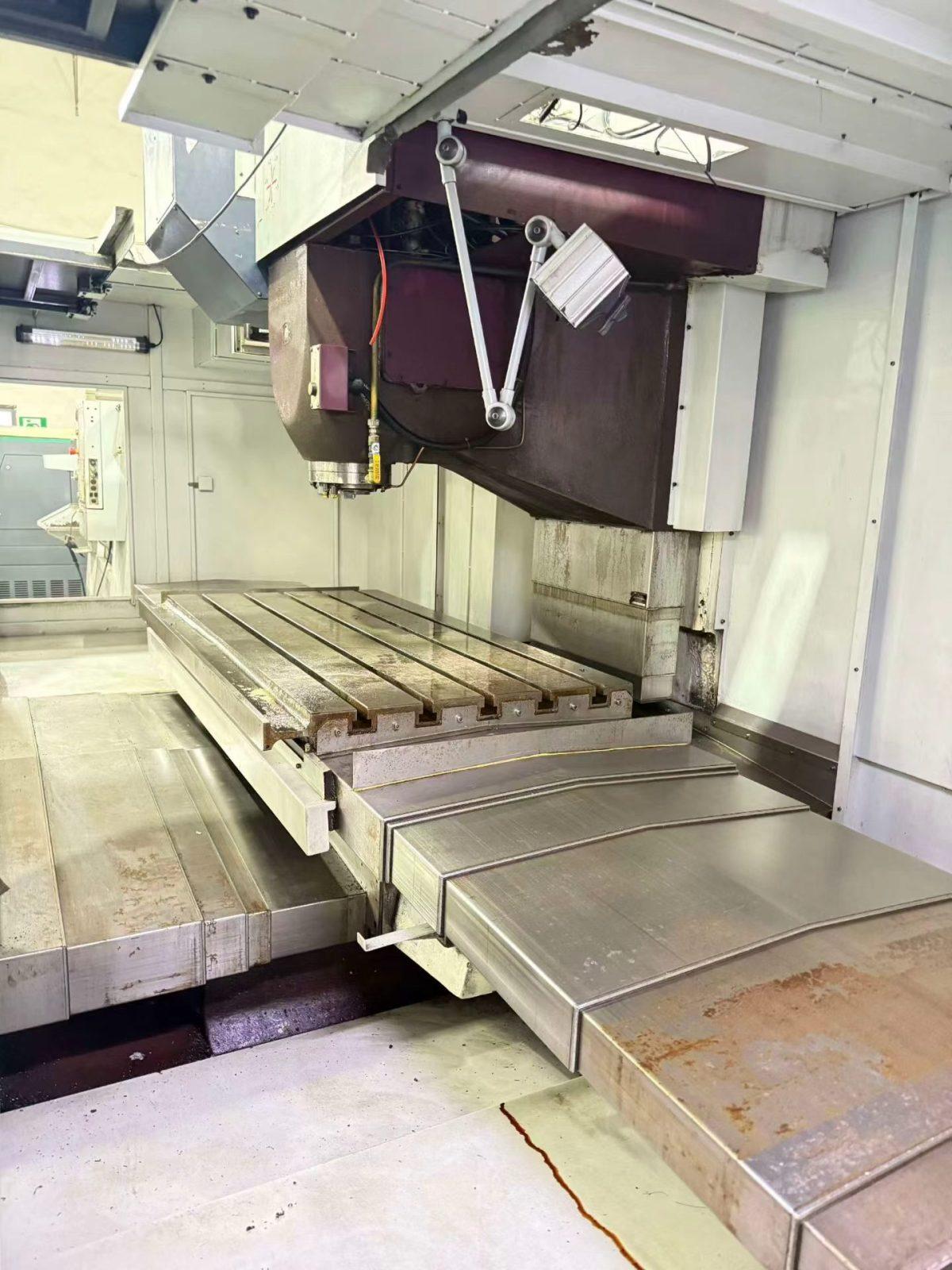

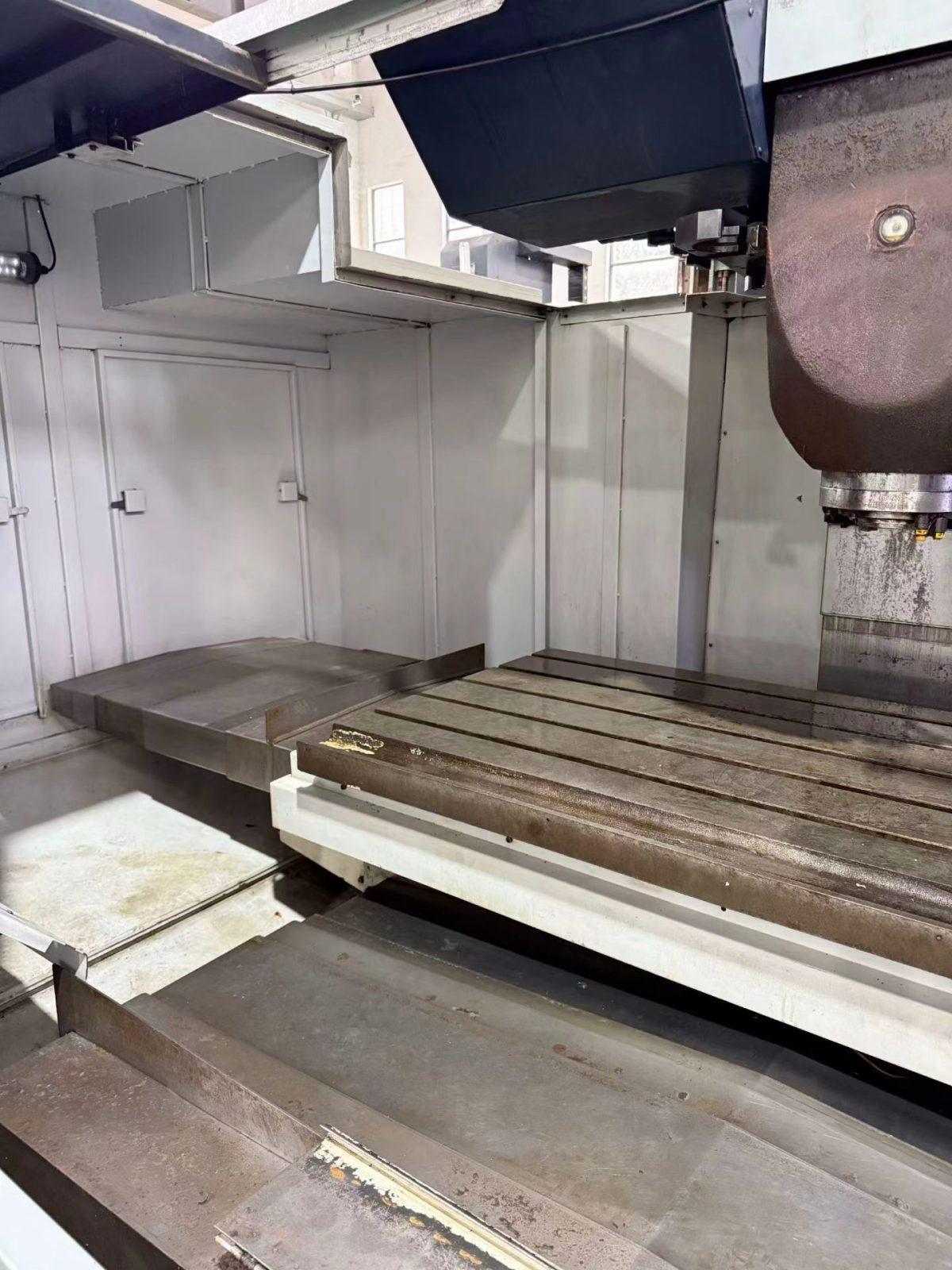

Worktable Size: 1550 × 845 mm
Spindle Taper: BT50
Spindle Speed: 6,000 rpm
Spindle Motor Power: 15 kW
Guideway Structure: Hard guideways on all three axes

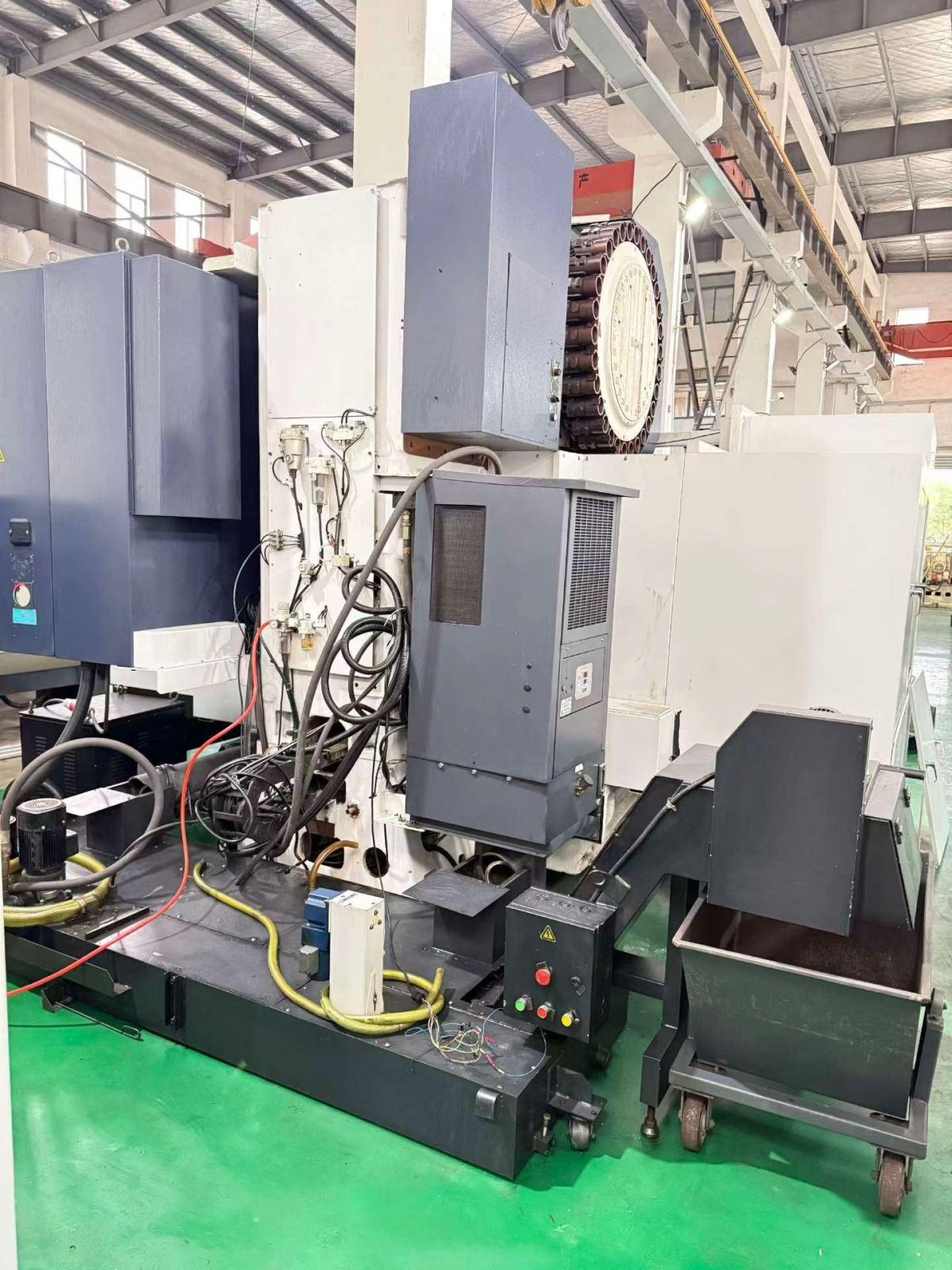

Tool Magazine Capacity: 30 tools, disc-type tool magazine
Distance from Spindle Nose to Worktable: 140–800 mm
Configuration:
High-pressure through-spindle coolant system
Heidenhain linear glass scales on all three axes for fully closed-loop control
Four guideways on the Y-axis
