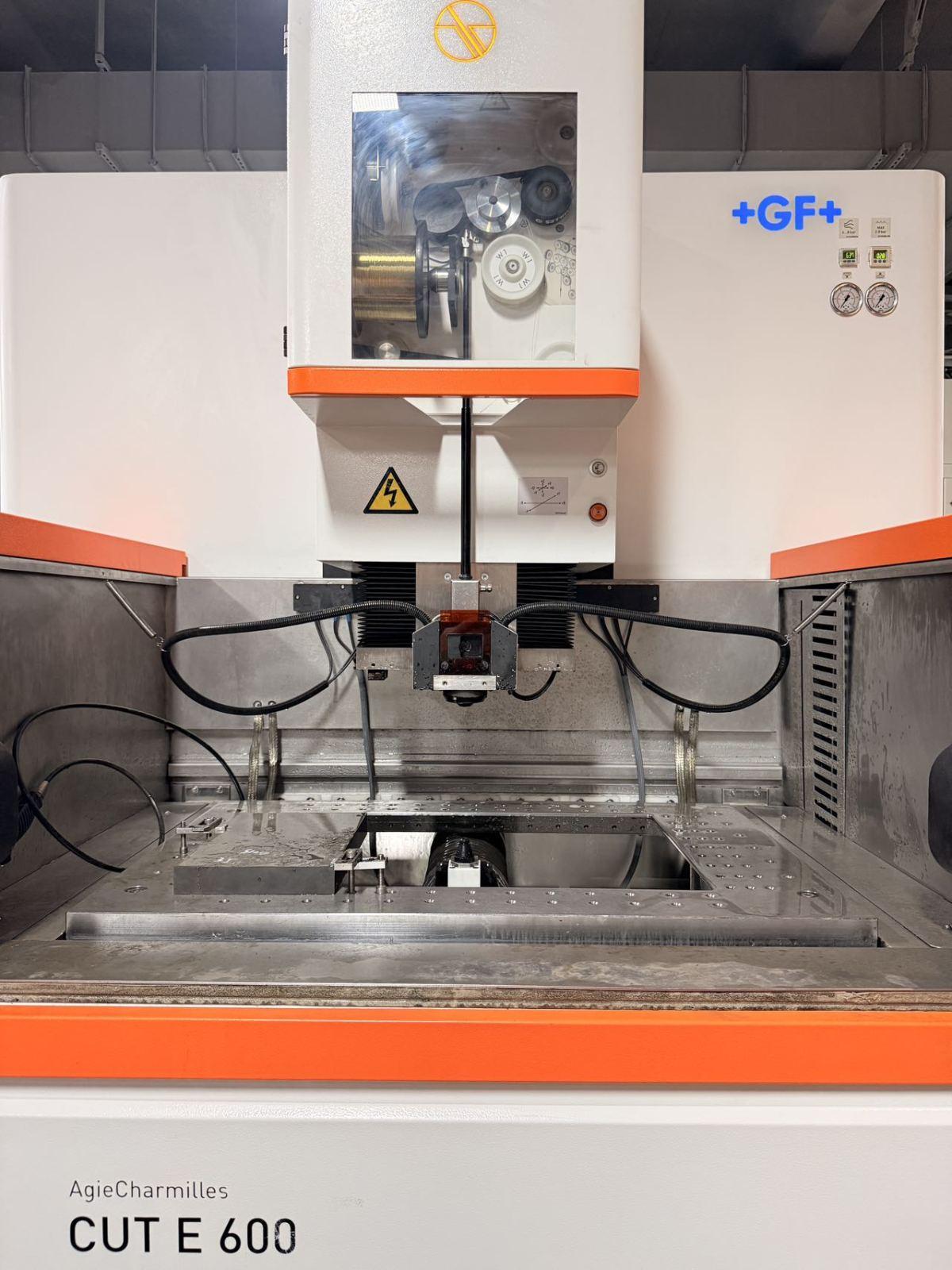

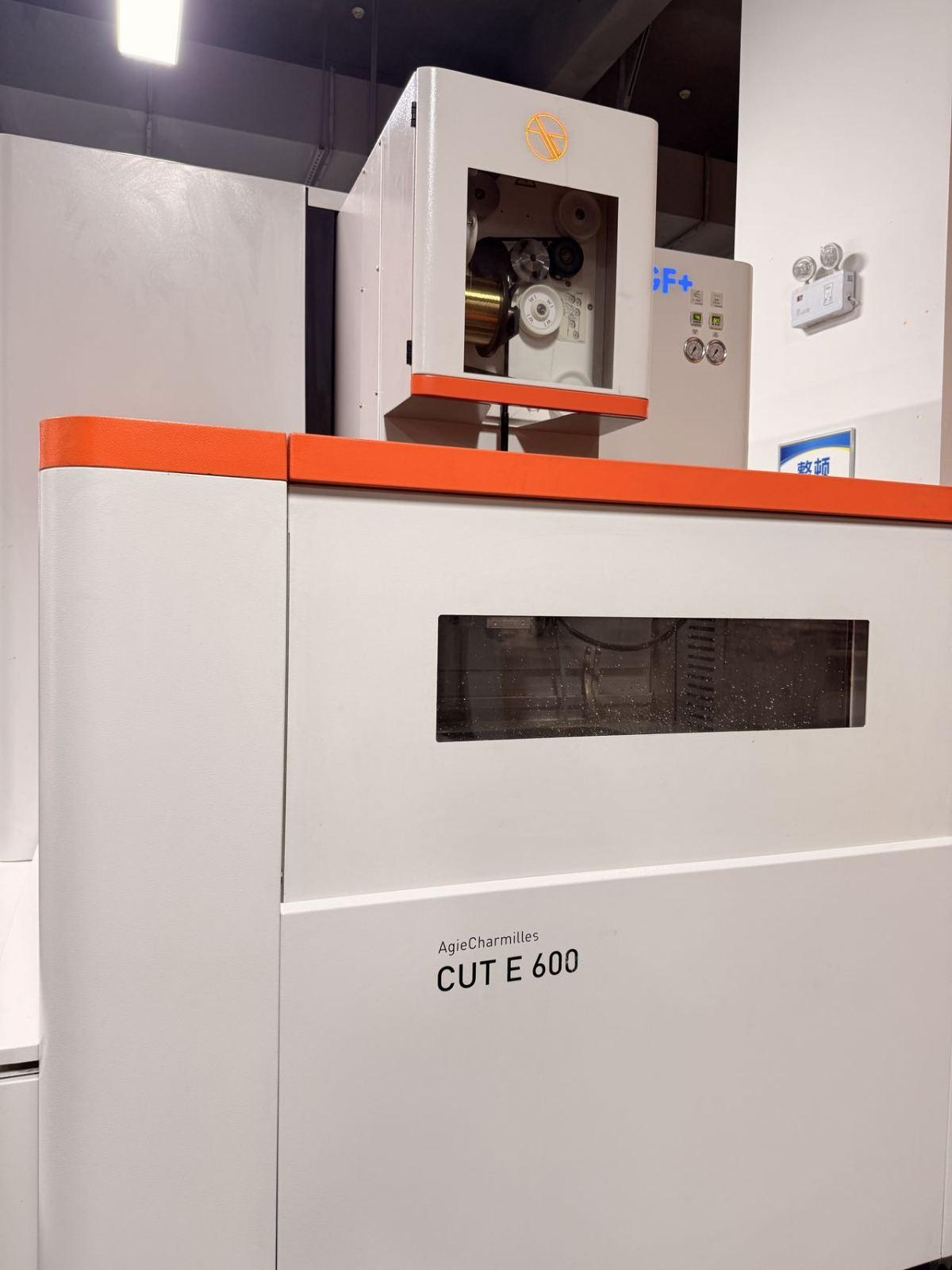

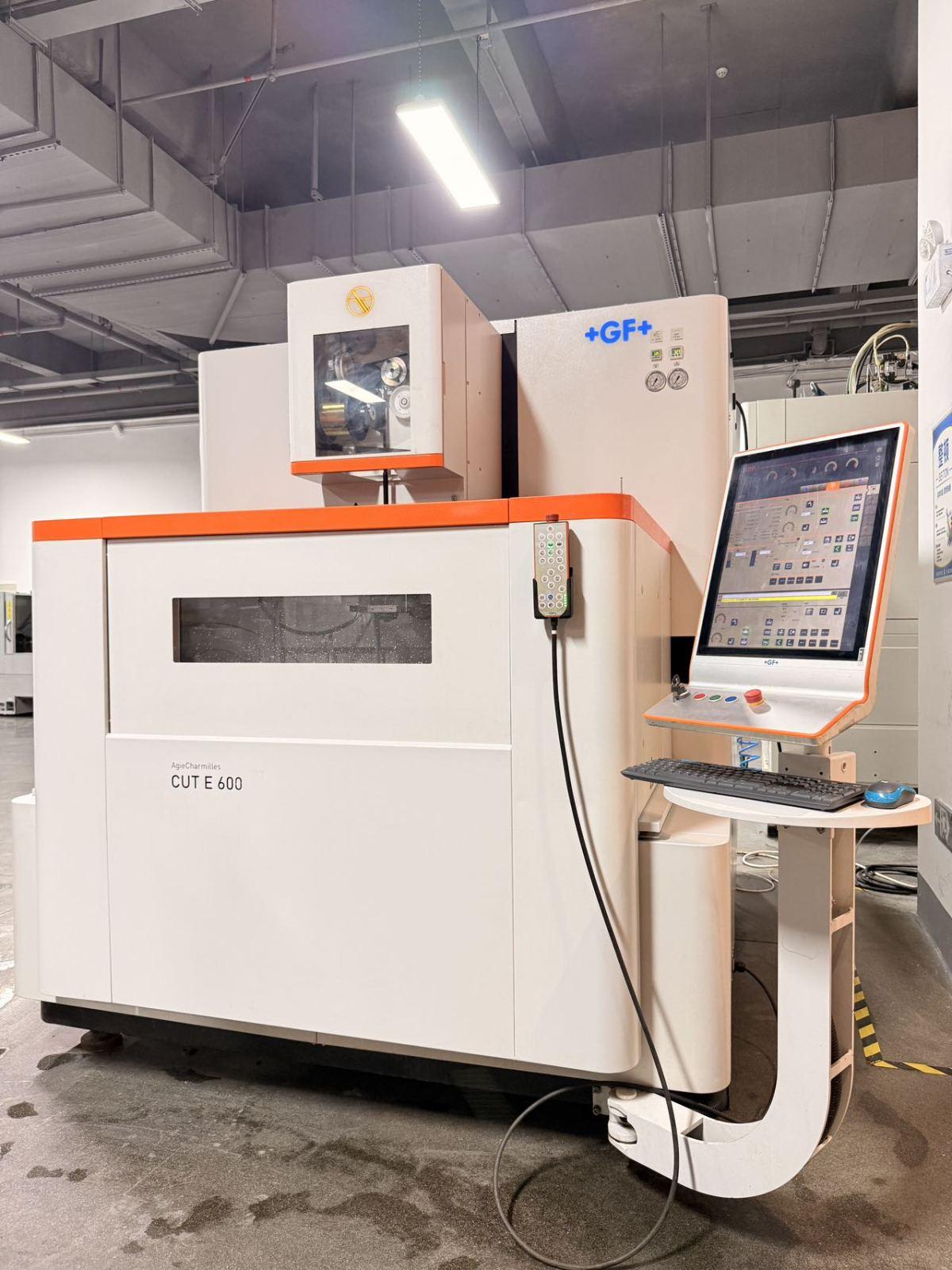

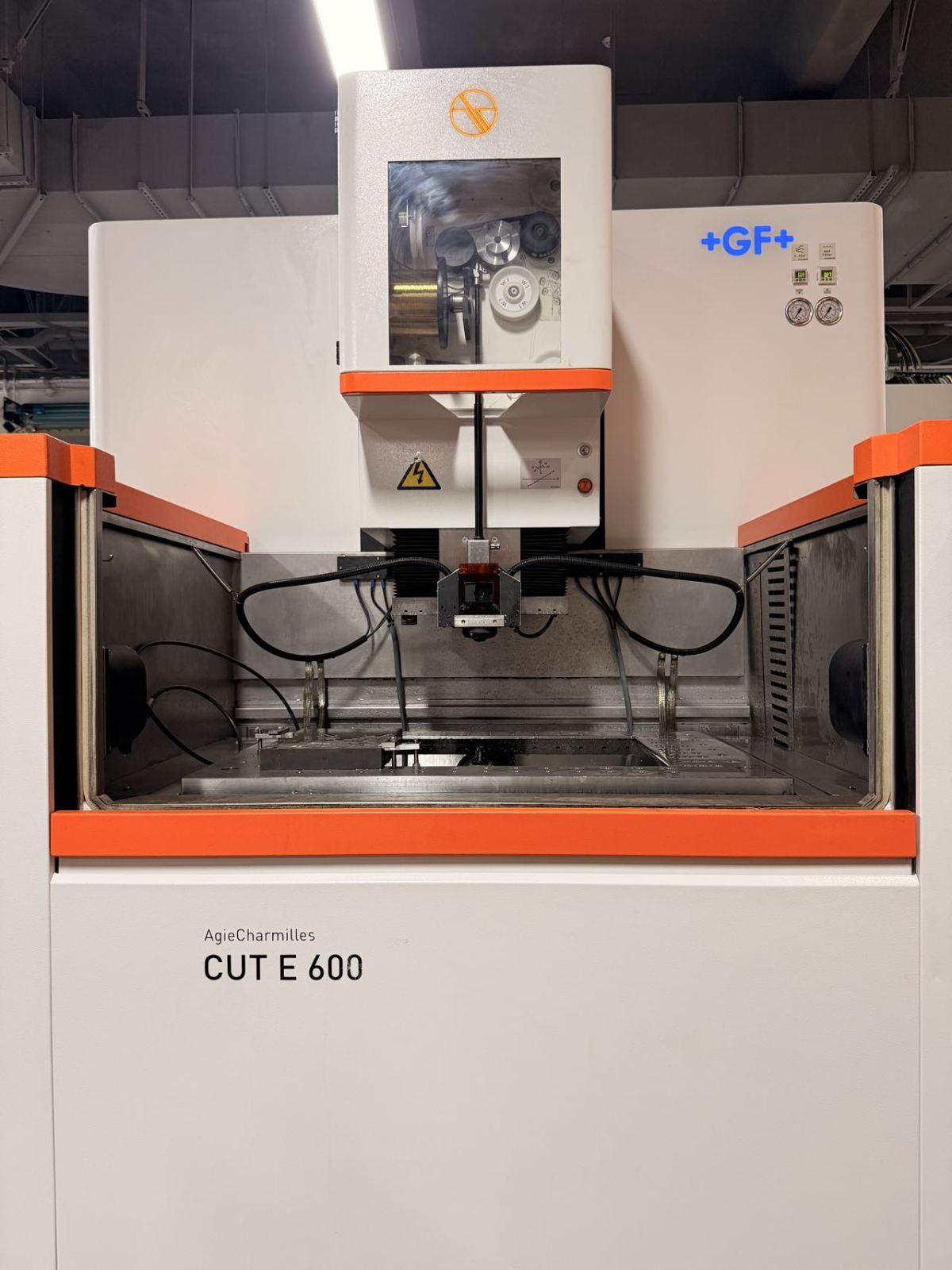

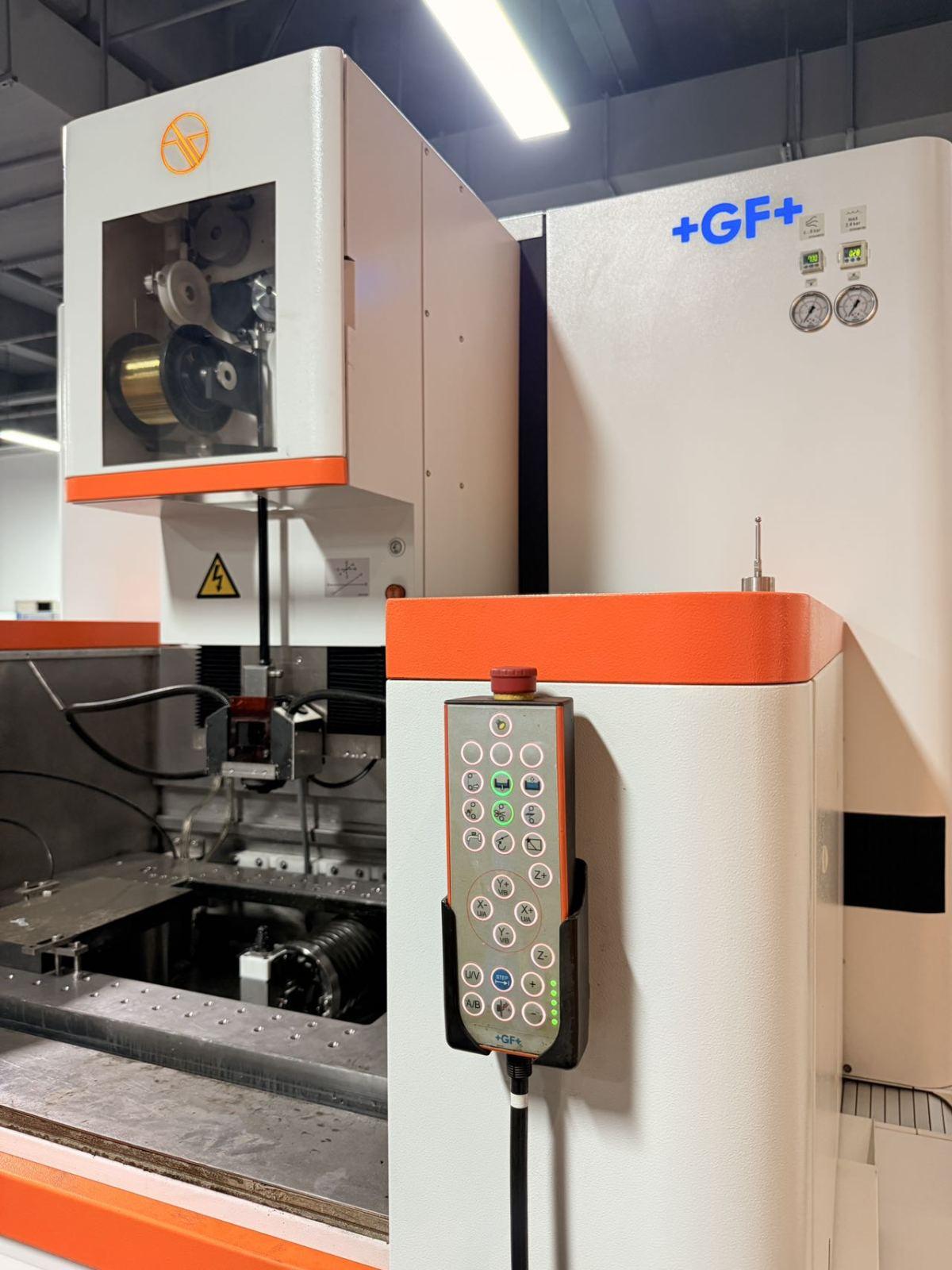

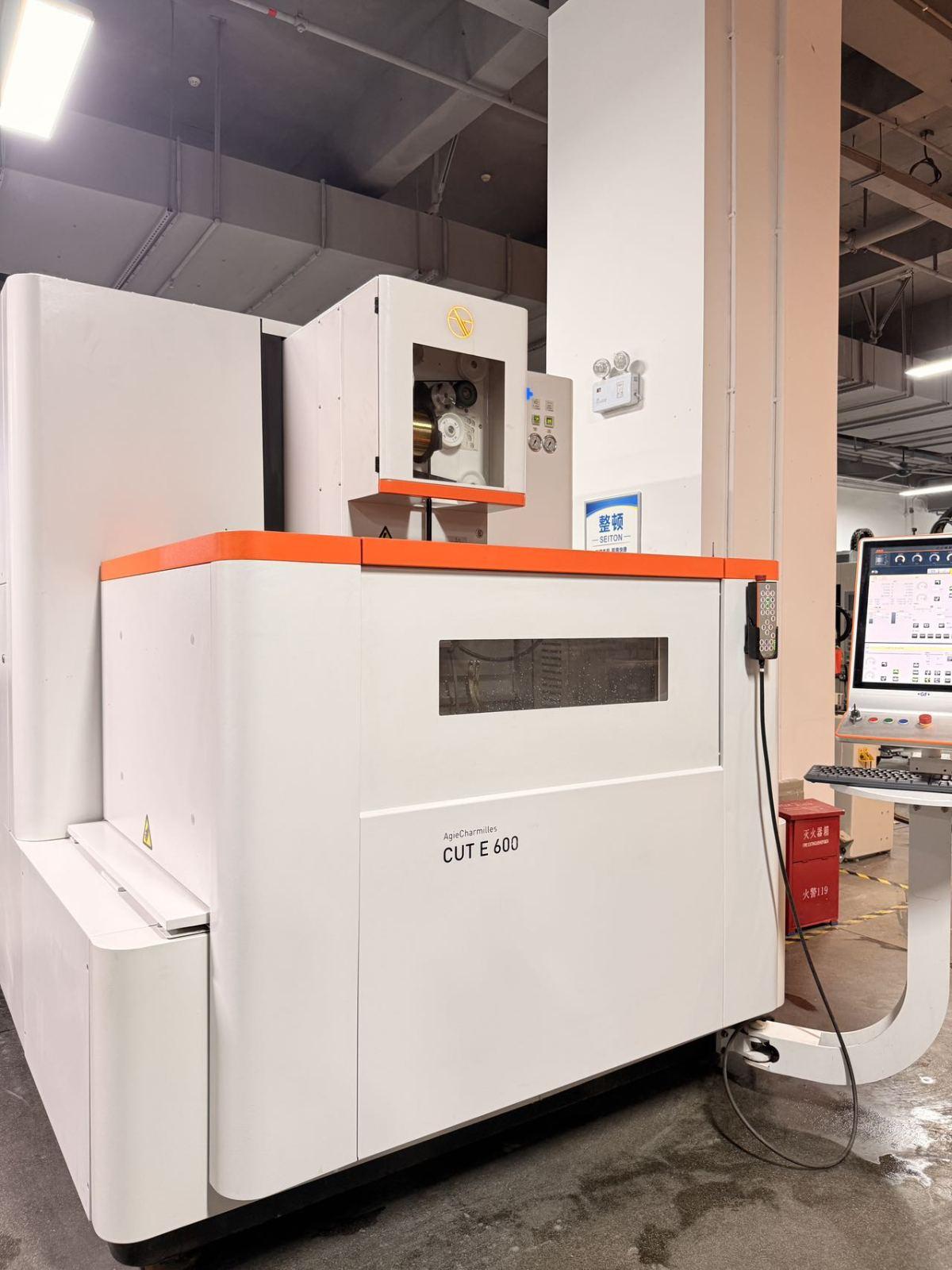

AGIE CHARMILLES CUT E600 Wire cutting machine

Axis travel (X, Y, Z): 600 x 400 x 350 mm
axis travel (U, V): ±50 mm
Shaft movement speed: 0-3000 mm/min
Maximum workpiece size: 1030 x 800 x 350 mm
Maximum workpiece weight: 1000 kg
Maximum taper angle/part thickness: ±30°/77 or ±25°/96 (simulated) °/ mm
Available electrode wire diameters: 0.15, 0.20, 0.25, 0.30 mm
Maximum weight of the lead screw: 8 (standard) kg
Maximum surface quality Ra (cemented carbide/steel): 0.25/0.30 μm
Collision protection: X, Y, Z axes

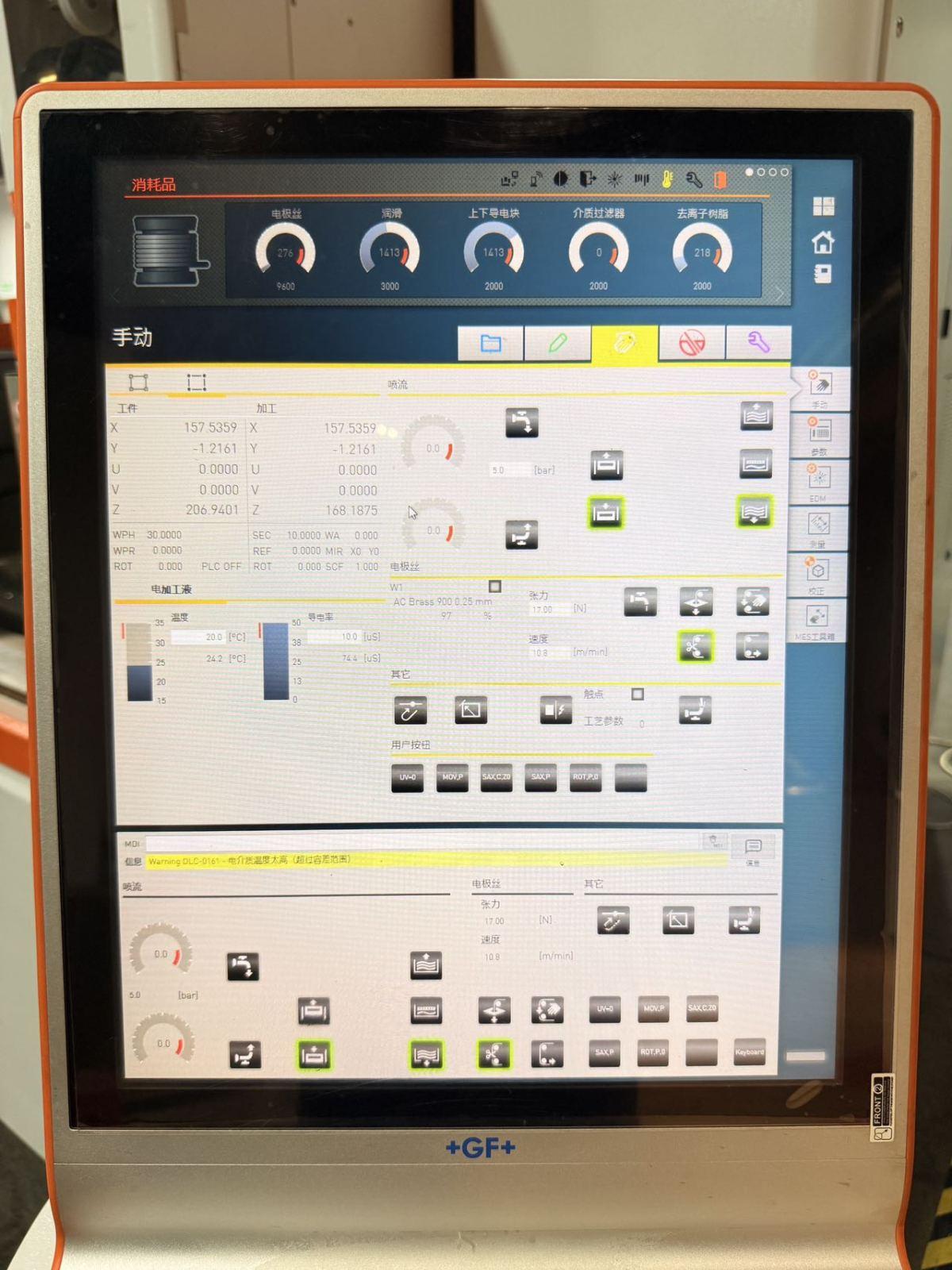

Measurement CNC System: Glass linear glass scale (XY) and encoder (UVZ)
