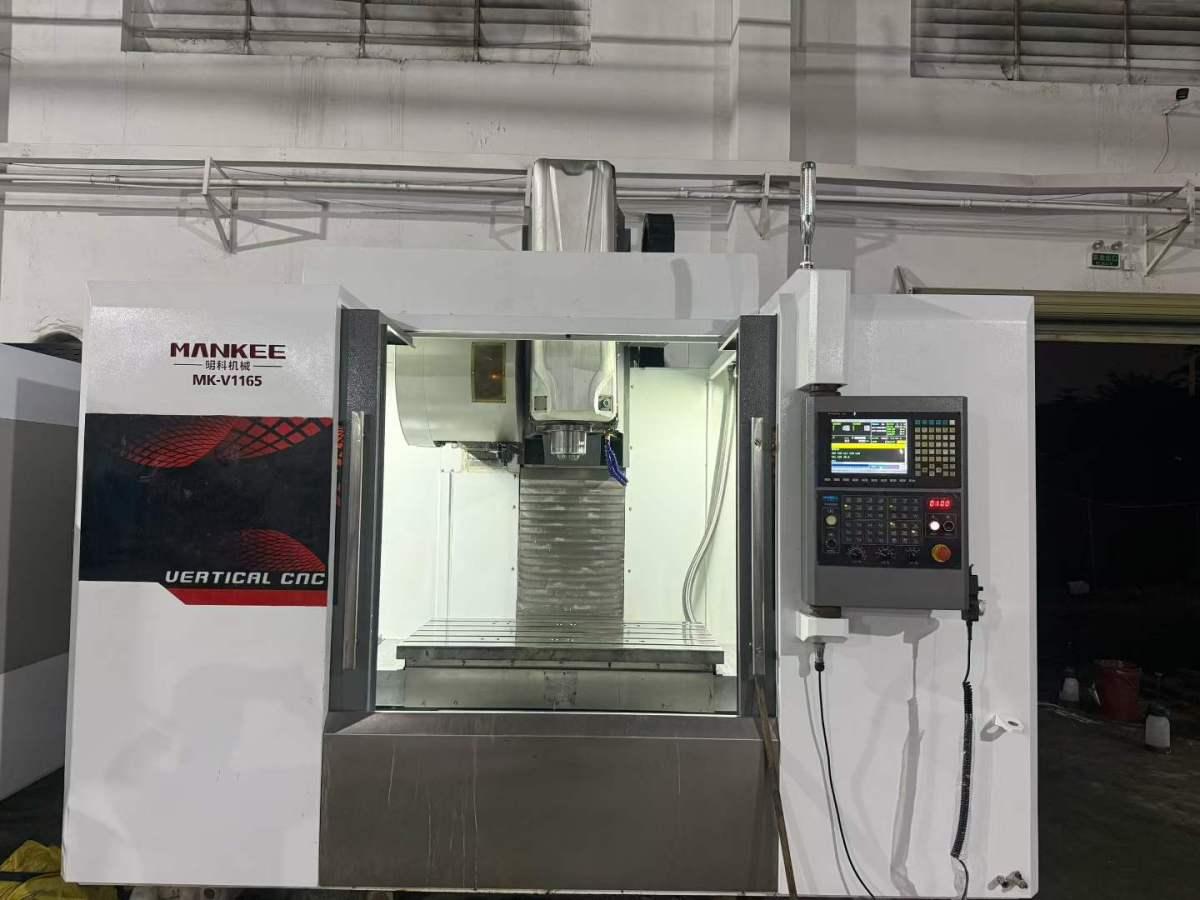

MANKEE MK-V1165 Vertical Machining centre

CNC System: Syntec 22MA
Three-Axis Travel (X/Y/Z): 1100 × 650 × 650 mm
Worktable Size: 1200 × 650 mm
Distance from Spindle Center to Column: 700 mm
Distance from Spindle Nose to Worktable: 100–750 mm
Spindle Speed: 12000 rpm
Spindle Interface: BT40
Tool Magazine Capacity: 24 Tools
Guideway Structure: Linear Guideways on All Three Axes
Overall Dimensions: 3300 × 2700 × 3000 mm
Machine Weight: 6000 kg
