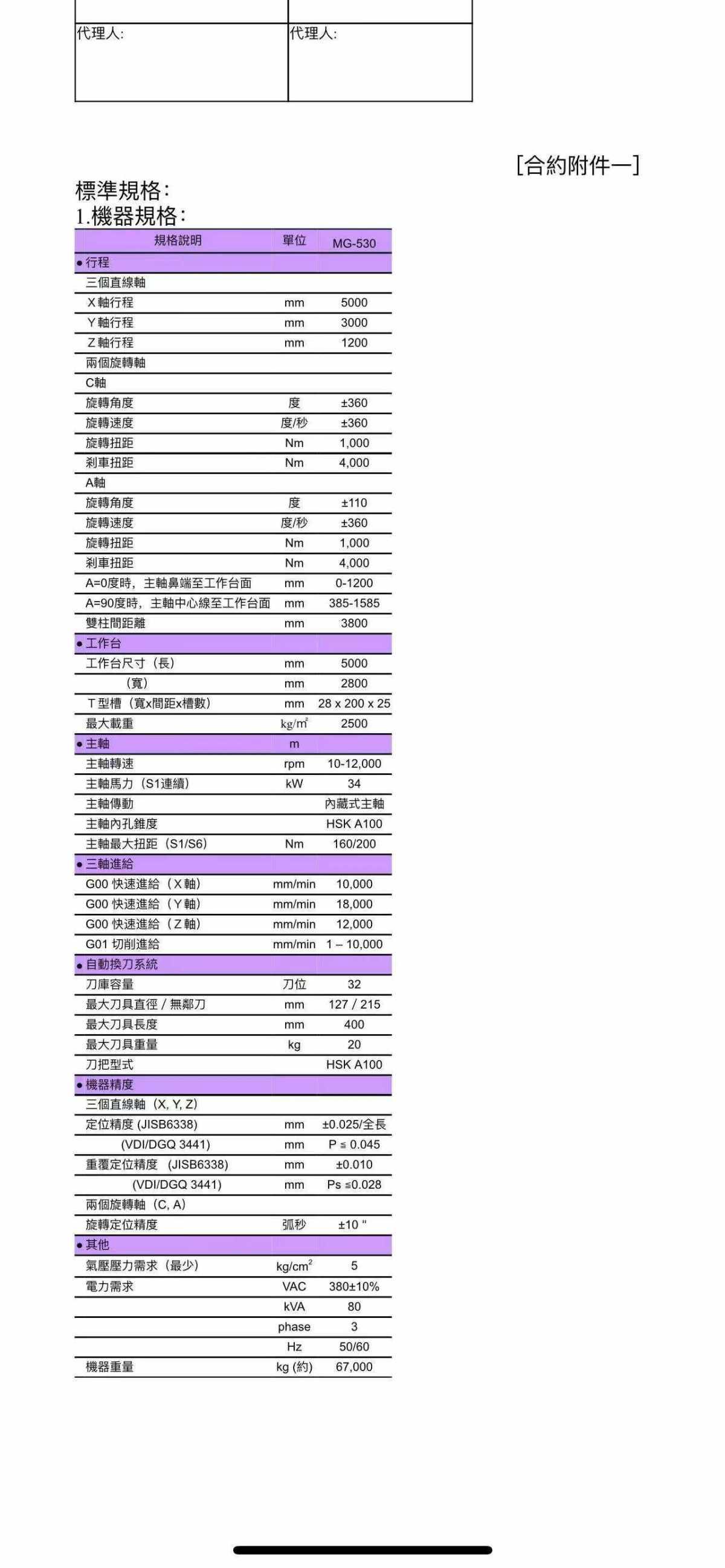

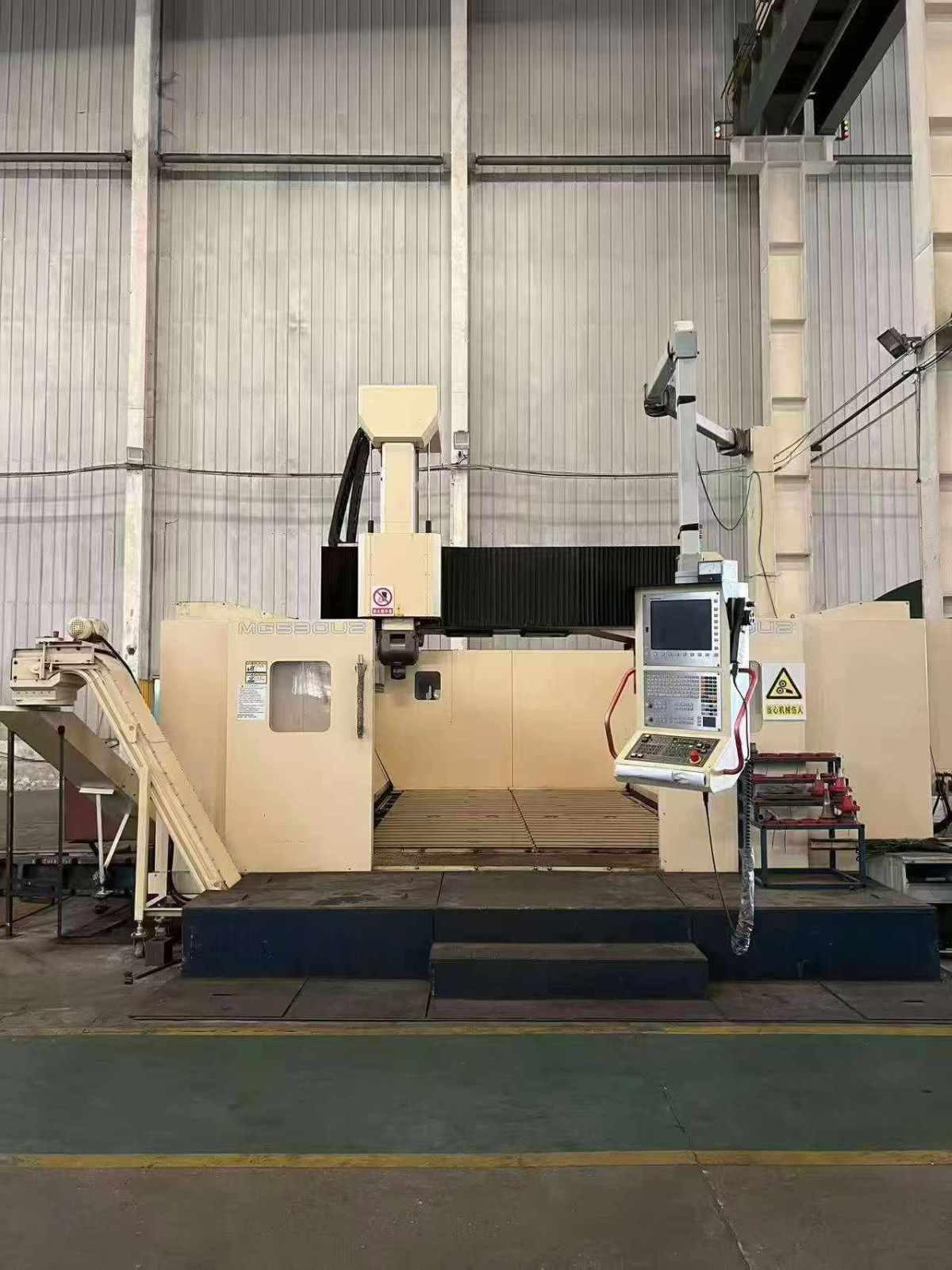

WELE MG530U2 5 axis machining centre

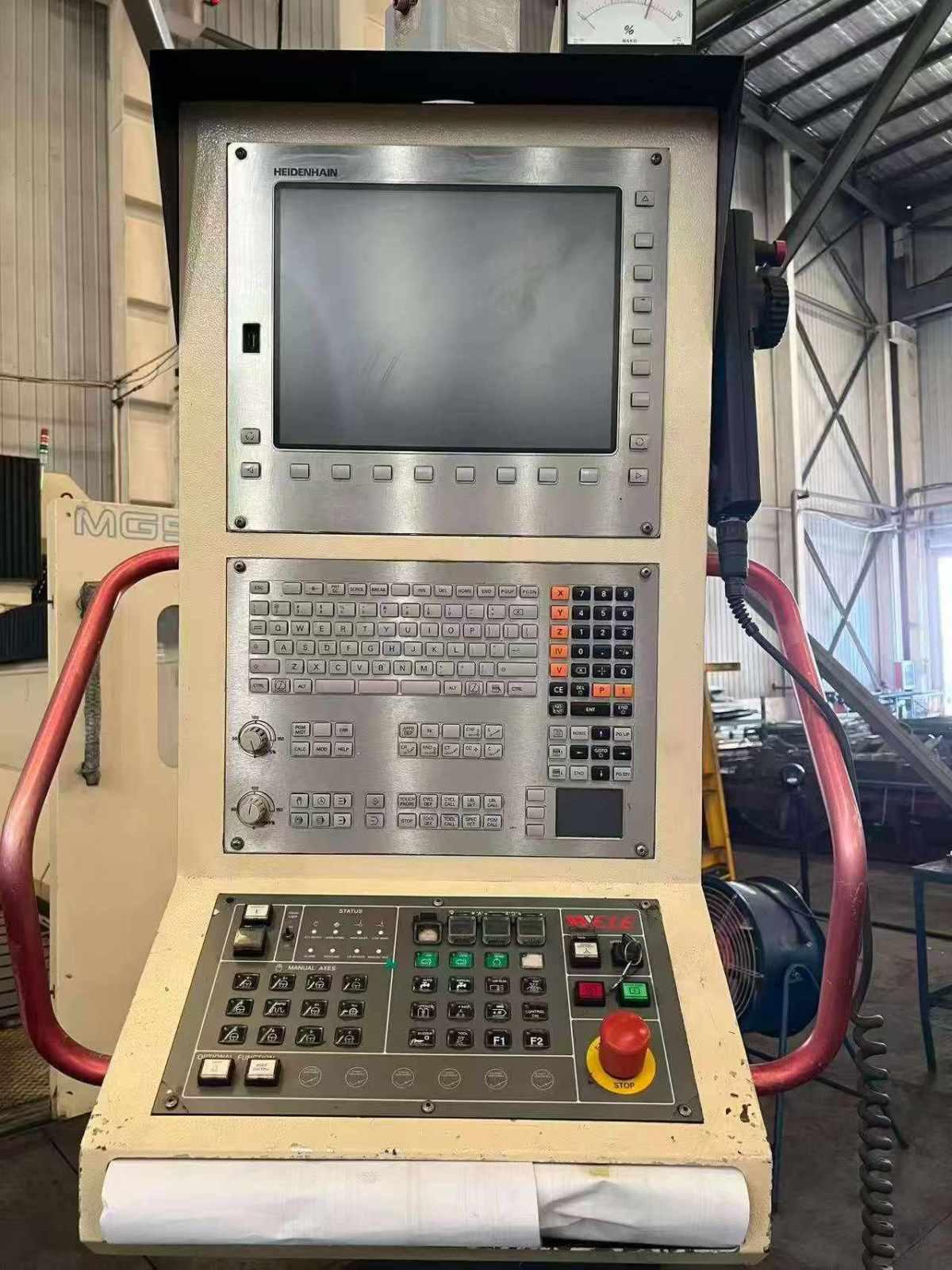

CNC System: HEIDENHAIN
Three-axis travel (X/Y/Z): 5,000 × 3,000 × 1,200 mm
C-axis rotation angle: ±360°
C-axis rotational speed: ±360°/s
C-axis rotational torque: 1,000 Nm
C-axis braking torque: 4,000 Nm

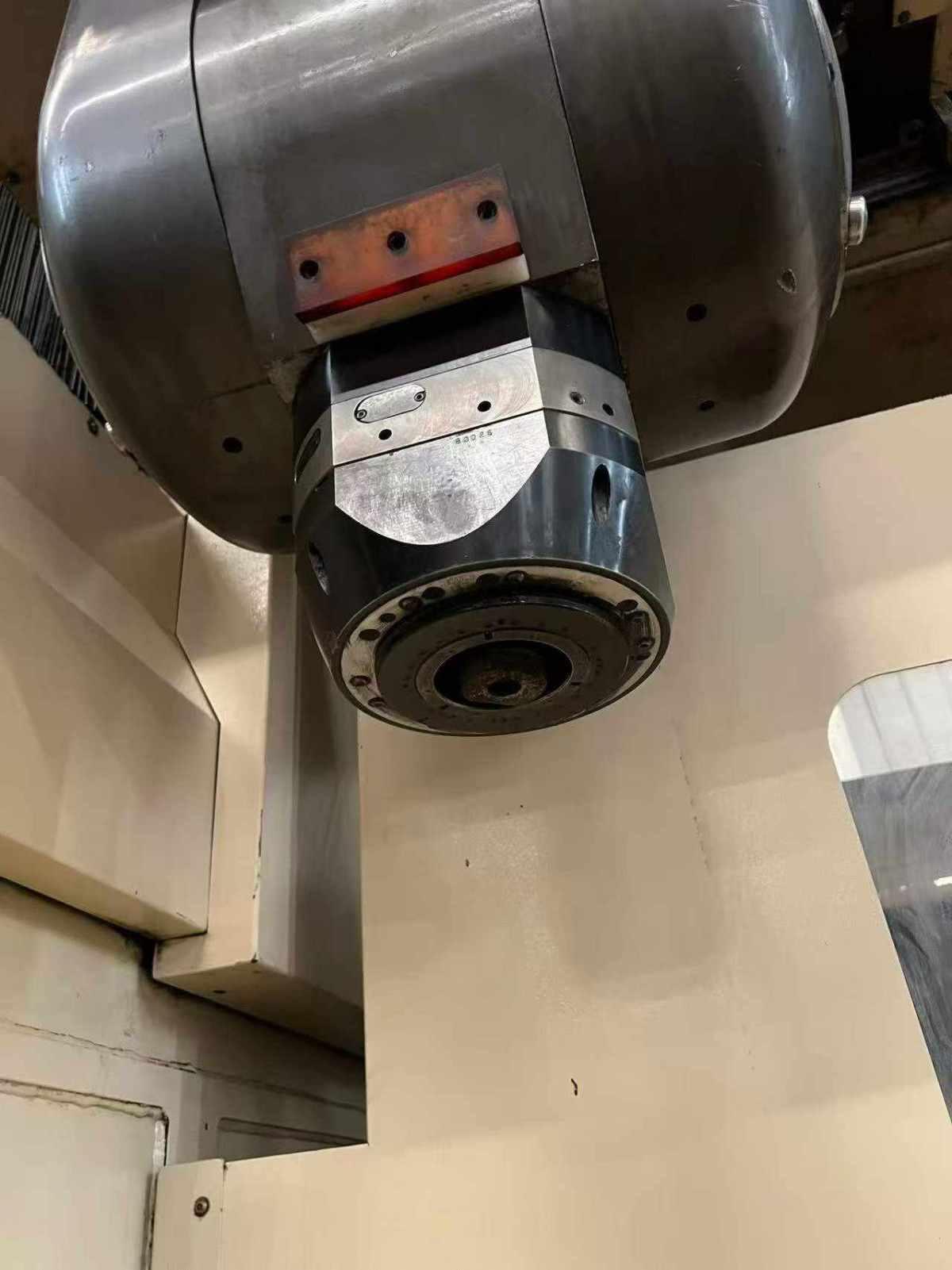

A-axis rotation angle: ±110°
A-axis rotational speed: ±360°/s
A-axis rotational torque: 1,000 Nm
A-axis braking torque: 4,000 Nm
Distance from spindle nose to worktable (A=0°): 0–1,200 mm
Distance from spindle centerline to worktable (A=90°): 385–1,585 mm
Double-column spacing: 3,800 mm

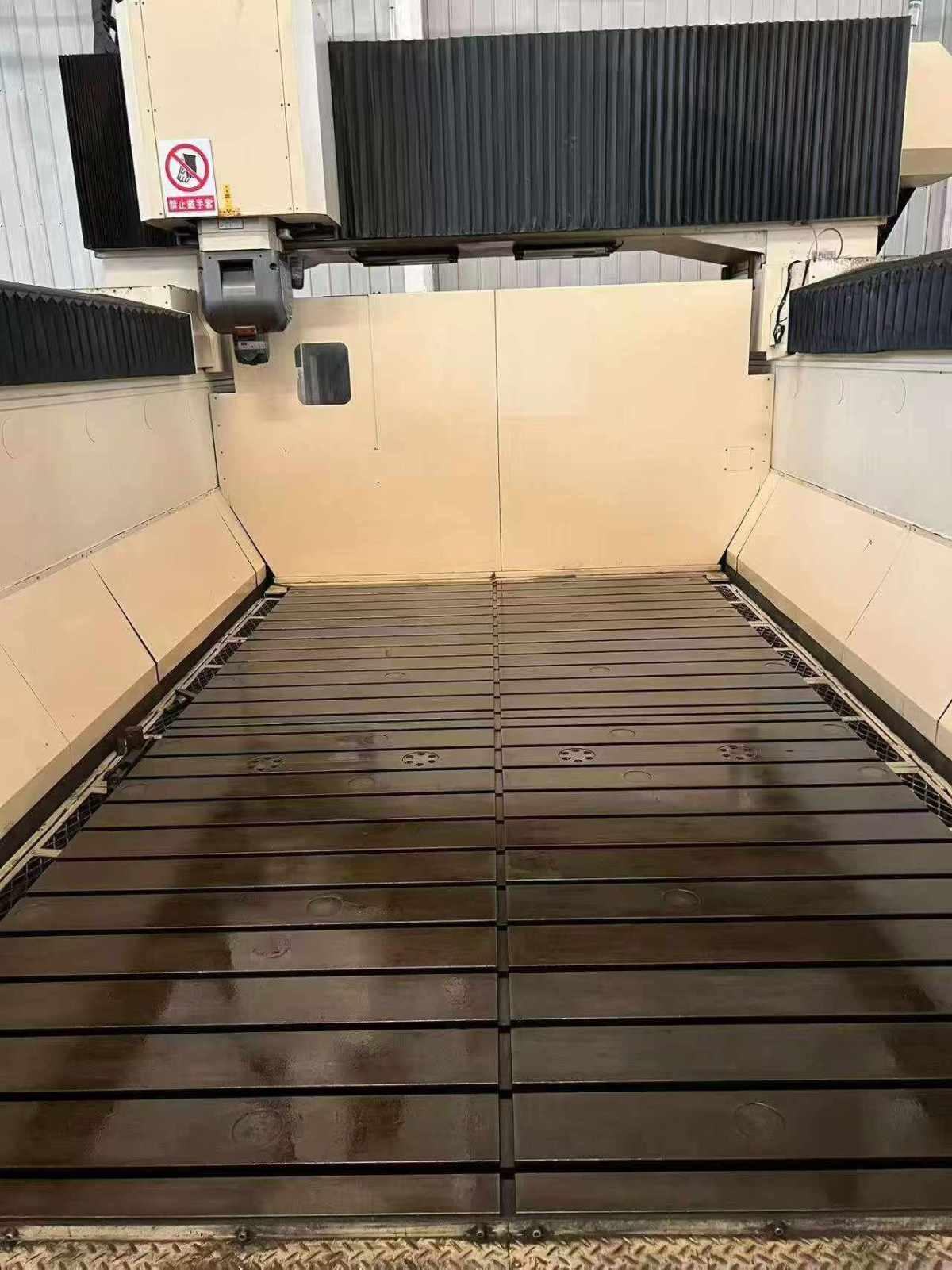

Worktable size (L × W): 5,000 × 2,800 mm
T-slot specification (W × spacing × number of slots): 28 × 200 × 25 mm
Maximum table load: 2,500 kg/m²
Spindle speed: 10–12,000 rpm
Spindle power (S1 continuous): 34 kW
Spindle taper: HSK A100
Maximum spindle torque (S1/S6): 160/200 Nm
X-axis rapid feed: 10,000 mm/min
Y-axis rapid feed: 18,000 mm/min
Z-axis rapid feed: 12,000 mm/min
G01 cutting feed: 1–10,000 mm/min
Tool magazine capacity: 32 tools
Maximum tool diameter (with tool/without tool): 127/215 mm
Maximum tool length: 400 mm
Maximum tool weight: 20 kg
Tool holder specification: HSK A100
Positioning accuracy (X/Y/Z, JIS B6338): ±0.025 mm/full length
Positioning accuracy (VDI/DGQ 3441): P ≤ 0.045 mm
Repeatability (JIS B6338): ±0.010 mm
Repeatability (VDI/DGQ 3441): Ps ≤ 0.028 mm
C/A-axis rotational positioning accuracy: ±10″
Minimum air pressure: 5 kg/cm²
Power supply: 380 V ±10%
Installed capacity: 80 kVA
Phase: 3-phase
Frequency: 50/60 Hz
Machine weight: Approximately 67,000 kg
