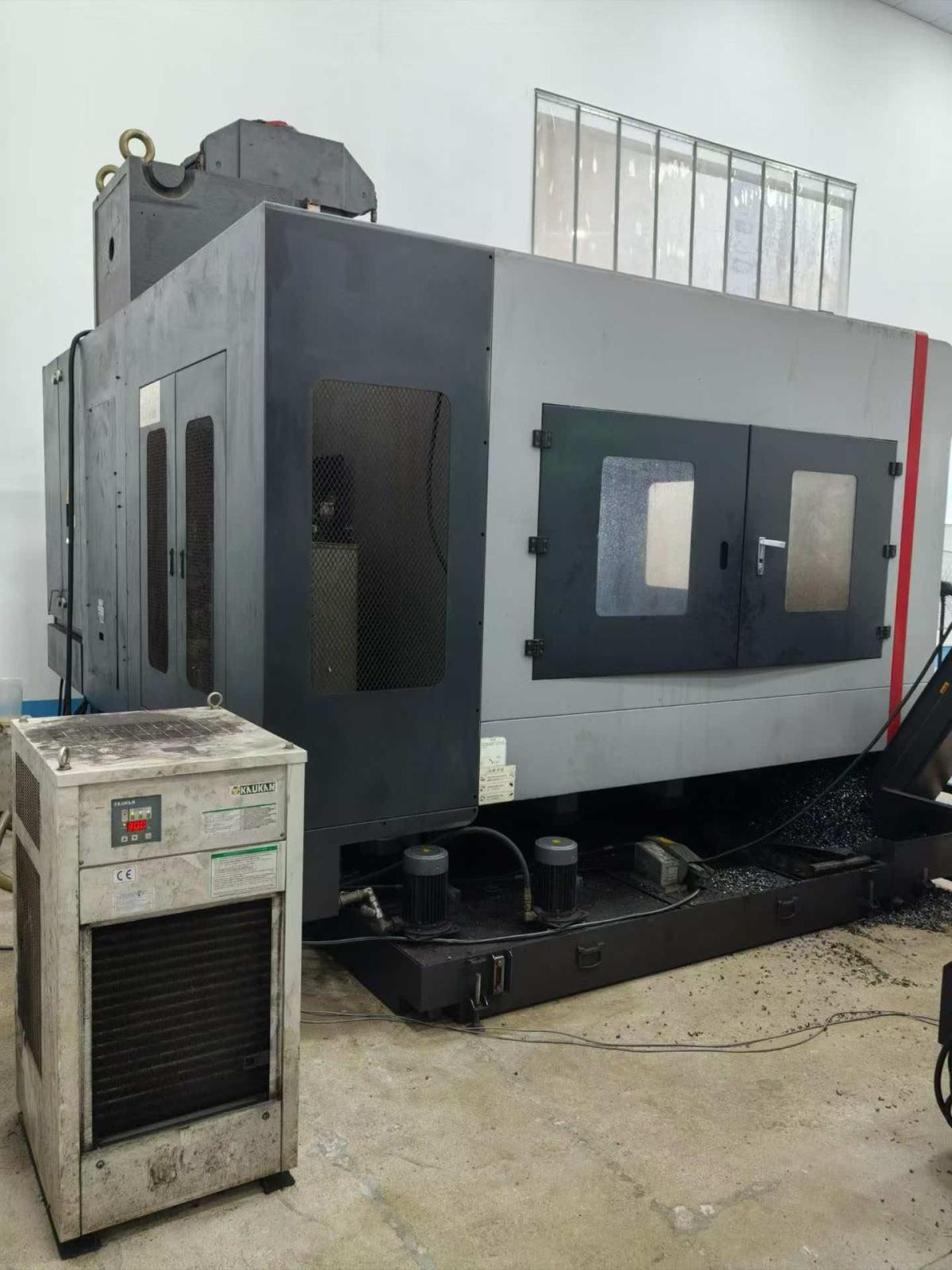

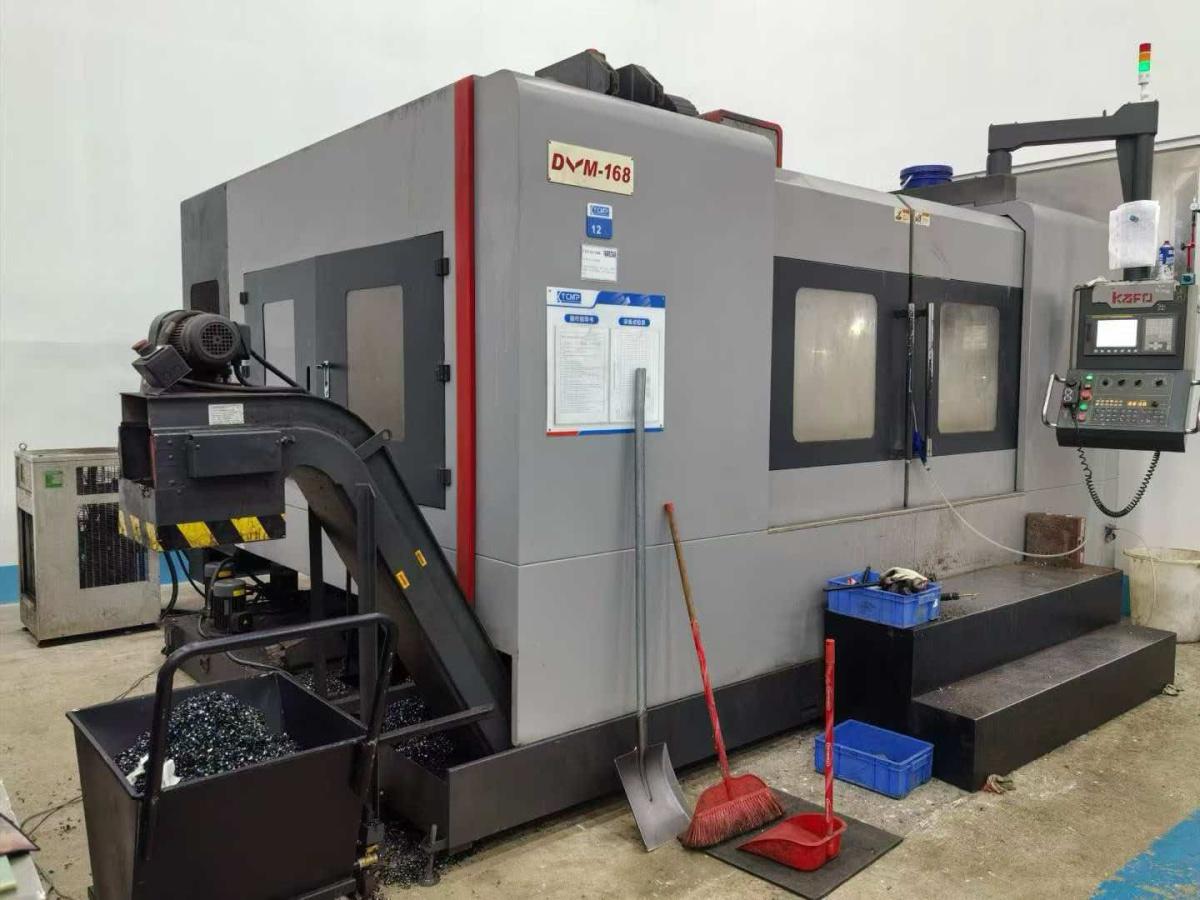

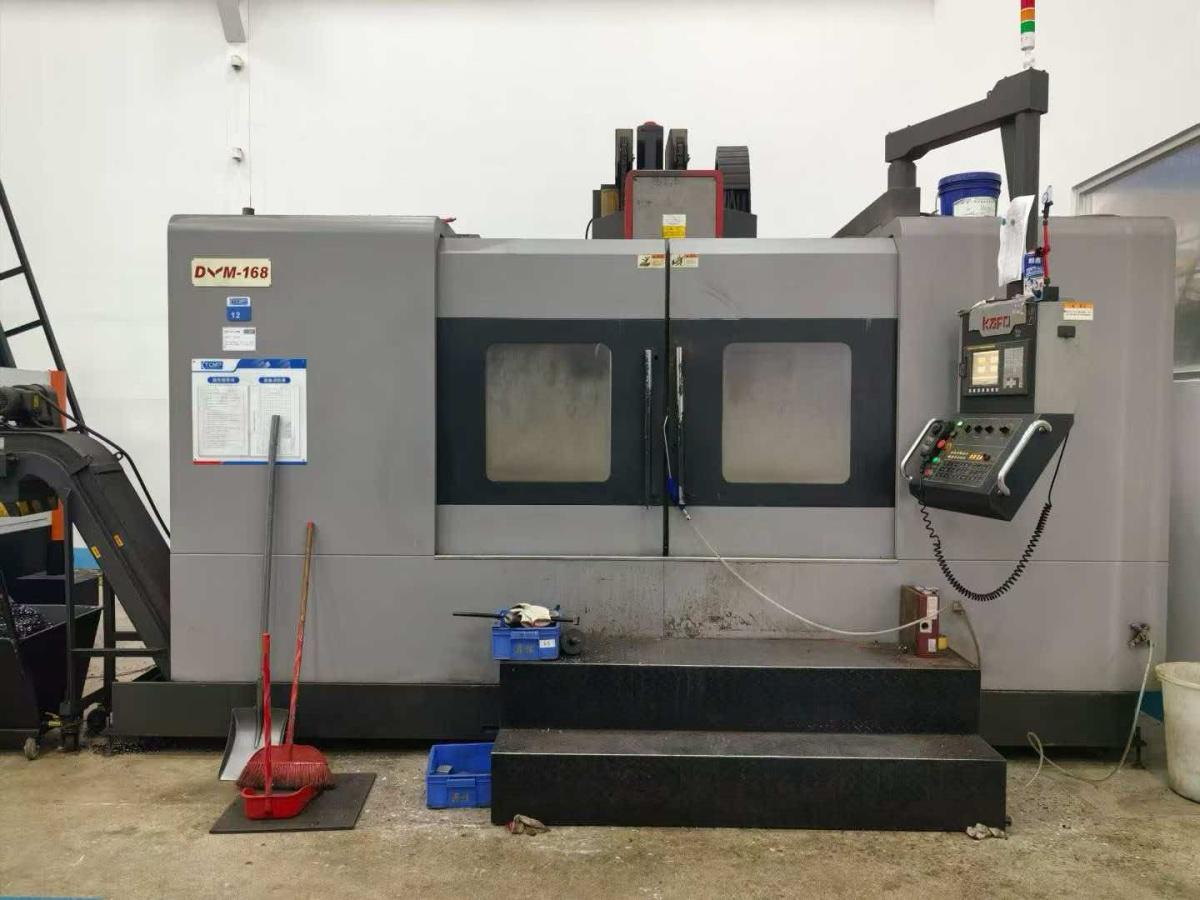

KAFO DVM-168 Vertical Machining centre

WorkWorktable size: approximately 2000 × 800 mm
Maximum load: approximately 1500 kg
The travel of the X/Y/Z axes: 1680 × 800 × 750 mm
spindle CNC System
spindle taper: BT40 / BT50
The maximum speed of spindle is 8,000-10,000 rpm
Drive mode: strap drive (direct connection type)
Feed CNC System
Cutting feed rate: 1-10,000 mm/min
fast movement rate (X/Y/Z) : 24/24/18 m/min
tools magazine CNC System
magazine capacity: 24 pieces
Maximum Tool diameter: Φ 120mm
