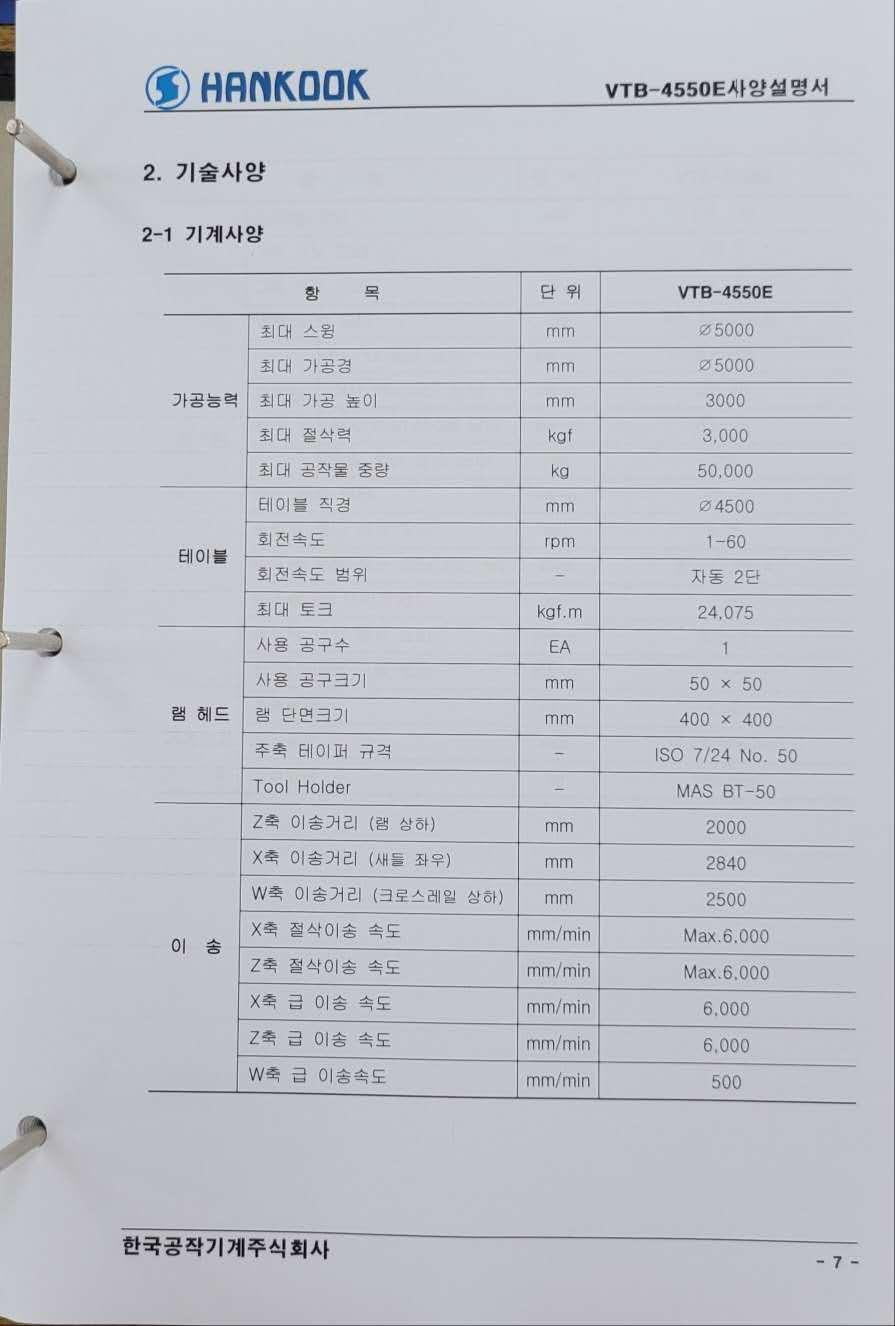

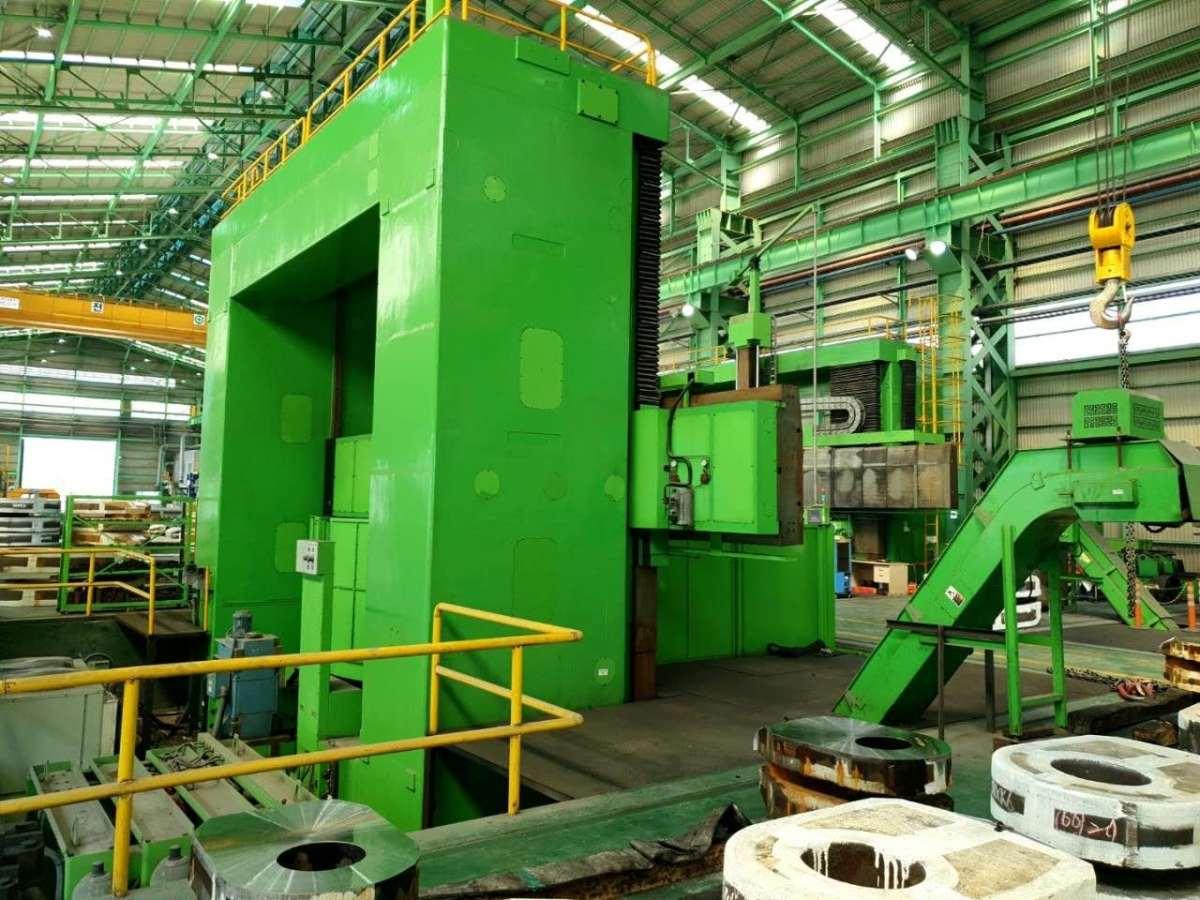

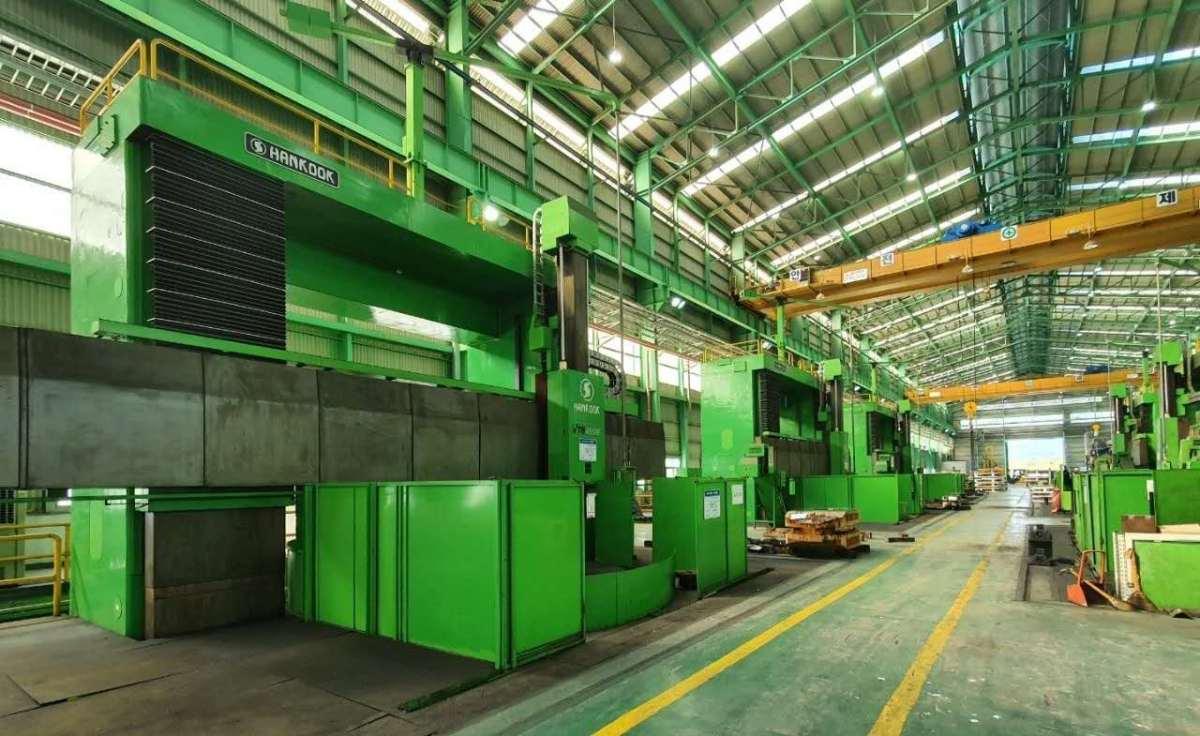

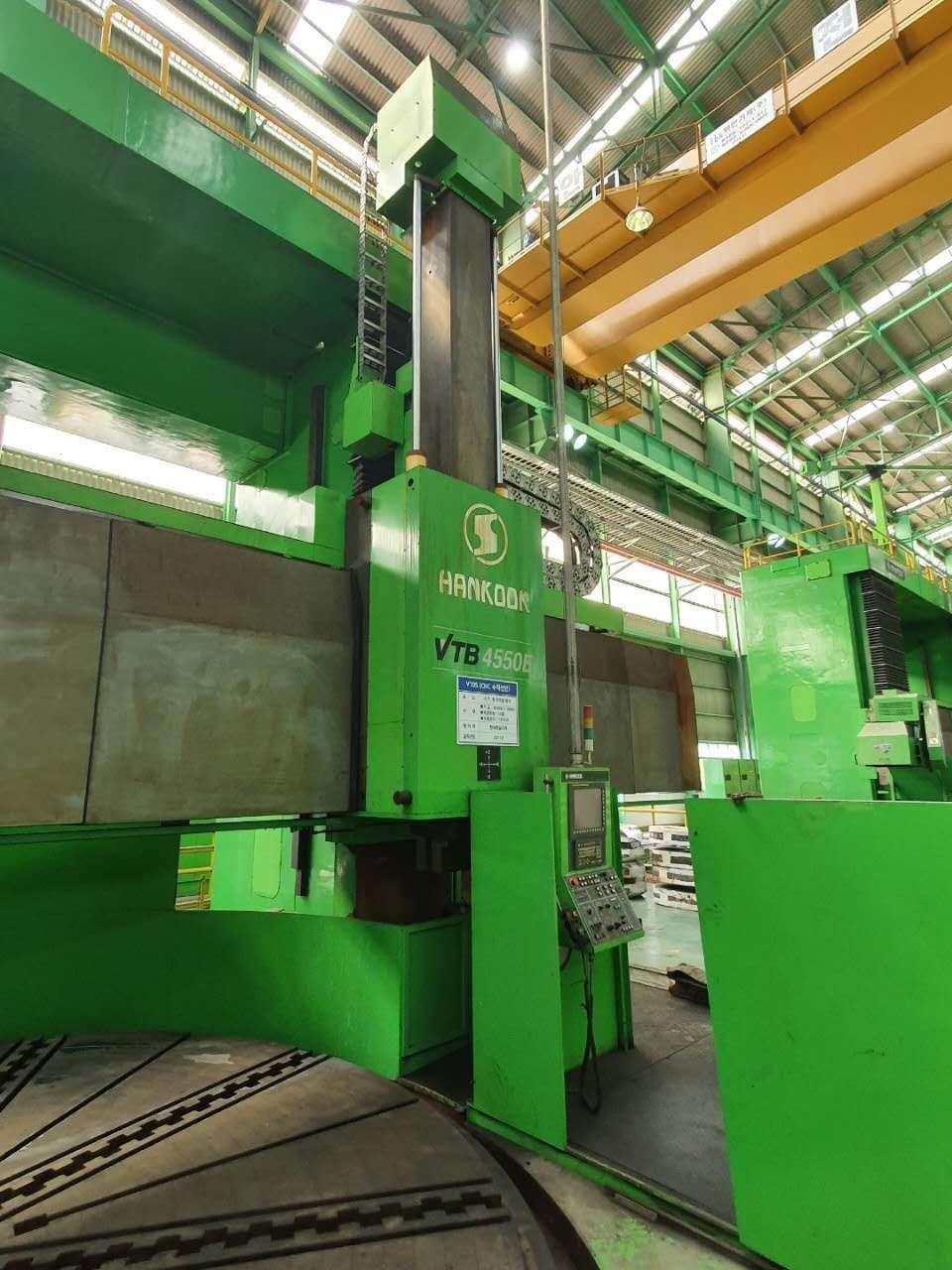

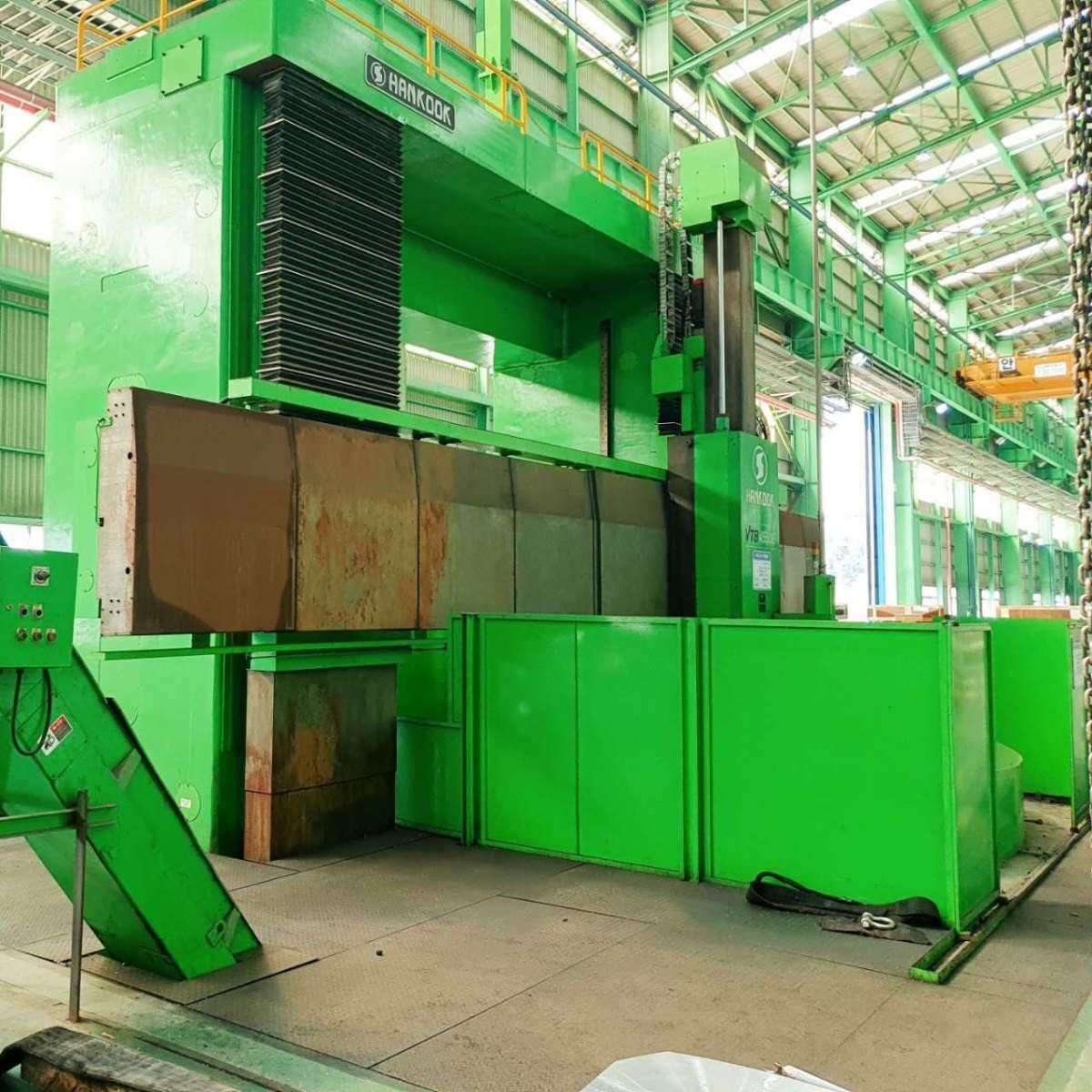

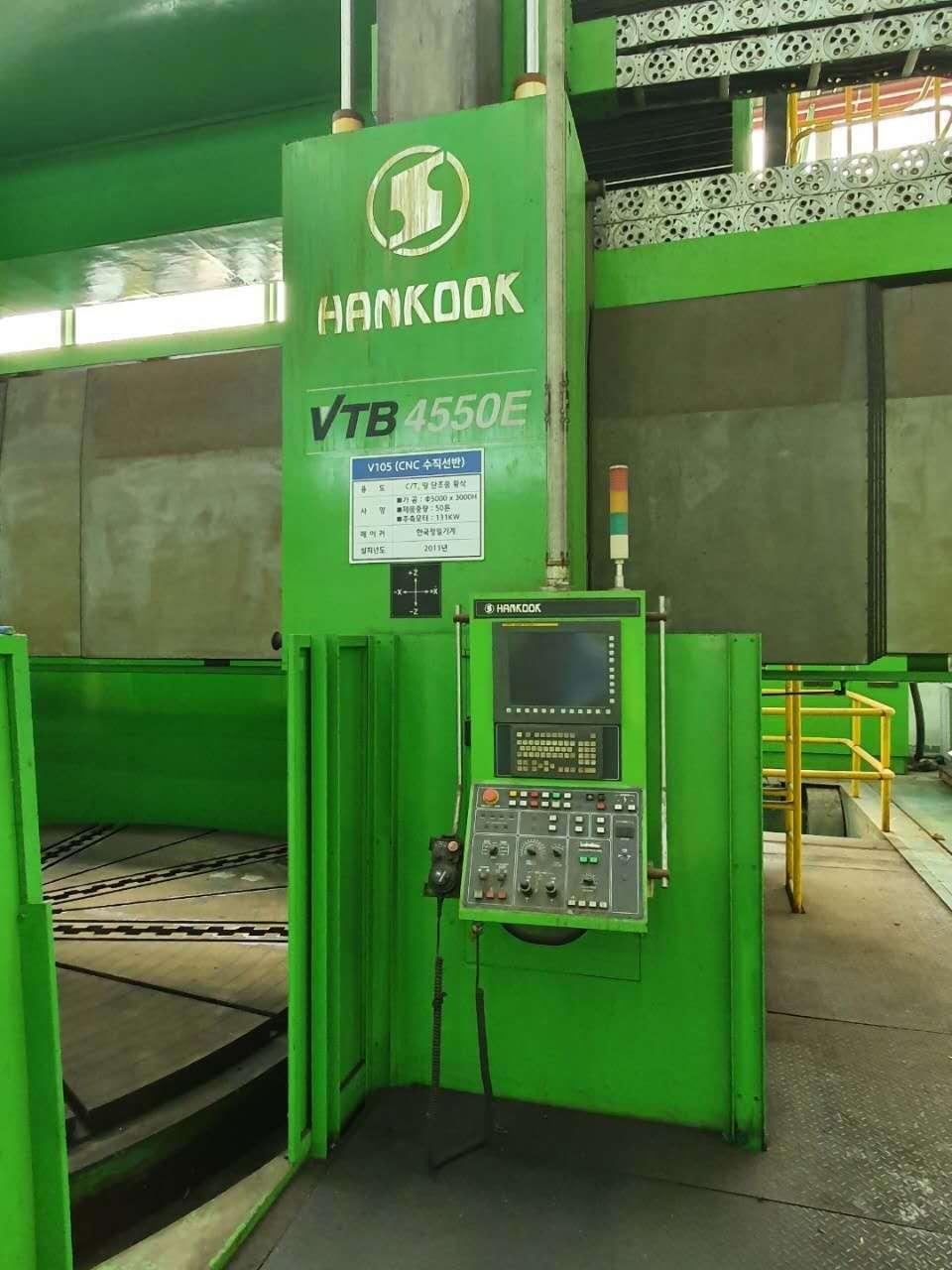

HANKOOK VTB-4550E CNC vertical lathe

Maximum machining diameter: 5000 mm
Maximum machining height: 3000 mm
Worktable surface diameter: 4500 mm
Maximum worktable load capacity: 50 tons
Maximum cutting force: 3000 kgf
Worktable speed range: 1–60 rpm
Speed control mode: Automatic two-speed selection
Maximum worktable torque: 24,075 kgf·m
Number of tools: 1
Tool size: 50 × 50 mm
Ram cross-sectional dimensions: 400 × 400 mm
Spindle taper: ISO 7/24 No. 50
Tool holder standard: MAS BT-50

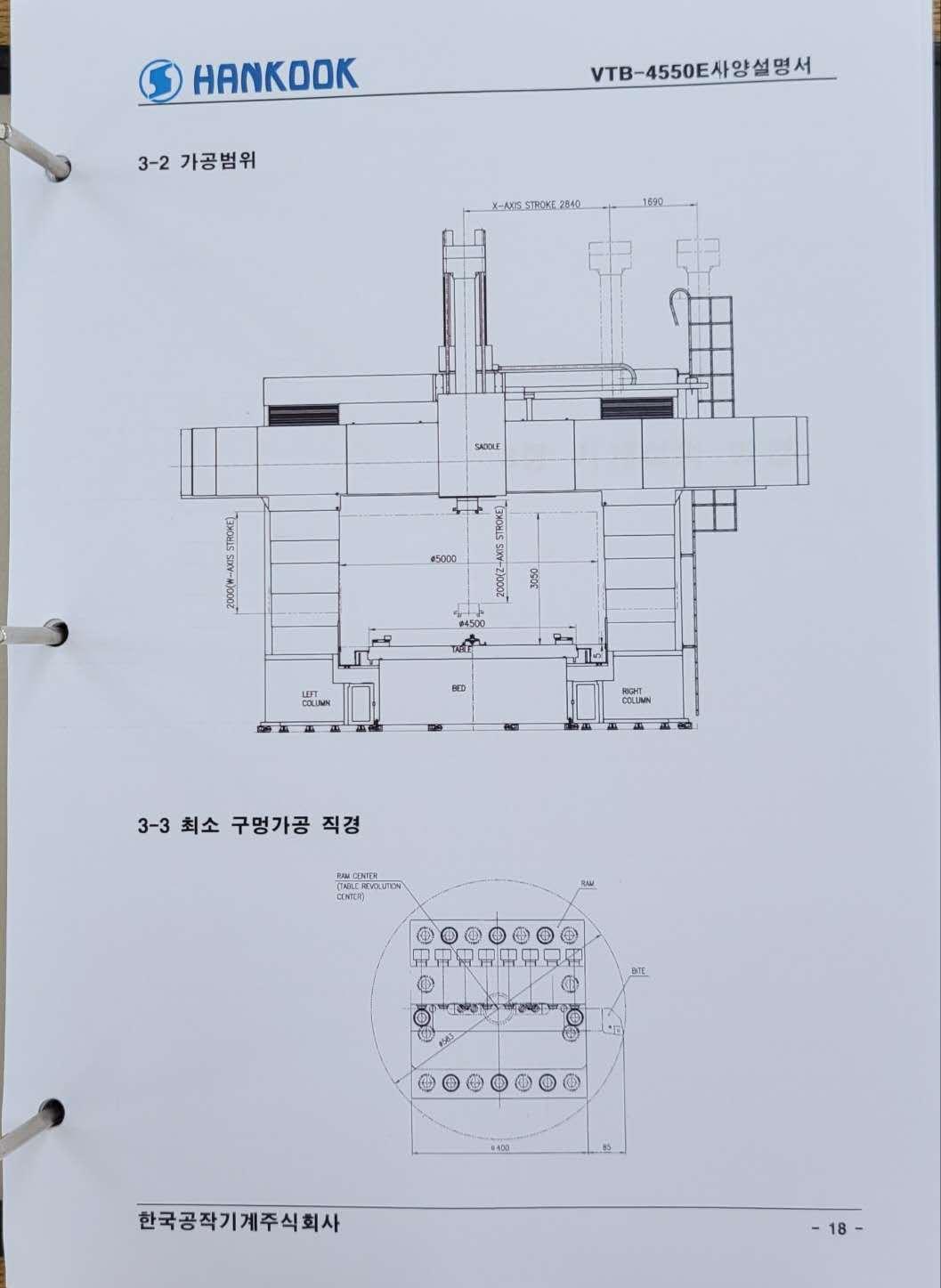

X-axis travel: 2840 mm
Z-axis travel: 2000 mm
W-axis travel: 2500 mm
X-axis cutting feed rate: Max. 6000 mm/min
Z-axis cutting feed rate: Max. 6000 mm/min
X-axis rapid traverse rate: 6000 mm/min
Z-axis rapid traverse rate: 6000 mm/min
W-axis rapid traverse rate: 500 mm/min
Motor Configuration
Worktable motor: DC 131 kW
X-axis servo motor: AC 9 kW
Z-axis servo motor: AC 9 kW
W-axis servo motors: AC 14 kW × 2 sets
Hydrostatic system inlet/outlet motors: 5.5 kW-4P / 22 kW-4P
Accumulator motor: 11 kW-4P
Oil cooling pump motor: 22 kW
Hydraulic pump motor: 22 kW-4P
Hydraulic oil cooling pump motor: 0.75 kW
X/Z/W-axis guideway lubrication pump motors: 25 W-4P, 25 W-4P
Worktable oil cooling unit: 2.4 kW
Coolant pump motors: 2.2 kW × 2 sets
Chip conveyor drive motor: 0.75 kW-4P
Overall Machine Specifications
Overall height: 11000 mm
Floor space: 14000 × 9040 mm
Total machine weight: 160000 kg
