HETO HETIX3000 Deep-hole drilling machine

CNC System: HEIDENHAIN iTNC 530
Three-axis Travel: 3000 × 1200 × 800 mm
W-axis Deep-hole Drilling Feed Travel: 800 mm
Worktable Size: 1600 × 1300 mm
Maximum Worktable Load: 20,000 kg

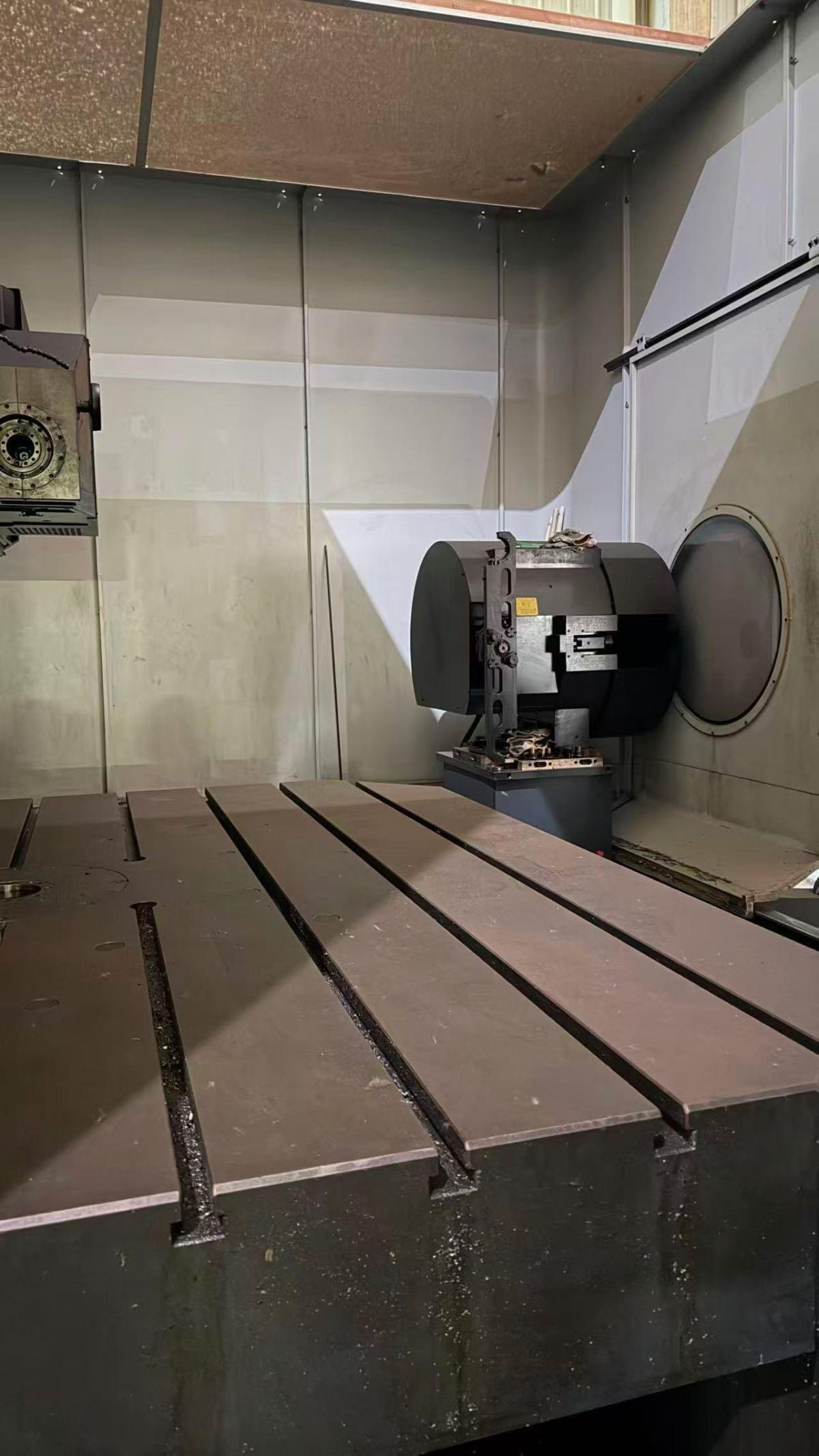

C-axis Rotation Range: 360° Full Rotation
C-axis Indexing Accuracy: 0.001°
B-axis Swivel Range: ±5° (5-axis Simultaneous Machining)
Deep-hole Drilling Range: Gun Drilling Diameter Ø5–40 mm
Maximum Drilling Depth: 3000 mm
Deep-hole Spindle Power: 20–30 kW
Deep-hole Spindle Speed: 0–6000 rpm
Maximum Deep-hole Spindle Torque: 267 N·m
Milling Spindle: Optional Motorized Milling Spindle, supporting cavity, inclined-surface, and 5-axis machining
Positioning Accuracy: ≤0.008 mm
Repeatability: ≤0.004 mm
