• Inventory number：70144
• Brand：DMG

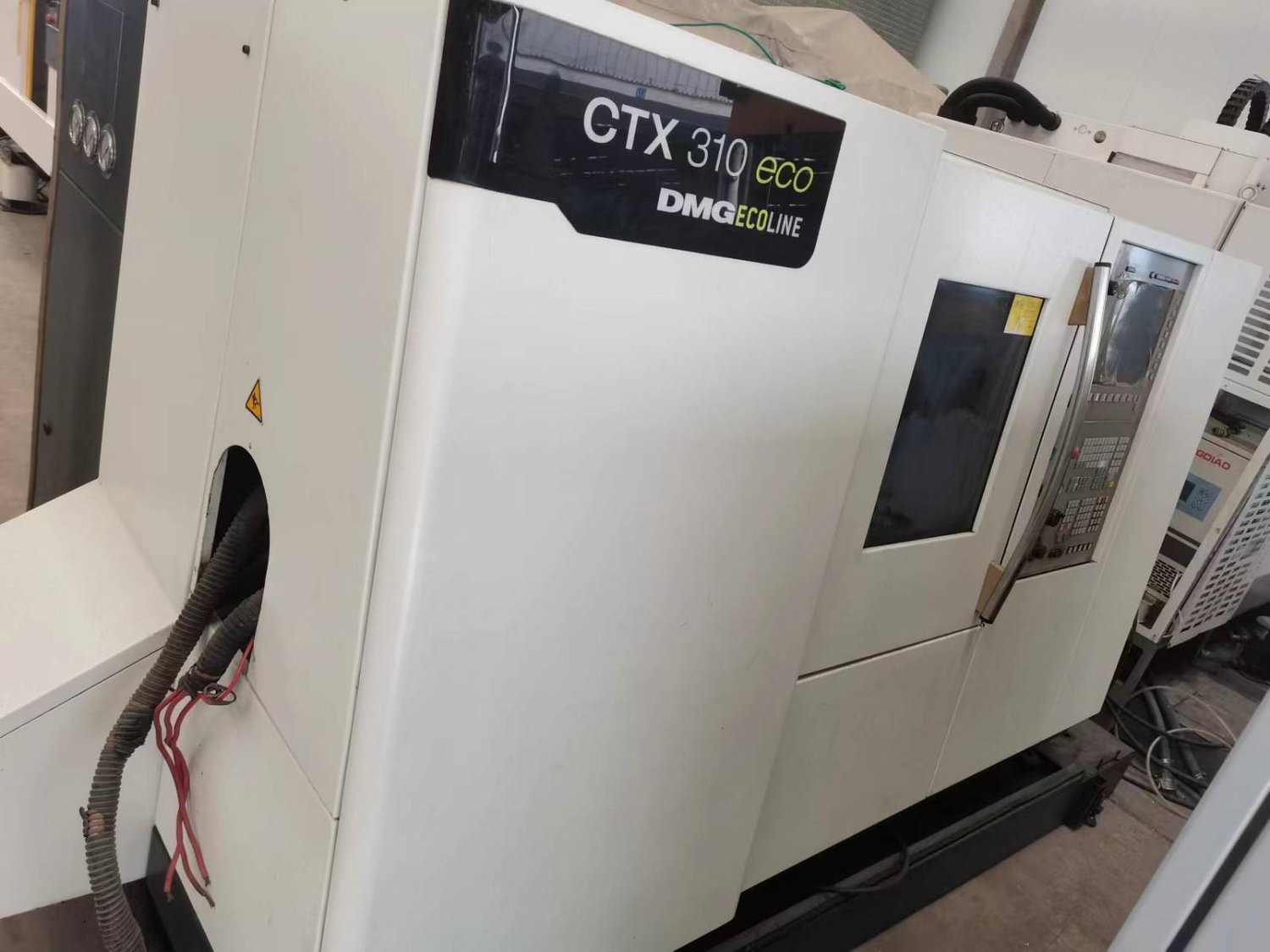

• Model：CTX310
• Origin：Germany
• Location：China
• Year：
• Create Time：2022-12-01

Specifications:

• Rotation diameter: 330 mm

  Rotation diameter over slide block: 260 mm

  Turning diameter: 200 mm

  X axis travel: 160 mm

  Z axis travel:  450 mm

  Main Spindle

  Main Spindle nose (flat flange): 140mm H5

  Material rod through hole: 51mm


  Main spindle inside front bearing diameter:100mm

  Chuck size: 210mm

  Chuck:(40%/DC)16.5(2) / 11(2) kW (AC)

  Torque:(40% / DC)166.5(2) / 112(2) Nm

  Turning speed:5000rpm

  Tool holders

  No. of tools:12

  No. of power head:6

  Turret hole diameter(DIN 69880):30mm

  Power tool motor power: (40% DC) 4,000 rpm 8.4(2)kW

  Power tool torque: (40% DC) 20(2) Nm

  Power tool turning speed:4500rpm

  Tailstock

  Tailstock travel(auto positioning):400mm

  Taper:4 MK

  Force of Tailstock:400daN

  Machine weight (incl. chip conveyor):3,800 kg
