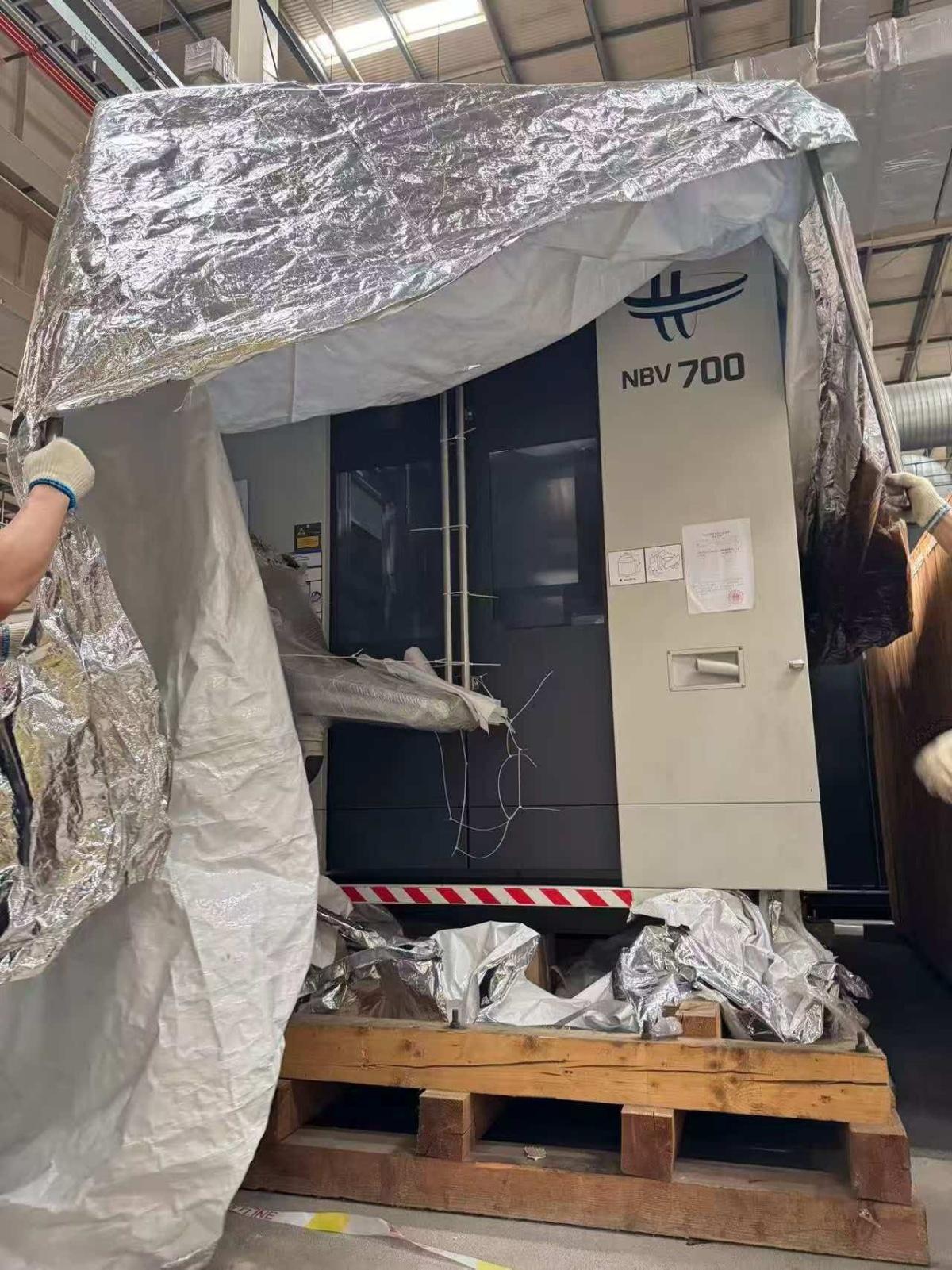

Hüller Hille NBV700 5 axis machining centre

The maximum travel of the X/Y/Z axes for travel and Load is approximately 700 × 500 × 500 mm

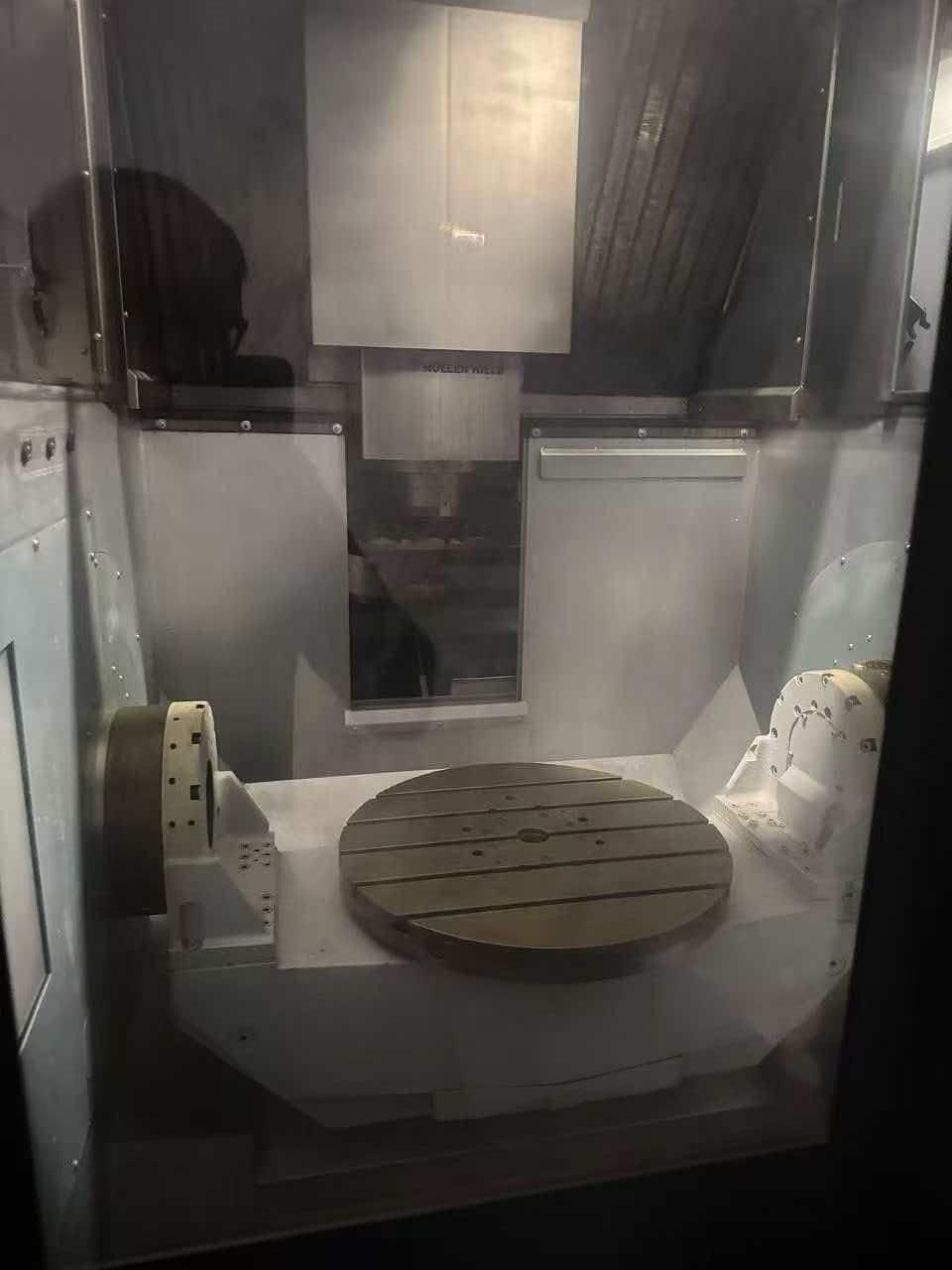

The diameter of the 5 axes Rotary Worktable is approximately 500 mm

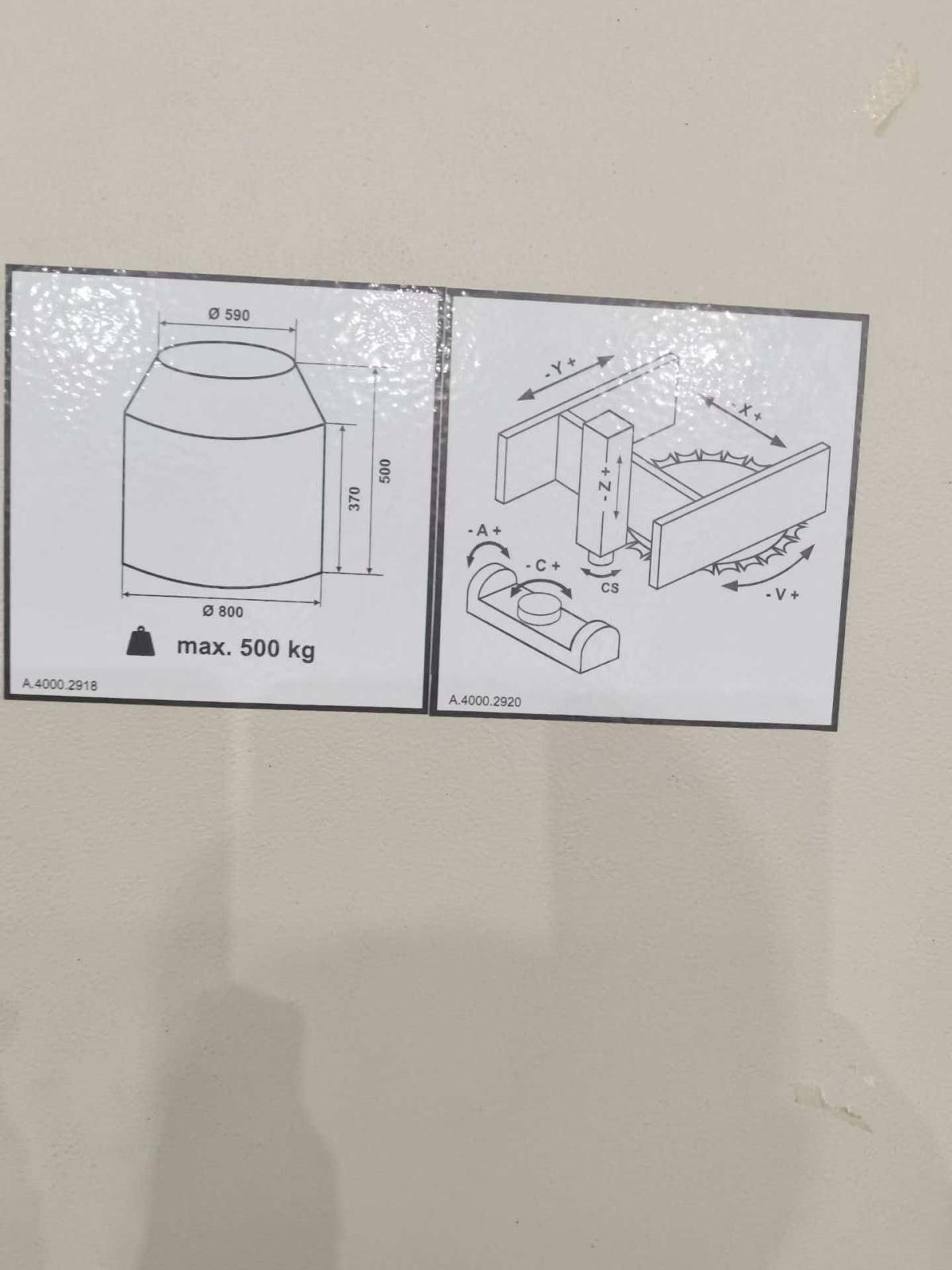

The maximum load of the Rotary Worktable is 500 kilograms
spindle CNC System spindle taper HSK-A63
The maximum speed of spindle is 18,000 to 24,000 rpm (direct-coupled type).
spindle drive mode: high-speed Direct drive (Direct)
spindle motor power 25/30 kW (continuous/intermittent)
The rapid feed rate of the X/Y/Z axes of the feed CNC System is 60/60/60 m/min
The maximum swing speed of the A/C axis is 60/60 rpm

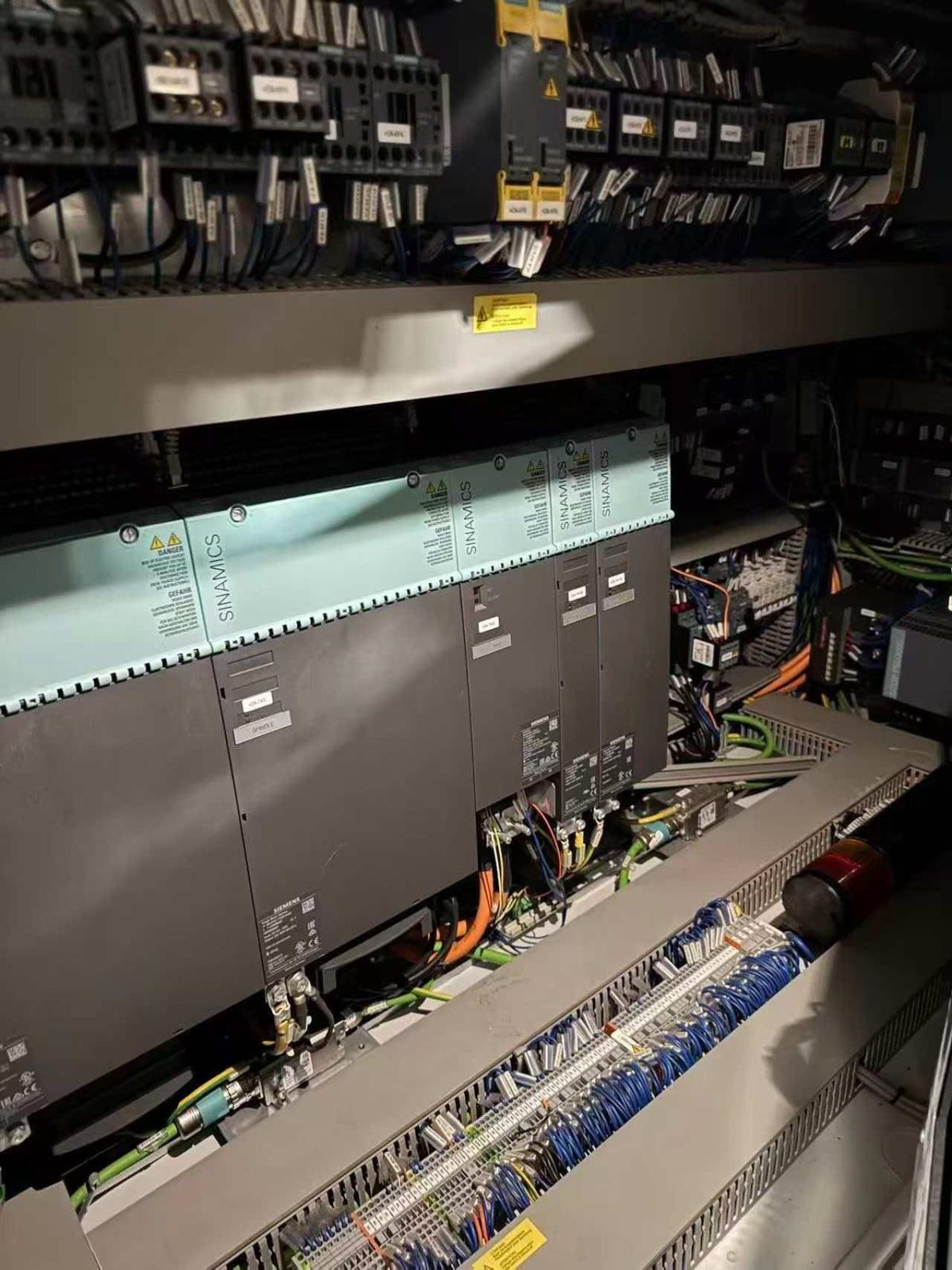

The core CNC System of the Control CNC System is Siemens SINAMICS (standard Accessories: 840D sl)
The precision and footageal repeatability Positioning precision is ± 0.003mm
The Overall dimensions of machine (length × width × height) are approximately 3000 × 3000 × 3200 mm
The overall weight of machine is approximately 8,500 kilograms
