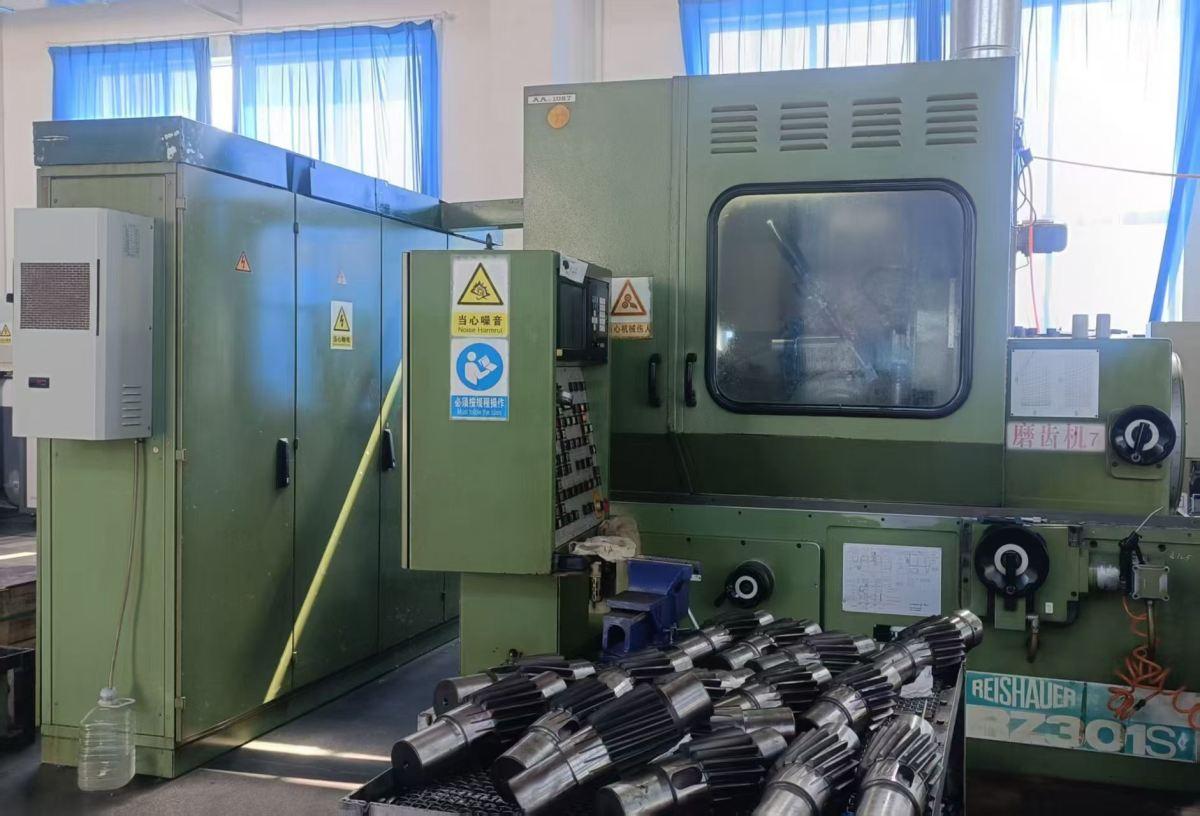

REISHAUER RZ 301S Gear grinding machine

The maximum Module is 3.0 to 5.0 mm
The maximum diameter of the workpiece is approximately 220 to 300 mm
The machining tooth count range is 6 to 60 teeth (supporting modified gear)
The maximum tooth width is 100 to 120 mm

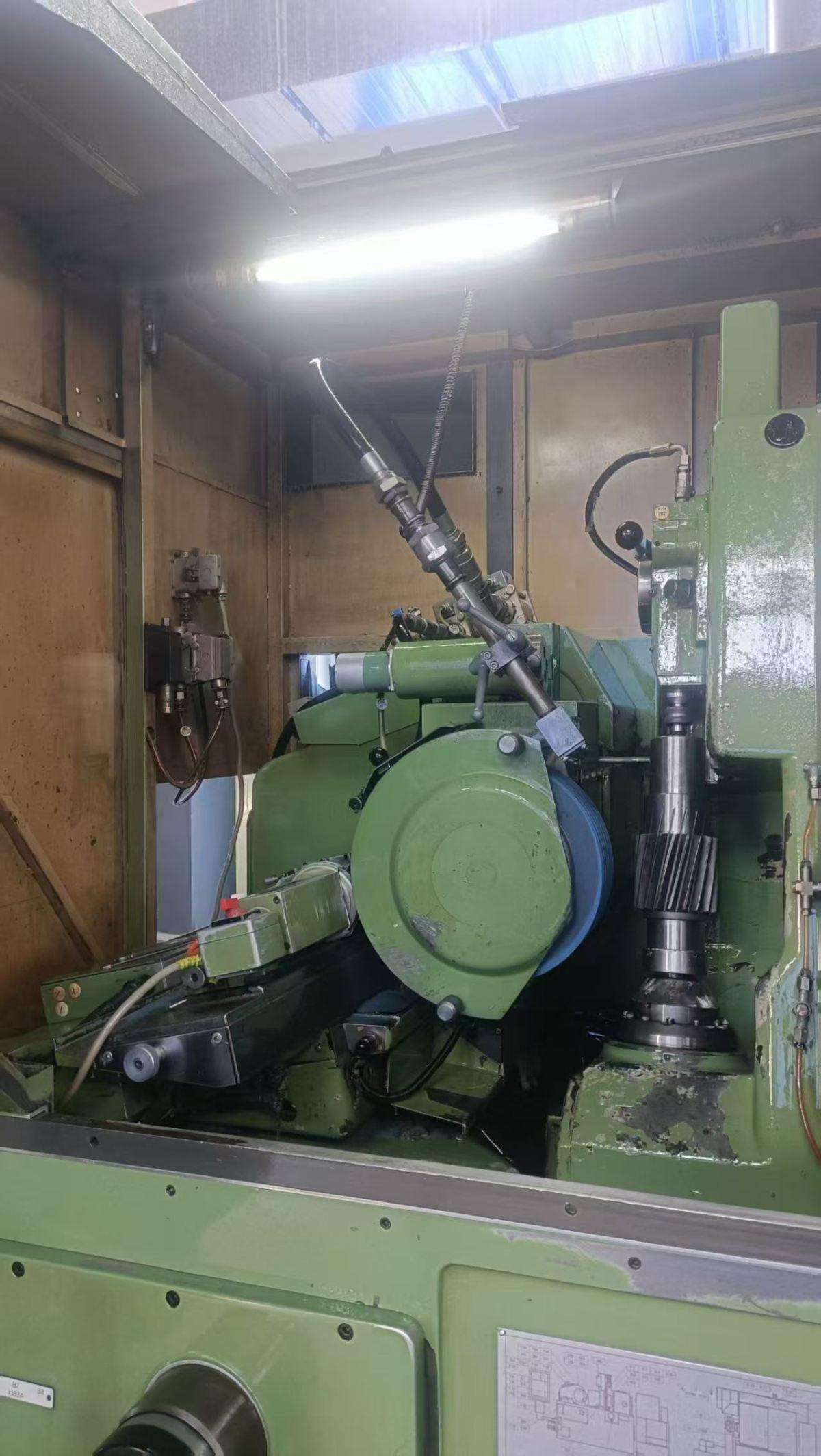

grinding wheel specifications: Continuous unfolding worm grinding wheel (supports online dressing)

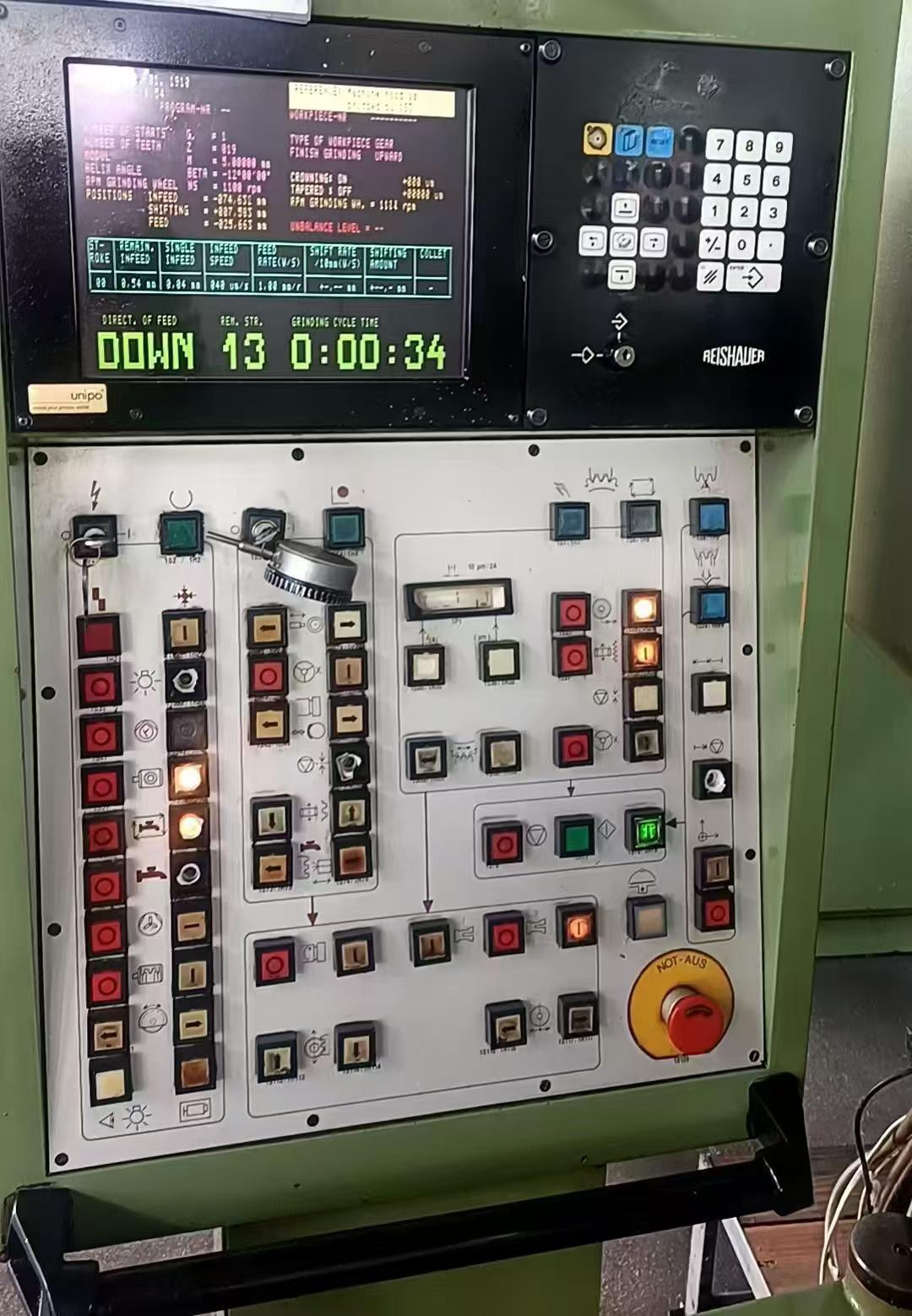

Control CNC System UNIPO dedicated CNC System (See the control panel in Figure 6)
The machining cycle for a single piece is extremely short (usually within 30 seconds to 2 minutes, depending on the module)
machining precision DIN/ISO grade 3 to 4 (extremely high precision tooth surface roughness and form and position tolerances)
