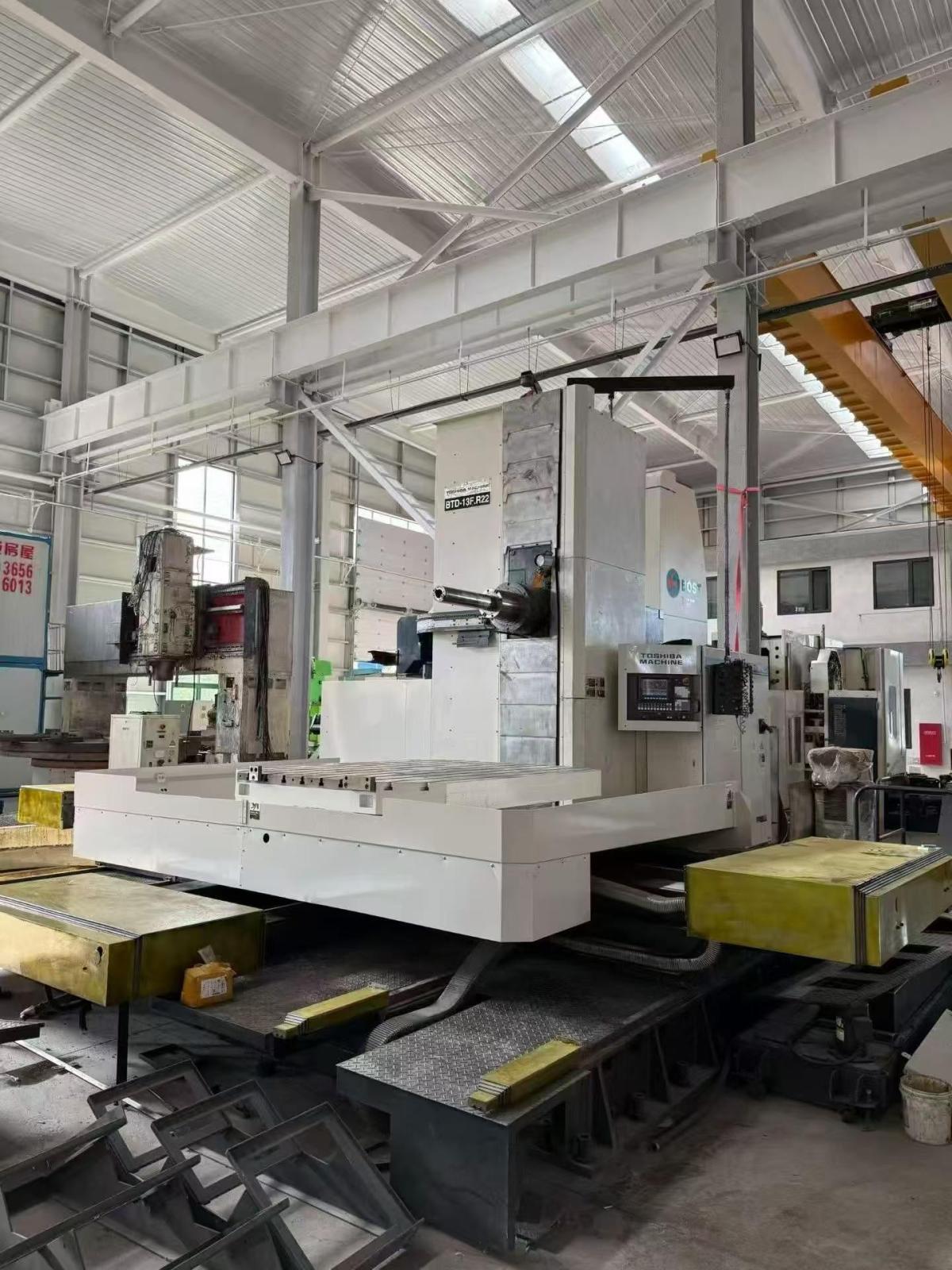

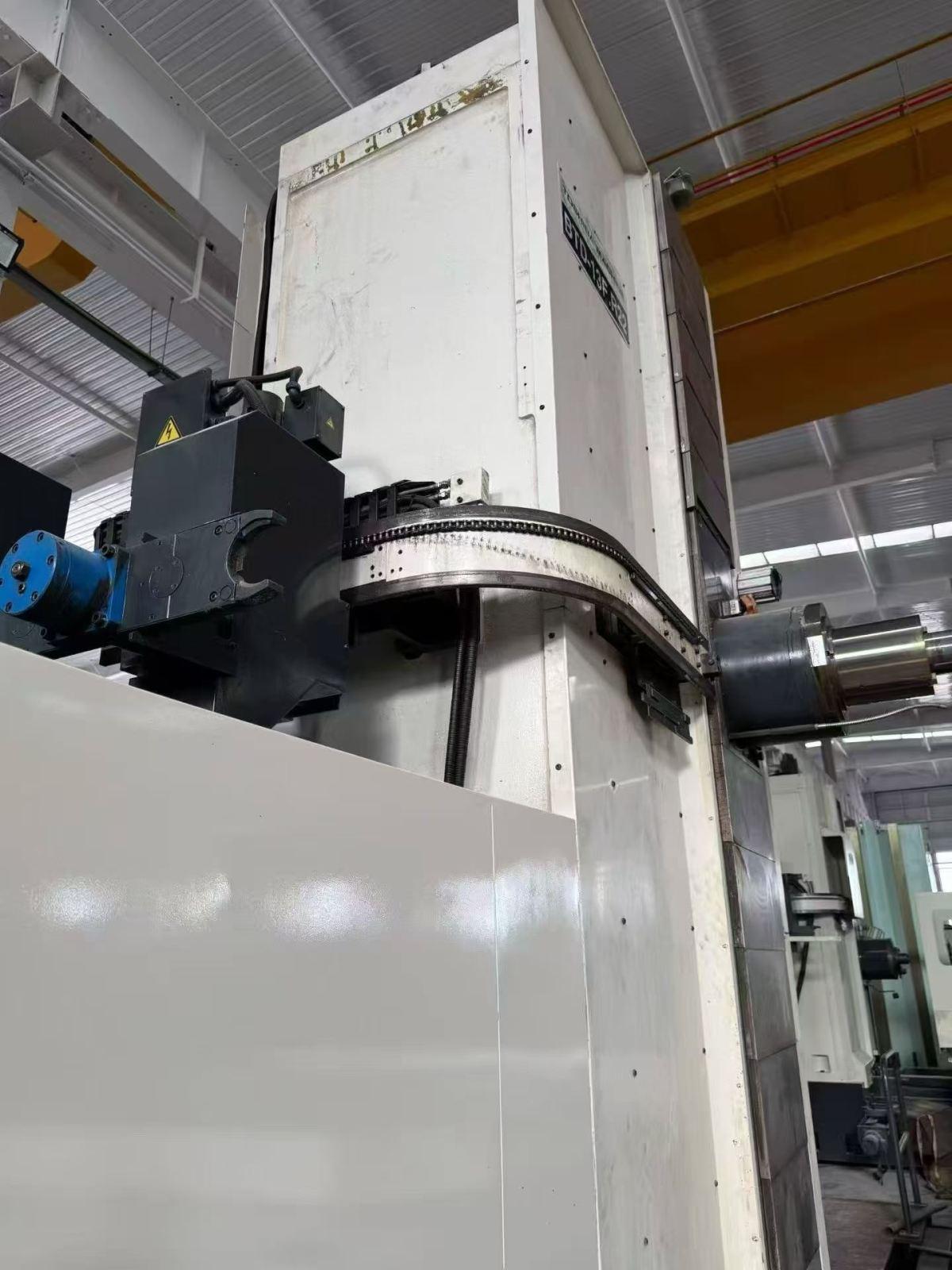

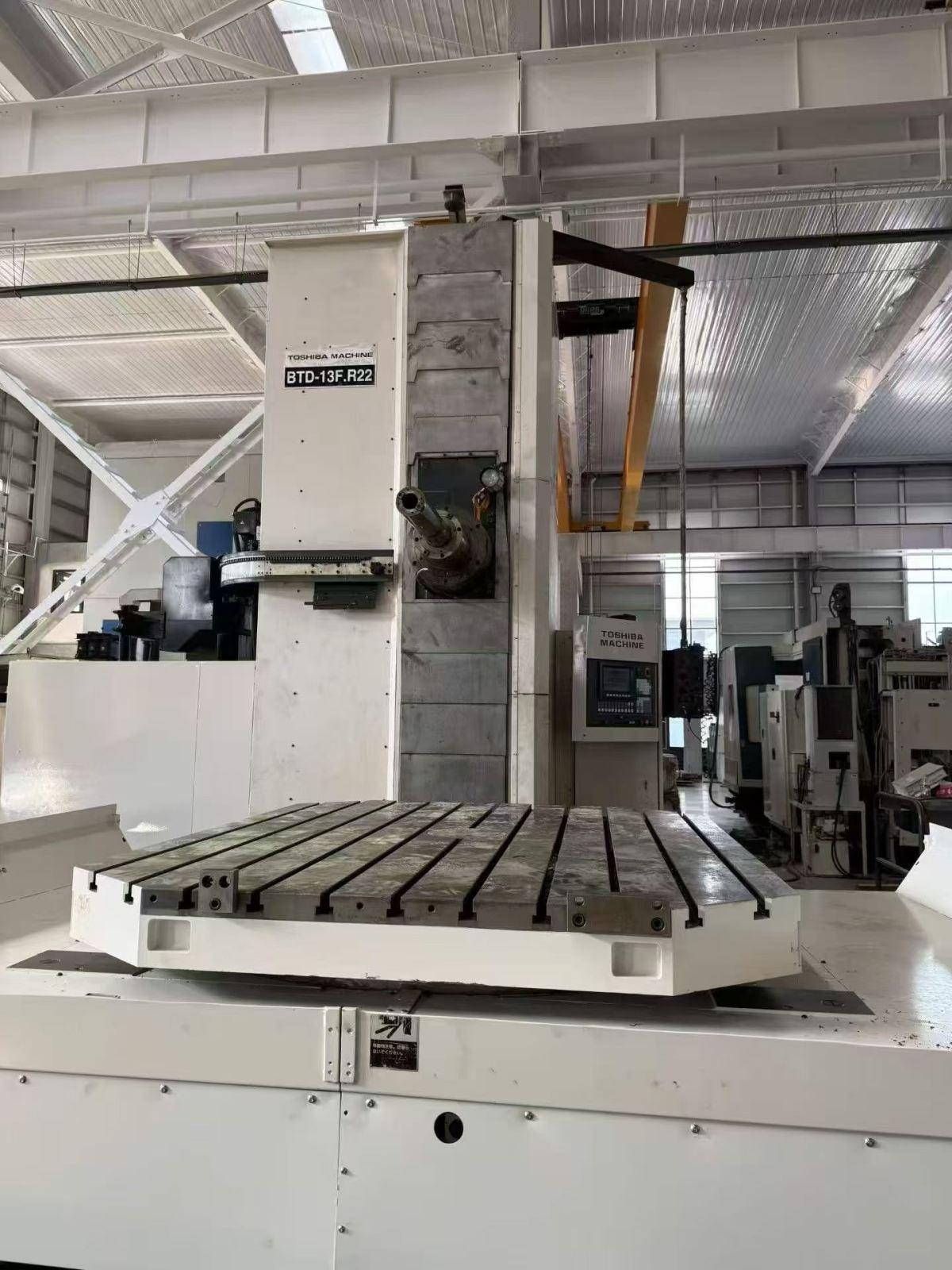

TOSHIBA BTD‑130F.R22 Boring and milling machine

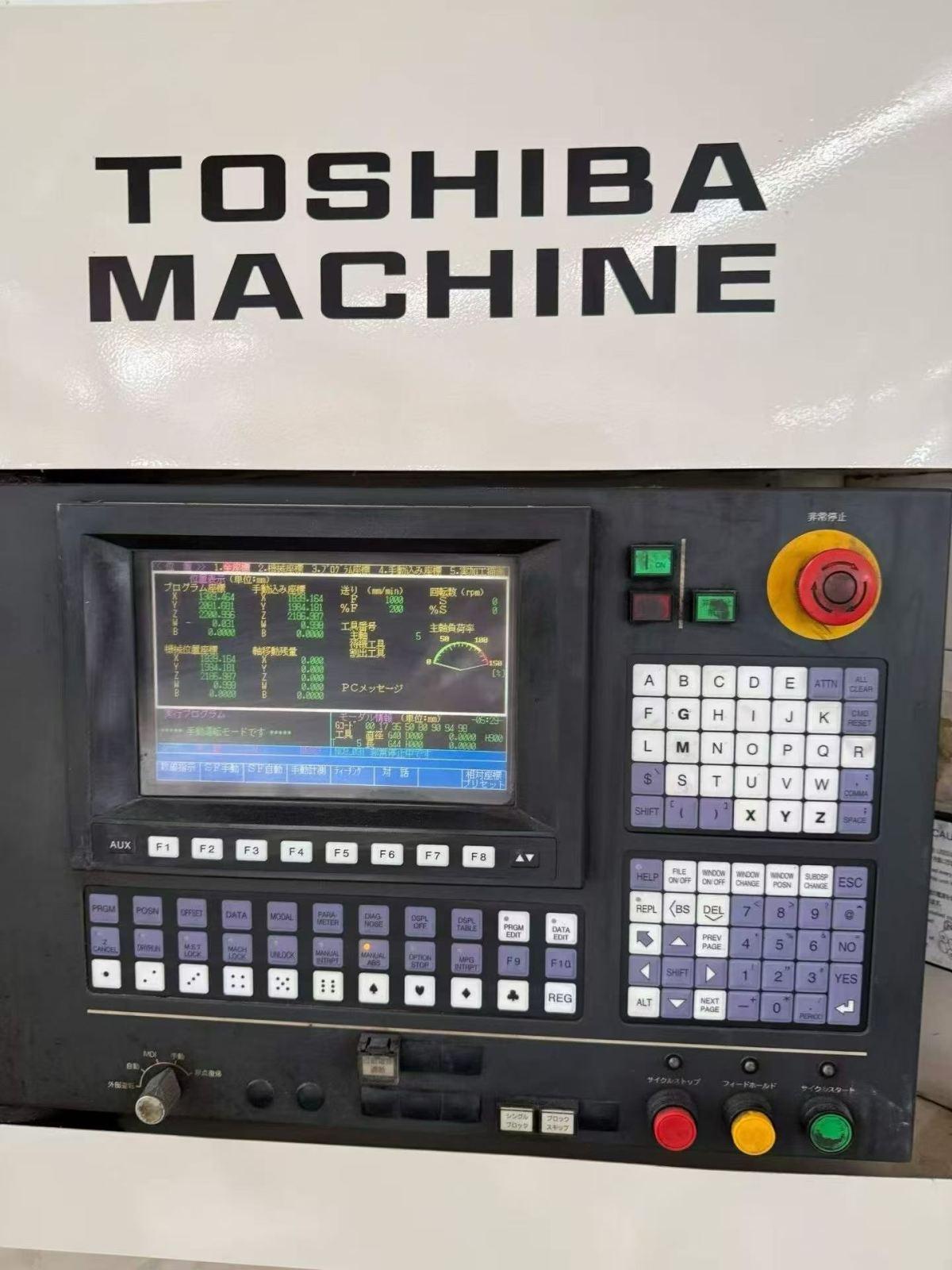

CNC System: TOSNUC-888-3

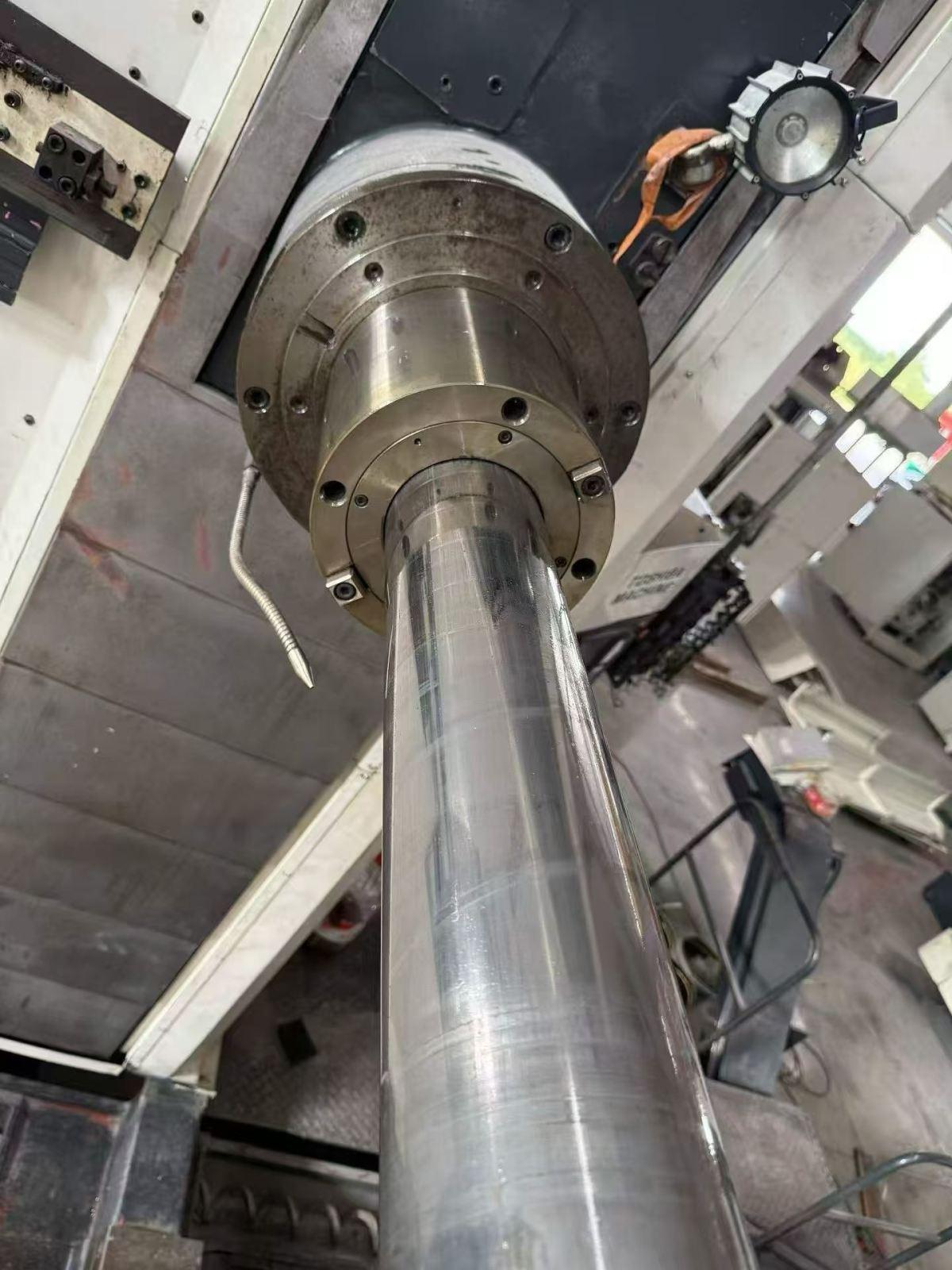

Boring Spindle Diameter: 130 mm
Spindle Taper: BT50
Spindle Speed: 5–2,500 rpm (3-Speed Gearbox)
Spindle Motor Power: 22 kW (Continuous) / 30 kW (30-Minute Rating)
X-Axis Travel: 3,000 mm
Y-Axis Travel: 2,300 mm
Z-Axis Travel: 1,600 mm
W-Axis Travel (Boring Spindle Extension): 700 mm
B-Axis Indexing Resolution: 0.0001°

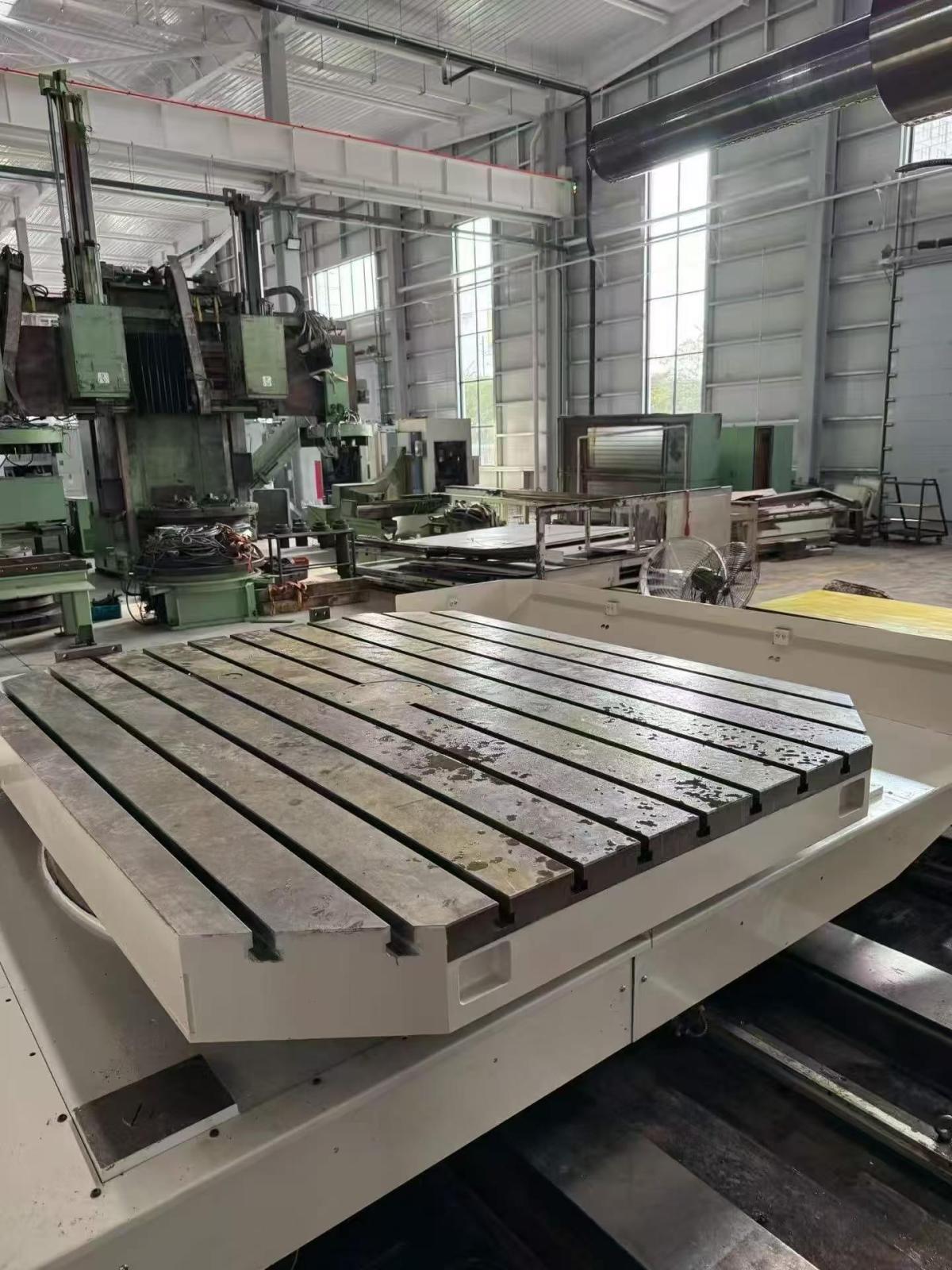

Worktable Size: 1,800 × 2,200 mm
Maximum Worktable Load Capacity: 12,000 kg
T-Slot Width: 22 mm
Number of T-Slots: 11
X/Y/Z-Axis Rapid Traverse Speed: 10,000 mm/min
W-Axis Rapid Traverse Speed: 6,000 mm/min
Cutting Feed Rate: 1–4,000 mm/min

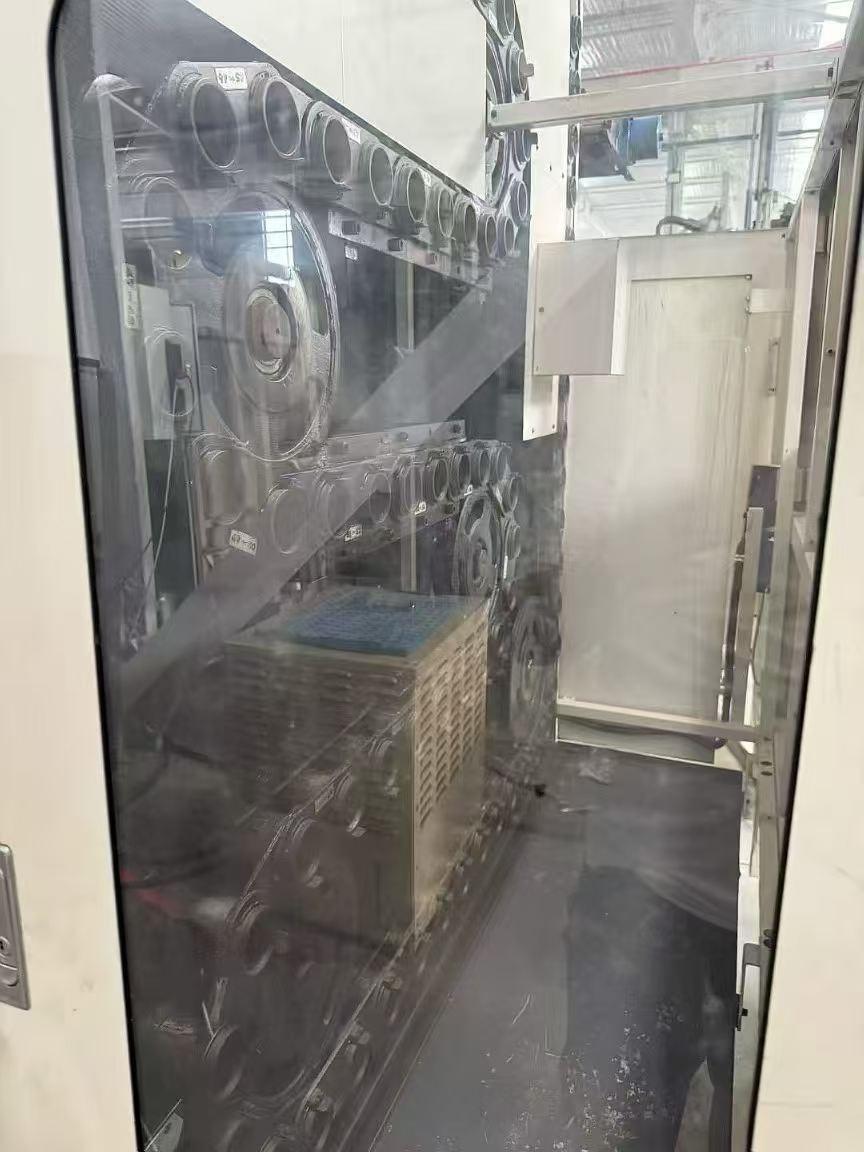

Tool Magazine Capacity: 90 Tools
Floor Space (L × W): 6,925 × 6,920 mm
Machine Weight: 42,000 kg
