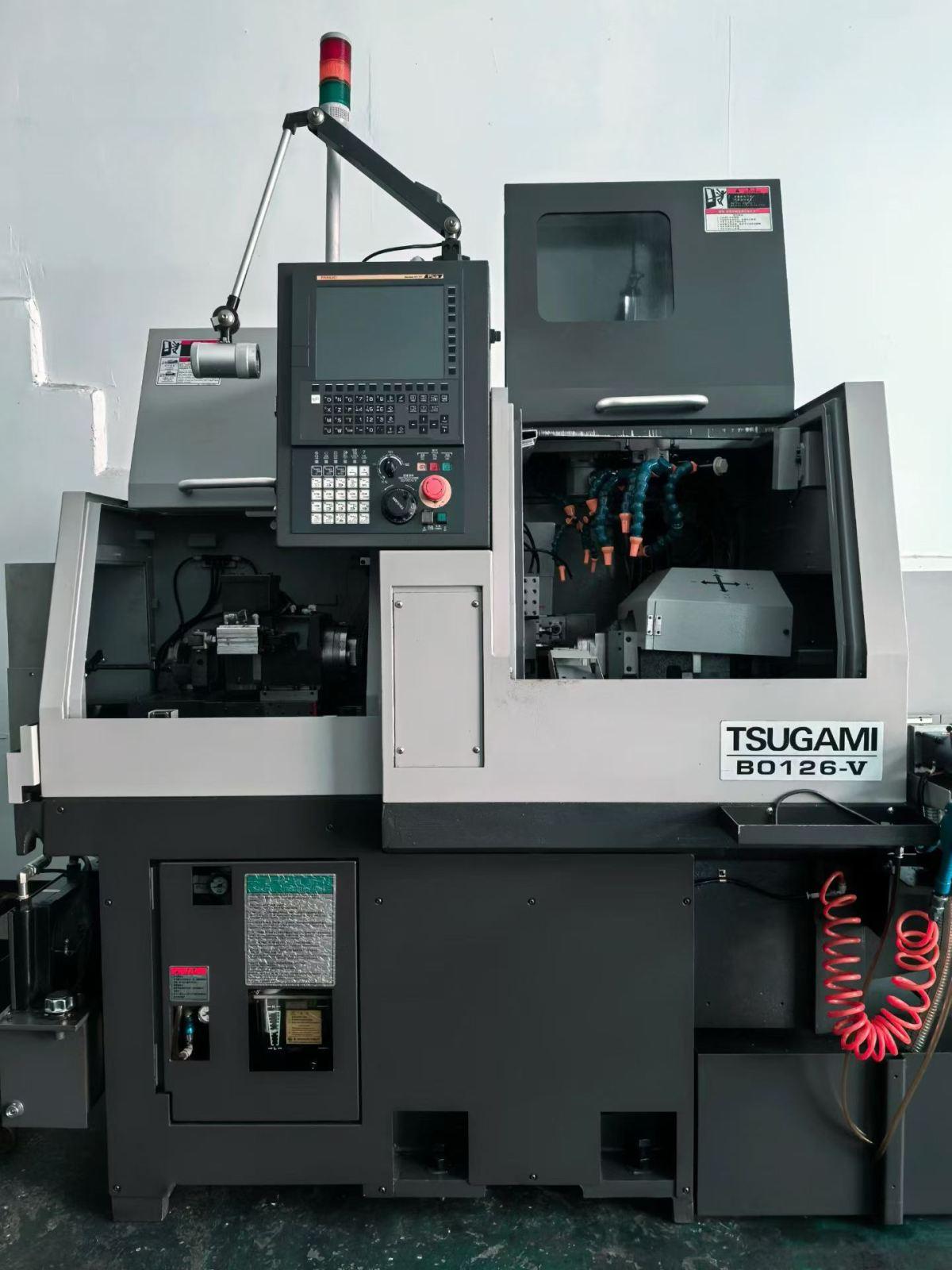

Tsugami B0126-V Automatic lathe

The maximum machining diameter is φ 12mm
The maximum speed of spindle is 12,000 min⁻¹
The maximum rotational speed of the back-spindle is 12,000 min⁻¹
The maximum rotational speed of the live tool is 10,000 min⁻¹ (optional, for machining of small diameter holes on the side/end face)
Fast moving rate (X/Z) 36 m/min (the simultaneous control response of the X/Z axis is extremely fast)
The Fast moving rate (Y-axis) is 32 m/min
The power of spindle motor is 2.2/3.7 kW
The power of the back-shaft motor is 2.2/3.7 kW
