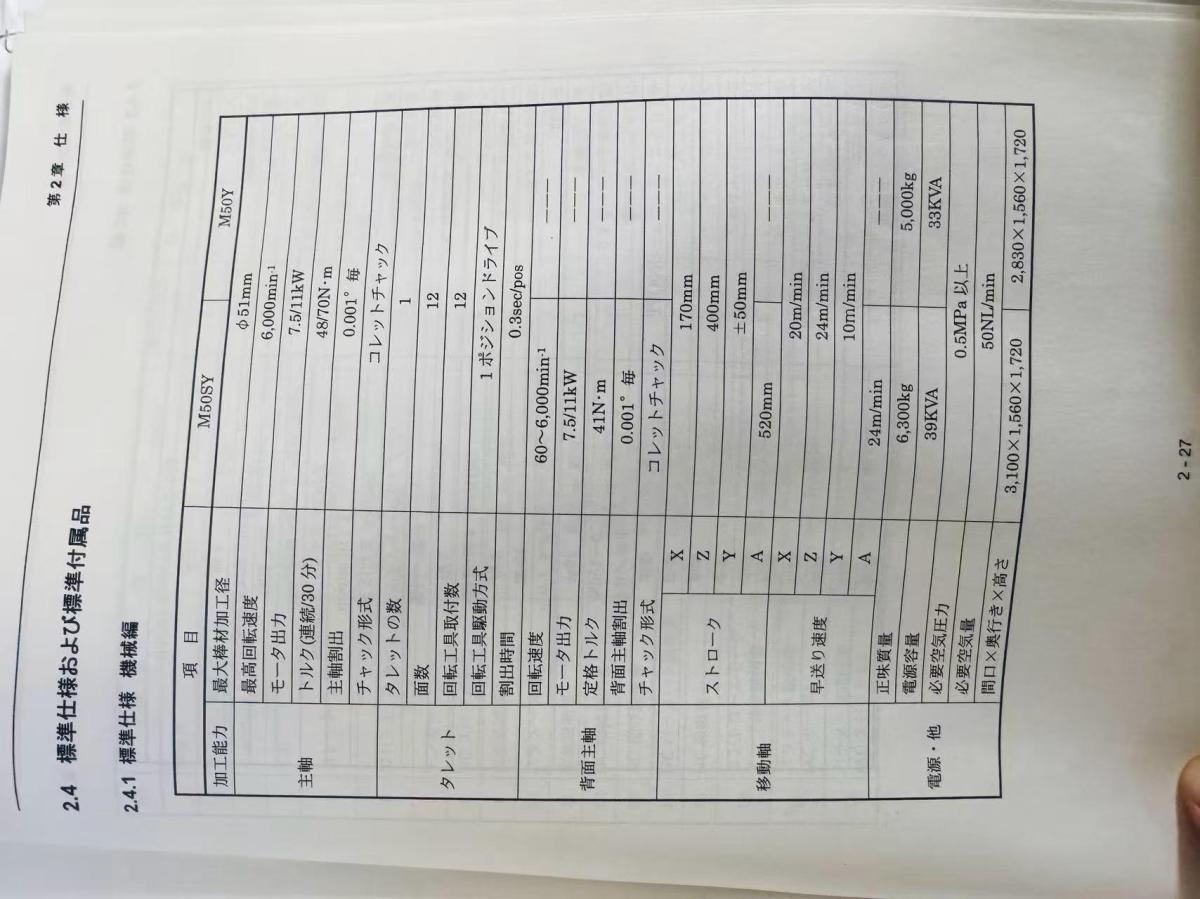

Tsugami M50SY Turn Mill Machining Centre

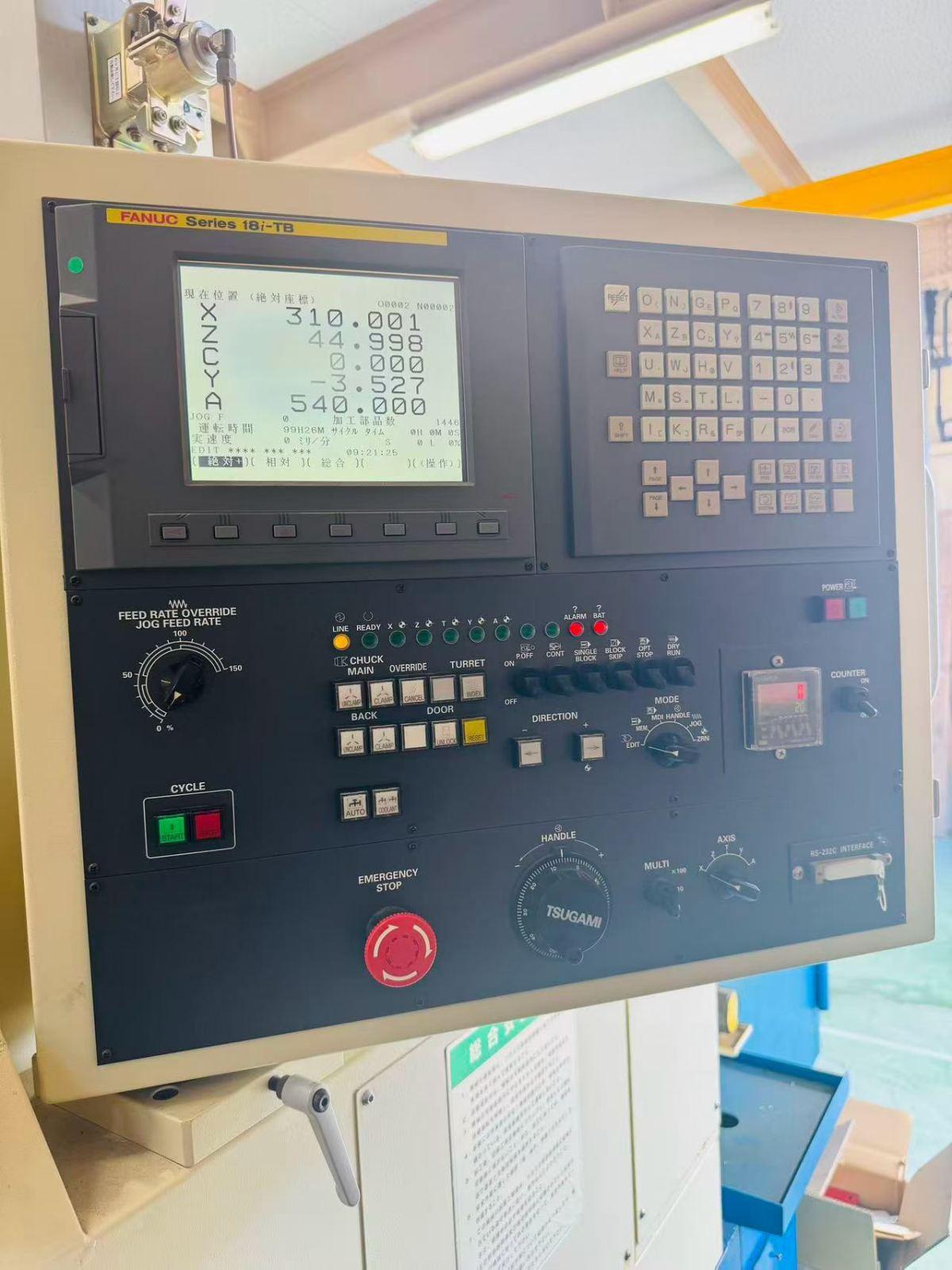

CNC System: FANUC Series 18i-TB
Machining Capacity:
Maximum Bar Capacity: φ51 mm
Maximum Machining Length: 320 mm
Main Spindle:
Maximum Spindle Speed: 6000 rpm
Motor Output: 7.5/11 kW
Torque (30-Min Rating): 48/70 N·m
Spindle Indexing: 0.001°

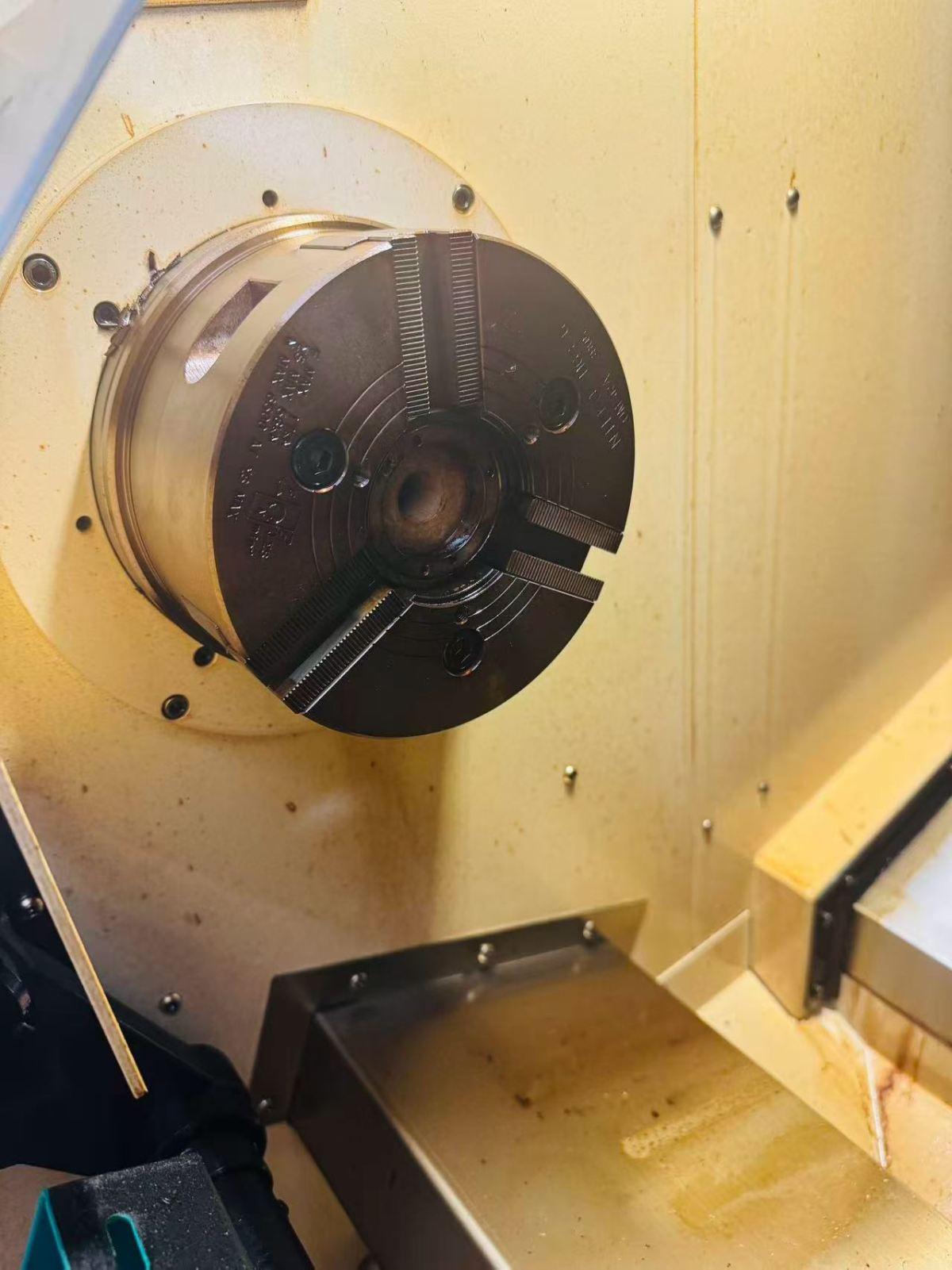

Chuck Type: Collet Chuck

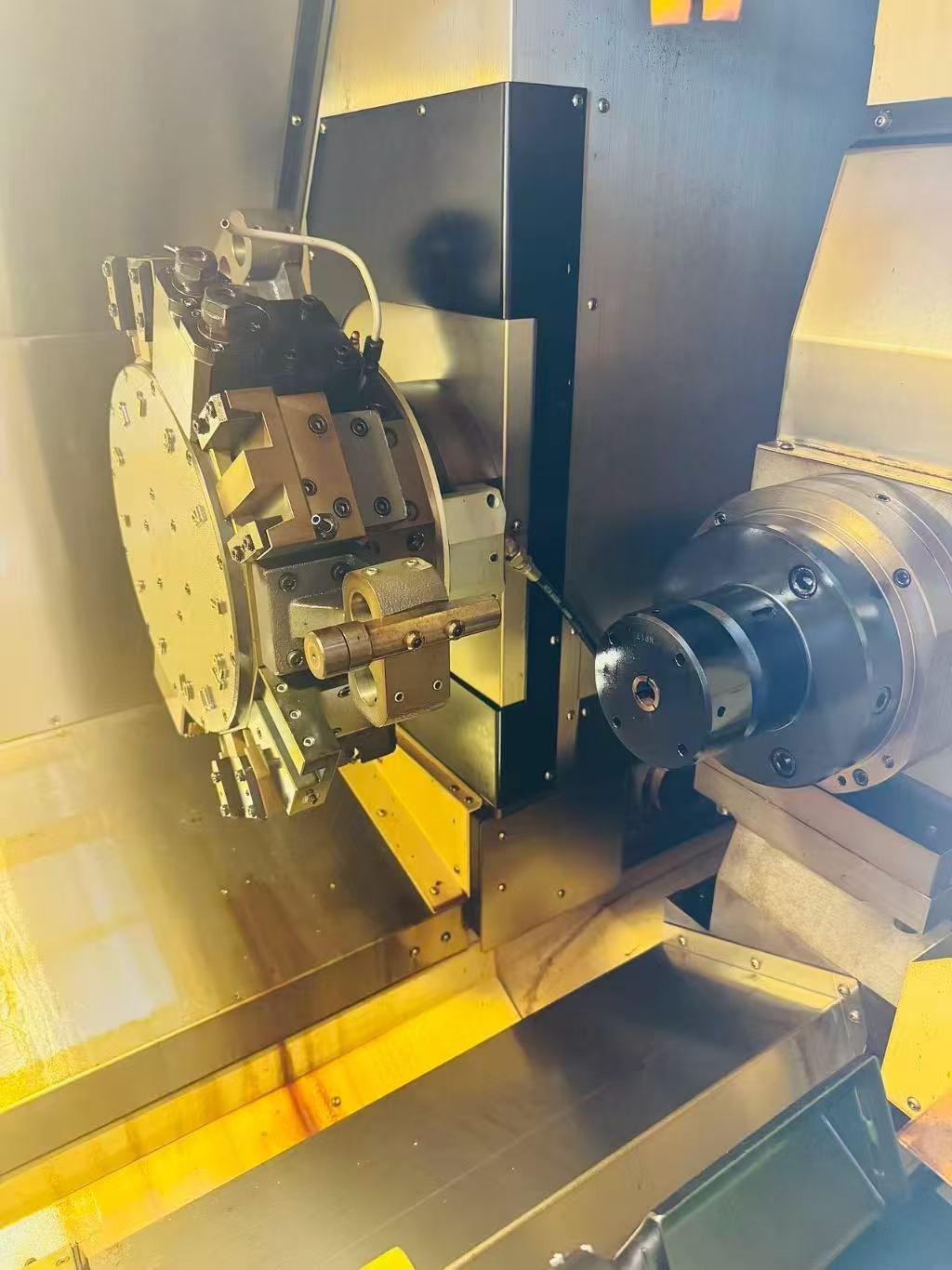

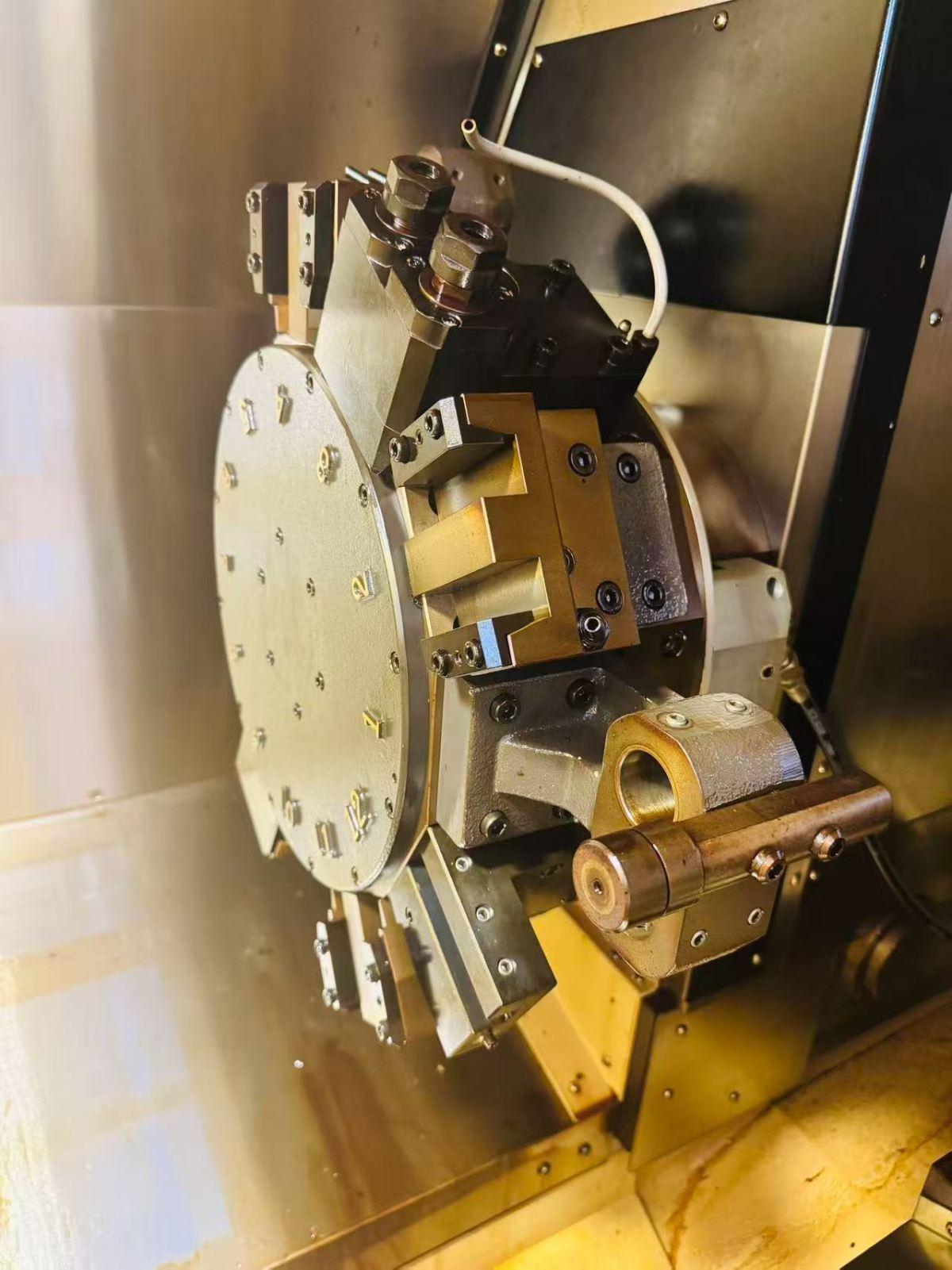

Turret:
Number of Turrets: 1
Number of Stations: 12
Number of Driven Tool Positions: 12
Driven Tool Drive: 1-Position Servo Drive
Indexing Time: 0.3 sec/pos
Sub Spindle:
Spindle Speed: 60–6000 rpm
Motor Output: 7.5/11 kW
Rated Torque: 41 N·m
Sub-Spindle Indexing: 0.001°
Chuck Type: Collet Chuck

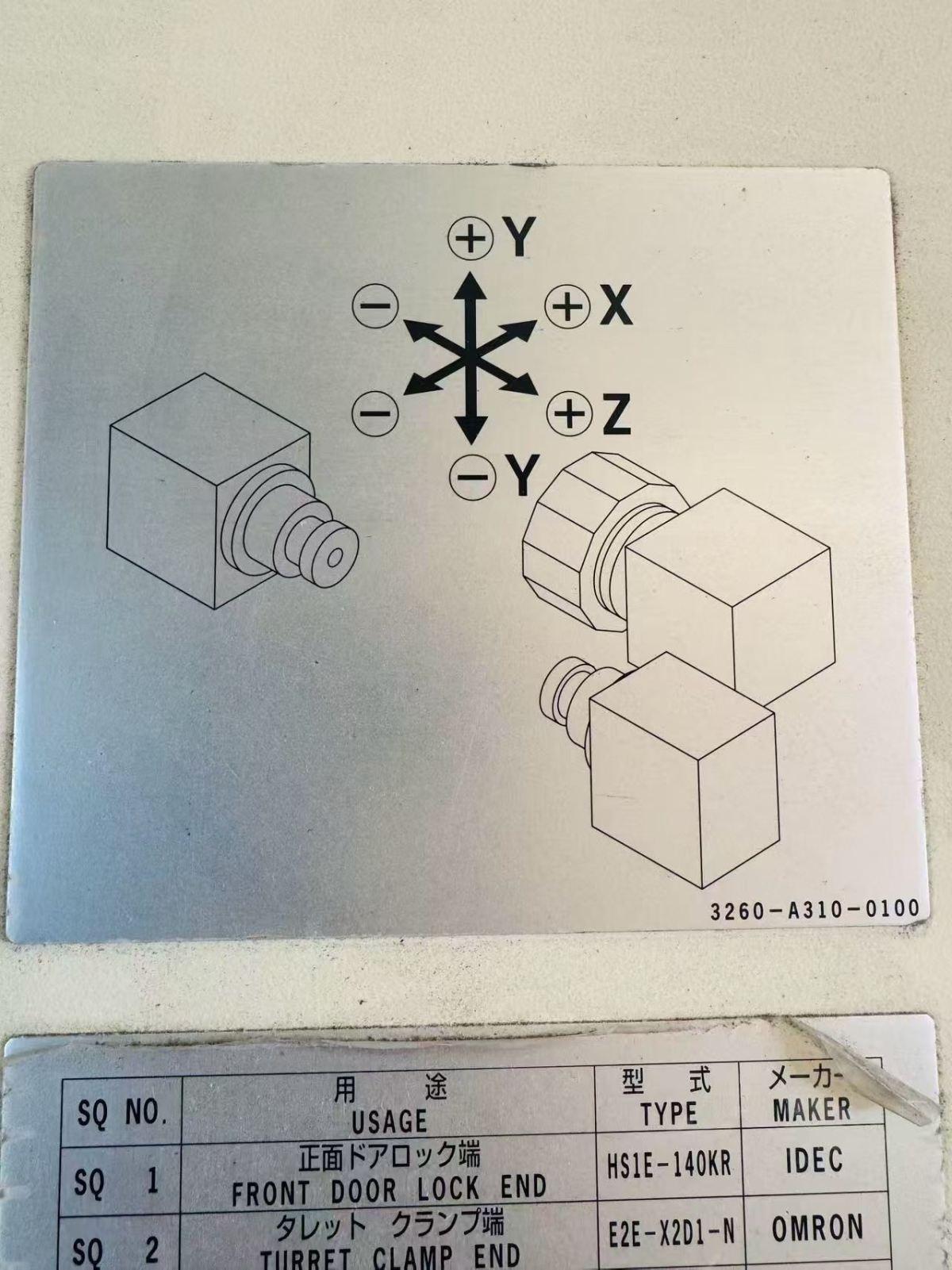

Axis Travel:
X-Axis Travel: 170 mm
Z-Axis Travel: 400 mm
Y-Axis Travel: ±50 mm
A-Axis Travel: 520 mm
X-Axis Rapid Traverse: 24 m/min
Z-Axis Rapid Traverse: 24 m/min
Y-Axis Rapid Traverse: 10 m/min
Power Supply and Others:
Net Machine Weight: 6300 kg
Power Supply Capacity: 39 kVA
Required Air Pressure: ≥0.5 MPa
Required Air Flow: 50 NL/min
Overall Dimensions (W × D × H): 3100 × 1560 × 1720 mm
Configuration:
With Y-Axis
