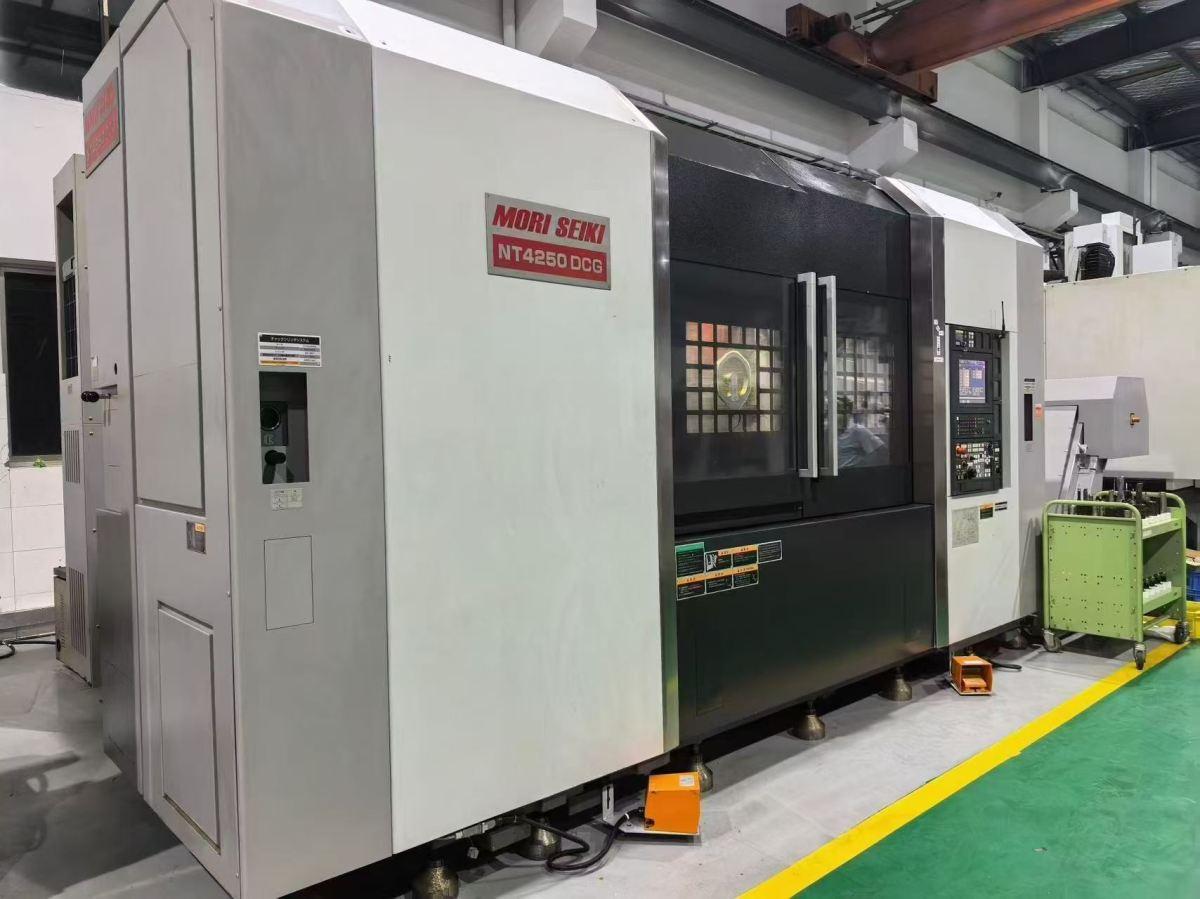

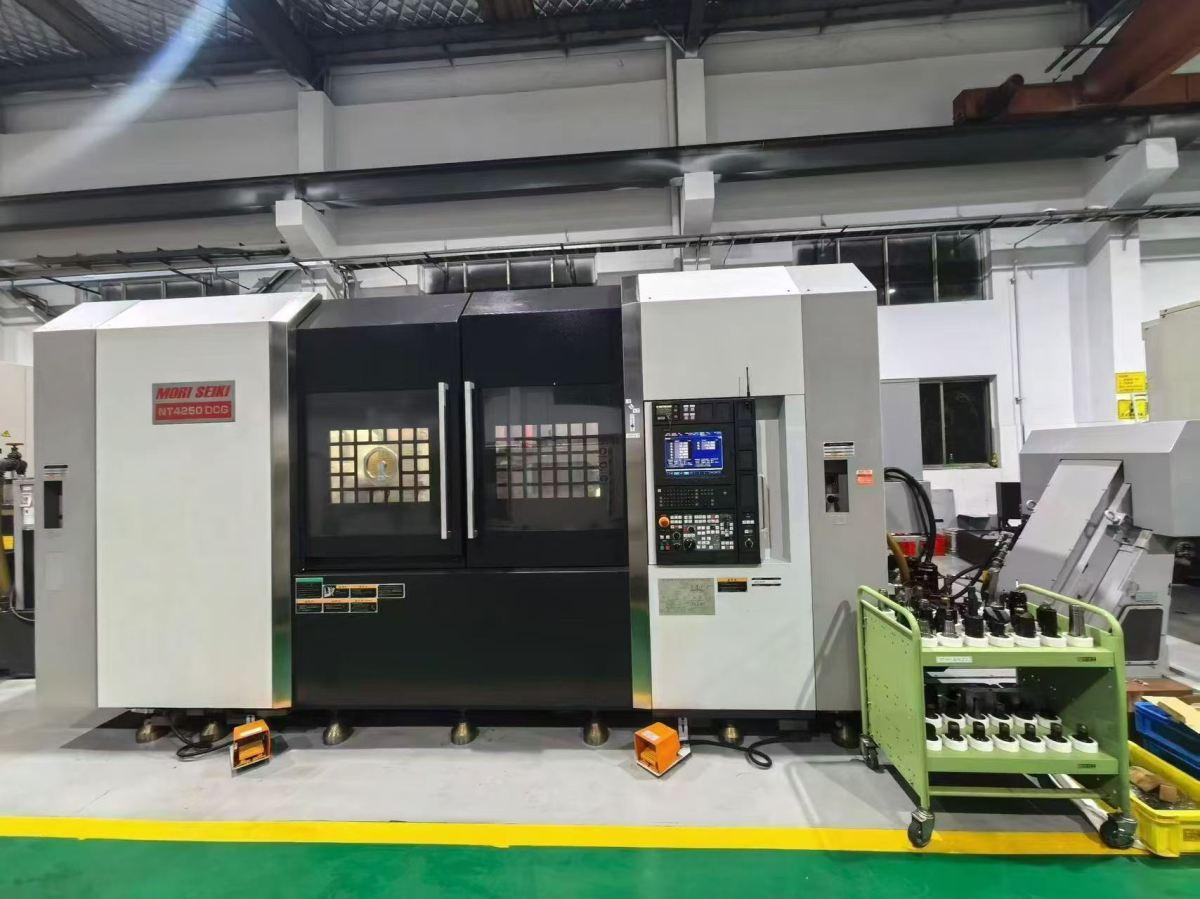

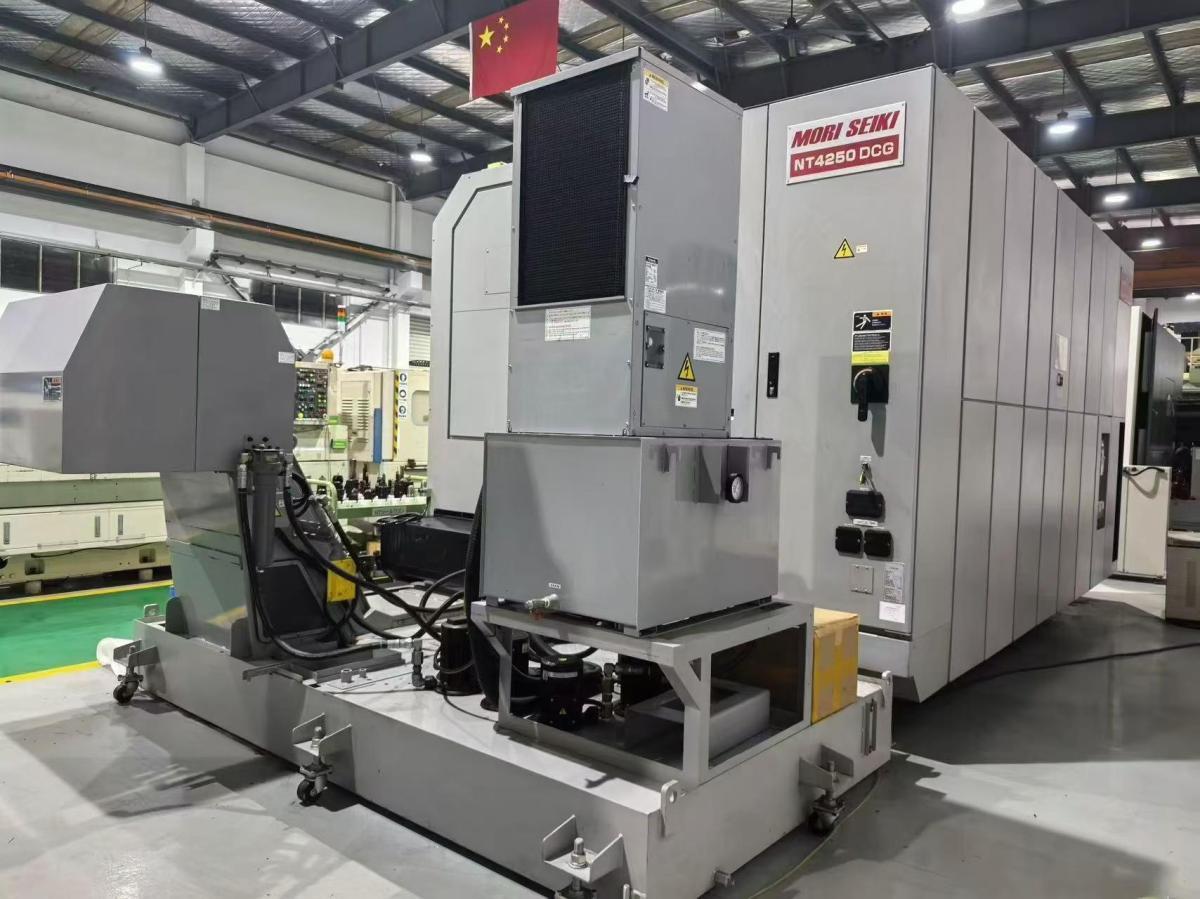

Mori Seiki NT42501500SZ Turn Mill Machining Centre

Operating CNC System MSX-711III
Maximum rotational diameter; 730mm
The maximum rotation diameter on the cross slide Worktable; 730mm
Second turret 400mm
The maximum distance between the large end face of spindle and the tailstock/double spindle large end face; 1862mm
Maximum turning diameter; Tool spindle Capto C6
Second turret Phi 350 mm
Maximum Machining length; 1542mm
machining through hole capacity of bar stock; 80mm
The second spindle; 80mm
travel of X1 axis; 750mm
Y-axis travel; ±210mm
travel of the Z1 axis; 1550 + 100mm, including ATC automatic tool change travel
B-axis travel; + 120 °
The travel of the X2 axis; 195mm
travel of Z2 axis; 1525mm

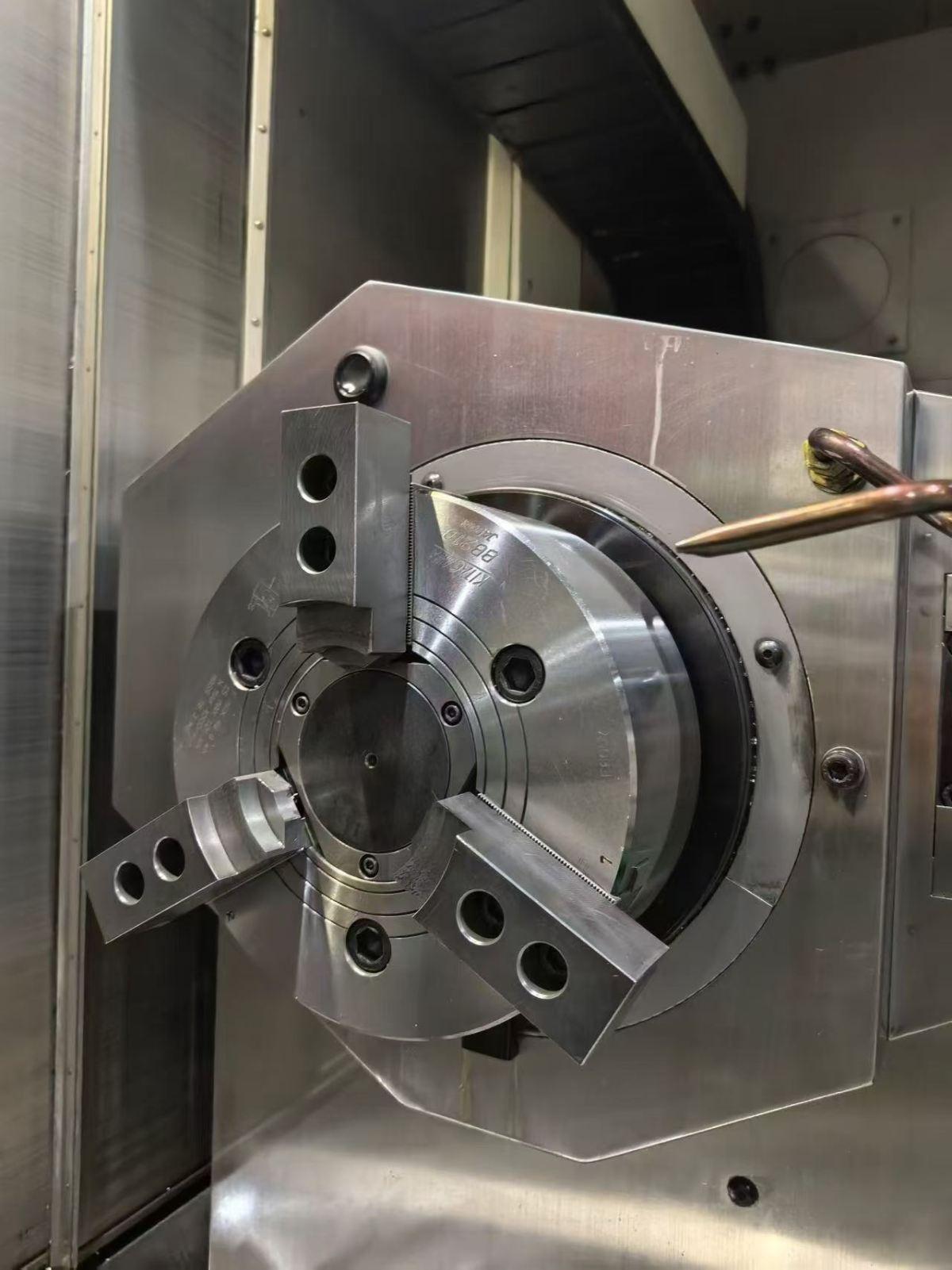

The first and second spindle
Maximum speed of spindle; 4000 r/min
spindle speed change gear; "2 gears (wire-wound rotor structure
spindle nose form; JIS A₂-8
Diameter of spindle through hole; 91mm
Minimum indexing Angle of spindle; 0.0001 °

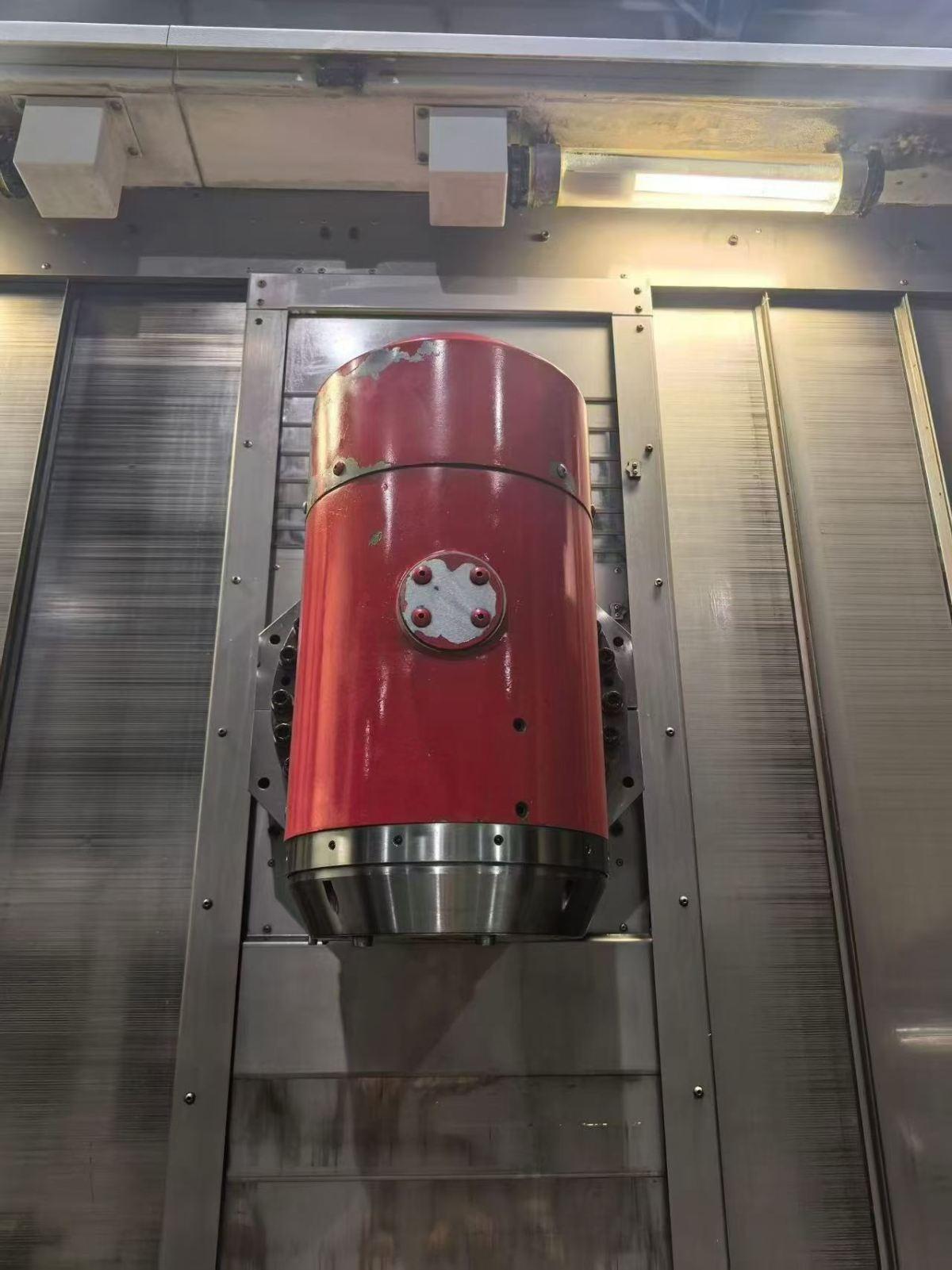

milling spindle
Minimum indexing Angle of the B-axis; 1 °
Tool Spindle speed; 12000min⁻¹
Tool spindle taper; CAPTO C6
magazine capacity; 42.
Maximum diameter of Tool (when there are adjacent cutting tools); 70mm
Maximum diameter of Tool (when adjacent without cutting tools); 140mm
Maximum length of Tool; 400mm
Maximum weight of the Tool; 8kg

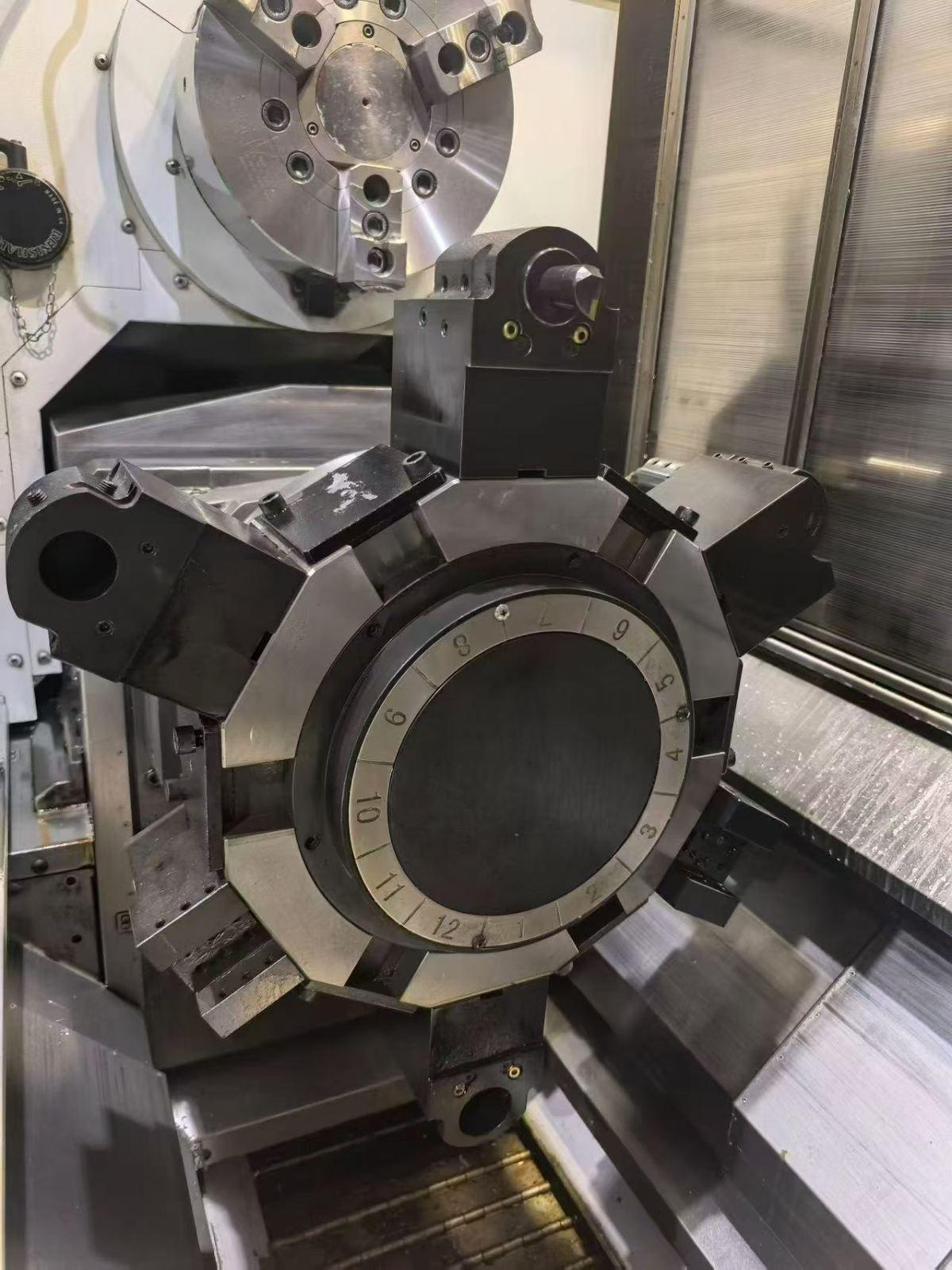

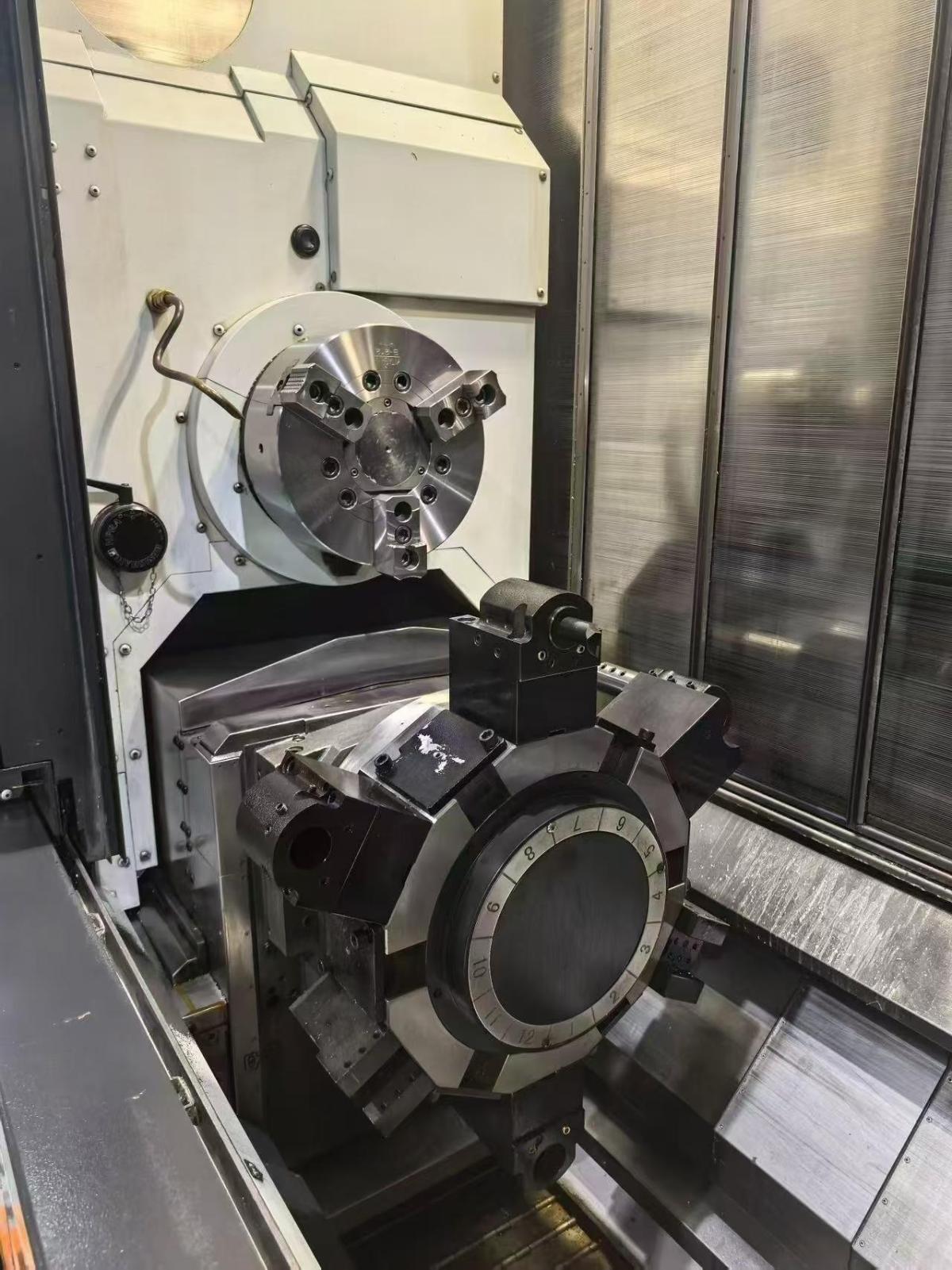

The second turret
The number of tools installed in the tool turret; Twelve.
The cross-sectional height of the lathe tool Tool holder (square Tool holder); 25mm
The maximum diameter of the boring tool holder; 50mm
Spindle speed of power Tool; 6000r/min
fast movement rate (for each axis); X1, Z1: 50000mm/min
Y: 30000 mm/min
Z2: 30000mm/min
Z2: 30000 mm/min
X2: 30000 mm/min
The required floor area (length × width × height); 5301 × 2997 × 2788mm
machine tool weight; 25600kg
