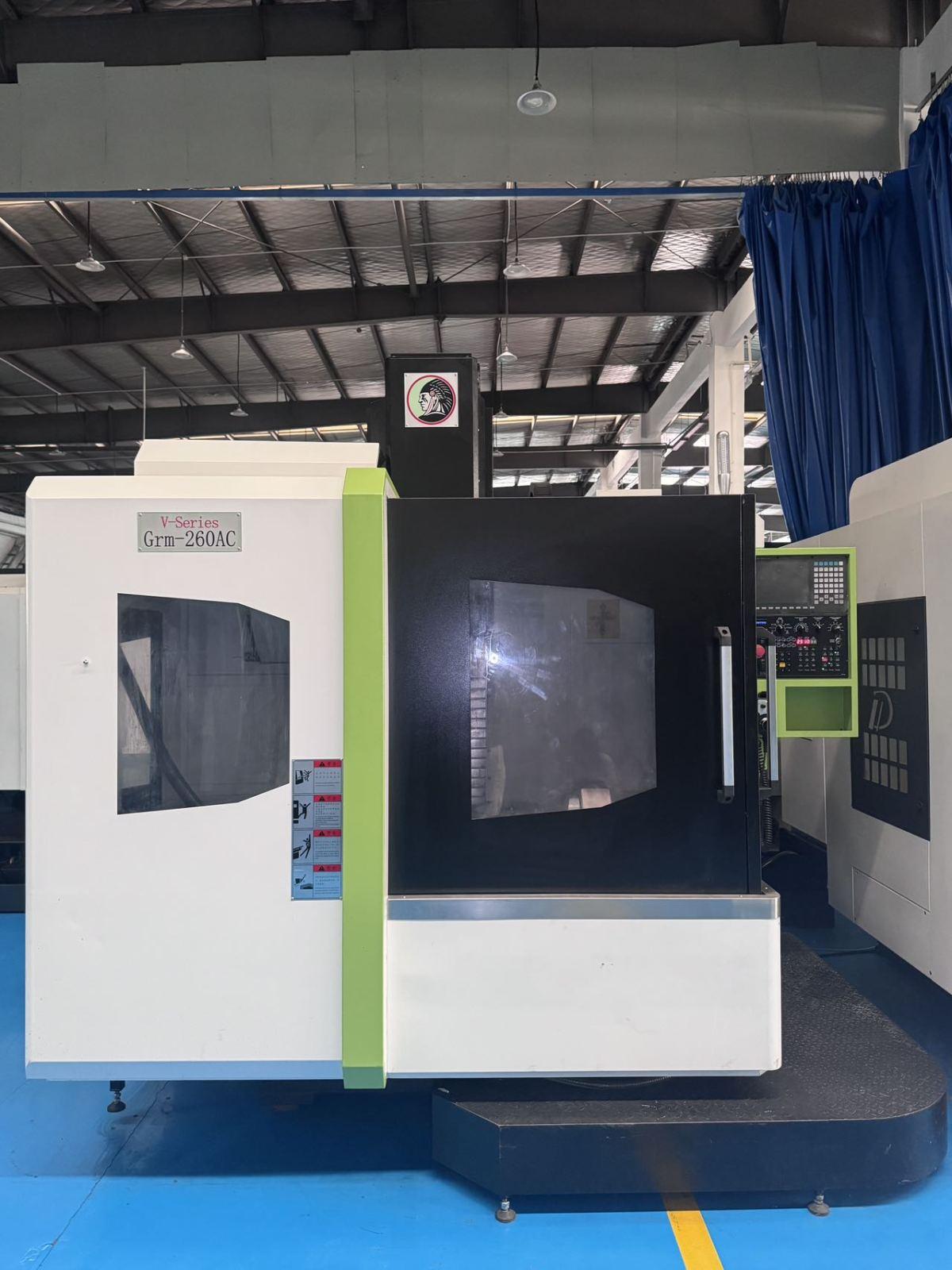

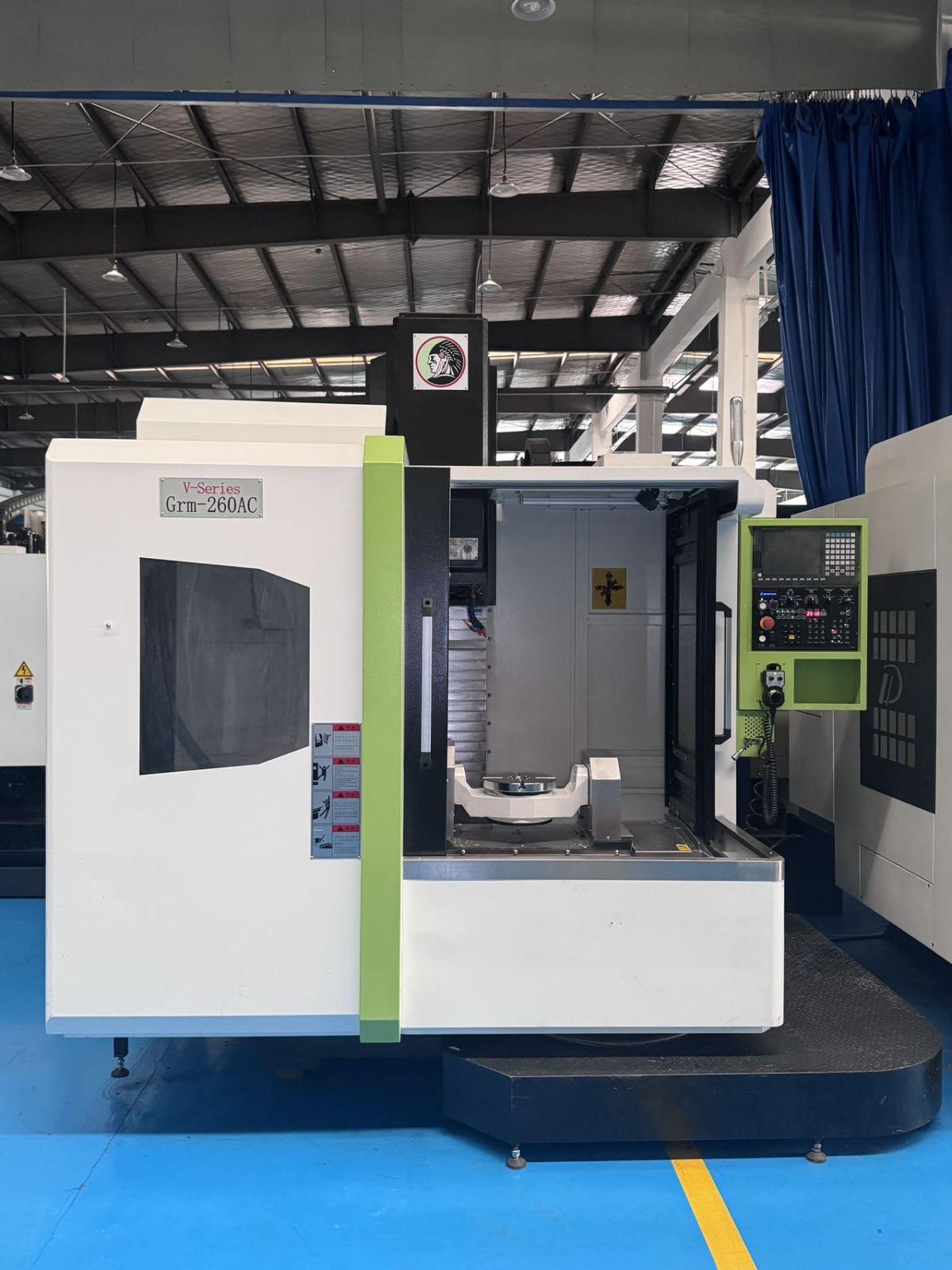

Gromax GRM-260AC 5 axis machining centre

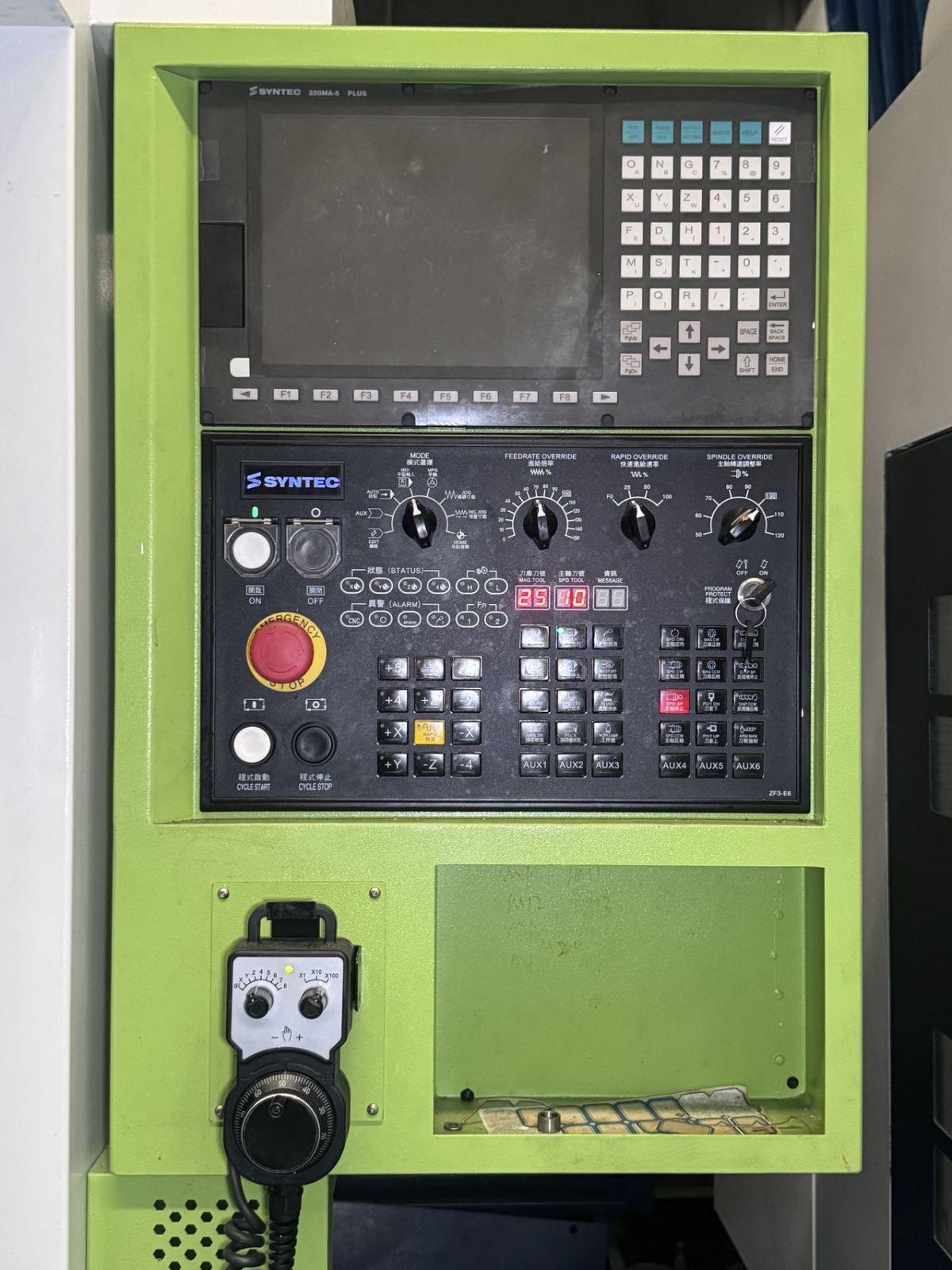

CNC System: SYNTEC 220MA-5 Plus
Spindle Taper: BT40
Spindle Speed: 12,000 rpm

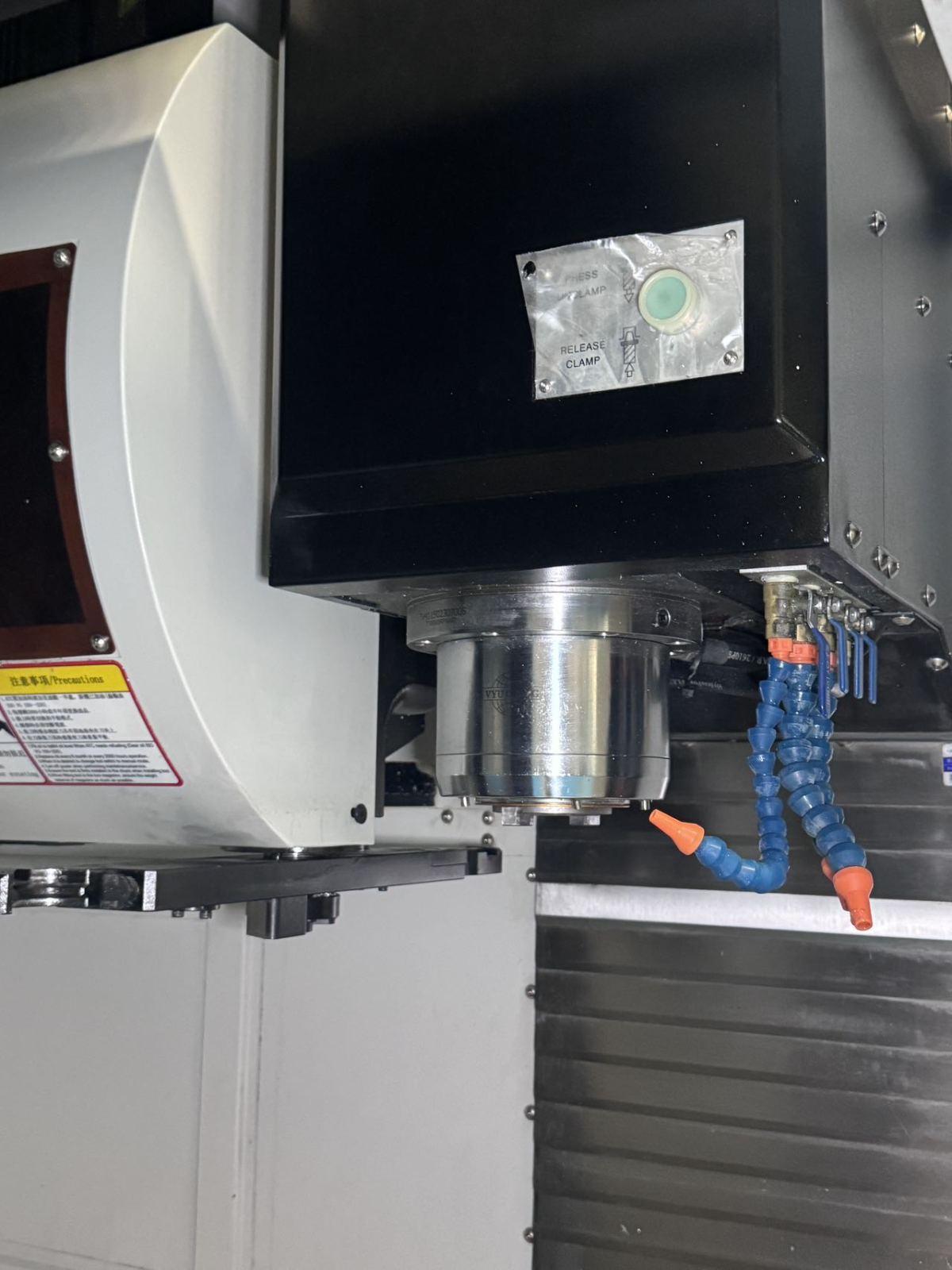

Spindle Type: Direct-Drive
Spindle Power: 11.2 kW

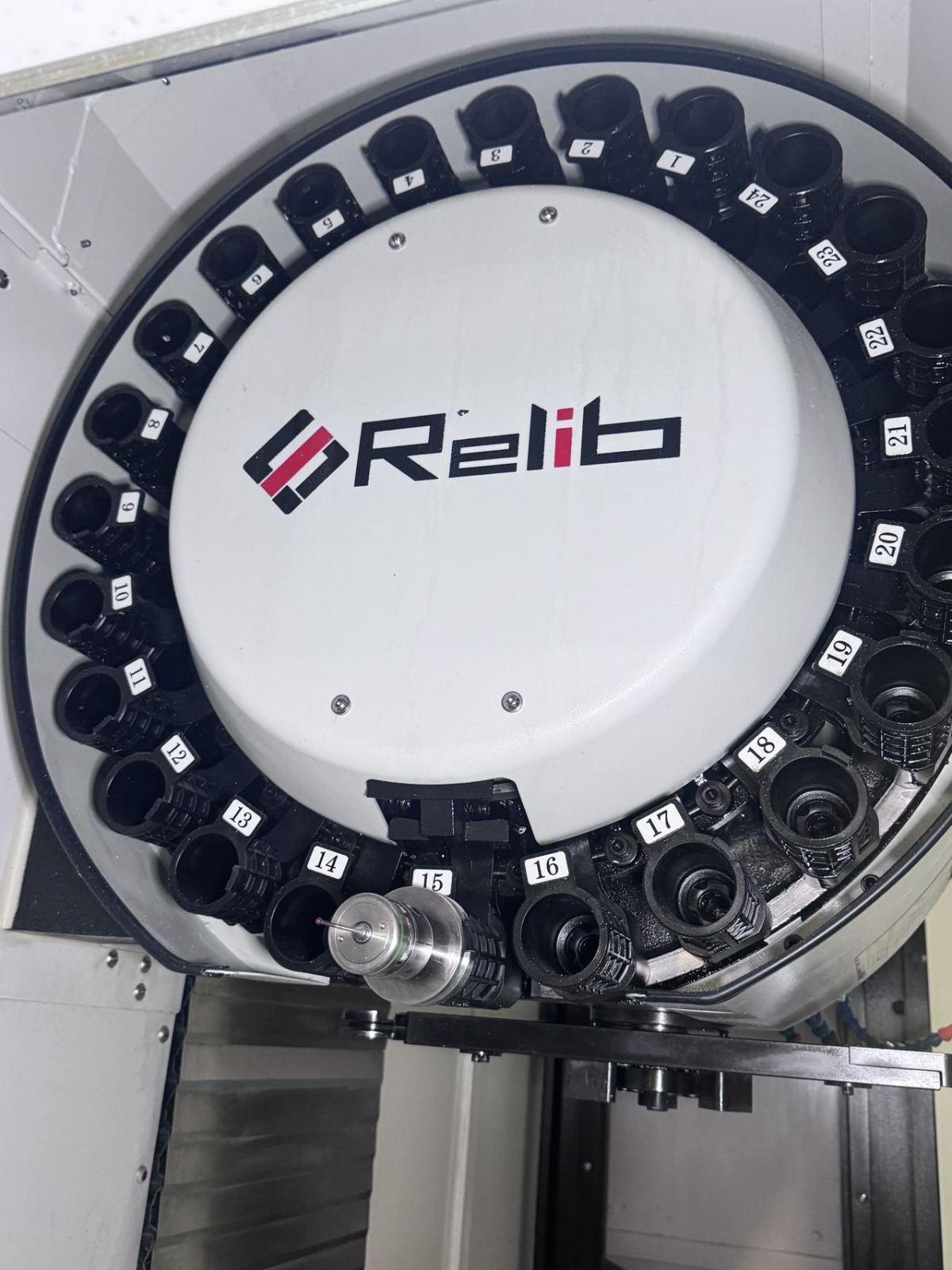

Tool Magazine Capacity: 24 tools, Arm Type
Guideway Type: Linear Guideways on Three Axes
Three-Axis Travel (X/Y/Z): 650 × 520 × 500 mm
Rapid Traverse Rate (3 Axes): 36 m/min

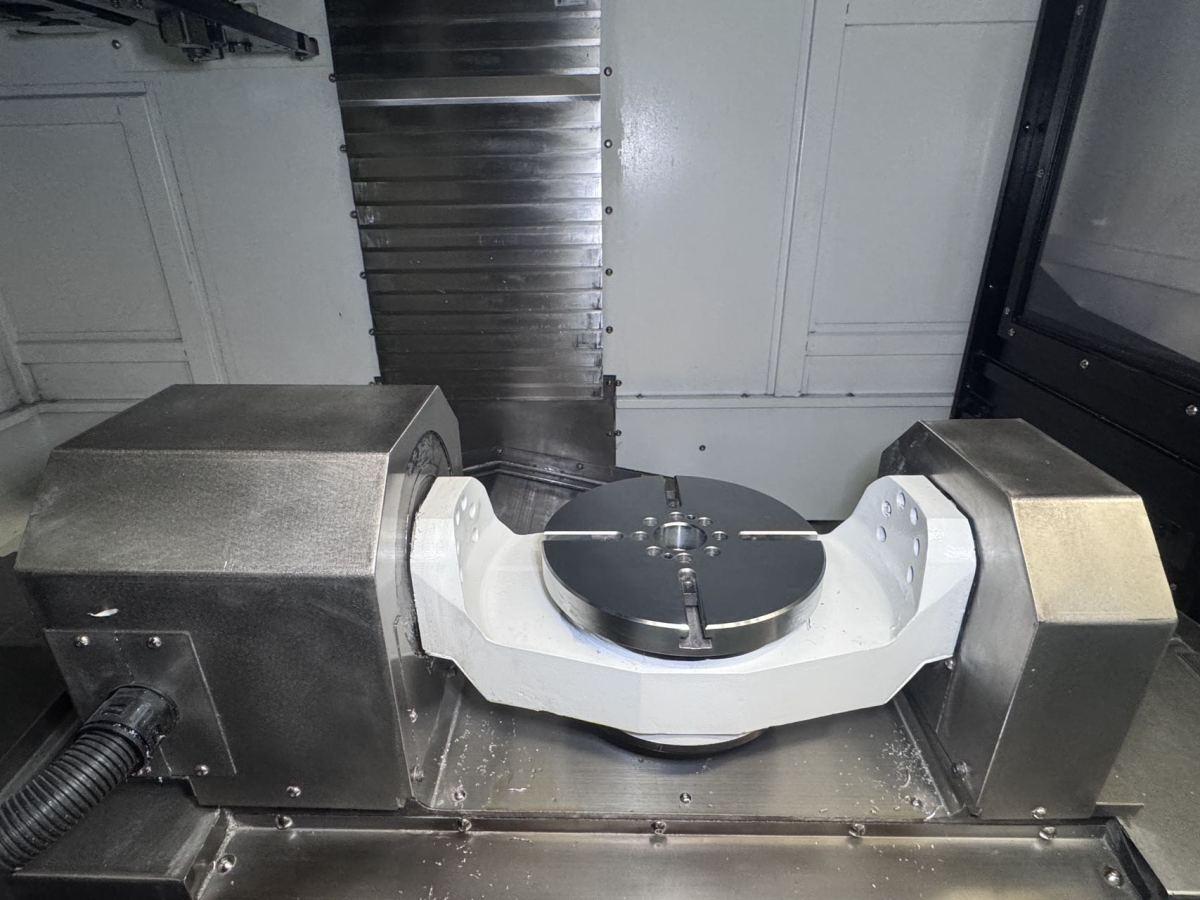

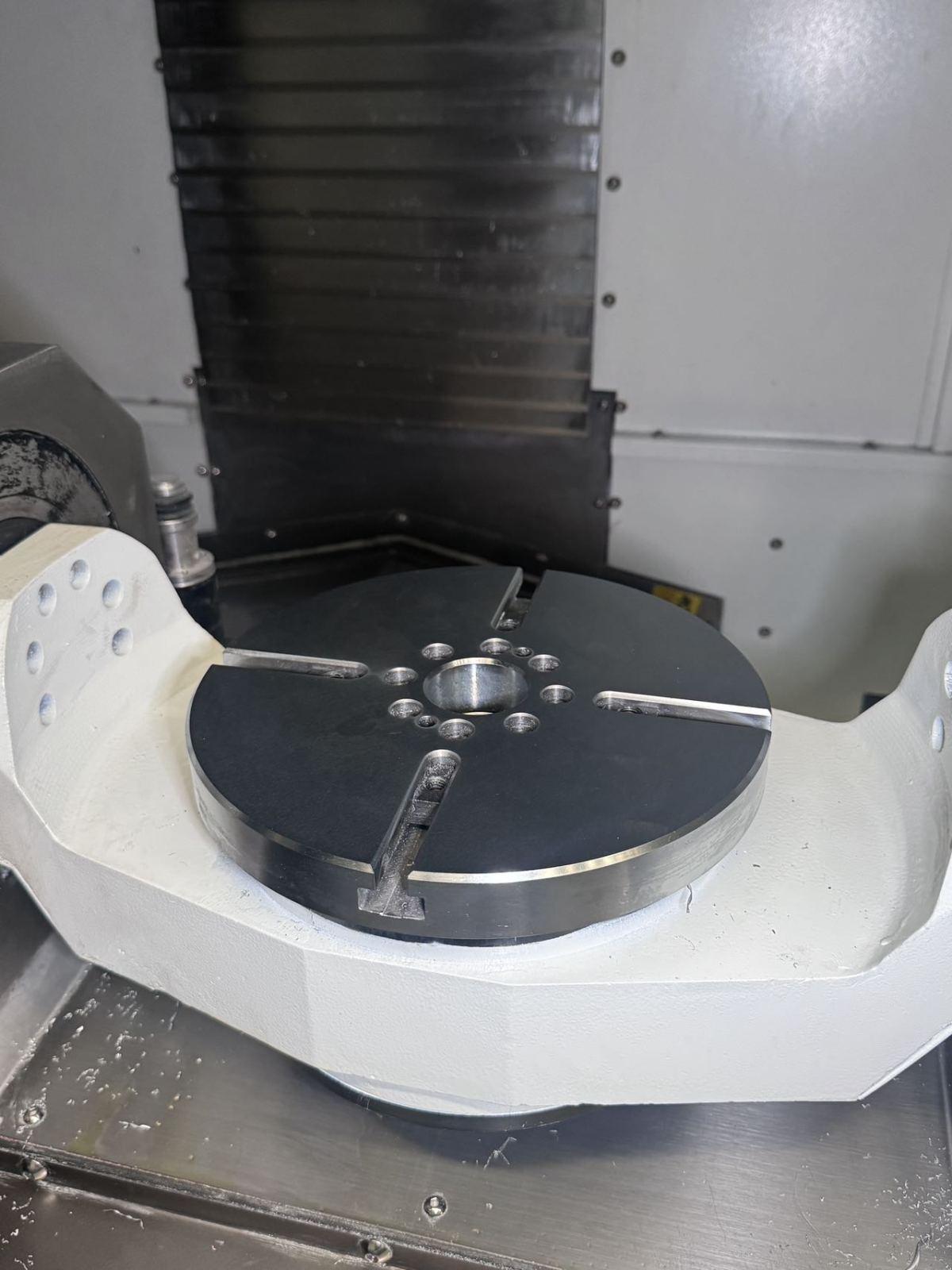

Rotary Worktable Size: 260 mm
Maximum Rotational Diameter: 450 mm
A-Axis Swing Range: -110° to +110°
Configuration:
Oil Chiller
Tool Setter
Optical Probe
Accuracy Inspection:
Spindle Runout:<0.015 mm
Spindle Test Bar Top Generatrix:<0.015 mm
Spindle Test Bar Side Generatrix:<0.015 mm
