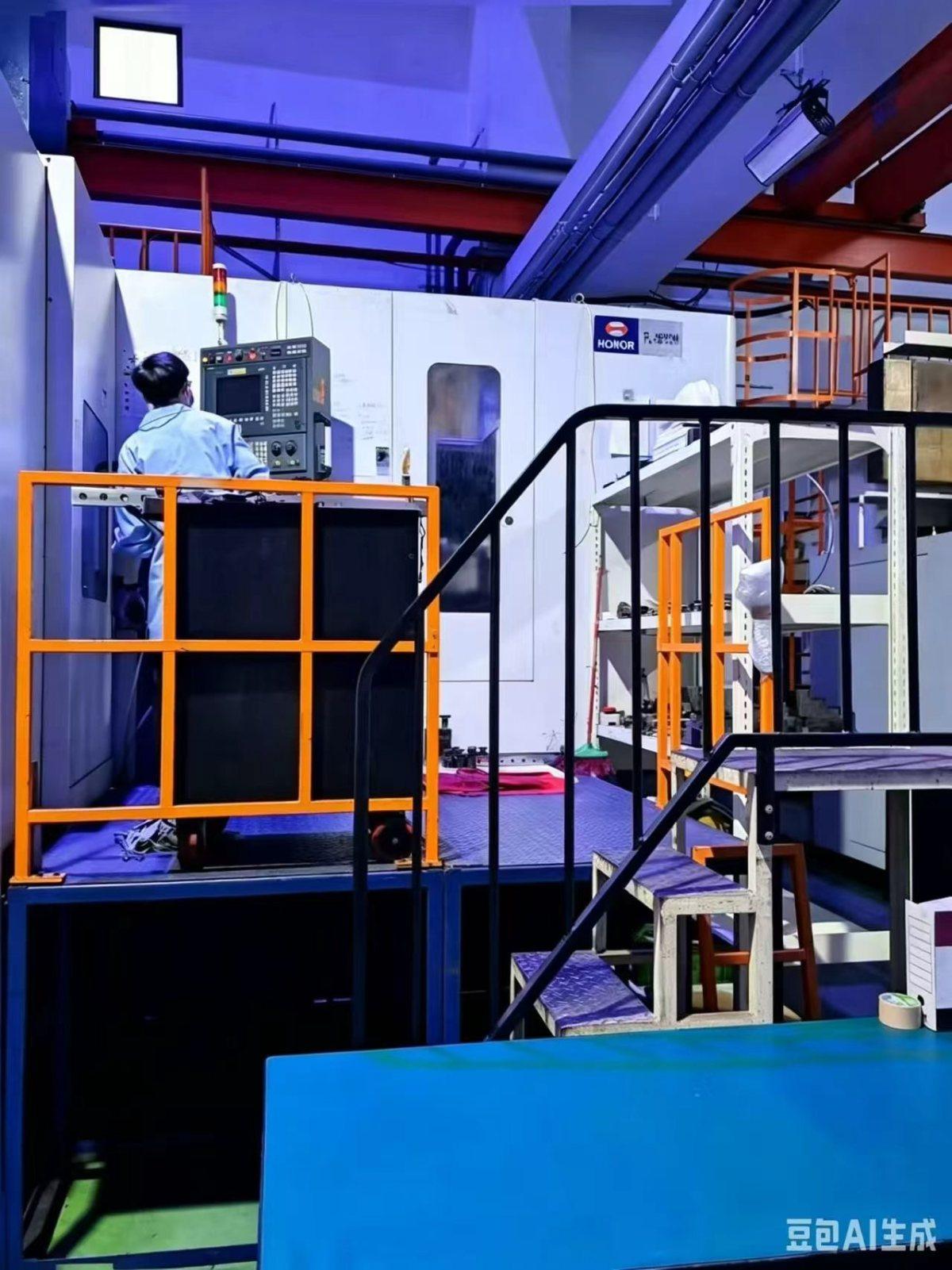

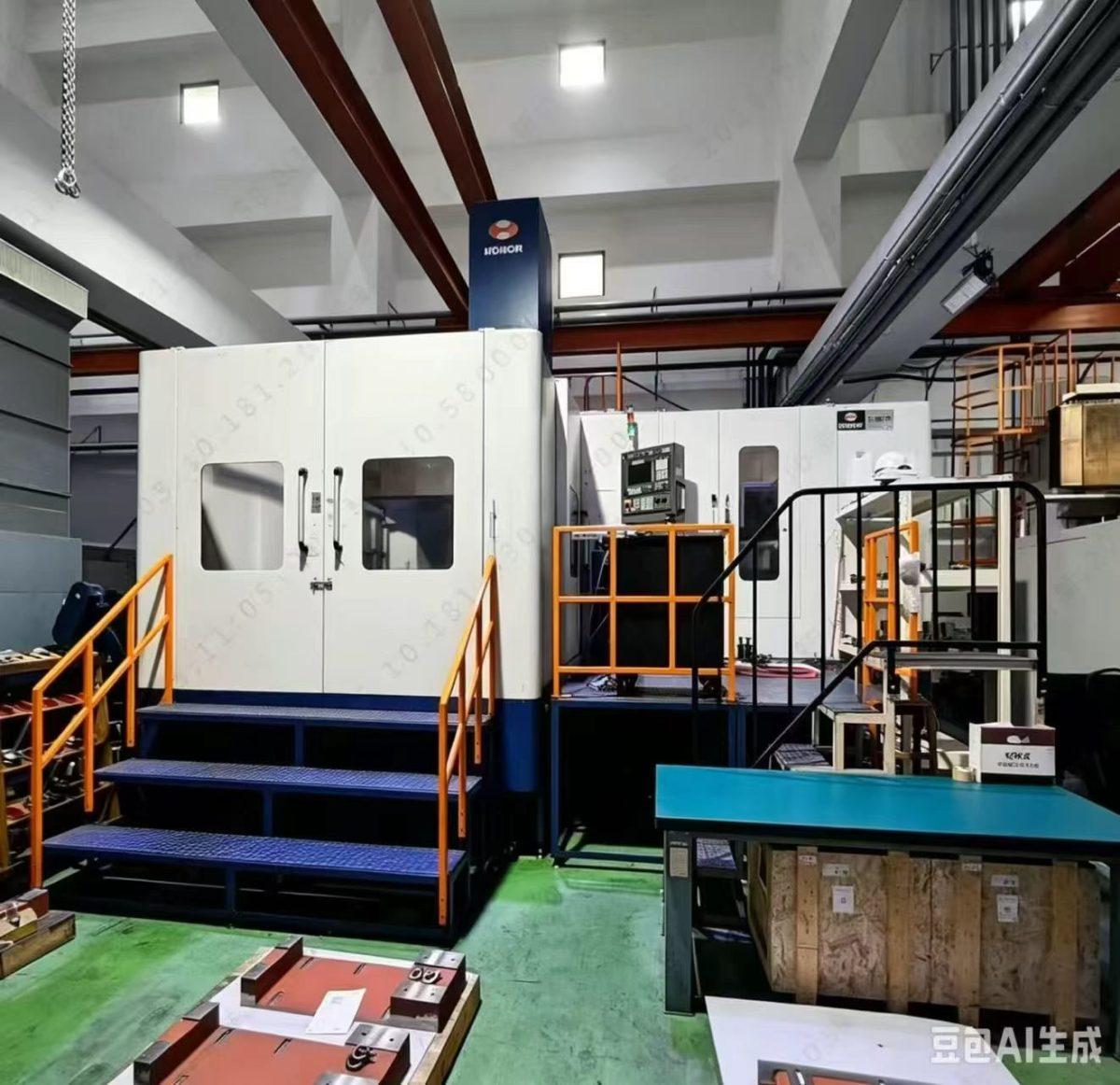

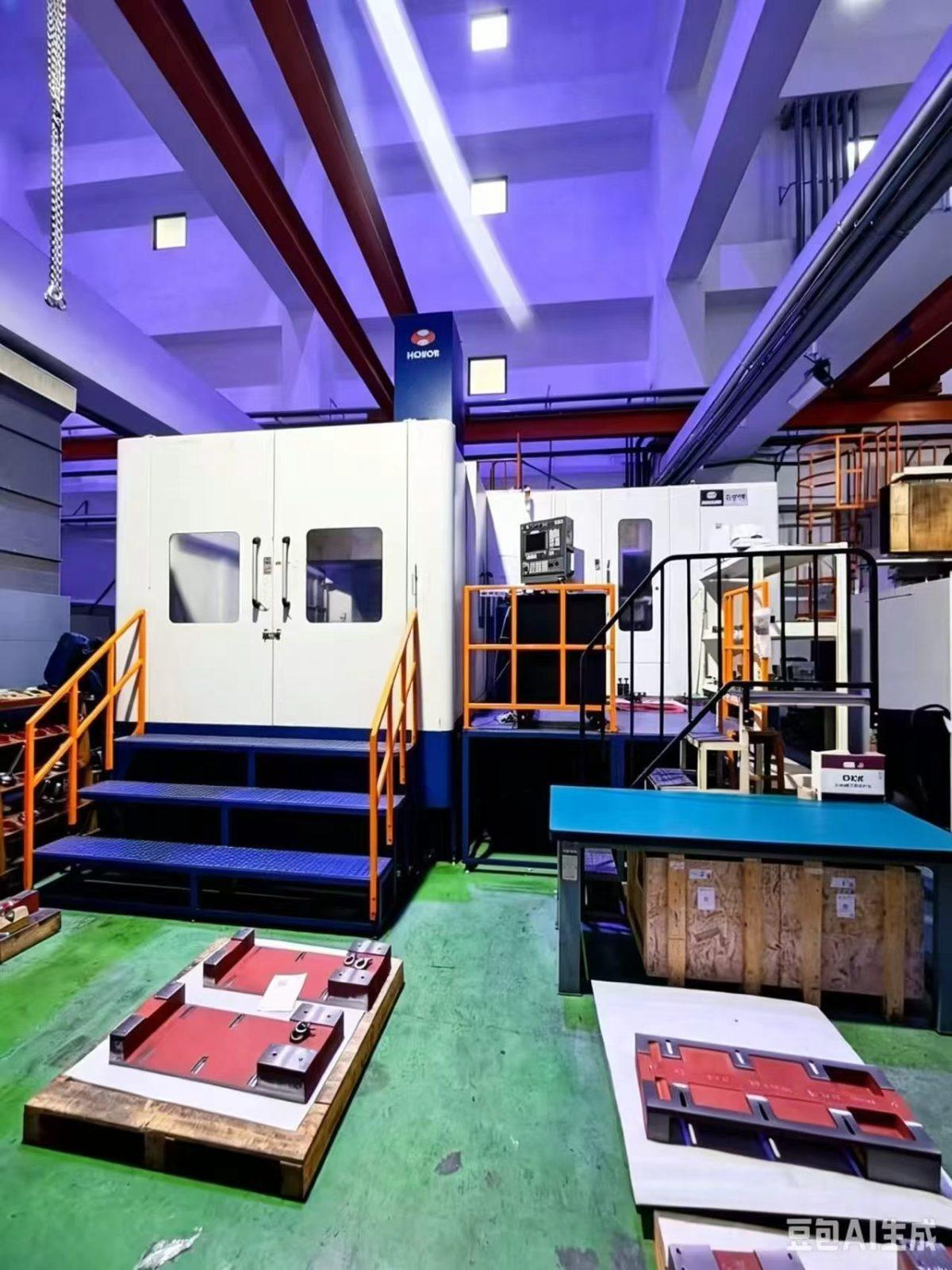

Honor PL-160CM CNC gantry milling machine

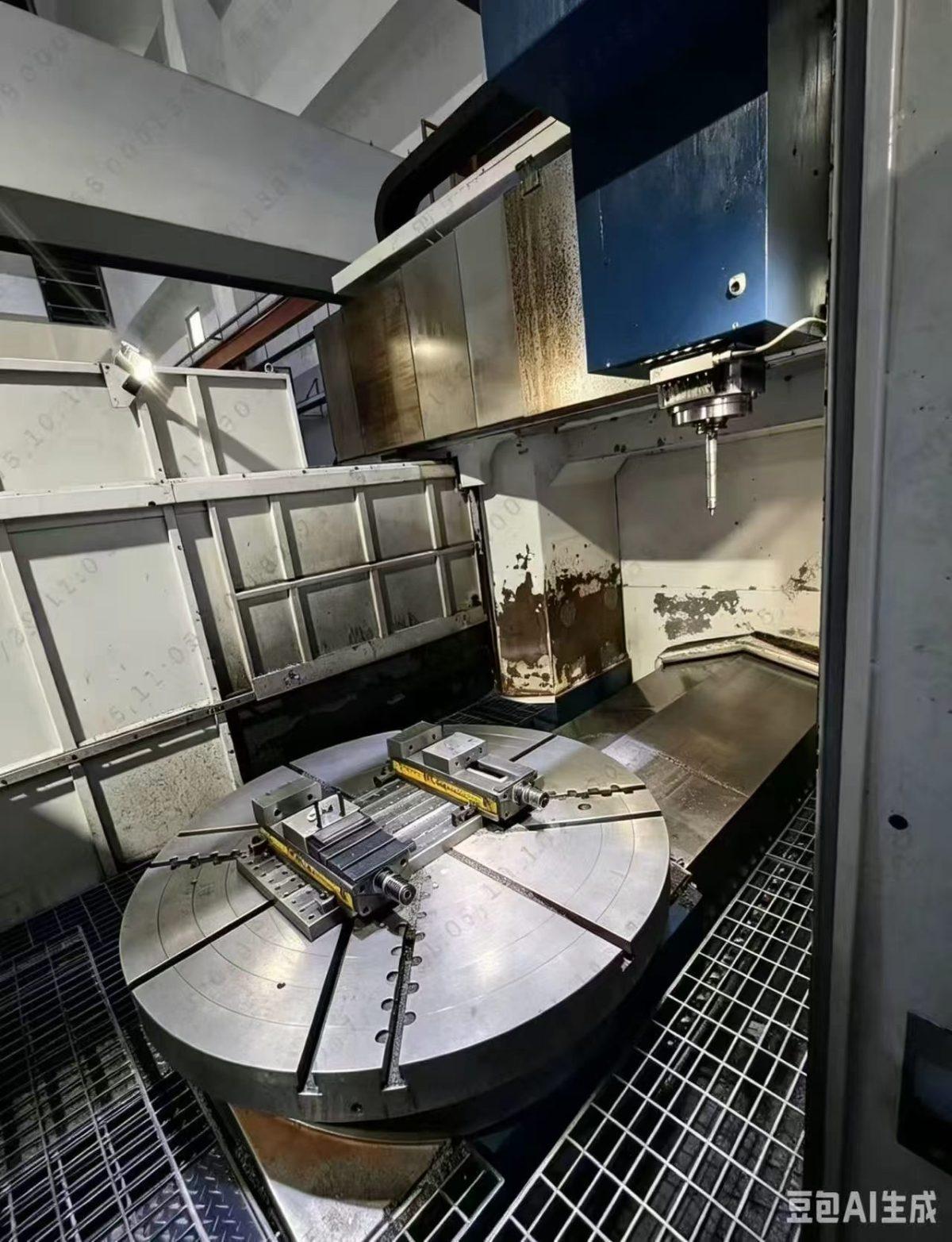

Worktable diameter: 1600mm
Maximum rotation diameter: 2000 mm
Maximum cutting diameter: 2000mm
Maximum cutting height: 700mm
Maximum machining weight: 8000 kg (8 tons)
Land area: 8560(width) × 8890(depth) × 5255(height) mm
Total Machine weight: 40,000 kg (40 tons)
travel and structure
Crossbeam structure (X-axis) : Fixed type
Horizontal travel (X-axis) : 1000 mm (straight line) + 1150 mm (arc)
Vertical travel (Z-axis) : 900 mm
The cross-sectional area of the RAM is 250 × 250 mm
RAM end model: PC22A (Double-sided restraint, patented tool holder)
Distance from Worktable surface to the end face of the ram: 1250mm
spindle and Tool CNC System
spindle motor power: continuous / 30-minute overload, 37kW / 45kW
Maximum torque of spindle: 304 Nm × 1 set
Spindle speed: 3 to 250 rpm (stepless speed change, high/low gear)
spindle bearing: Crossed roller bearing
The indexing of spindle of the C-axis Worktable: ±10 seconds (up to ±3 seconds with optional upgrade)
Minimum indexing display of C-axis: 0.001 degree (Siemens CNC)
lathe tool Tool Footage: 25× 25mm / 32× 32mm square tool holder, or Ø 50mm round tool holder
The maximum weight of the lathe tool set is 80 kg per piece, and the longest is 500 mm

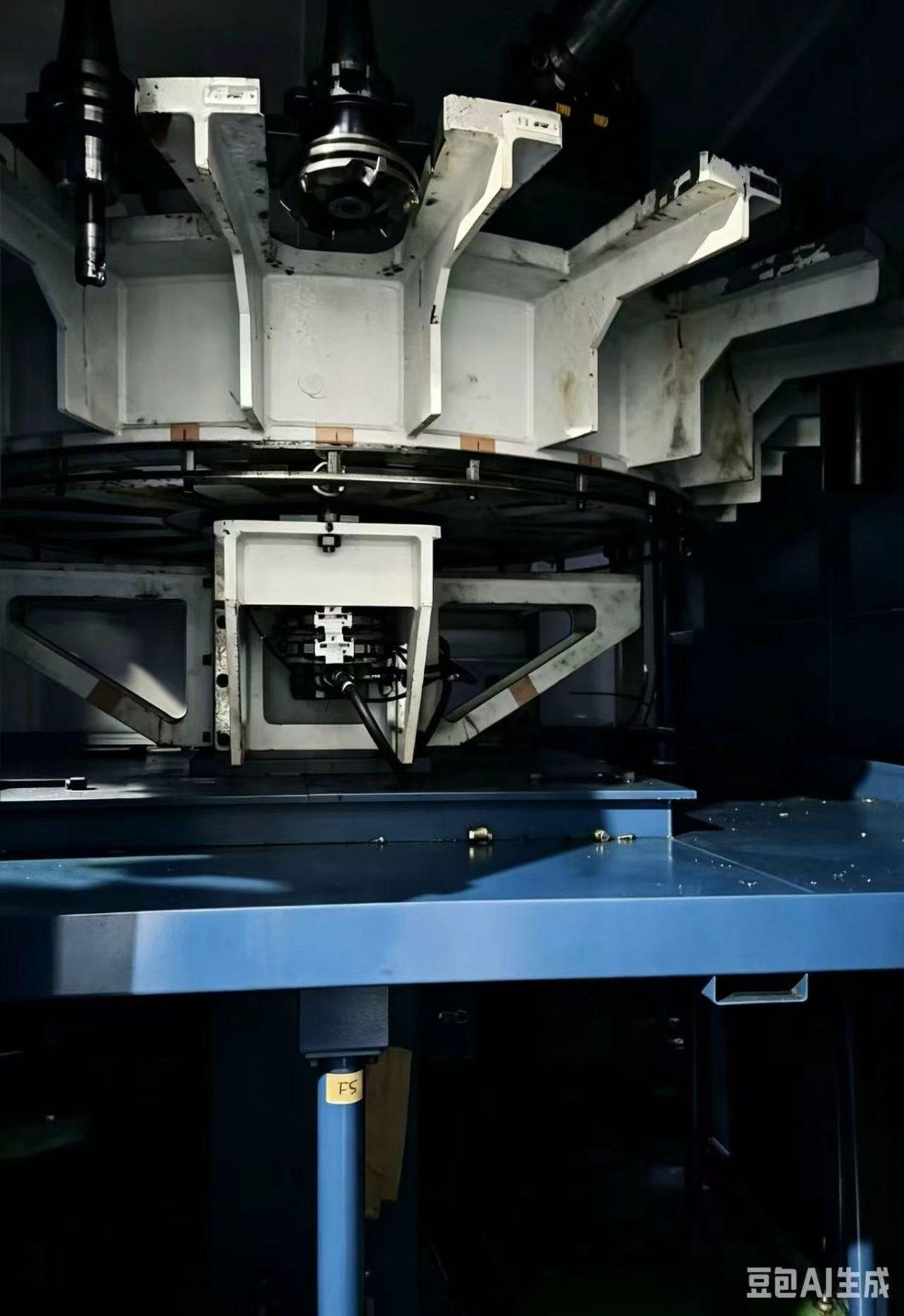

ATC tool position: A total of 24 positions (12T lathe tool + 12D milling Tool), equipped with a ram for tool changing
The heaviest weight of the power Tool set is 18 kilograms
Specification of power tool holder: BBT50 (45 degree of the puller screw, MS-1)

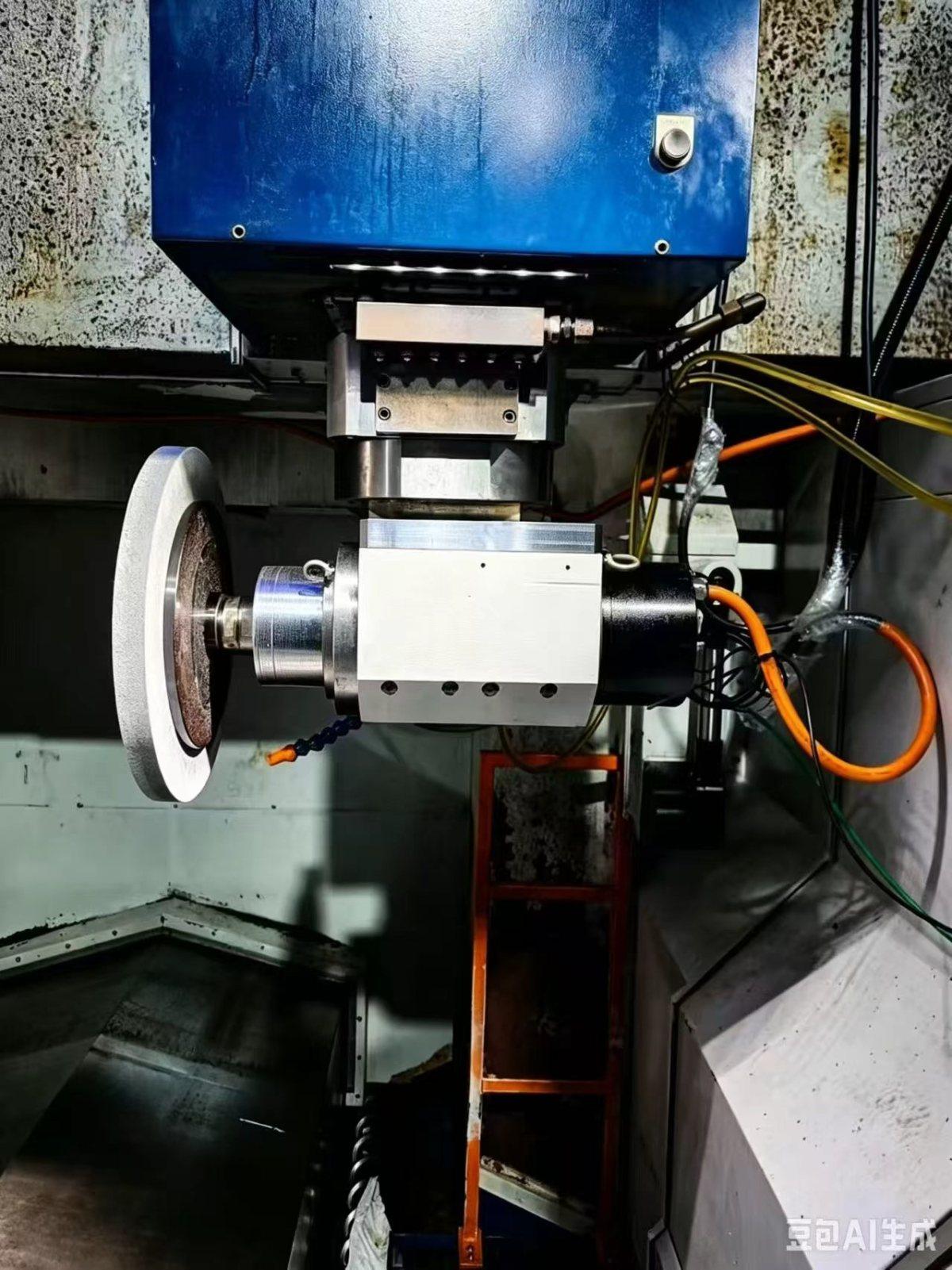

Second Spindle speed: 50 to 2500 rpm
Second spindle motor: 11/15 kW (Siemens)
Feed Control CNC System

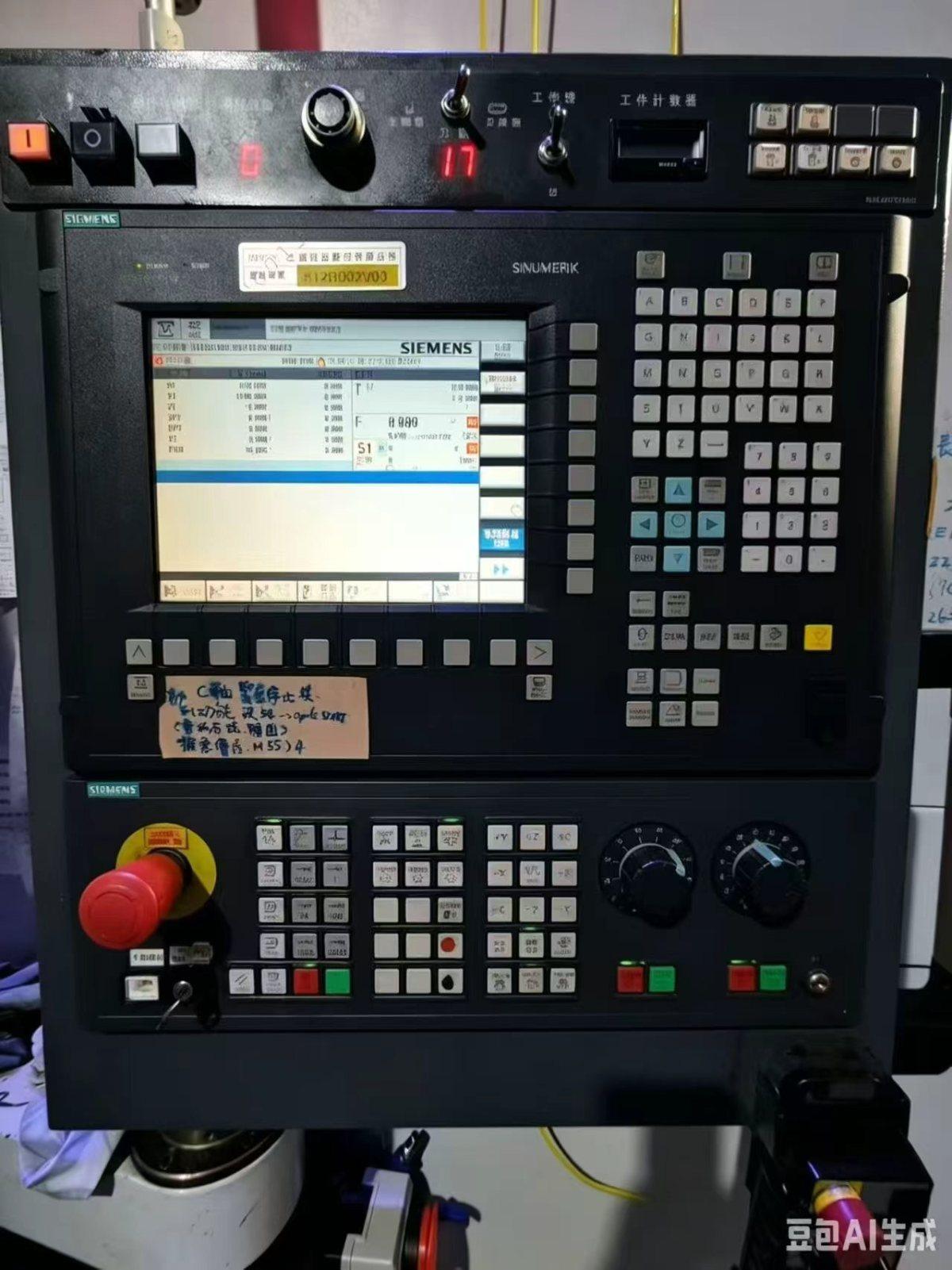

CNC controller: Siemens 828D
The power of the feed servo motor: 8.2kW for each of the X-axis, Z-axis and Y-axis
Axial rapid feed rate (X/Z/Y) : 10 m/min
Cutting feed rate: 0.001-500 mm/rev
