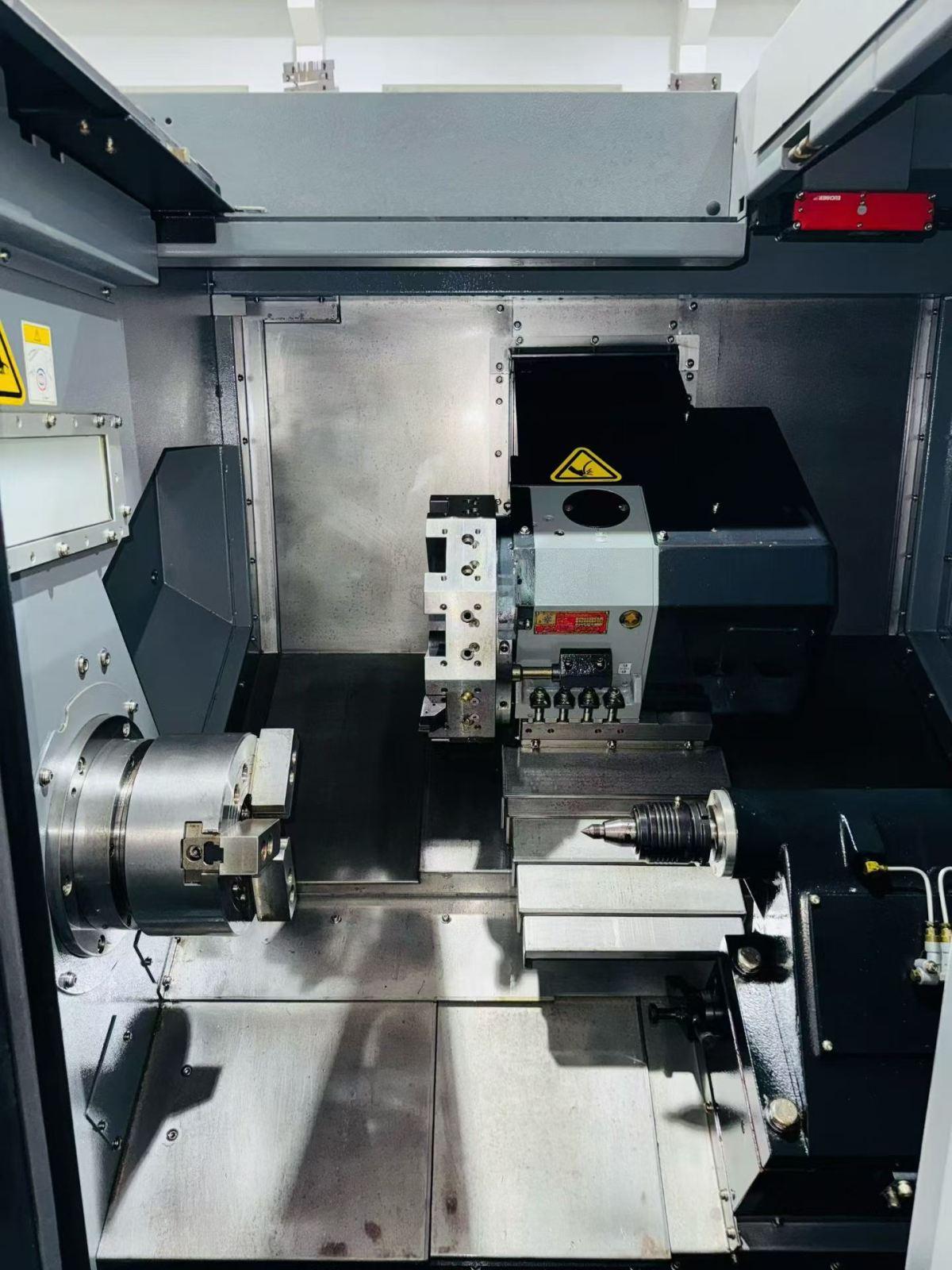

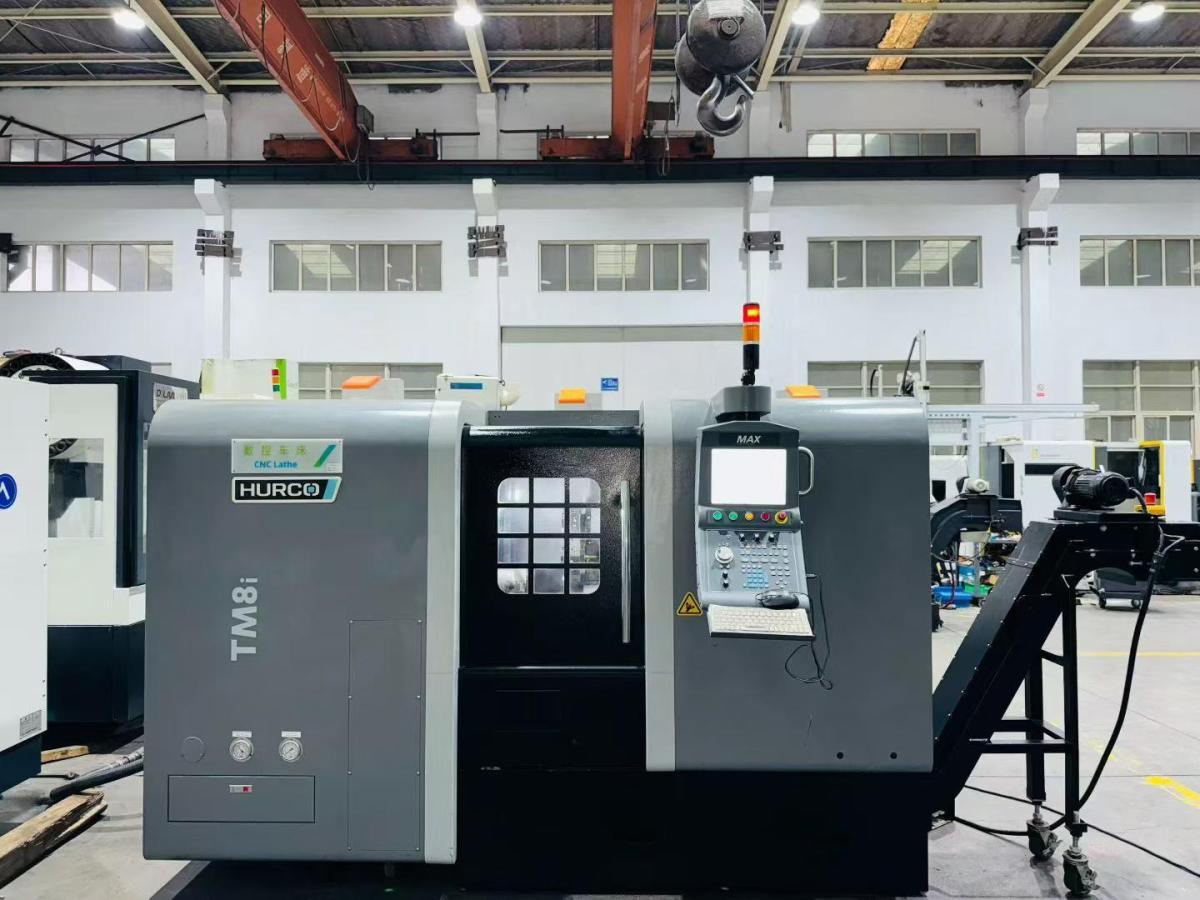

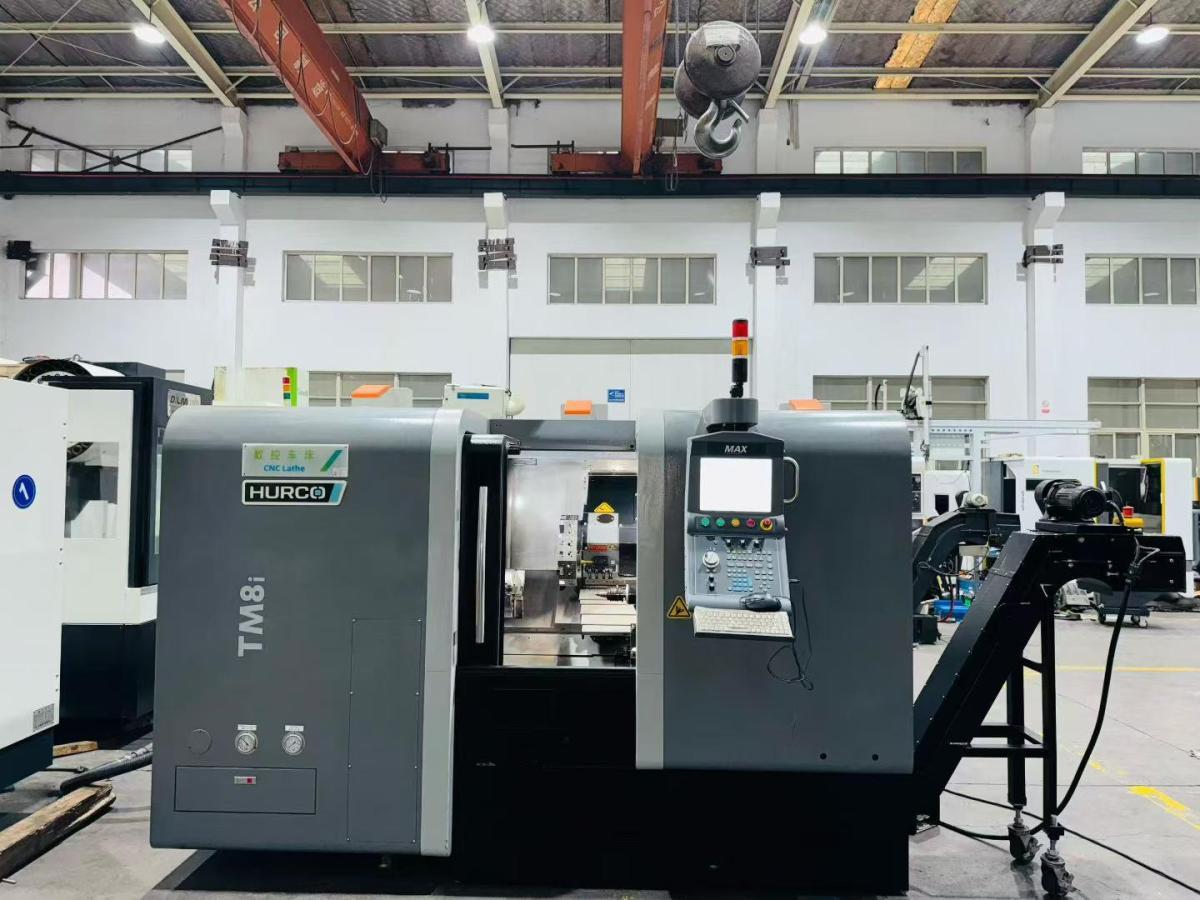

HURCO TM8i CNC turning lathe

Maximum Machining Diameter: 356 mm
Maximum Machining Length: 525 mm
Maximum Swing Diameter Over Bed: 525 mm
Maximum Bar Capacity: 64.5 mm
X-axis Travel: 203 mm
Z-axis Travel: 550 mm

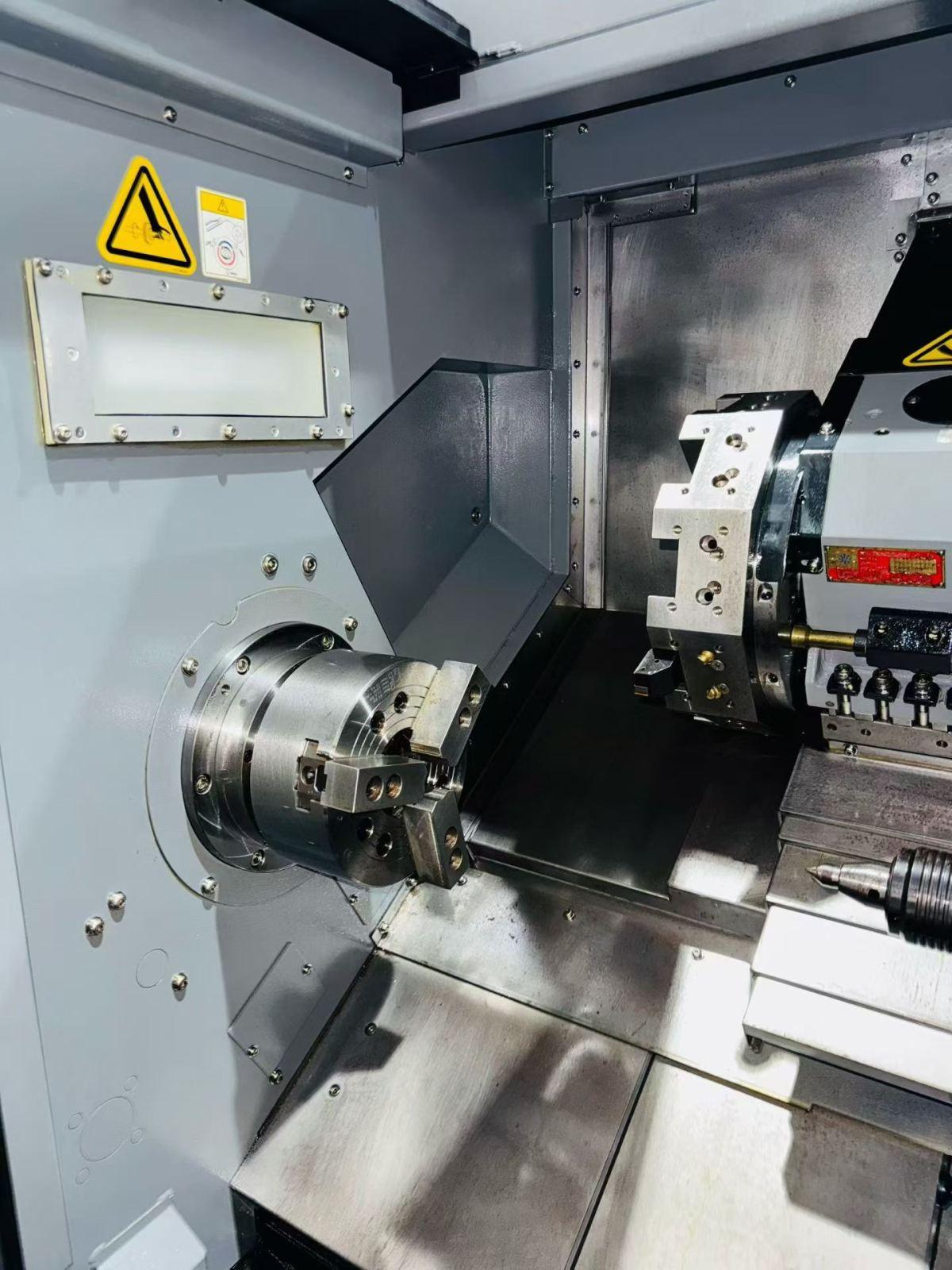

Chuck Diameter: 8 inches (203 mm)
Spindle Speed: 4000 rpm
Spindle Power: 23 kW
Spindle Torque: 221 Nm
Spindle Nose: A2-6

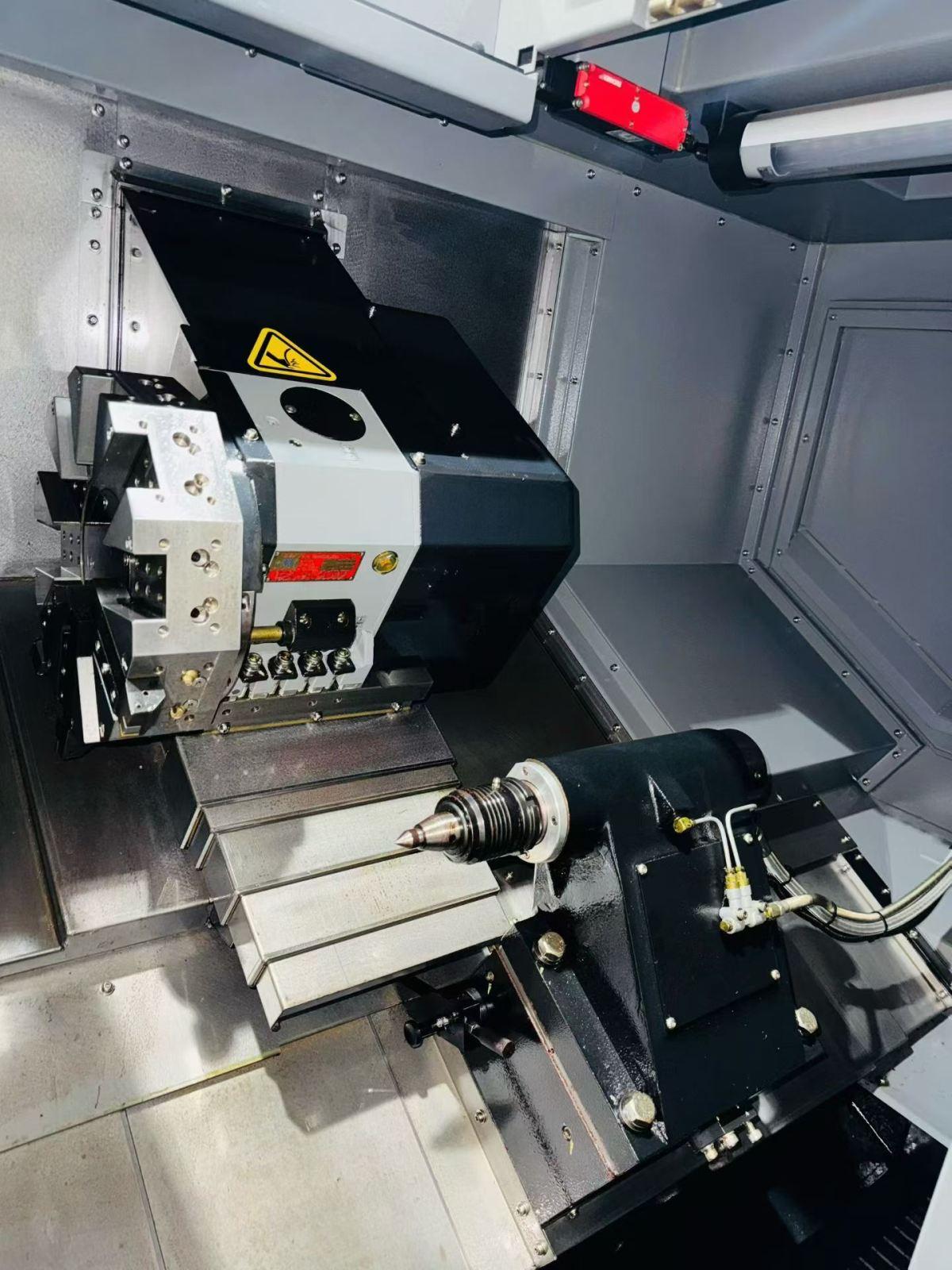

Tool Turret Capacity: 12 positions
Tool Specification: VDI 30
Adjacent Tool Change Time: 0.6 seconds
X/Z-axis Rapid Traverse: 30/30 m/min
Machine Weight: Approximately 4030 kg
Distance Between Centers: 597 mm
Voltage/Full-Load Current: 400 V / 21 kVA / 30 A
