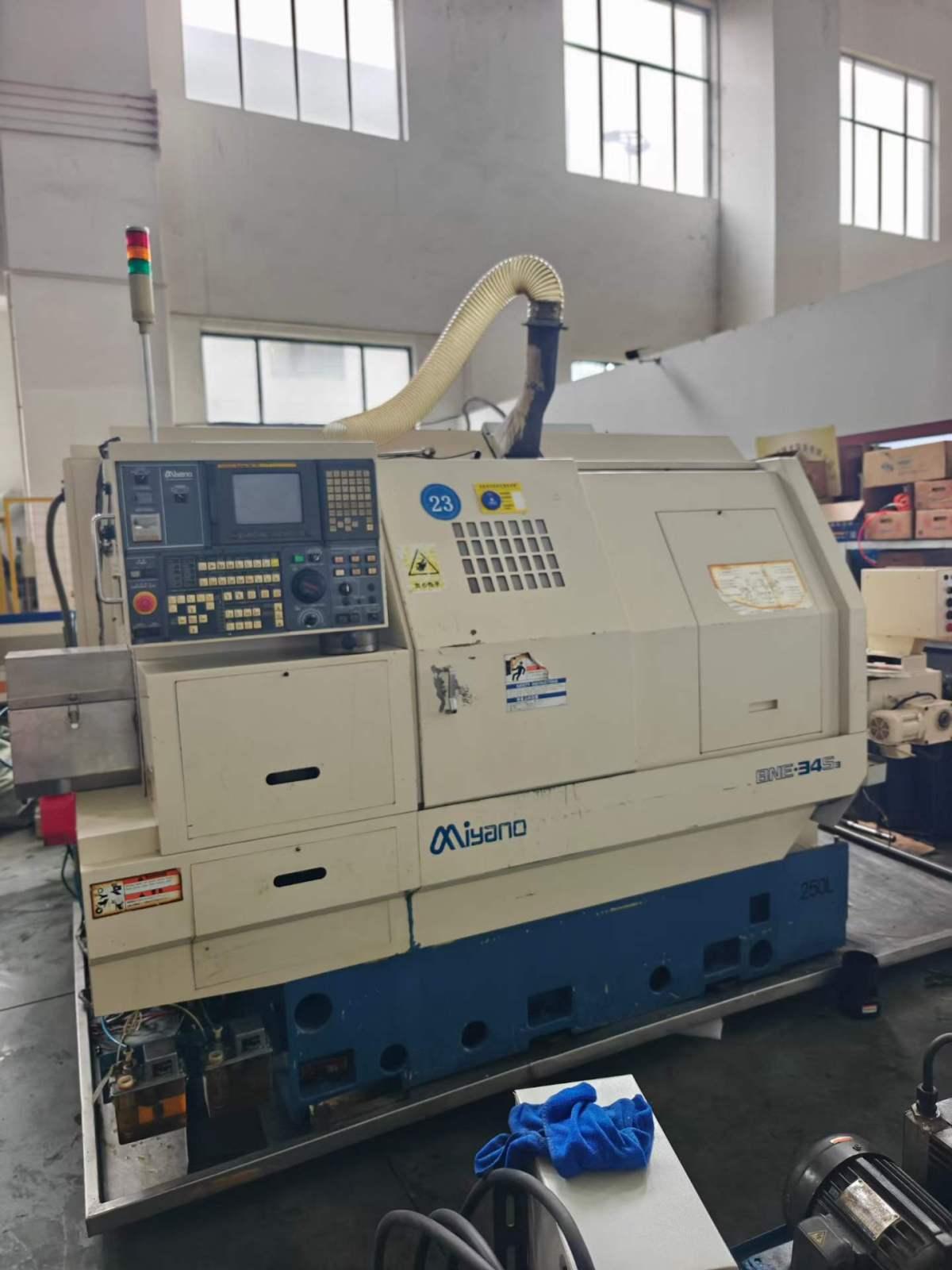

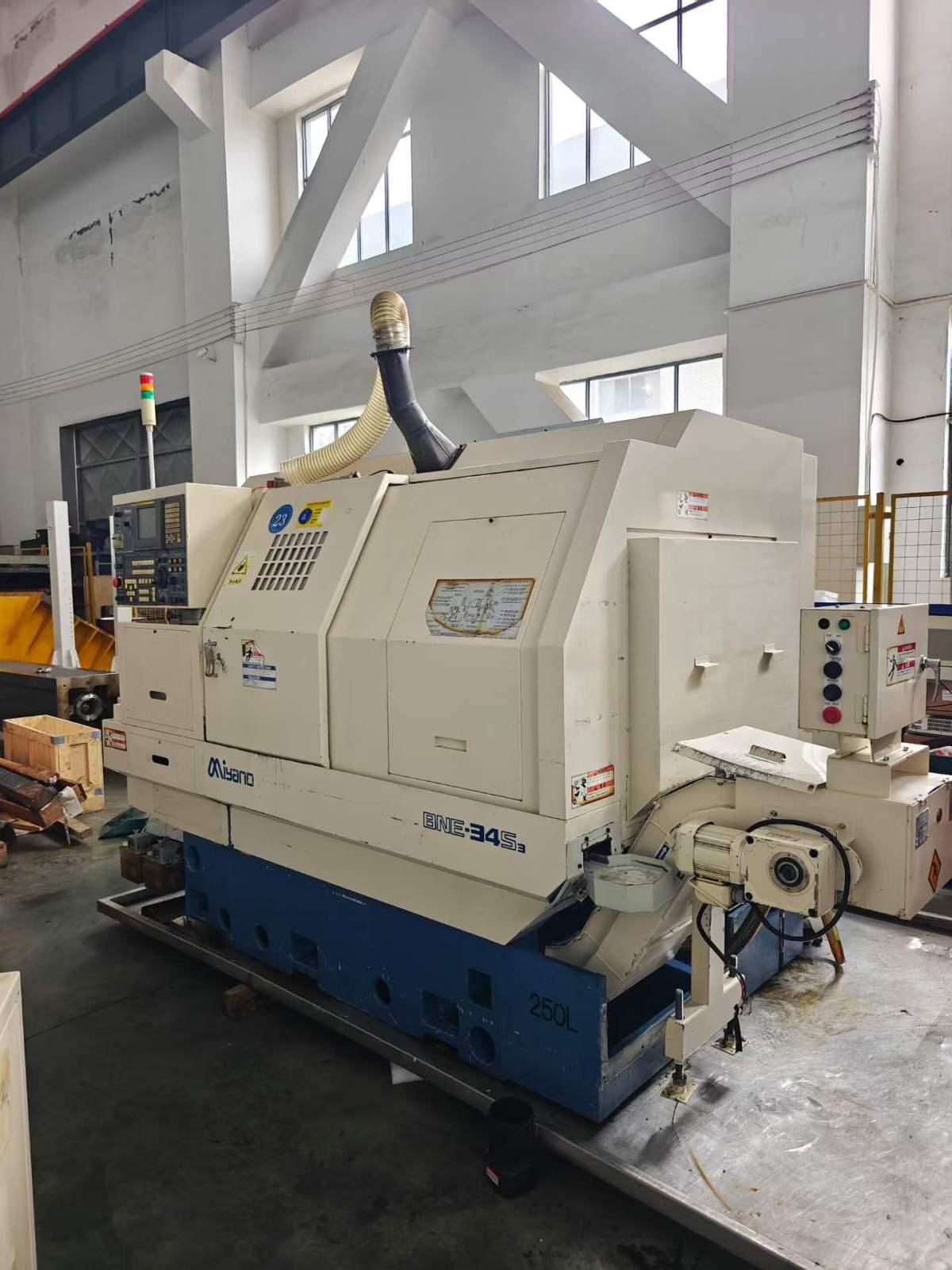

Miyano BNE-34S3 Turn Mill Machining Centre

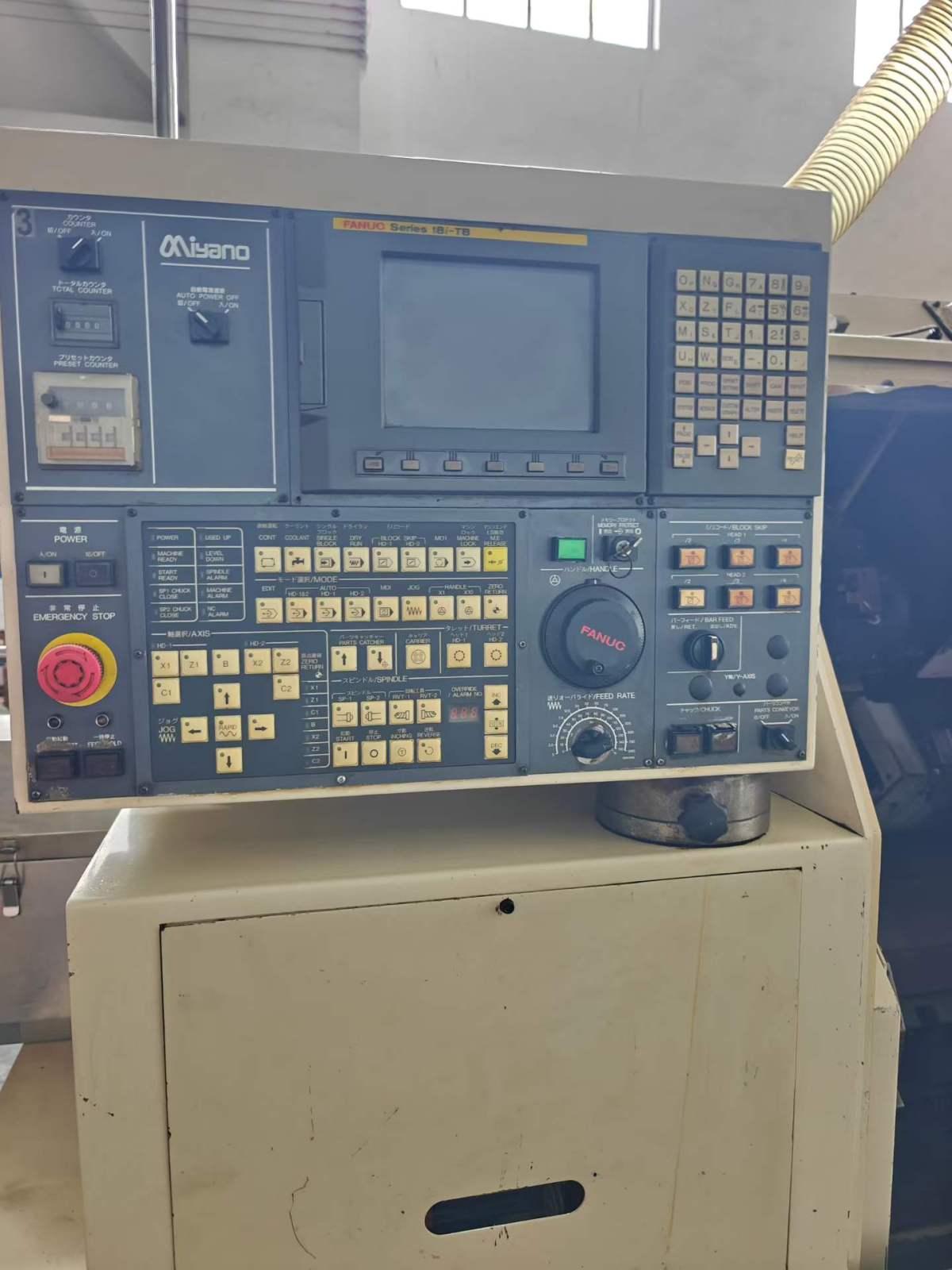

CNC System: FANUC 18i-TB
Maximum Bar Diameter: Ø34 mm
Maximum machining Diameter: Ø122 mm
Maximum Machining Length per Operation: 90 mm

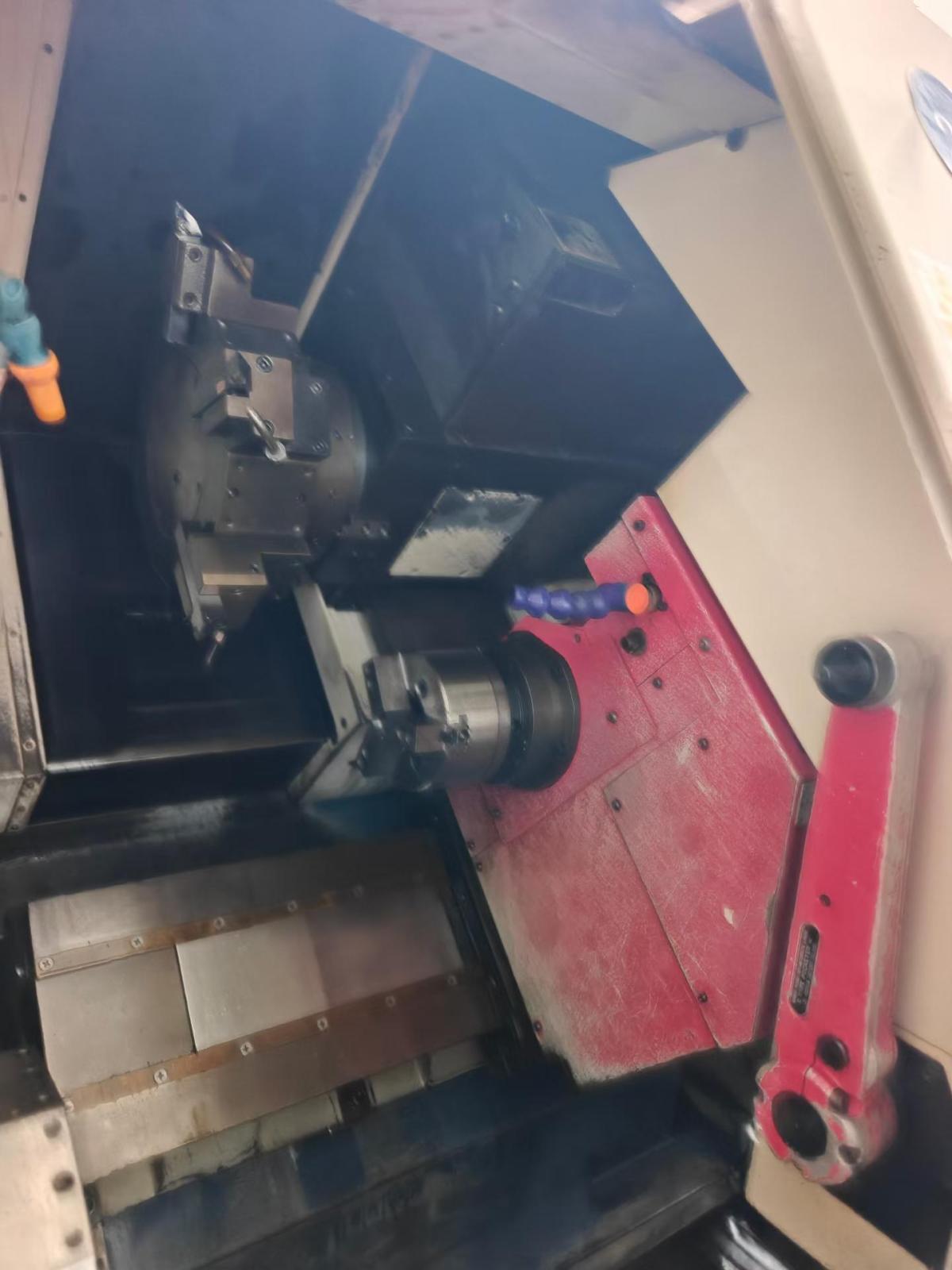

Spindle Configuration: Main and Sub Spindles, Both with C-Axis
C-Axis Indexing Accuracy: 0.001°
Main Spindle Motor Power: 7.5 kW
Sub Spindle Motor Power: 5.5 kW
Main Spindle Speed: 170–5000 rpm
Sub Spindle Travel: 450 mm
Automatic Back Machining Supported

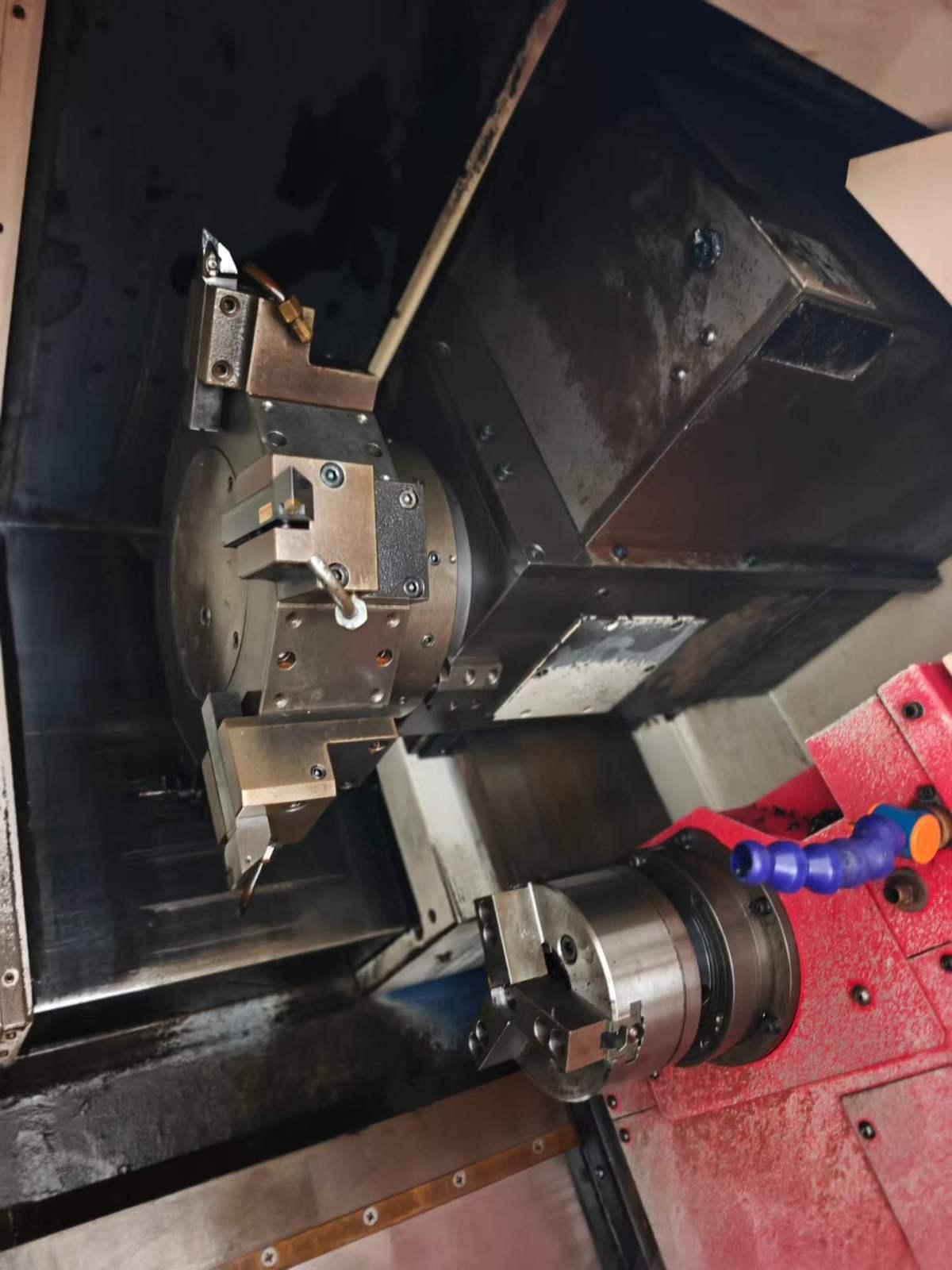

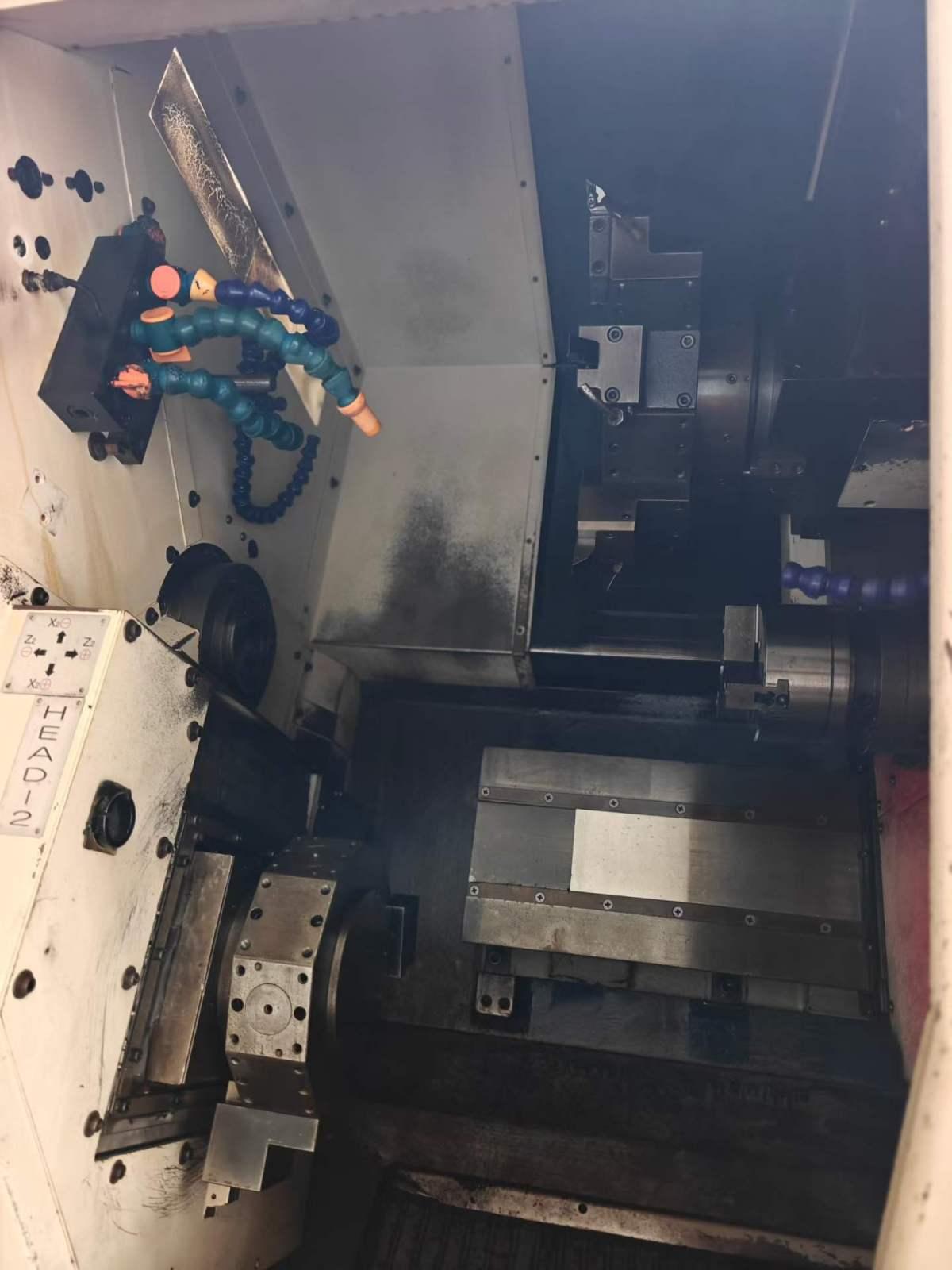

Turret Configuration: Upper and Lower Dual Power Turrets
Upper Turret: 12-Station Full Live Tooling

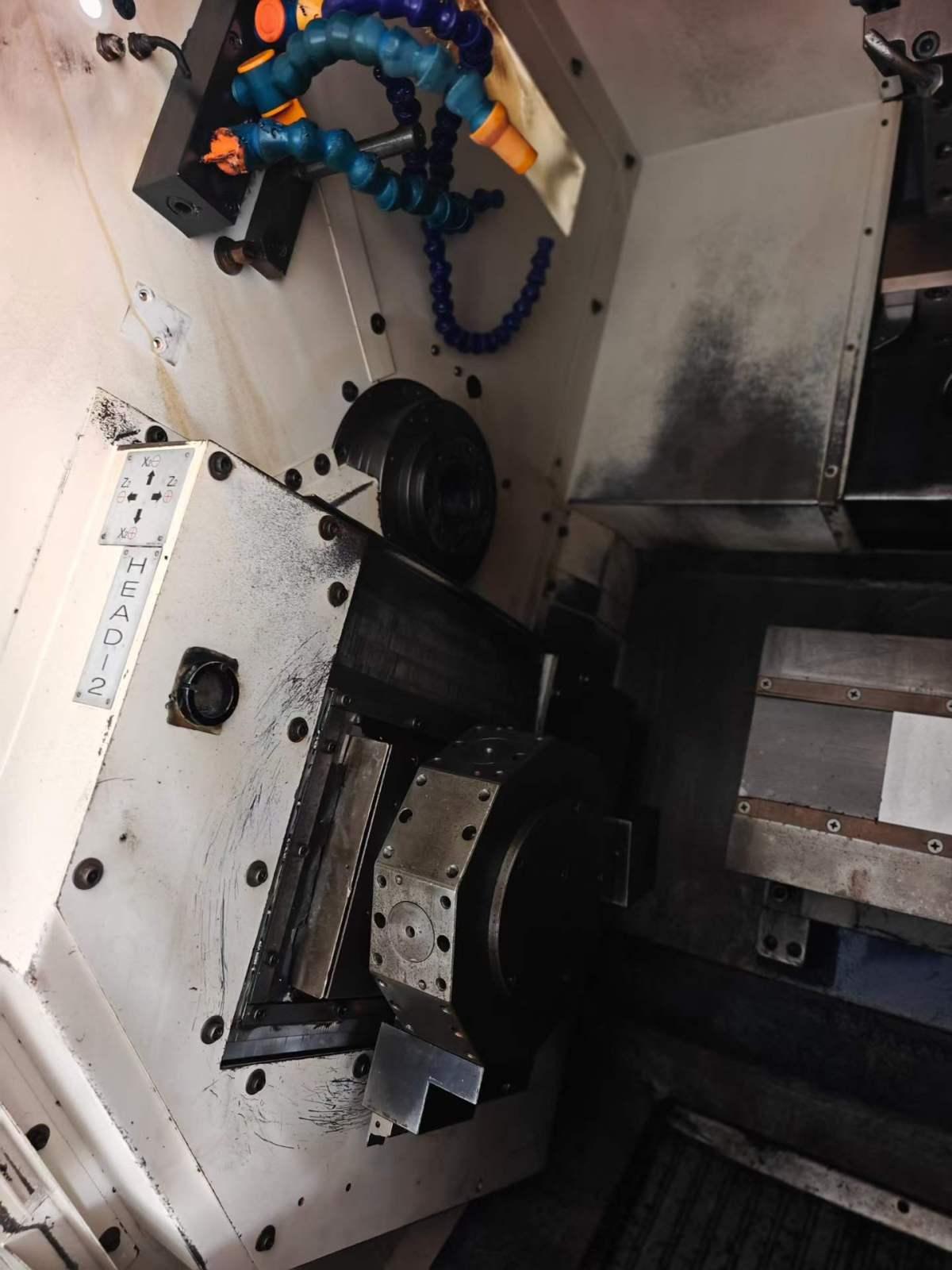

Lower Turret: 10-Station Full Live Tooling
Live Tool Spindle Speed: 133–4000 rpm
Synchronous Machining Supported
Upper Turret Travel (X/Z): 150 × 380 mm
Lower Turret Travel (X/Z): 115 × 125 mm
