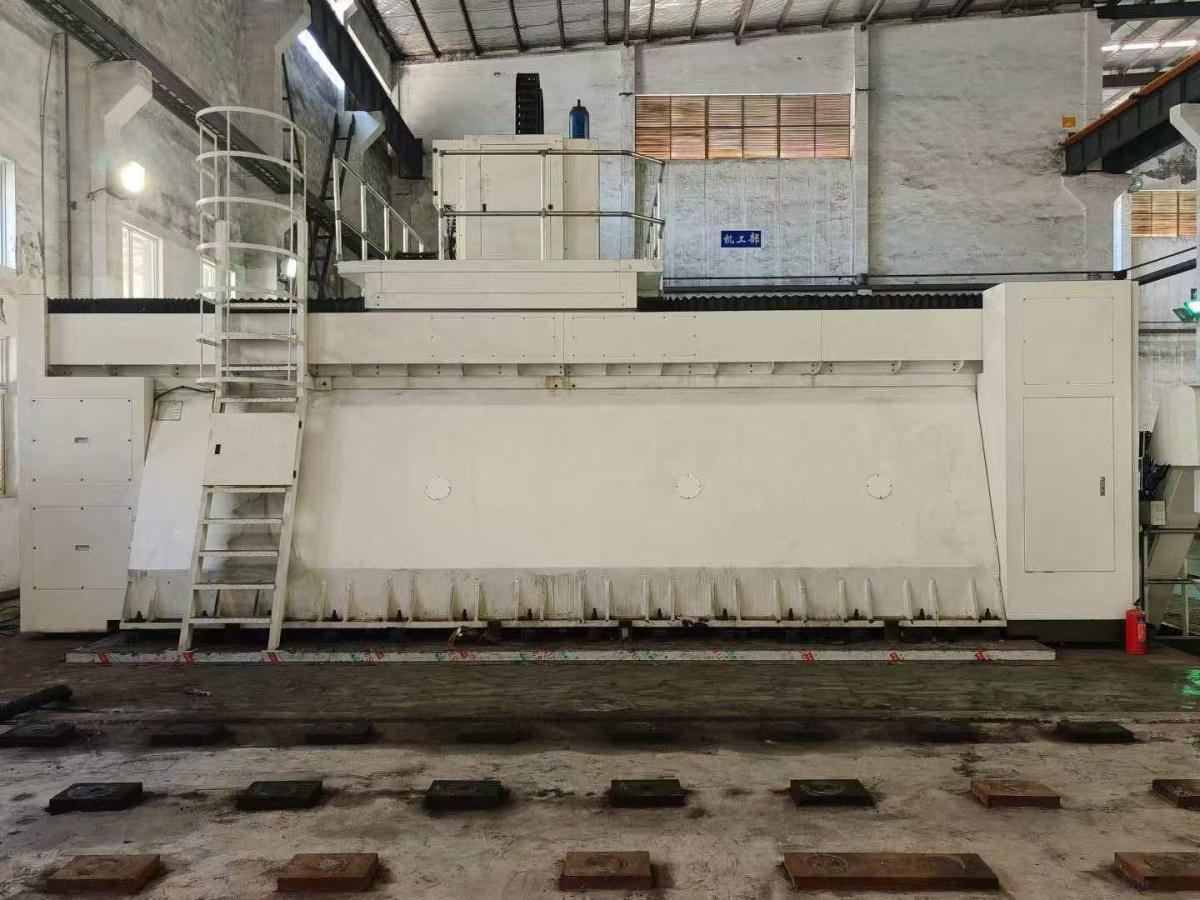

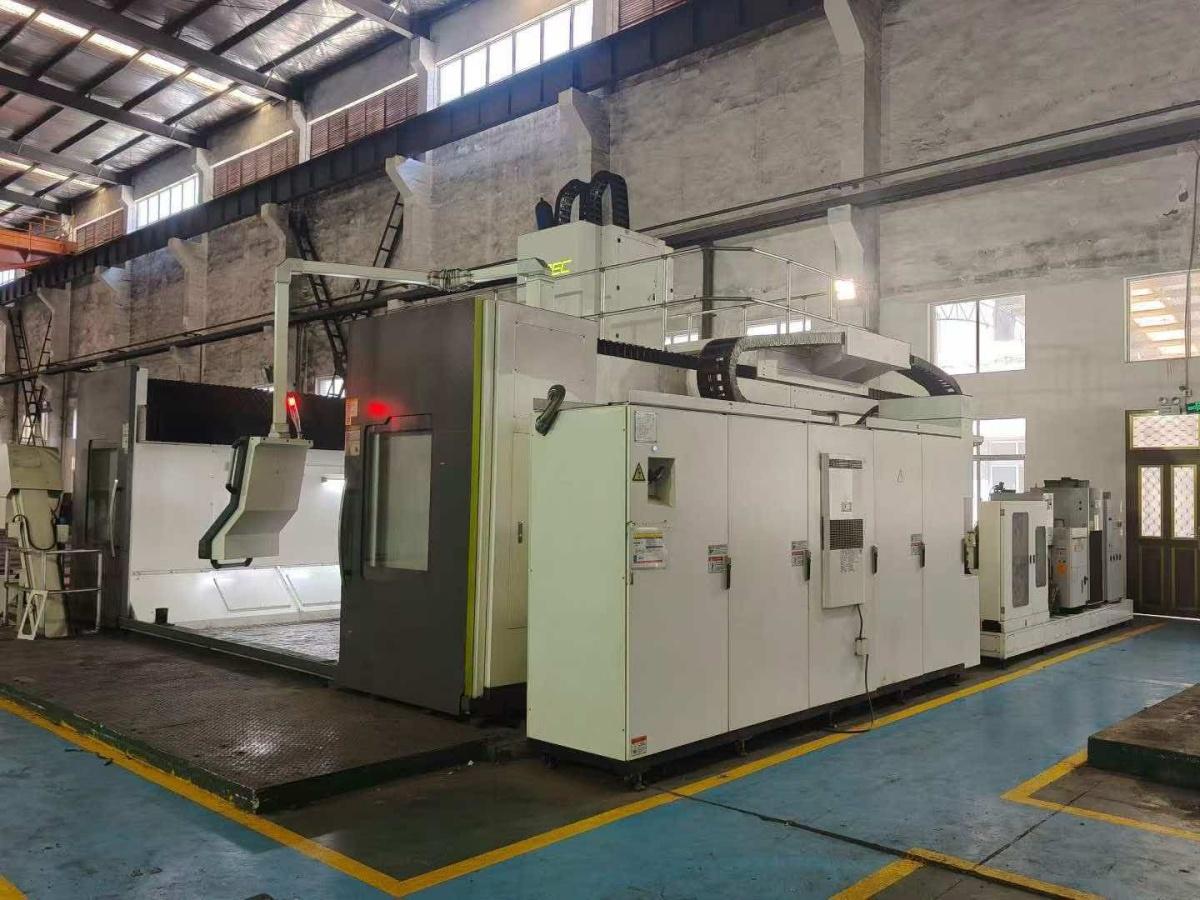

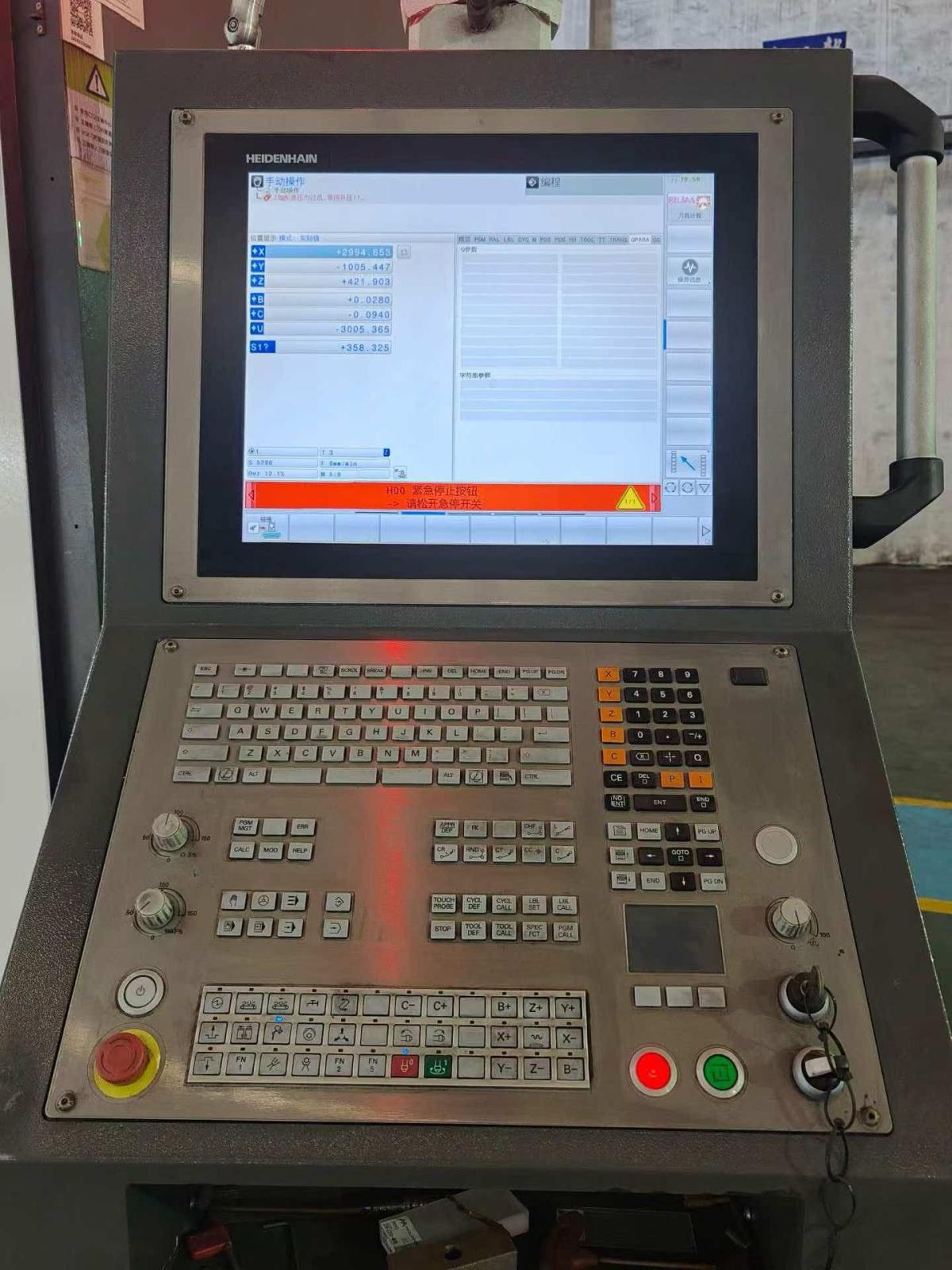

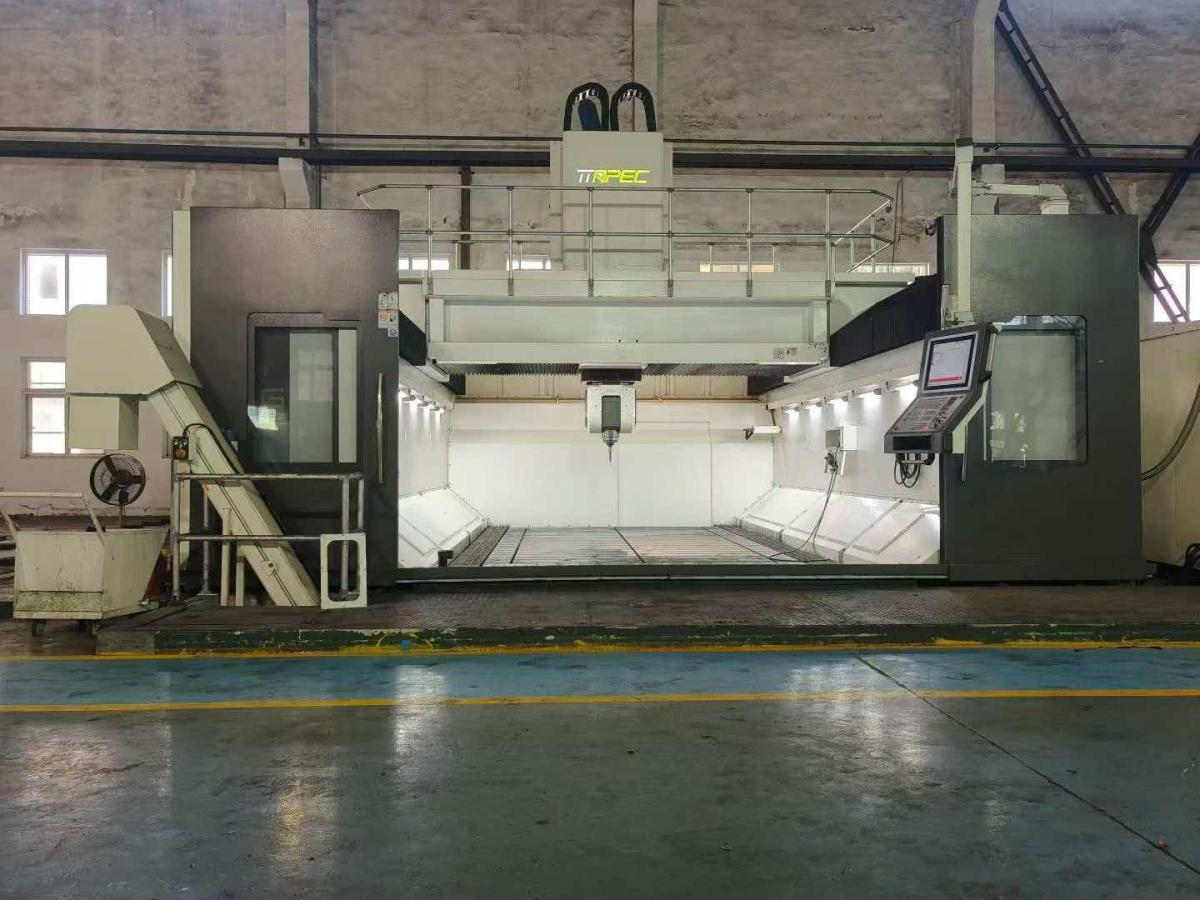

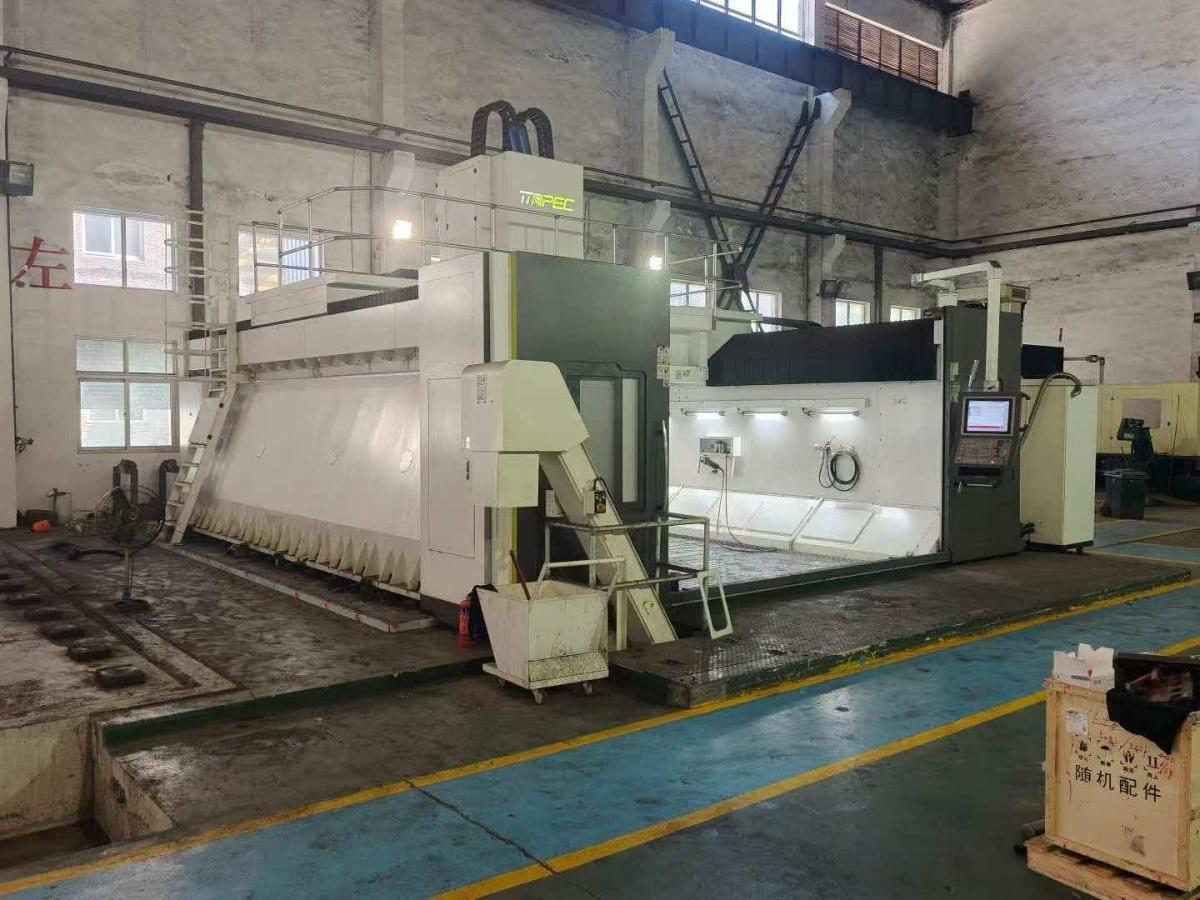

APEC GM3250-5L Gantry machining centre

X-axis travel (X-axis) : 5,000 mm
Y-axis travel (Y-axis) : 3,200 mm
Z-axis travel (Z-axis) : 1,200 mm
Distance from spindle nose to Worktable surface: 60-1,260 mm

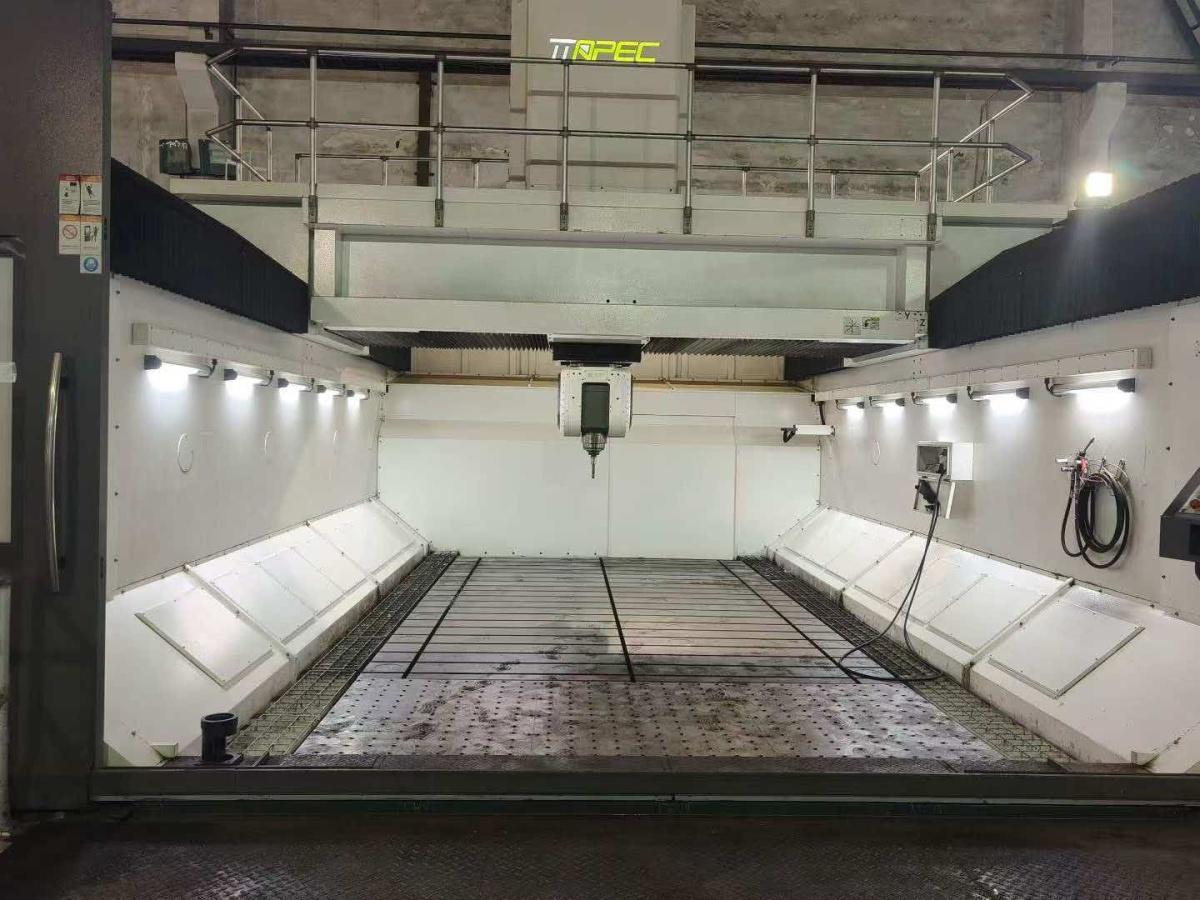

2. Worktable Specifications (Worktable
Worktable size (length × width) : 5,000 × 3,000 mm
Worktable load: 8 T/m²
Worktable T-slot (slot width × spacing) : 28 × 200 mm
Keyway at the center of Worktable (one each at the X and Y centers) : 28 × 15 mm
3. Feed spindle (Traverse & Spindle)
Rapid feed rate: X/Y/Z = 60 m/min
spindle taper: HSK100A
Spindle speed: 15,000 rpm
spindle power (S1/S6) : 25/30 kW
spindle torque (S1/S6) : 119/143 Nm

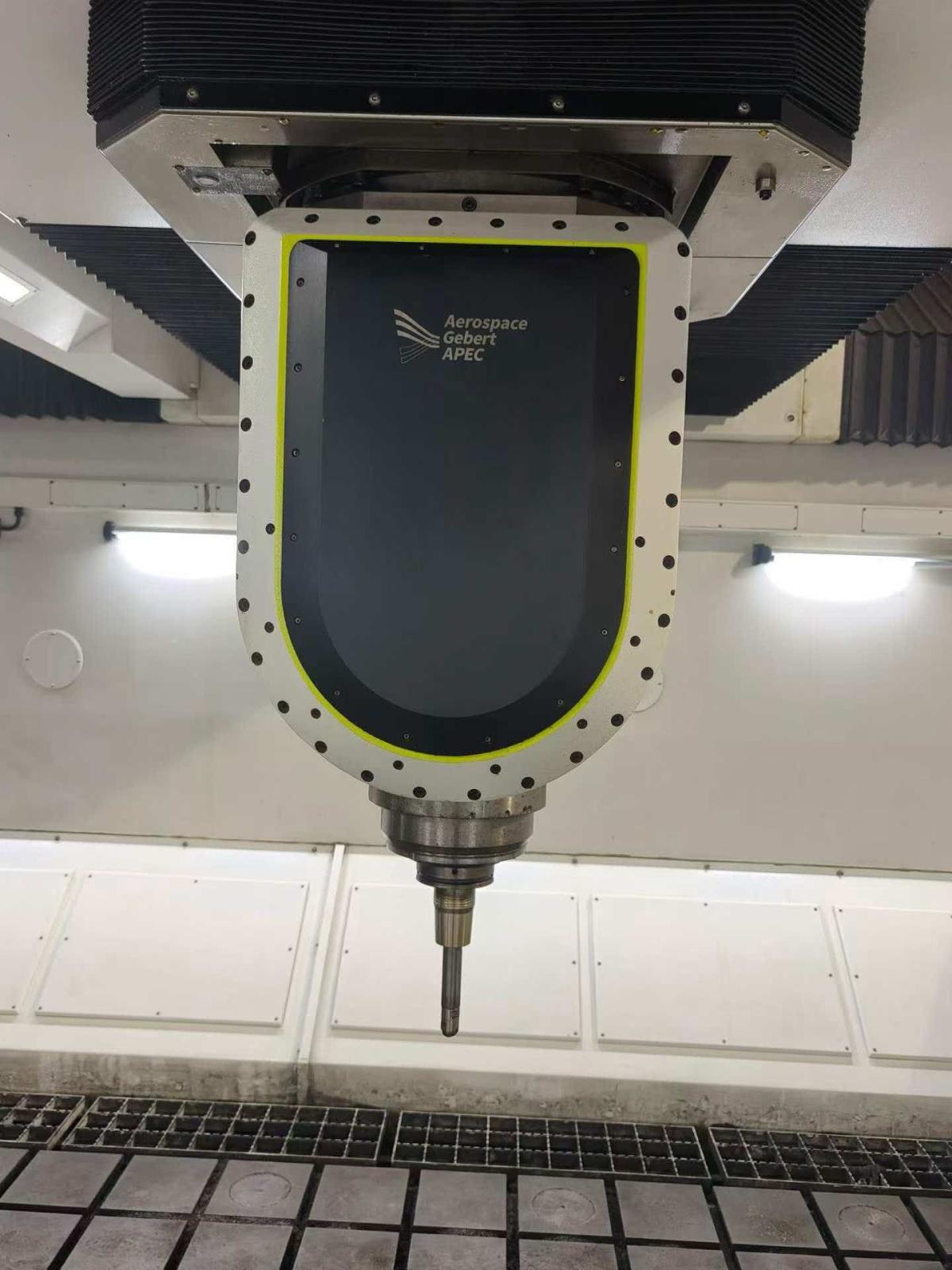

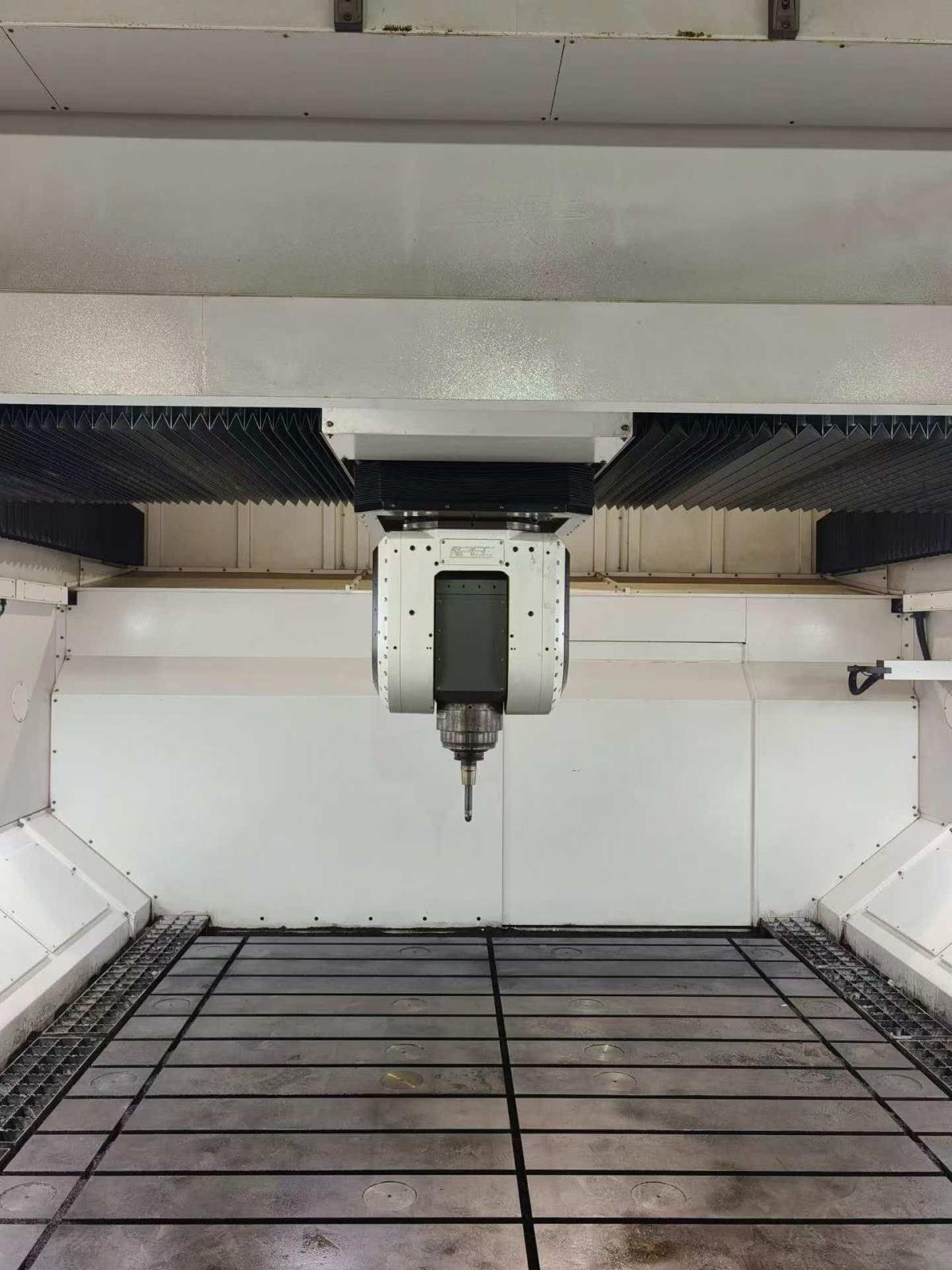

4. 5 axes head specification (2-axis milling head)
Maximum rotational speed (B/C axis) : B=60 rpm, C=60 rpm
Maximum rotational torque (S1/S6) : B= 1,192/1,980 Nm, C= 1,050/1,740 Nm
Locking torque: B=4,000 Nm, C=4,000 Nm
Rotation Angle: B=±120°, C=±360°
Rotary Positioning repeat precision: < 0.006/2M
5. Automatic Tool Changer (ATC
Tool Tool holder type: HSK100A
Tool: 20
Maximum tools length: 300mm
Maximum tool diameter - adjacent Tool: Ø 150mm
Maximum tool diameter - without adjacent Tool: Ø 180mm
Maximum tools weight: 15 Kg
6. precision
Positioning precision (VDI/DGQ3441) : X/Y=0.025, Y=0.012, Z=0.010 mm
Repeatability precision (VDI/DGQ3441) : X/Y=0.012, Y=0.008, Z=0.008 mm
Roundness Test (Ball-Bar Test) : XY=0.015, XZ=0.025, YZ=0.025 mm
spindle nose 5-axis circle measurement precision (5-axis TCPM) : ± 0.03mm
