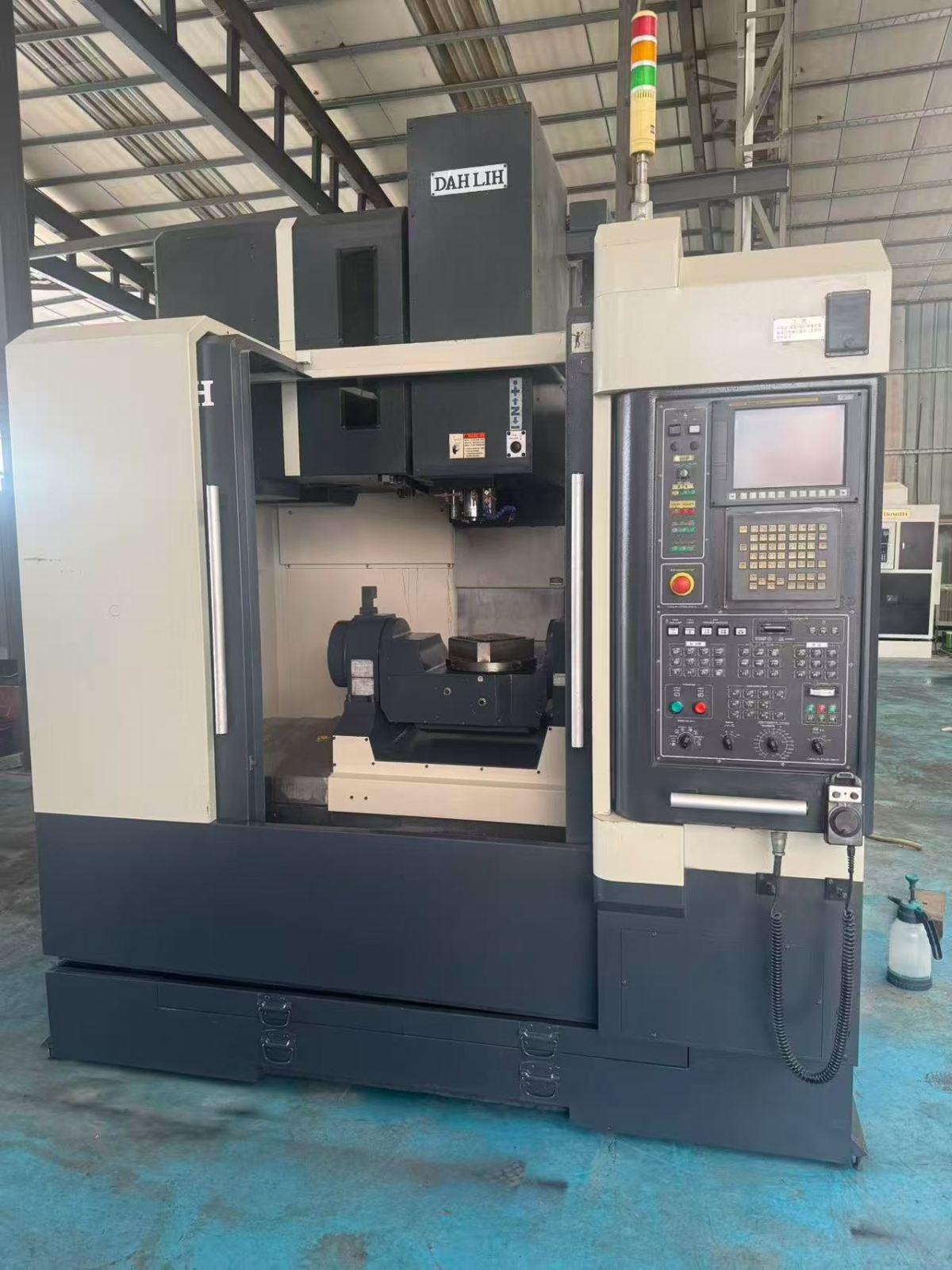

DAHLIH DMX‑320 5 axis machining centre

Worktable
Worktable size: Ø320 mm
T-slot: 12H7 × 4
Maximum worktable load: 150 kg
Axis Travel
Three-axis travel (X/Y/Z): 600 × 550 × 500 mm
Distance from spindle nose to worktable: 50–500 mm
Guideway
X/Y/Z axes: Linear guideways
Feed Rate
Rapid traverse rate (X/Y/Z axes): 40 / 40 / 30 m/min
Cutting feed rate: 18,000 mm/min
Minimum feed increment: 0.001 mm
Spindle
Drive type: Direct drive
Spindle motor: 7.5 kW (10 HP) / 5.5 kW (7.5 HP)
Spindle taper: NT40
Spindle speed: 10,000 rpm
Spindle bearing diameter: Ø70 mm
Maximum torque: 47 N·m
Cooling/Lubrication: Oil cooling / grease lubrication
Automatic Tool Changer (ATC)
Tool magazine capacity: 24 tools
Tool holder: BT40
Pull stud angle: 45°
Maximum tool weight: 7 kg
Maximum tool length: 265 mm
Maximum tool diameter: Ø95 mm
Maximum diameter with adjacent pockets empty: Ø185 mm
Tool selection method: Random selection
Servo Motors
X/Y/Z-axis servo motors: 4 kW (5.3 HP)

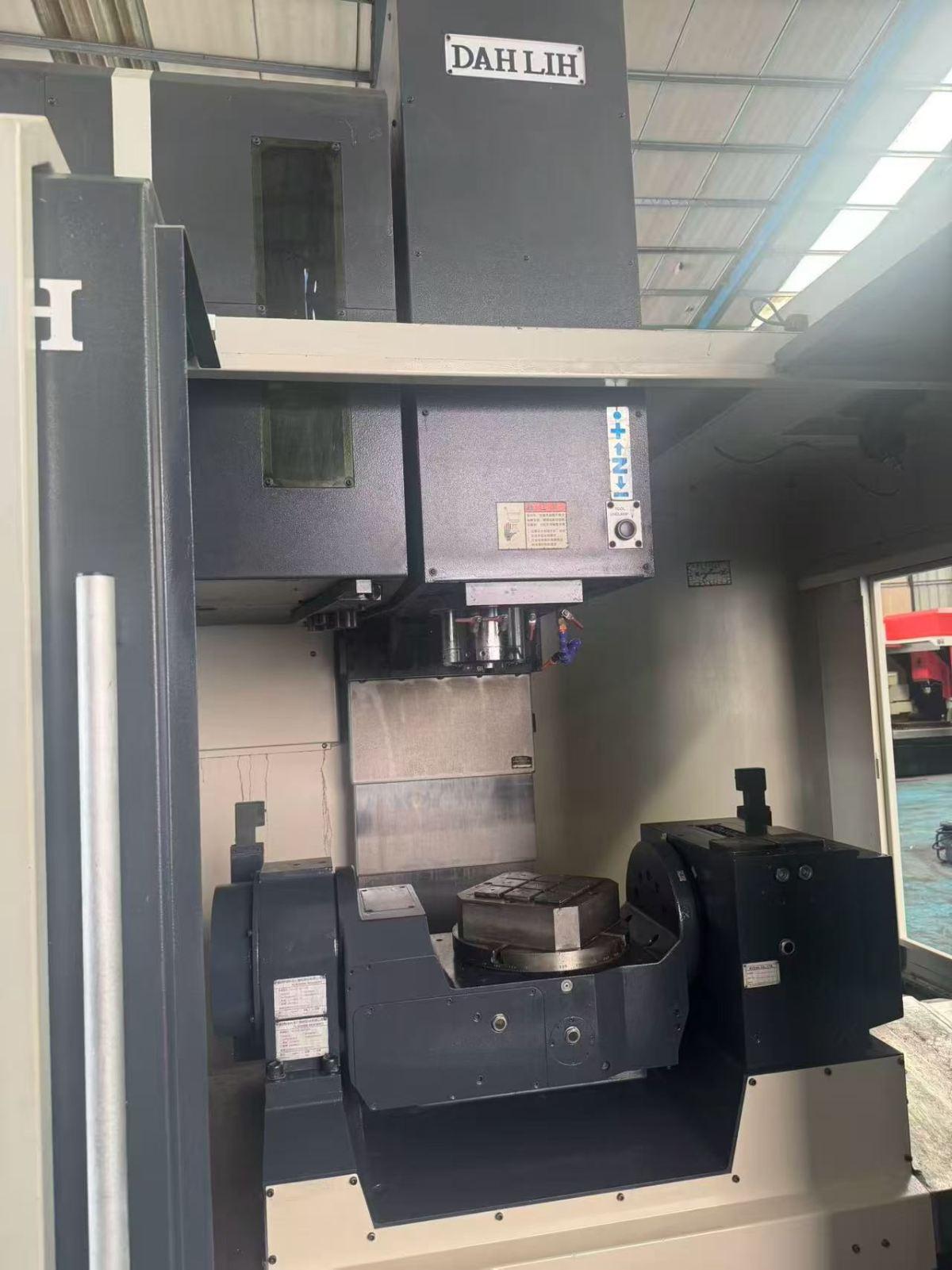

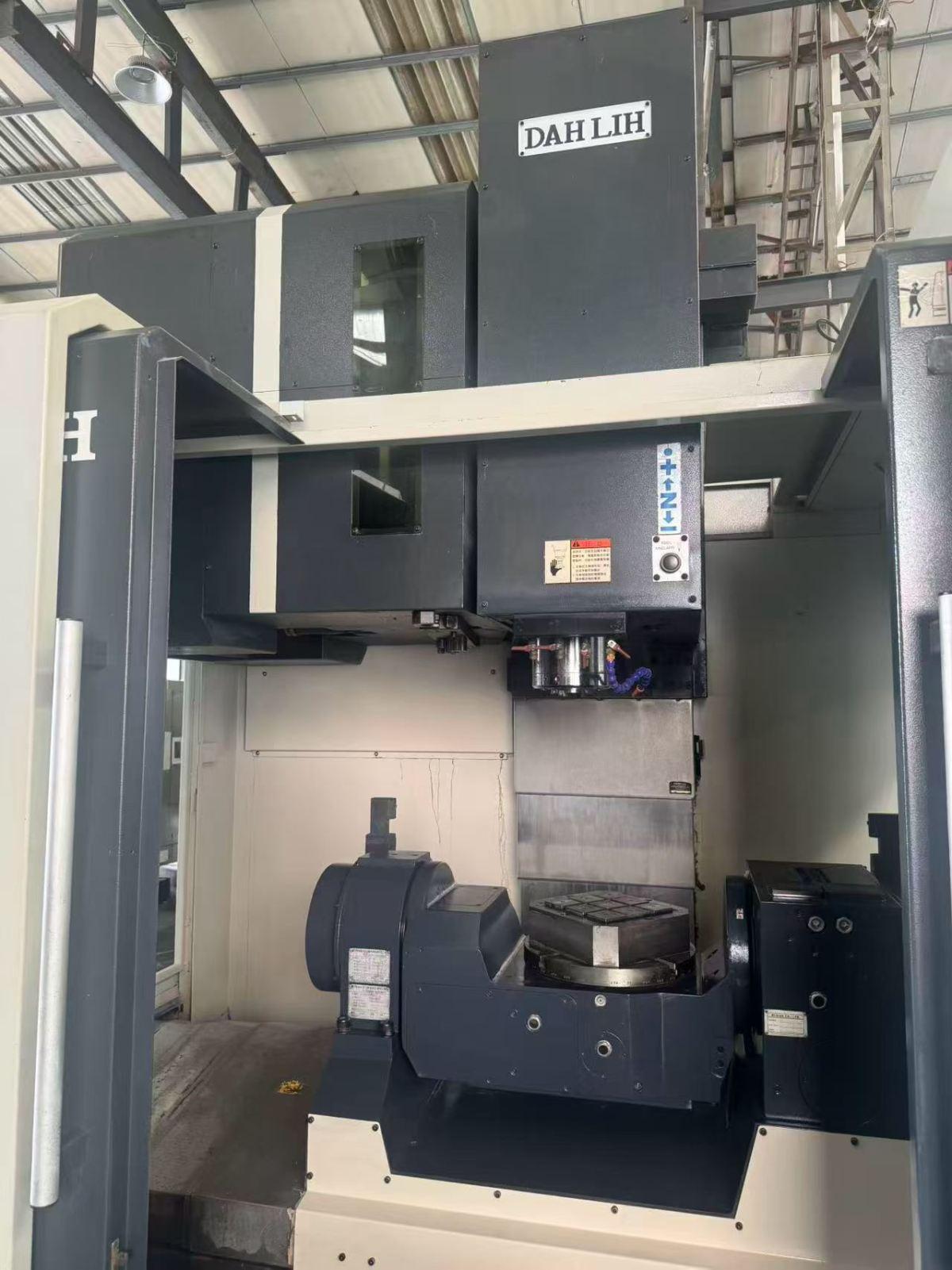

Fourth Axis (A/C Axis)
Maximum workpiece size: Ø320 × 280 mm
Torque: 25 kg-m
Rotation range: 360°
Maximum speed: 25 rpm
Braking method: Hydraulic expansion brake
Fifth Axis (B Axis)
Maximum workpiece size: Ø320 × 280 mm
Torque: 25 kg-m
Rotation range: +30° to -120°
Maximum speed: 25 rpm
Braking method: Hydraulic expansion brake
Installation Requirements
Power requirement: 36 kVA
Air pressure: 6 kg/cm²
Cutting fluid pump: 3/4 HP
Cutting fluid tank capacity: 280 L
Machine Weight
Net weight: 7000 kg (approx. 7 tons)
