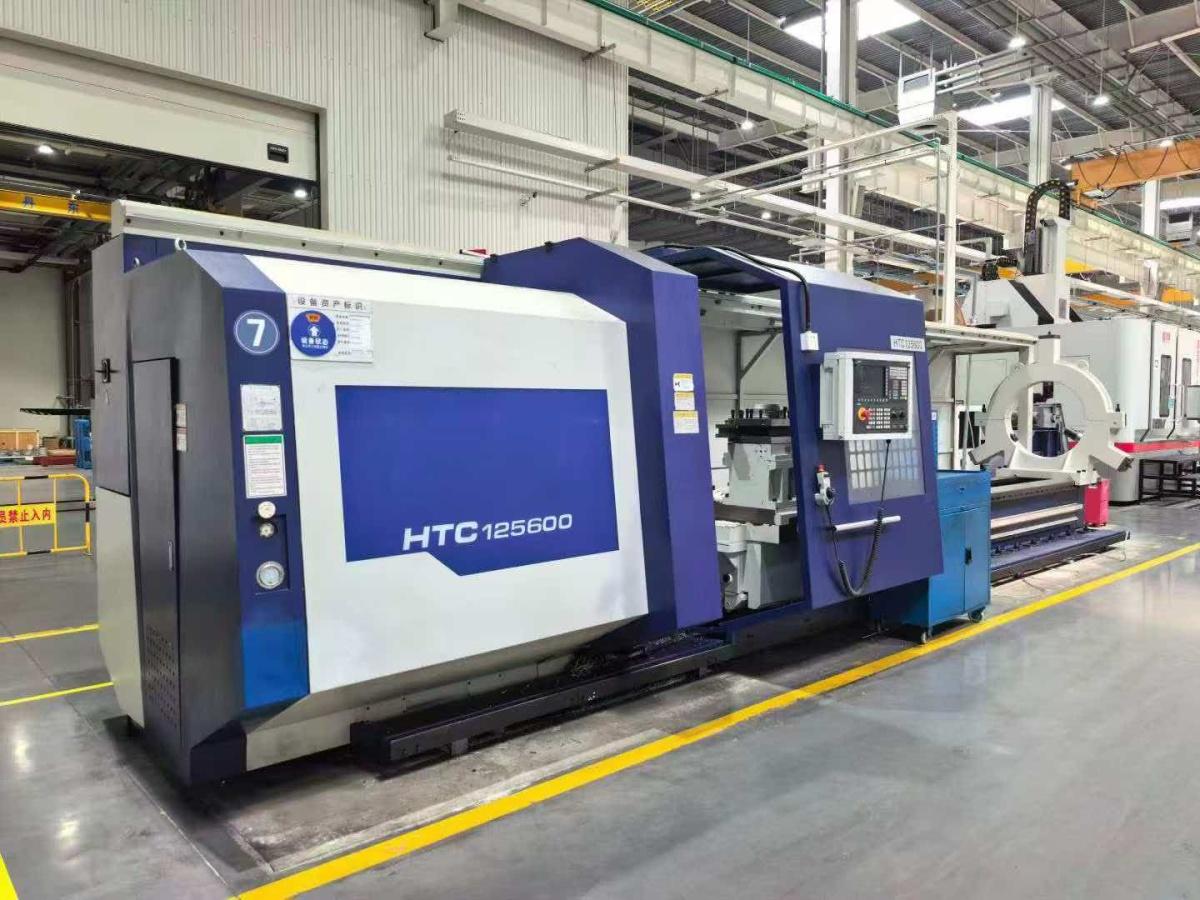

SMTCL HTC125600 CNC turning lathe

Maximum rotational diameter: 1250mm
Maximum machining length: 6000 mm

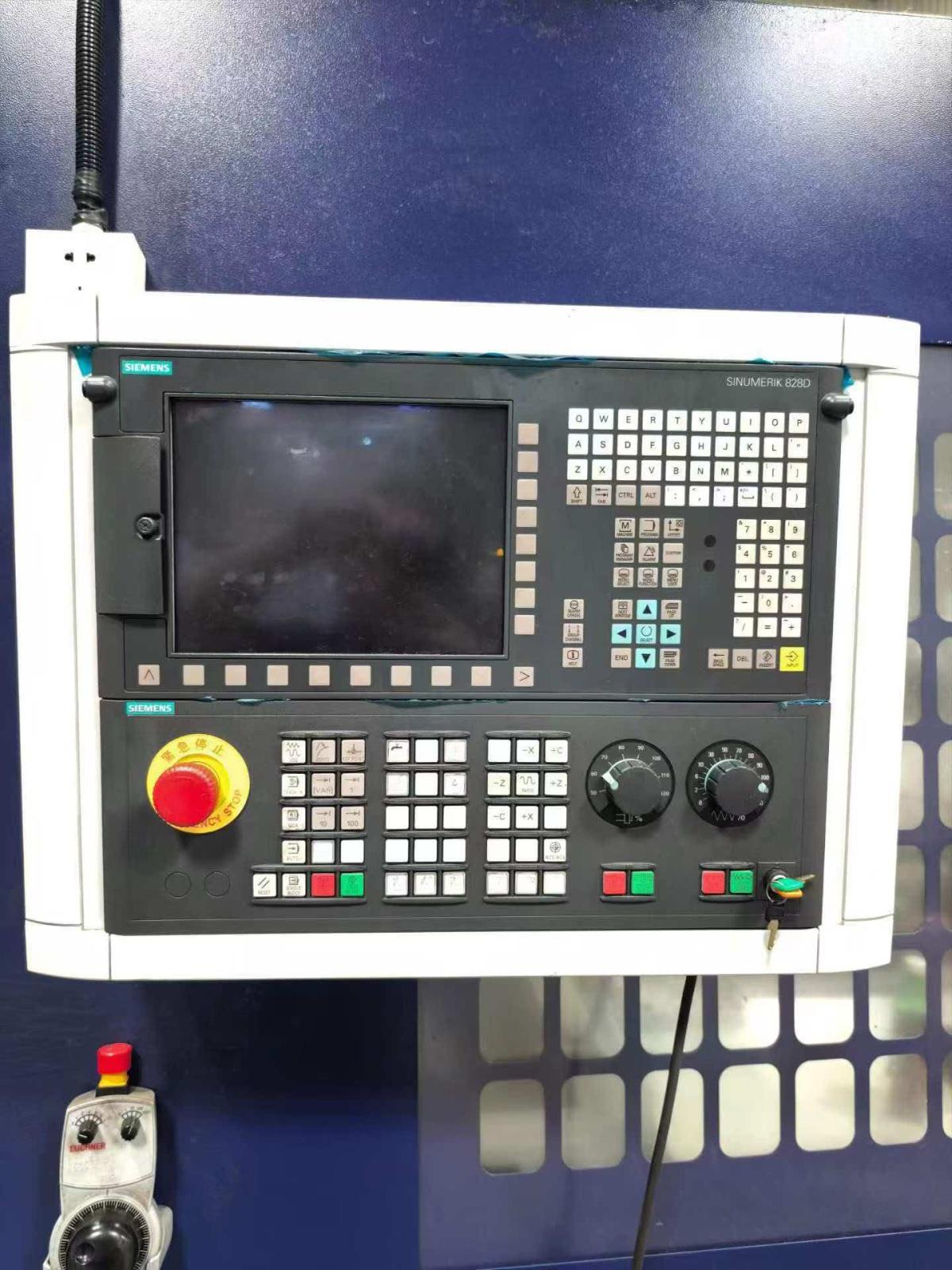

spindle CNC System
spindle through hole diameter: φ 105mm
spindle head end type: A2-12 / A2-15
Spindle speed range: 3 to 1200 r/min (stepless speed change, supporting multiple gear intervals)
Main motor power: 37 kW / 45 kW
Maximum output torque: approximately 10,500 N·m
Maximum Fast moving rate of the X/Z axis: 8 m/min / 10 m/min
X/ Z-axis feed rate range: 1 to 8000 mm/min
machining travel and precision
Maximum turning diameter: 1100mm
Maximum Machining length: 6000 mm
tool holder station: 8 stations (or 12-position hydraulic tool turret optional)
X-axis travel: 600 mm
Z-axis travel: 6000 mm
workpiece machining precision: IT6 to IT7
Surface roughness: Ra 1.6 μm

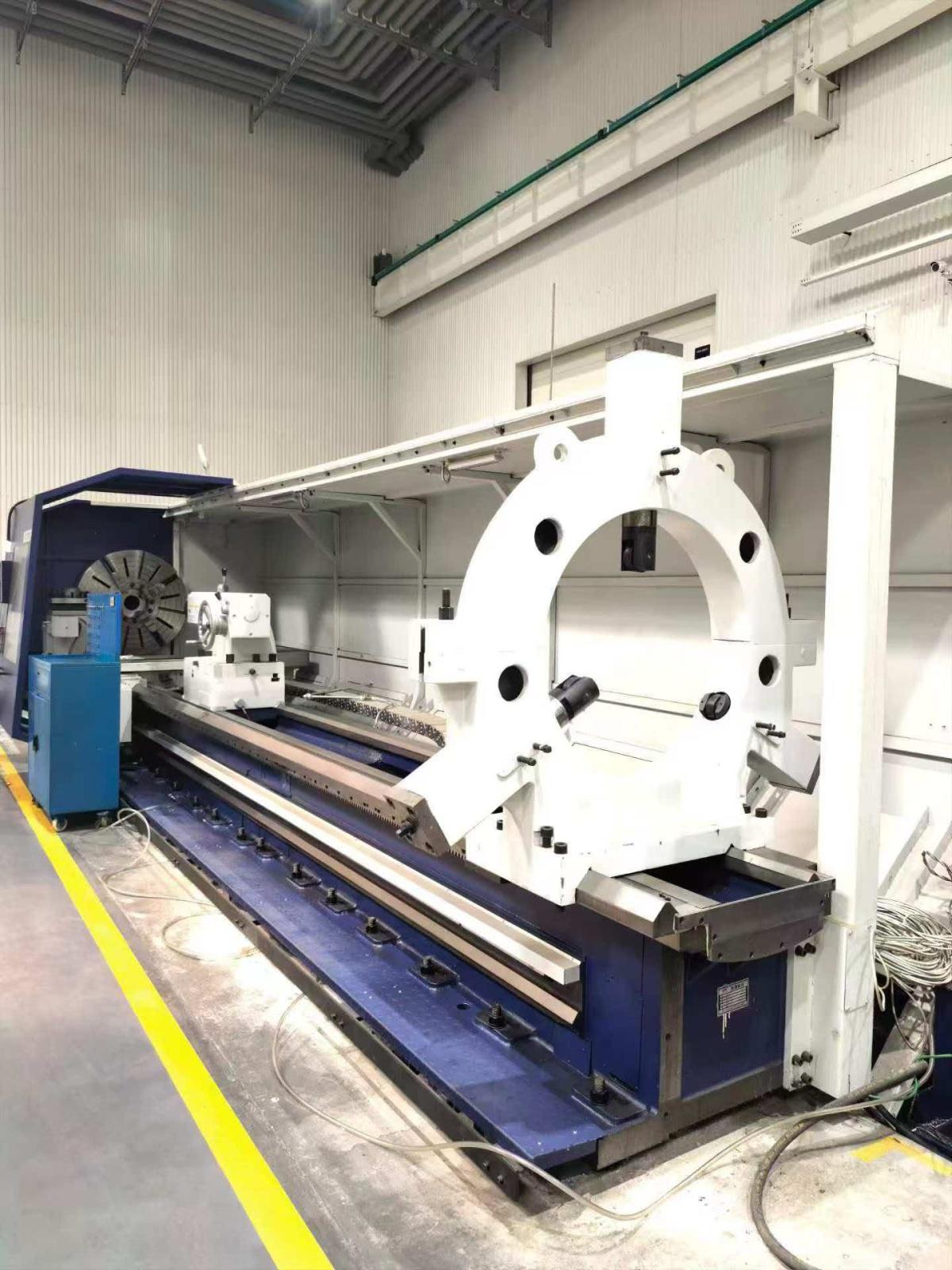

tailstock and hydraulic
tailstock quill shaft diameter: φ 200mm
tailstock quill shaft travel: 250mm
tailstock quill shaft taper: Mohs No. 6
hydraulic chuck  specification: φ 380mm / φ 450mm
