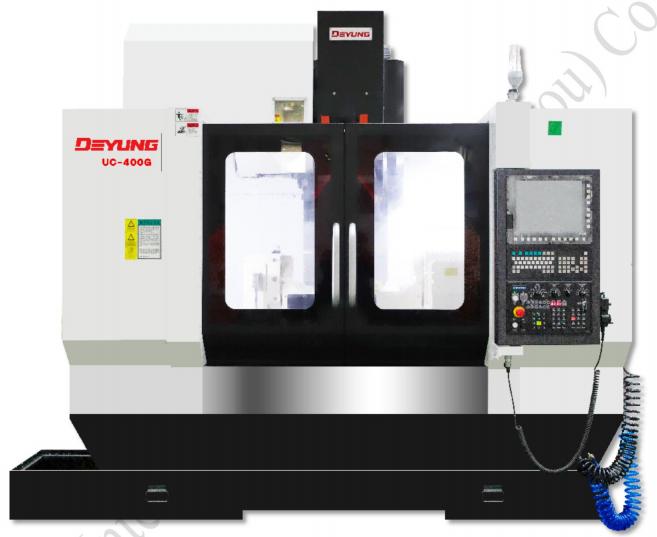

Deyung UC400G 5 axis machining centre

three-axis travel
X-axis travel: 700 mm
Y-axis travel: 620 mm
Z-axis travel: 600 mm
Working range: Distance from spindle nose to the center of Worktable is 40 to 640 mm
Worktable size: Ø 400 × 330 mm (rotary Worktable/inclined Worktable)
T-slot specification: 14mm (width) × 50mm (spacing) × 6 pieces (quantity)
Maximum load: 200 kg (horizontal state) / 150 kg (inclined state)
drive and Motors (3.3 & 3.5)
spindle motor power: 11/15 kW (continuous / 30 minutes)
Spindle speed: 10 to 12,000 rpm
spindle drive form: spindle drive form is synchronous belt drive
spindle taper: BT 40
Motor configuration
X-axis motor: β iS2/3000 (3.0kW)
Y-axis motor: β iS2/3000 (3.0kW)
Z-axis motor: βiS30B / 2000 (3.0kW)
Ball screw rod/guideway
X-axis screw rod: Ø40C3 (guideway model: MSR35LS-23)
Y-axis screw rod: Ø40C3 (guideway model: MSR45LS-22)
Z-axis screw rod: Ø40C3 (guideway model: MSR45S-23)
Feed rate (3.6
Rapid Positioning speed (Rapid Feed Rate) :
X, Y, Z axis: 36,000 mm/min (36 m/min)
Cutting Feed Rate (Fastest Cutting Feed Rate) : 1 to 10,000 mm/min
Tool changing CNC System (3.7
tools magazine type: Tool Arm type
magazine capacity: 30 pieces
Pull nail specification: MAS-P40 (45°)
Tool specification restrictions:
Maximum Tool diameter (full tool/adjacent) : ø 75mm / ø 150mm
Maximum Tool length: 300mm
Maximum Tool weight: 8 kg
precision and CNC System (3.8 & 3.9)
Repetitive Positioning precision: ± 0.006mm
Positioning precision: ± 0.012mm
Environmental requirements: The 3 axes thermal stability precision detection must be carried out in a constant temperature environment, with the ambient temperature variation not exceeding 4℃ and not exceeding 2℃
CNC System: FANUC 0i-MF
hydraulic CNC Systems and Electric Power (3.10 & 3.11)
hydraulic CNC System capacity: 250 liters (front) / 270 liters (rear)
air pressure pressure requirement: 6 kg/cm² (13.2 lb/cm²)
Electricity demand
Power supply specification: AC380 ± 10%, 3-phase, 60Hz / 50Hz
Total power demand: 25 KVA
Machine Footage and weights (3.12 & 3.13)
Machine length: 3850mm
Machine width: 2680mm
Machine height: 3070mm
Net weight of machine: 7300 kg
Gross weight of machine: 7800 kg
