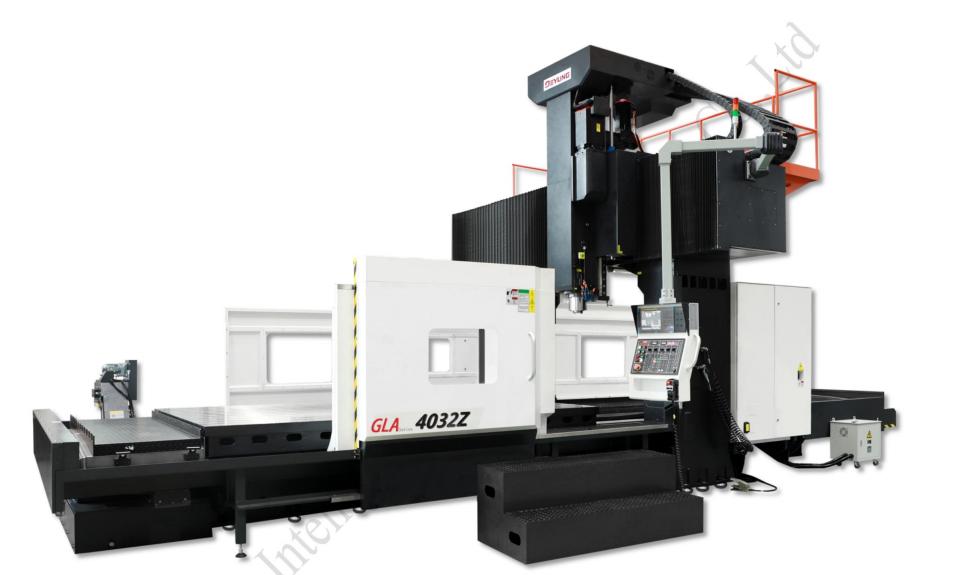

Deyung GLA-4032Z Gantry machining centre

X-axis travel: 4000 mm
Y-axis travel: 3200 mm
Z-axis travel: 1000 mm
Scope of work
Distance from spindle nose to Worktable surface: 200 to 1200 mm
Distance between columns: 2700 mm
Worktable size: 4020 × 2410mm
T-slot specification: 28mm (width) × 12× 200mm (quantity × spacing)
Maximum load-Load: 15,000 kg
drive and Motors (3.4 & 3.5)
spindle motor power: The rated power for continuous /30 minutes is 15/18.5 kW
Spindle speed: 10 to 6000 rpm
spindle drive form: Two speed automatic transmission
spindle taper: BT 50
Rapid Positioning speed (Rapid Traverse) :
X-axis: 12 m/min
Y-axis: 15 m/min
Z-axis: 12 m/min
Cutting Feedrate: 1 to 6000 mm/min
tools magazine (3.6
magazine capacity: 24 pieces
Tool holder specification: BT 50
Tool specification restrictions:
Maximum Tool diameter (full tool/adjacent) : ø 110mm / ø 200mm
Maximum Tool length: 400mm
Maximum Tool weight: 15 kg
precision and CNC System (3.7 & 3.9)
Repeatability Positioning precision: ± 0.020mm
Positioning precision: ± 0.030mm
Xy-axis guideway form: Heavy-duty roller track
Electricity demand
Power supply specification: AC380 ± 10%, 3-phase, 50Hz
Total power requirement: 60 kW (82 HP)
Other requirements
air pressure requirement: above 6 kg/cm²
Cooling water Water tank capacity: 800 liters
Capacity of the hydraulic oil Water tank: 40 liters
Machine Footage and Weight (3.9
Machine length: 14,000 mm
Machine width: 7500 mm
Machine height: 5300mm
Net weight of machine: 43,000 kg
Gross weight of machine: 48,000 kg
