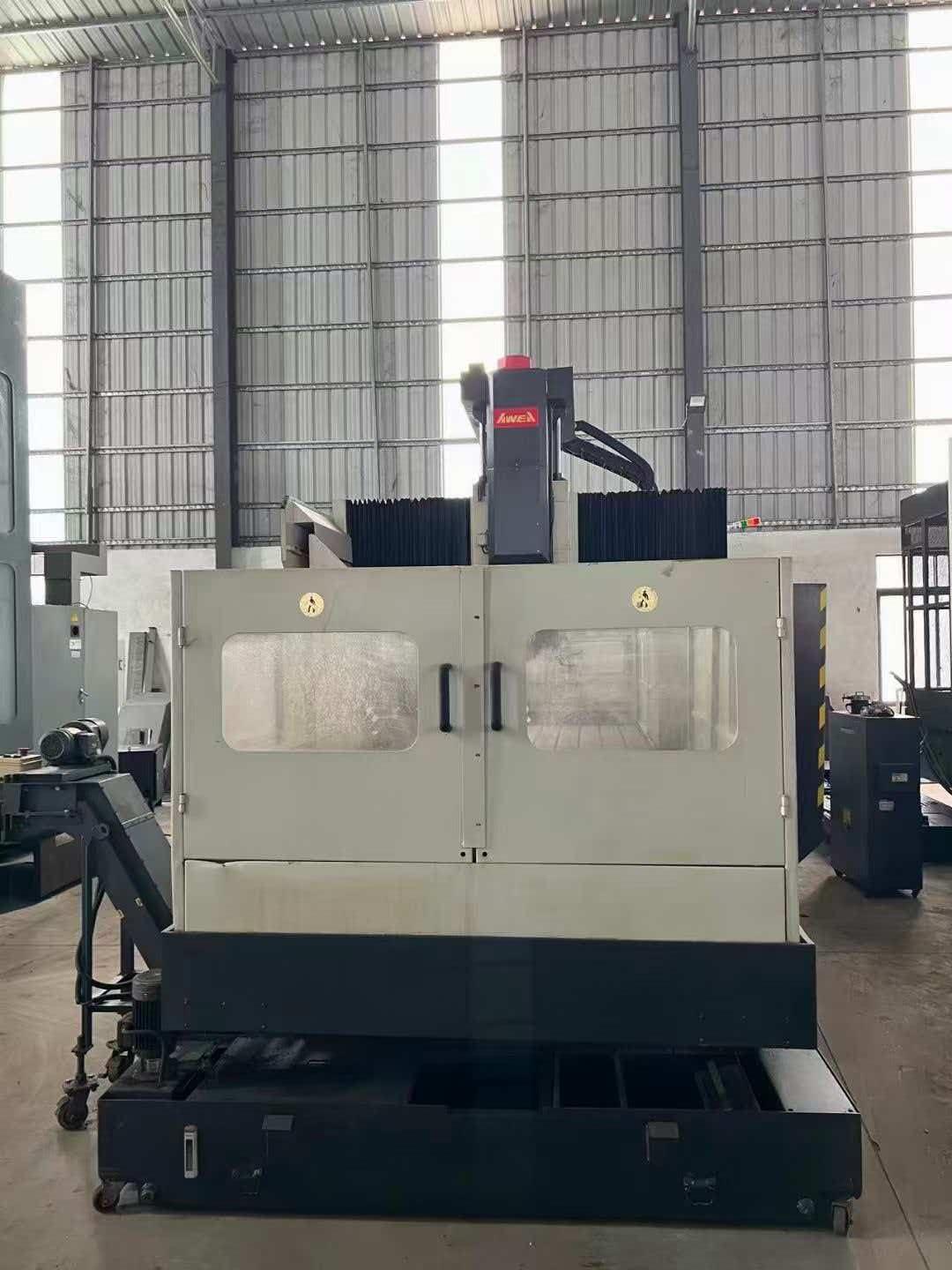

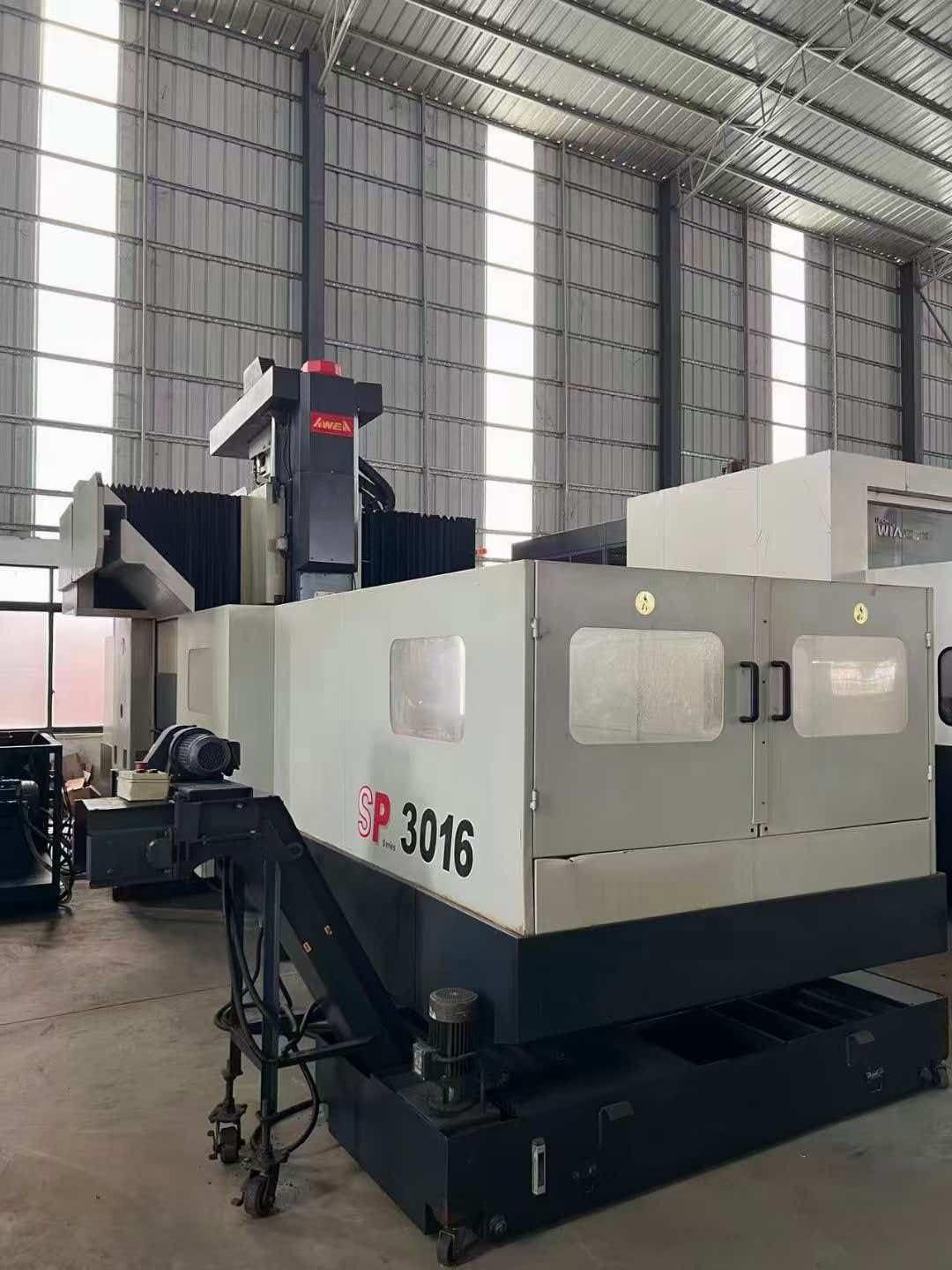

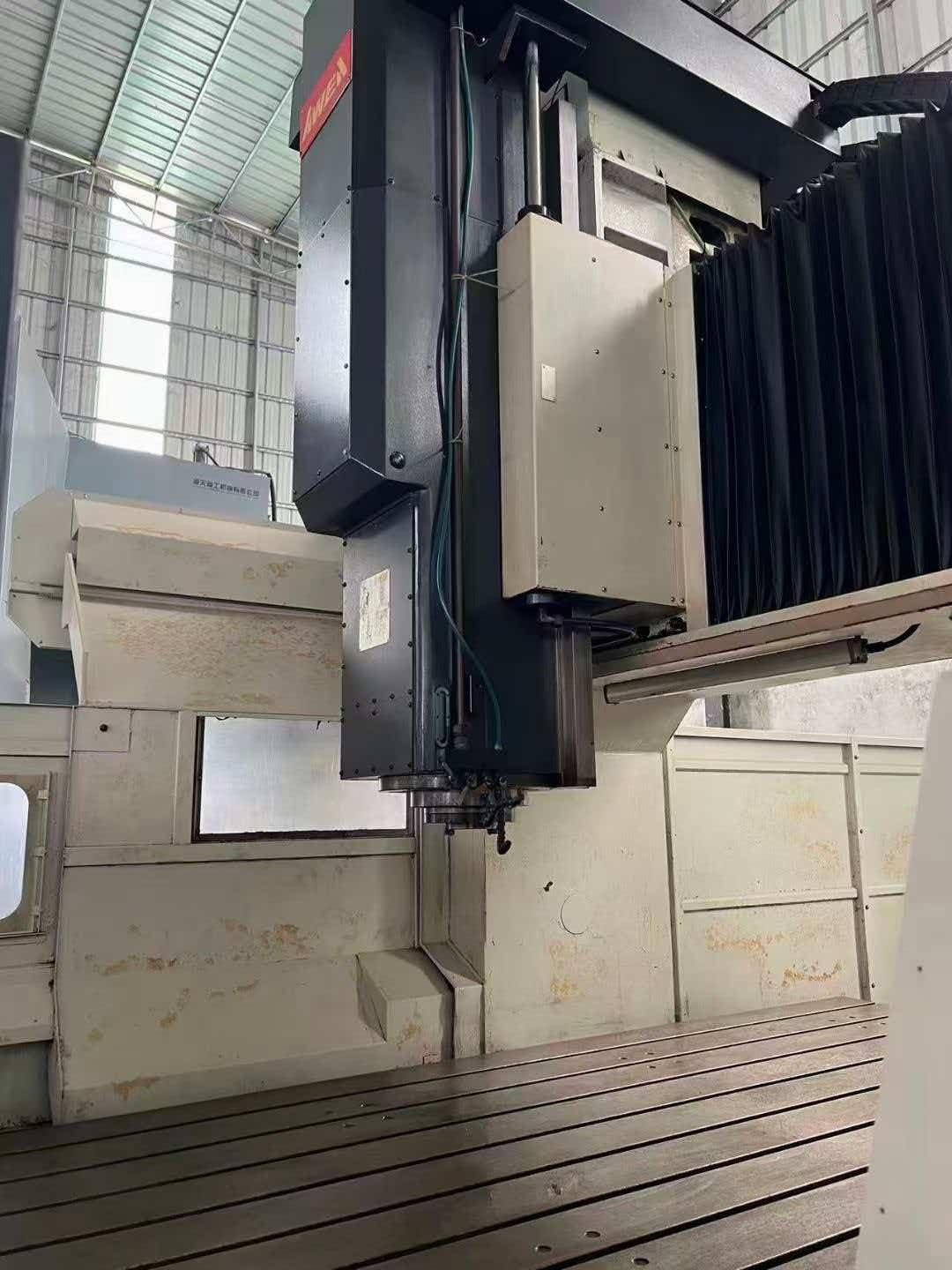

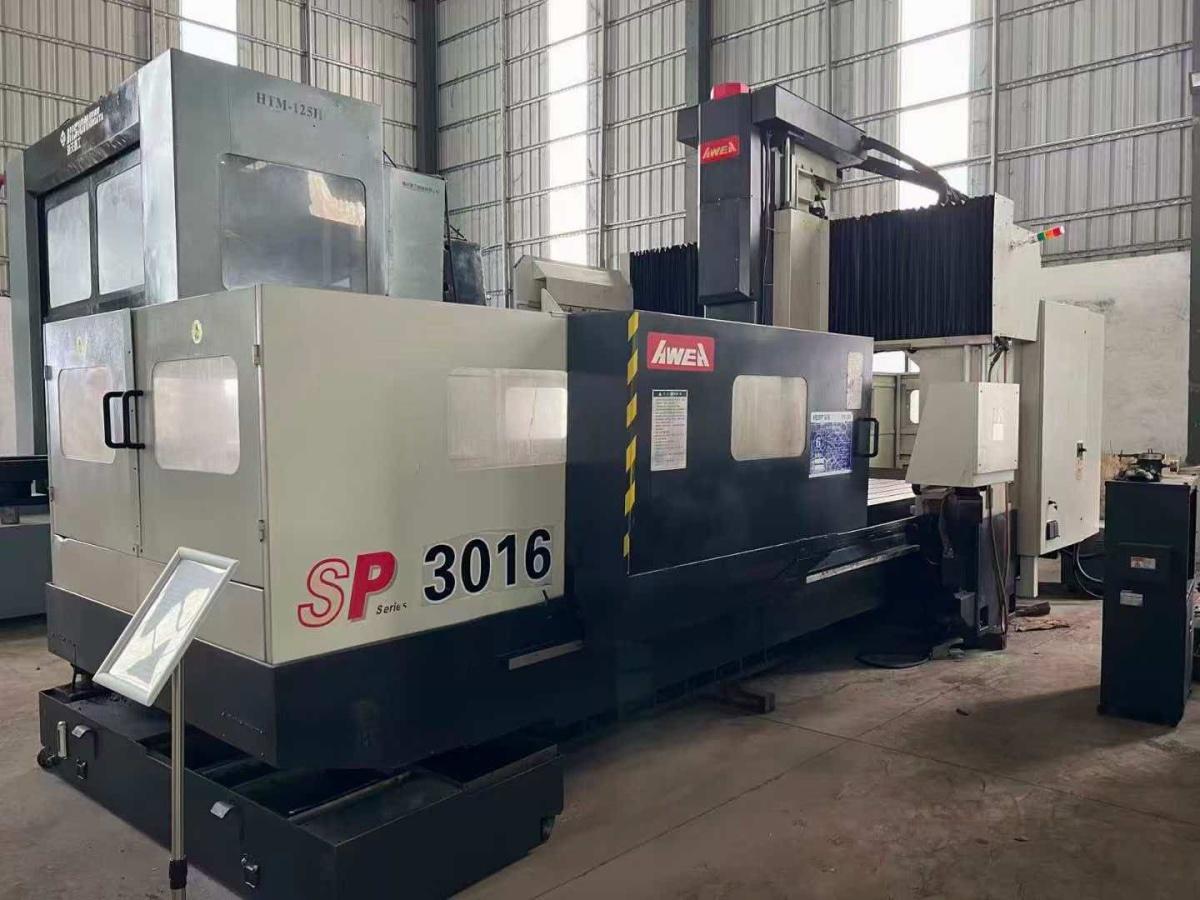

AWEA SP-3016 Gantry machining centre

[Product Information]:

Inventory number：69118
Brand：AWEA
Model：SP-3016
Origin：Taiwan, China
Location：China
Year：2016
Create Time：2026-09-22

Specifications:

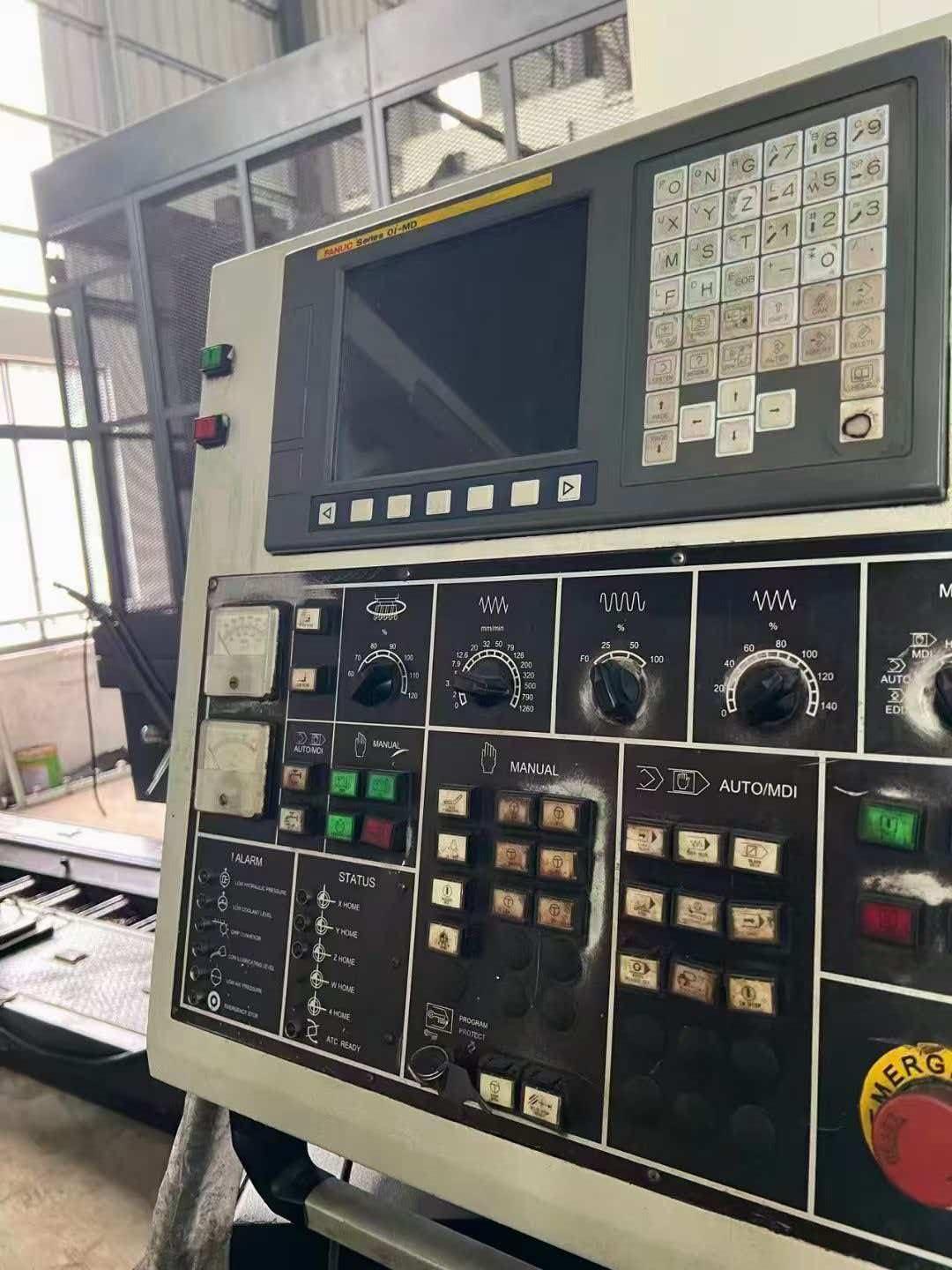

CNC System: FANUC Oi-MD
X-axis travel: 3060mm
Y-axis travel: 1600 mm
Z-axis travel: 760 mm

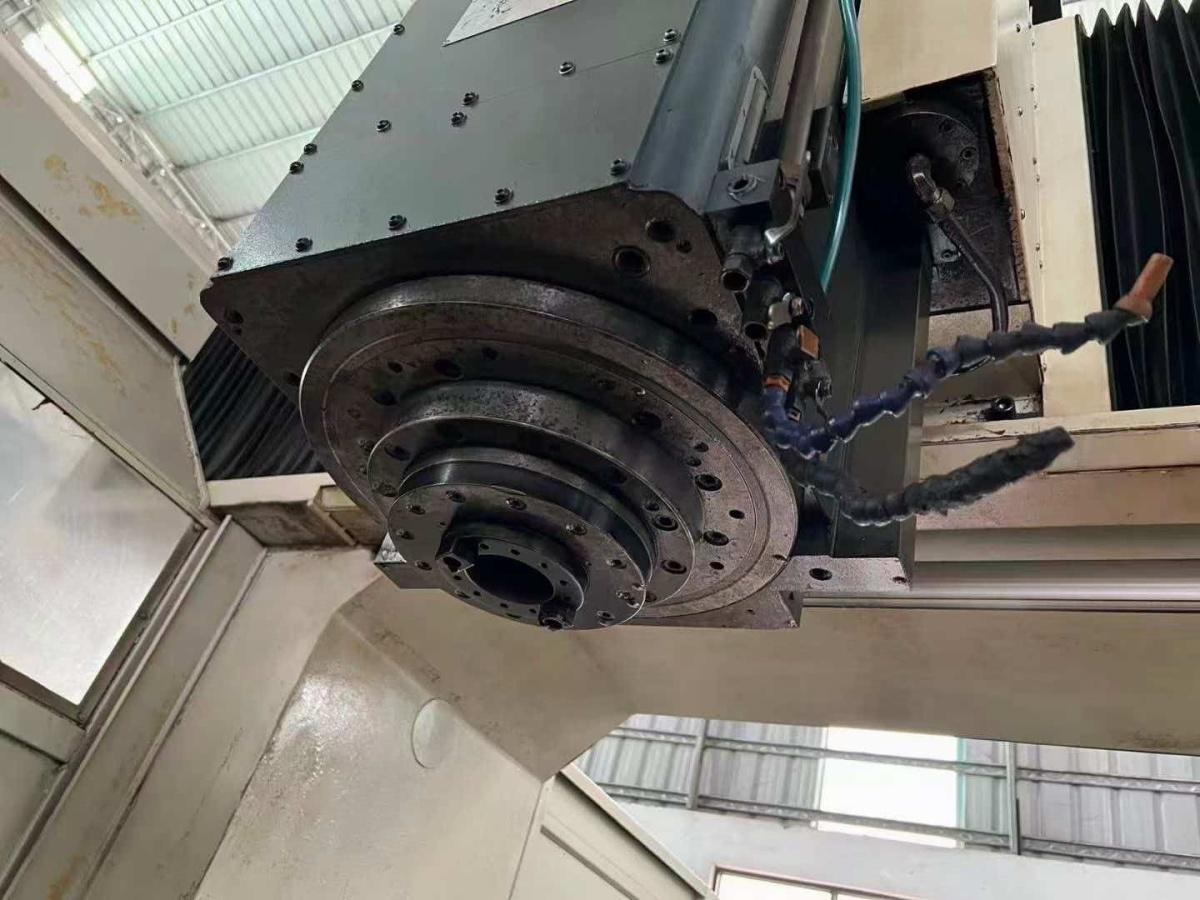

Spindle speed: 6000 rpm
Double column spacing: 1700 mm
Distance from spindle nose to Worktable surface: 200-960 mm

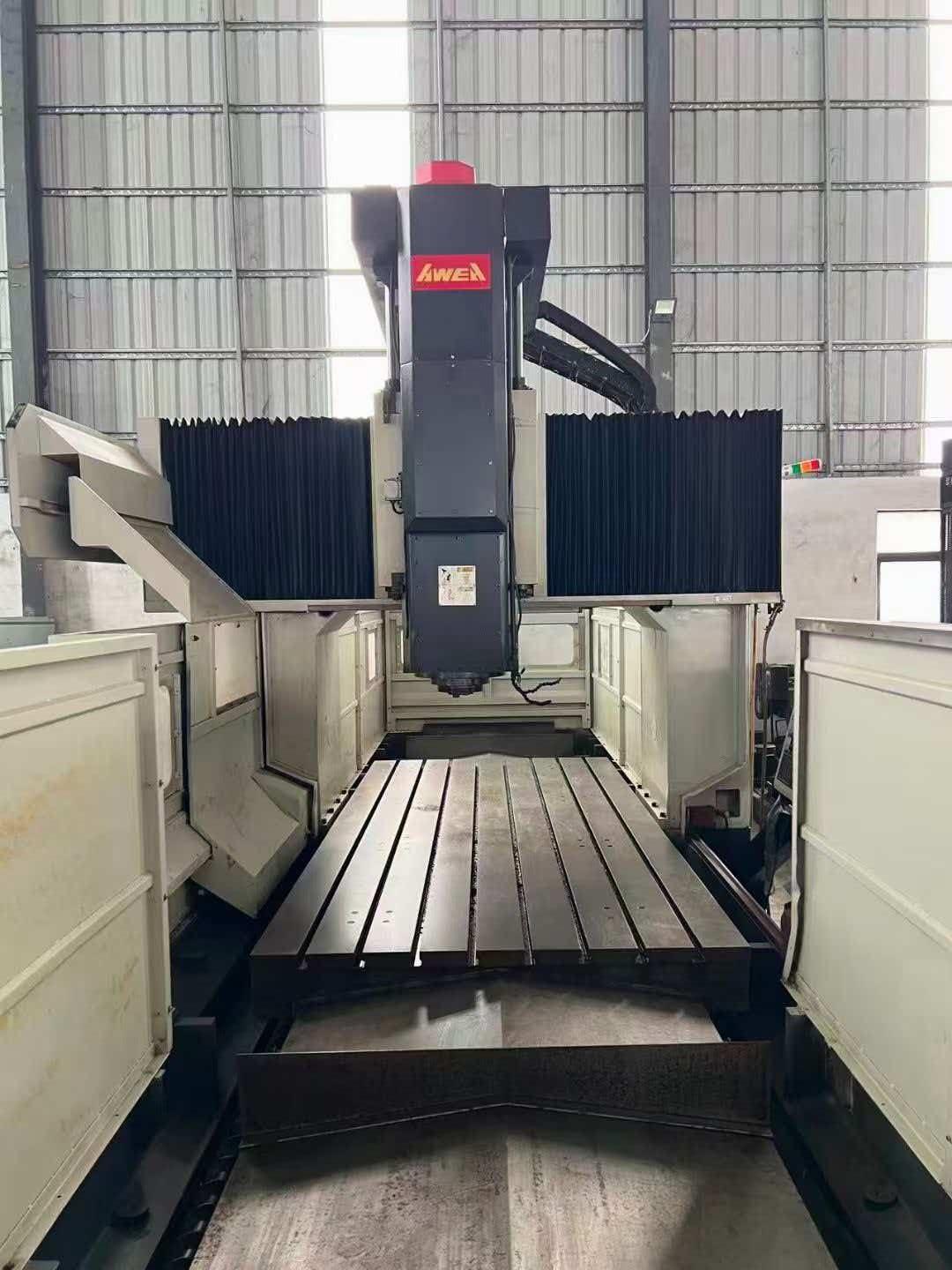

Worktable size: 3000 × 1500 mm
The maximum load of Worktable: 10,000 kg
Main motor power: 22/26 kW
Tool Tool holder type: BT50 gear spindle
