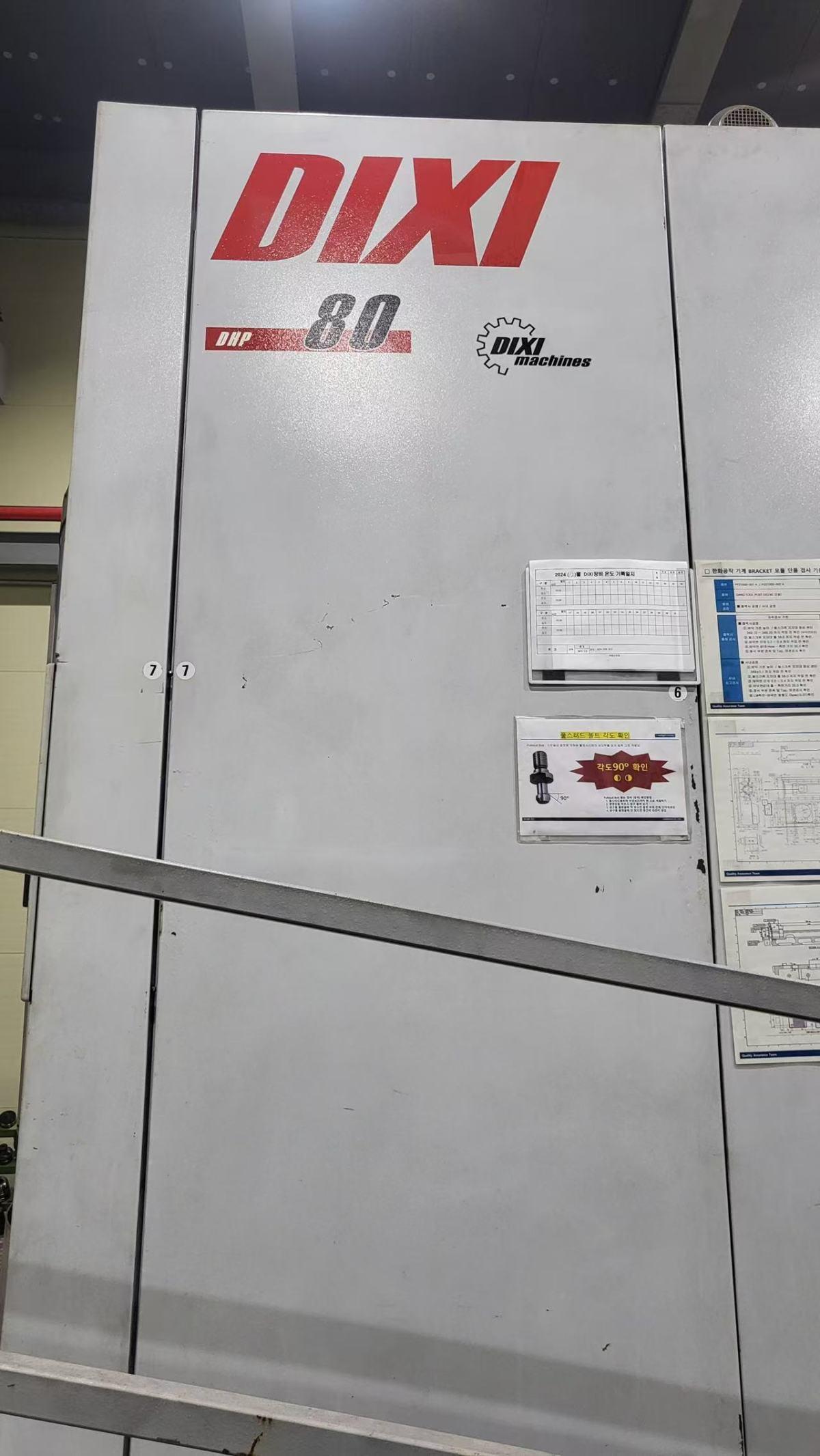

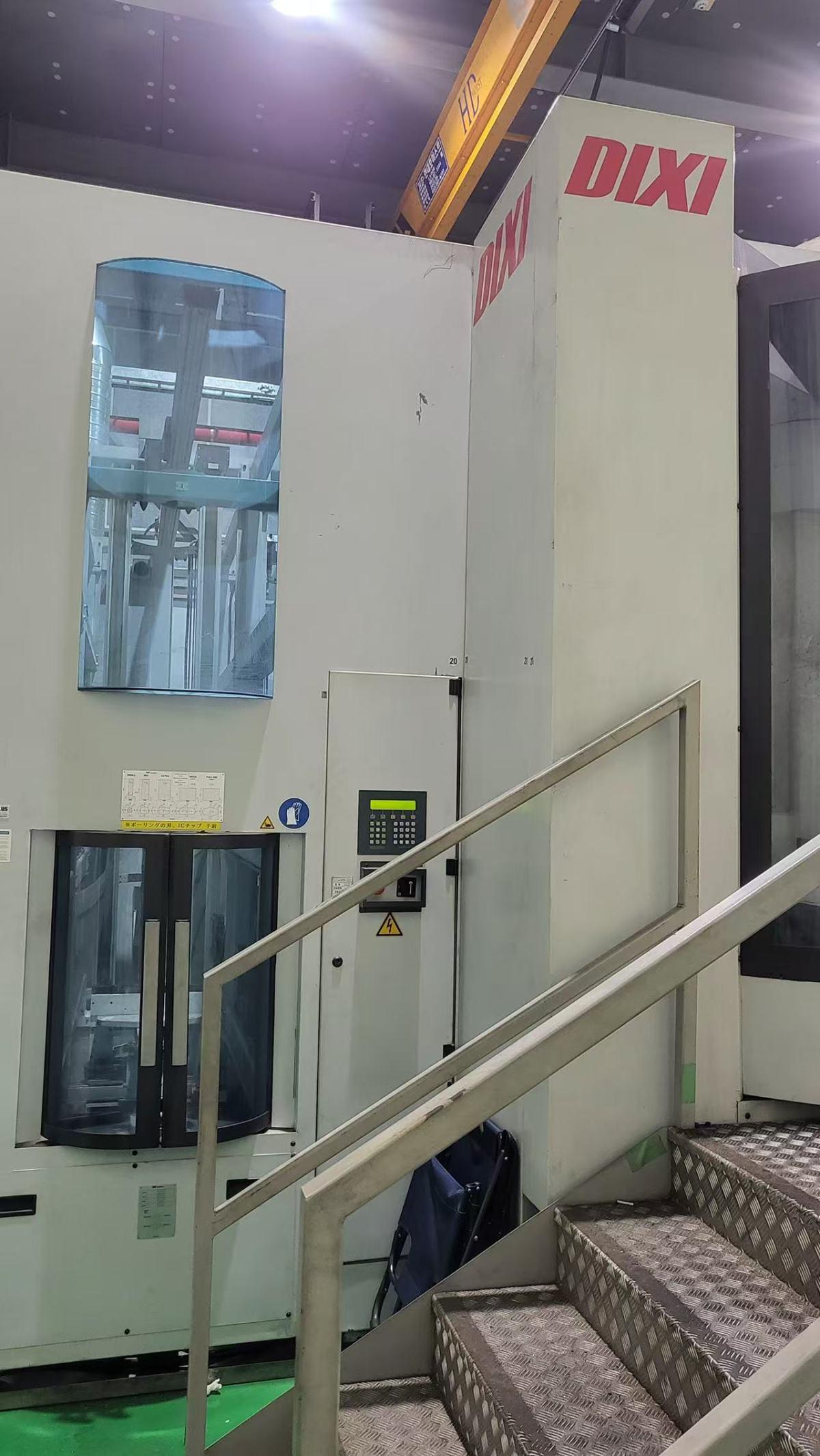

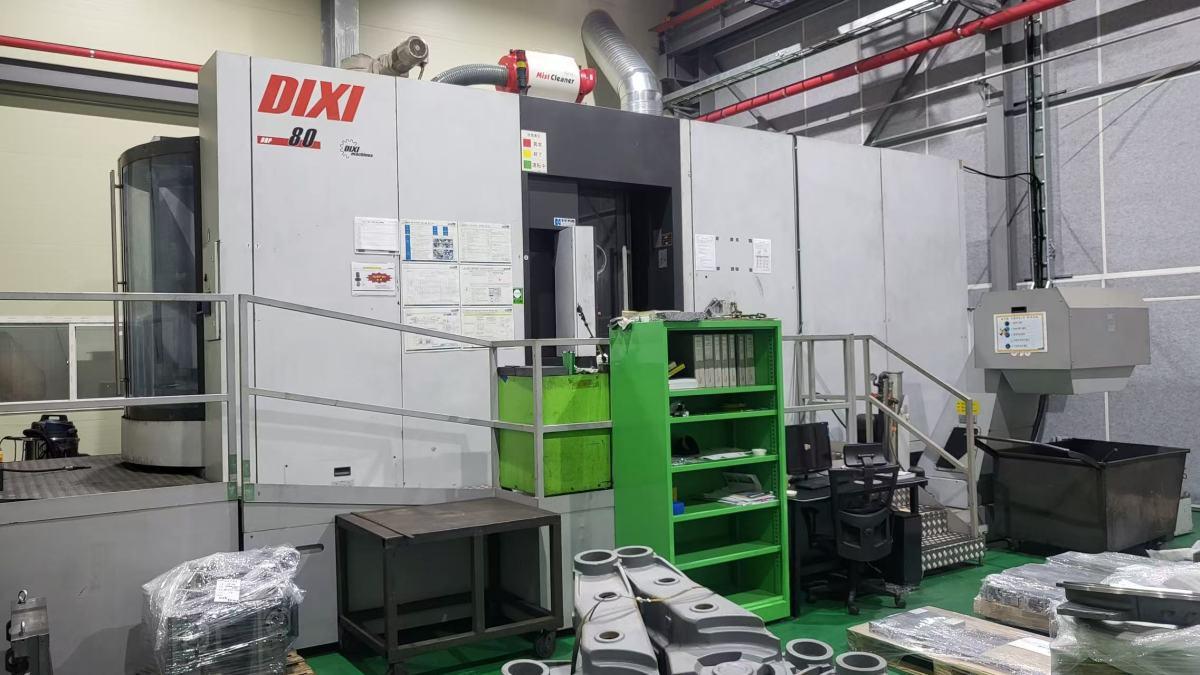

Dixi DHP80-035 Jig boring machine

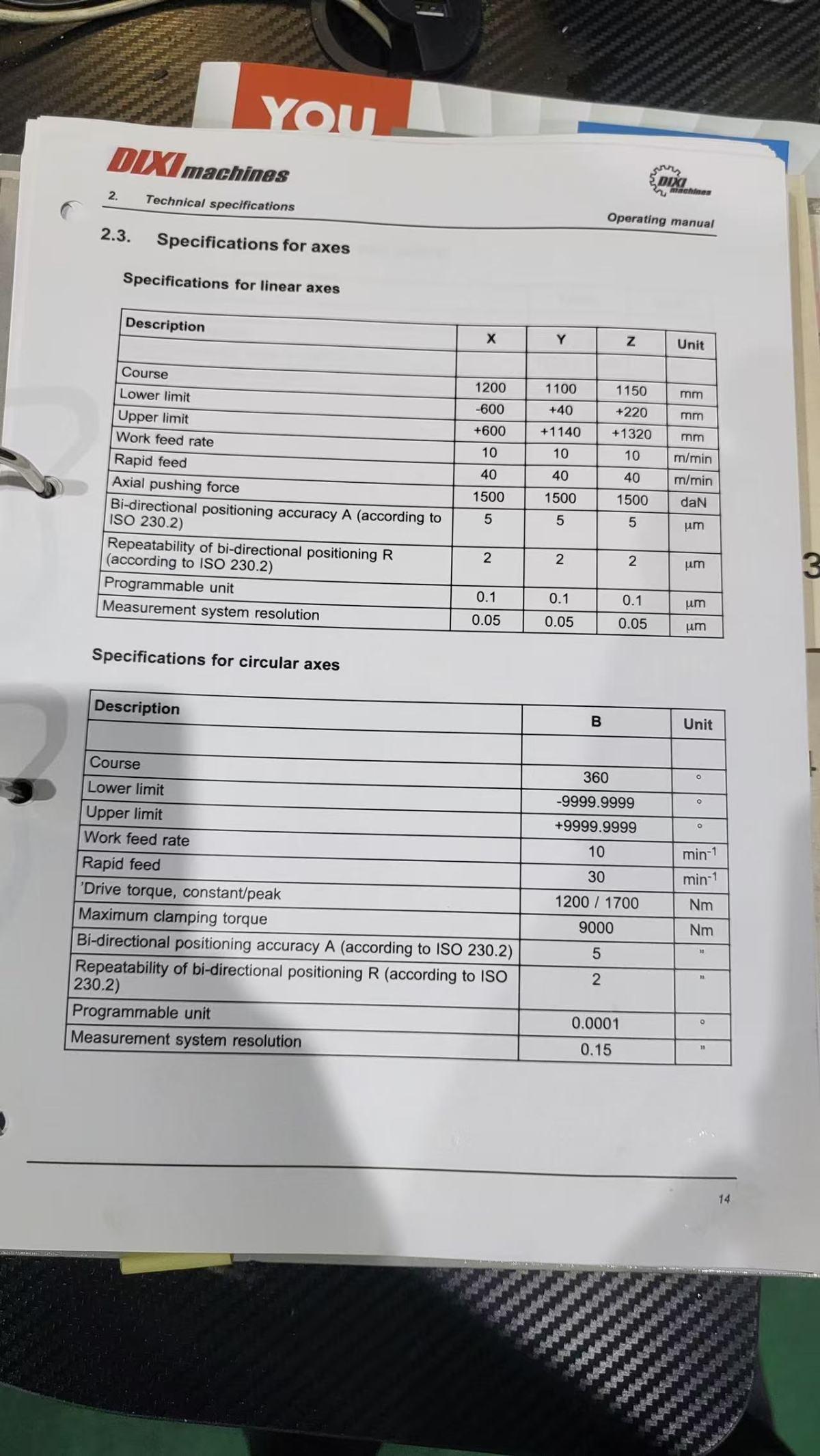

Three-axis travel: 1200 × 1100 × 1150 mm
X/Y/Z axes coordinate range: -600 to +600 / +40 to +1140 / +220 to +1320 mm

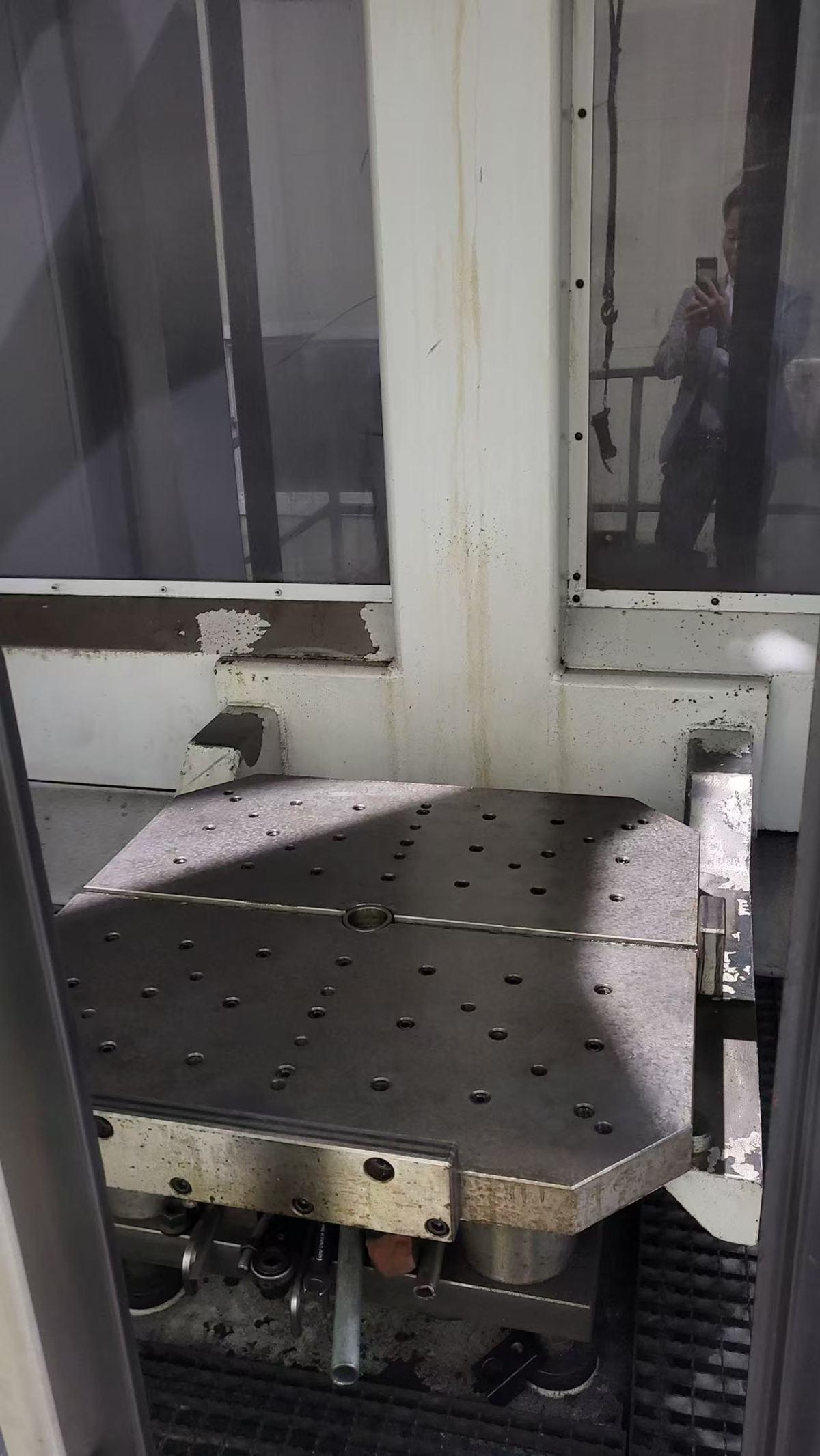

Worktable size: 800 × 800 mm
Working feed rate: 10 m/min
Rapid traverse rate: 40 m/min
Axial thrust: 1500 daN
Bidirectional positioning accuracy: ±5 μm (ISO 230-2)
Bidirectional repeatability: ±2 μm (ISO 230-2)
Minimum programming increment: 0.1 μm
Measurement system resolution: 0.05 μm
B-axis rotation range: 360°
B-axis working/rapid rotation speed: 10 / 30 min⁻¹
B-axis continuous/peak drive torque: 1200 / 1700 Nm
Maximum B-axis clamping torque: 9000 Nm
B-axis bidirectional positioning accuracy: ±5 μm (ISO 230-2)
B-axis bidirectional repeatability: ±2 μm (ISO 230-2)
Minimum B-axis angular setting unit: 0.0001°
B-axis measurement system resolution: 0.15 μm
