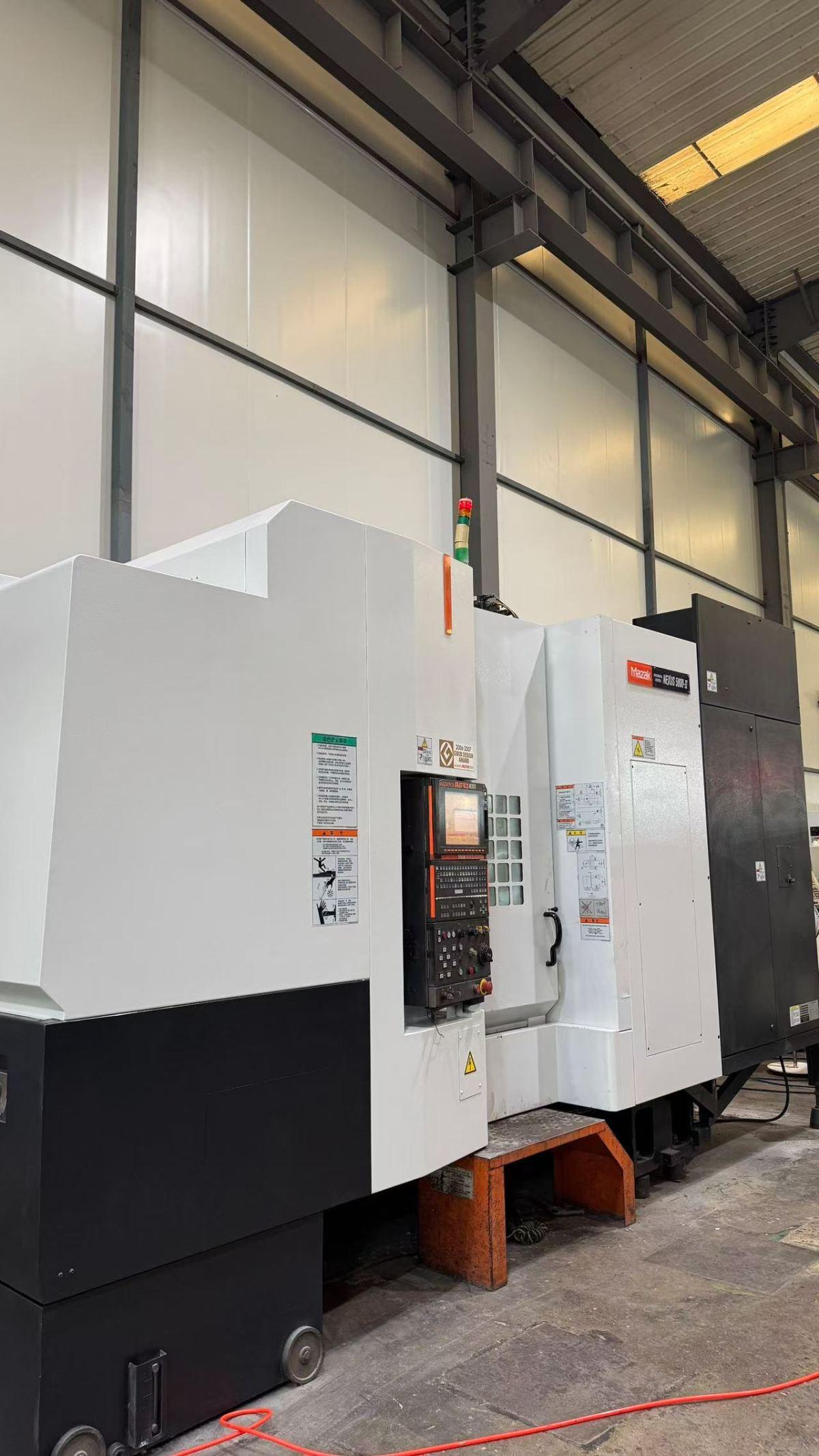

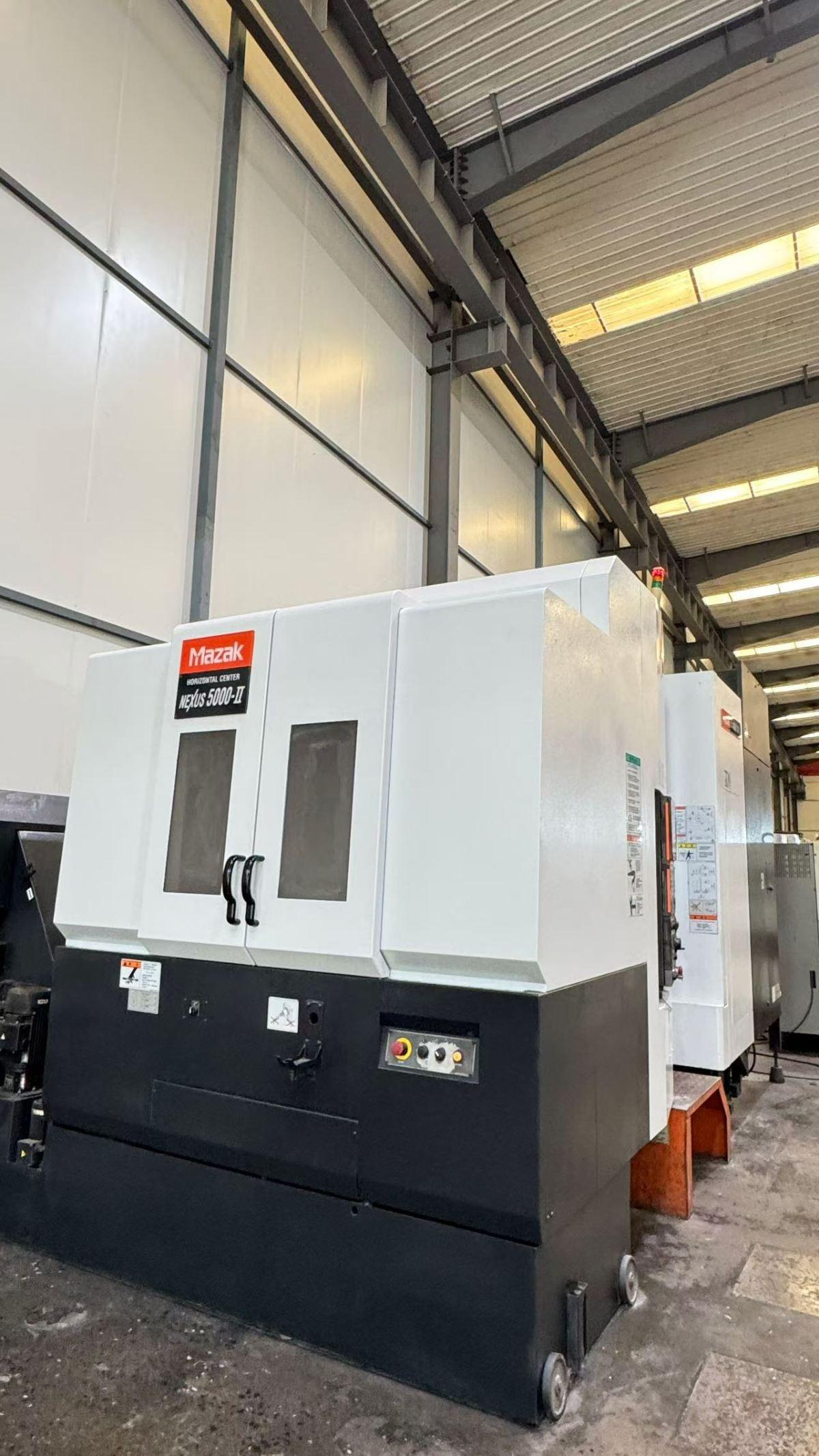

MAZAK NEXUS 5000-II Horizontal Machining centre

workpiece size: 800 x 1000 mm
three-axis travel: 730 x 730 x 740 mm
Distance from spindle nose to the center of the worktable: 70-810 mm
Distance from spindle center to the top of the worktable: 100-830 mm
Pallet Worktable surface size: 500 x 500 mm
The Internal diameter of spindle bearing: 70mm
Fast feed rate: 60,000 mm/min
Cutting feed rate: 1-60,000 mm/min
spindle motor power: 30/22 kW
machine tool weight: 11,000 kg
tools magazine: 40 pieces
spindle: 18,000 RPM
spindle: BT40
