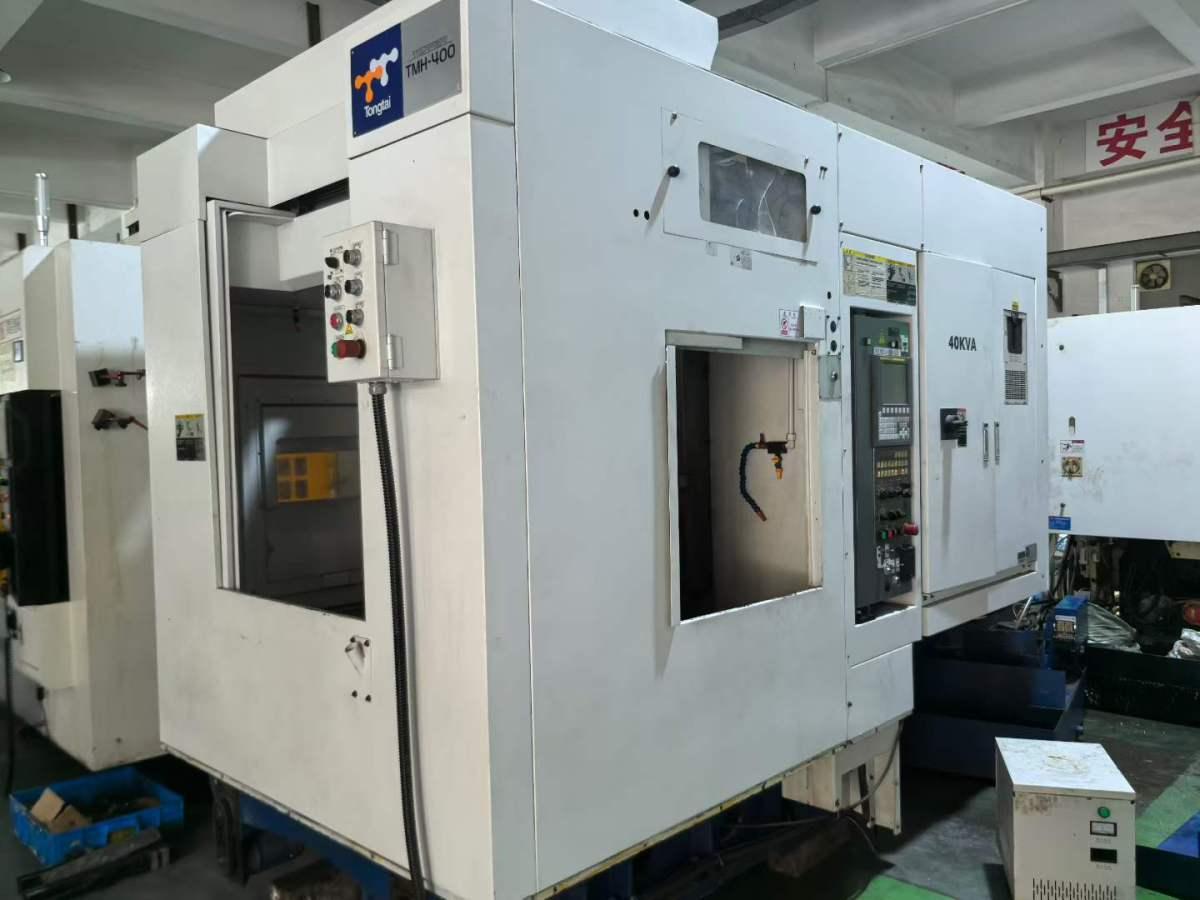

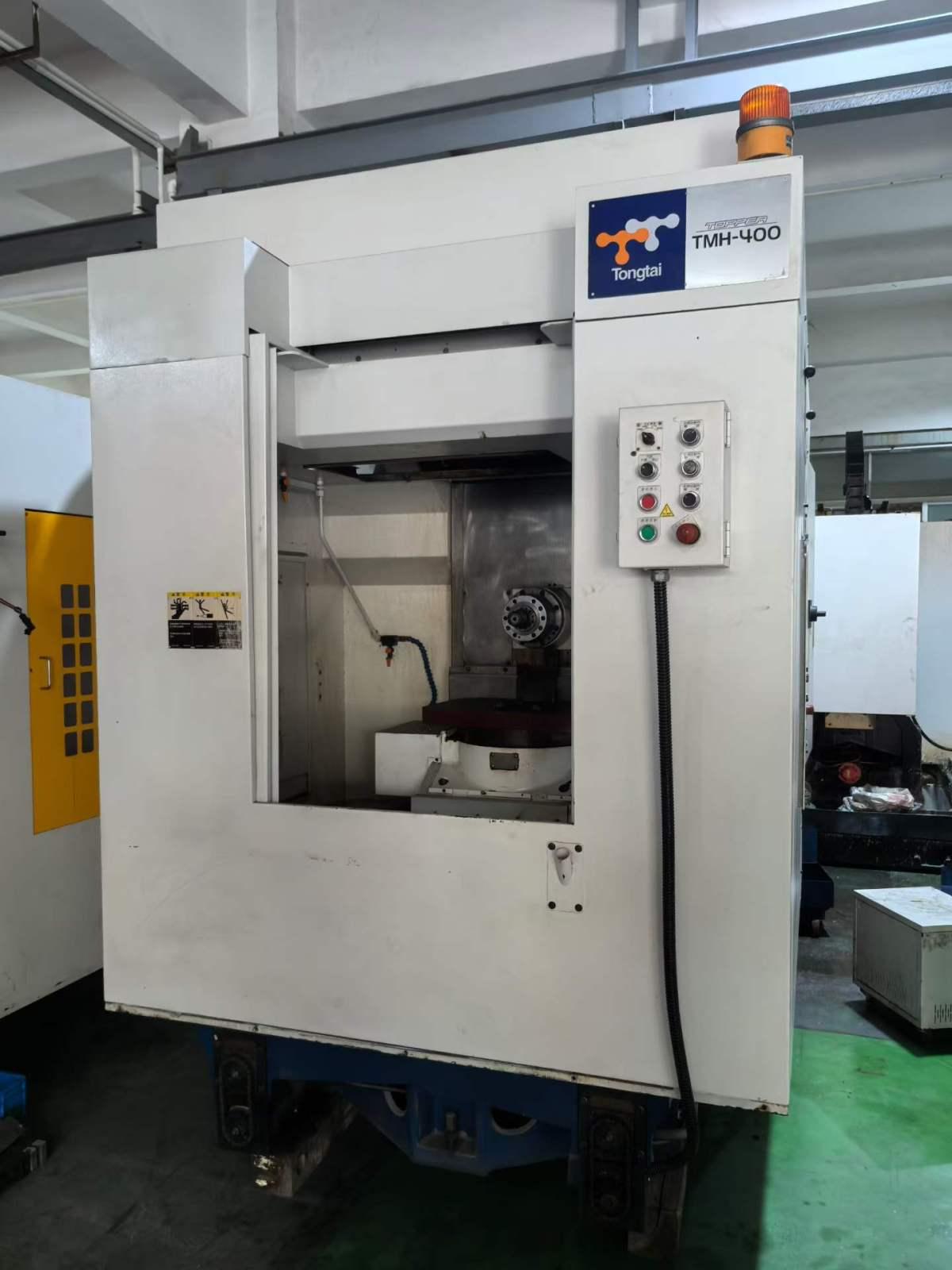

Tongtai TMH-400 Horizontal Machining centre

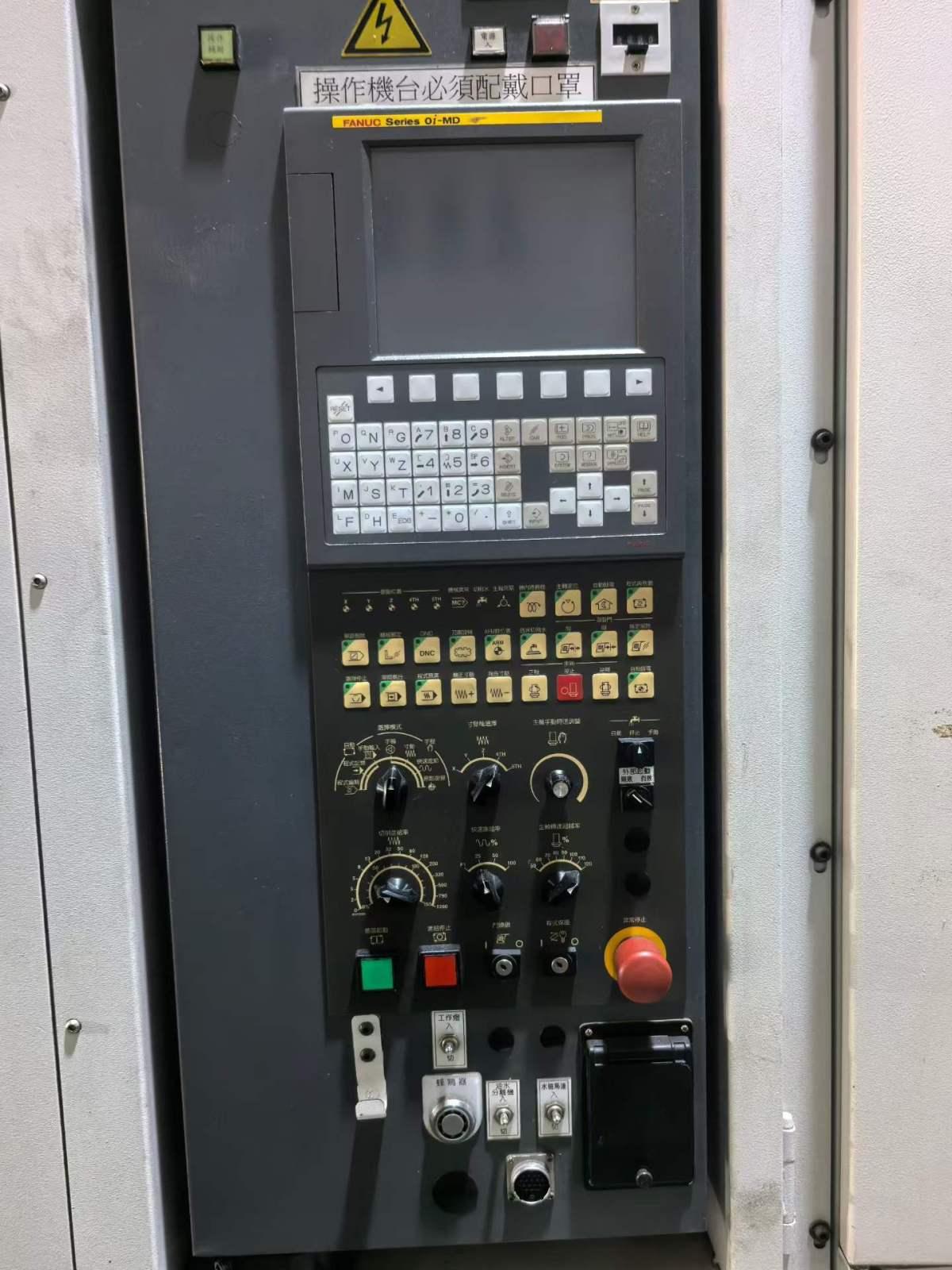

CNC System: FANUC Oi-MD
Three-Axis Travel (X/Y/Z): 510 × 510 × 510 mm
Spindle Speed: 8000 rpm
Distance from Worktable Center to Spindle Nose: 50–560 mm
Distance from Worktable Surface to Spindle Center: 80–590 mm
Worktable Height from Floor: 1150 mm
Worktable Size: 400 × 400 mm
Maximum WorkTable Load: 350 kg
Maximum Workpiece Size (Diameter/Height): Φ510 × 630 mm
Minimum Indexing Angle: 0.001°
Spindle Taper: 7/24
Tool Holder Specification: NT40
Rapid Traverse Rate (X/Y/Z): 36 / 36 / 36 m/min
Cutting Feed Rate (X/Y/Z): 1–10,000 mm/min

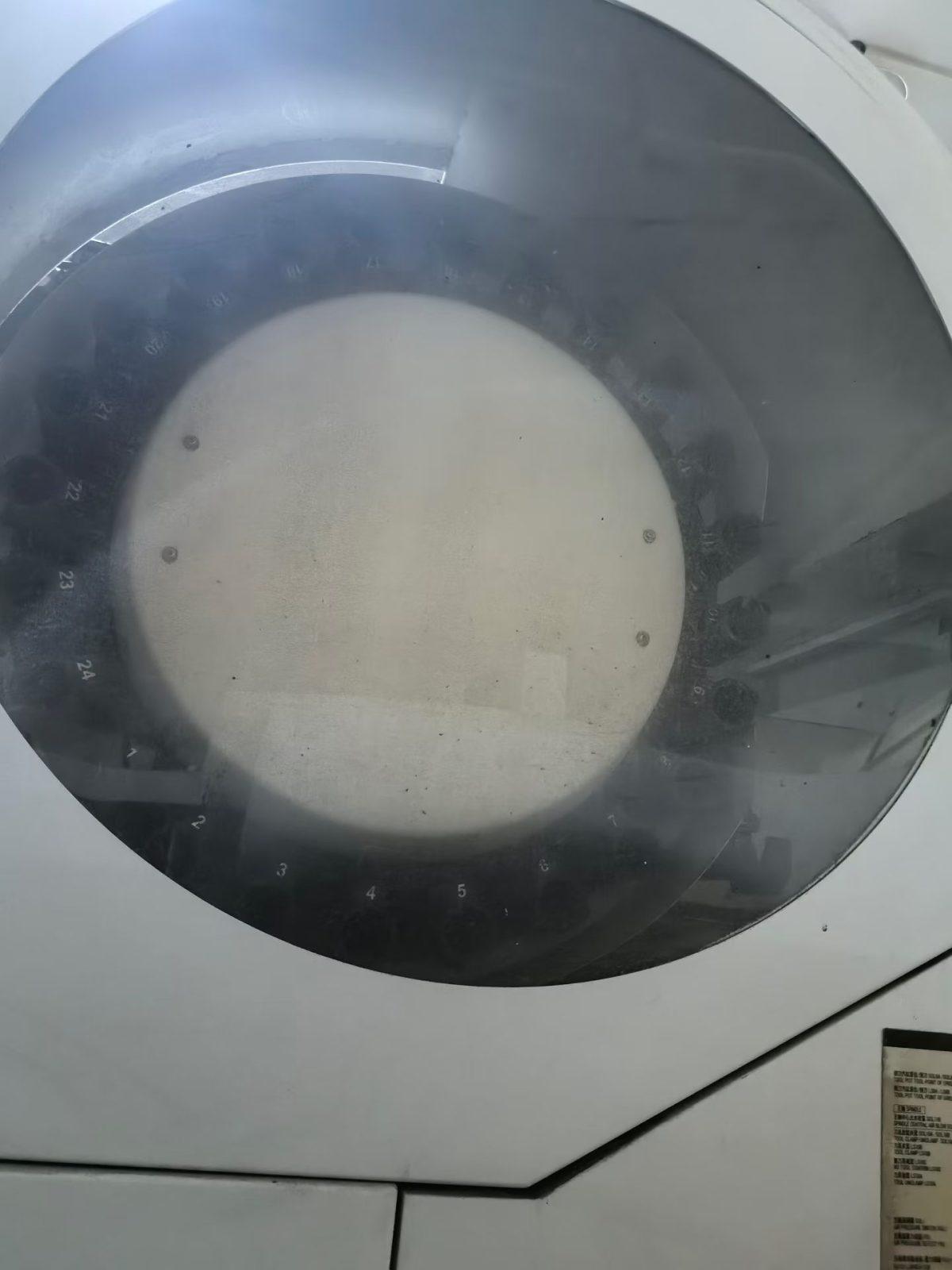

Tools Magazine Capacity: 24
Machine Dimensions (L × W × H): 1700 × 3200 × 2690 mm
Machine Weight: 6500 kg
