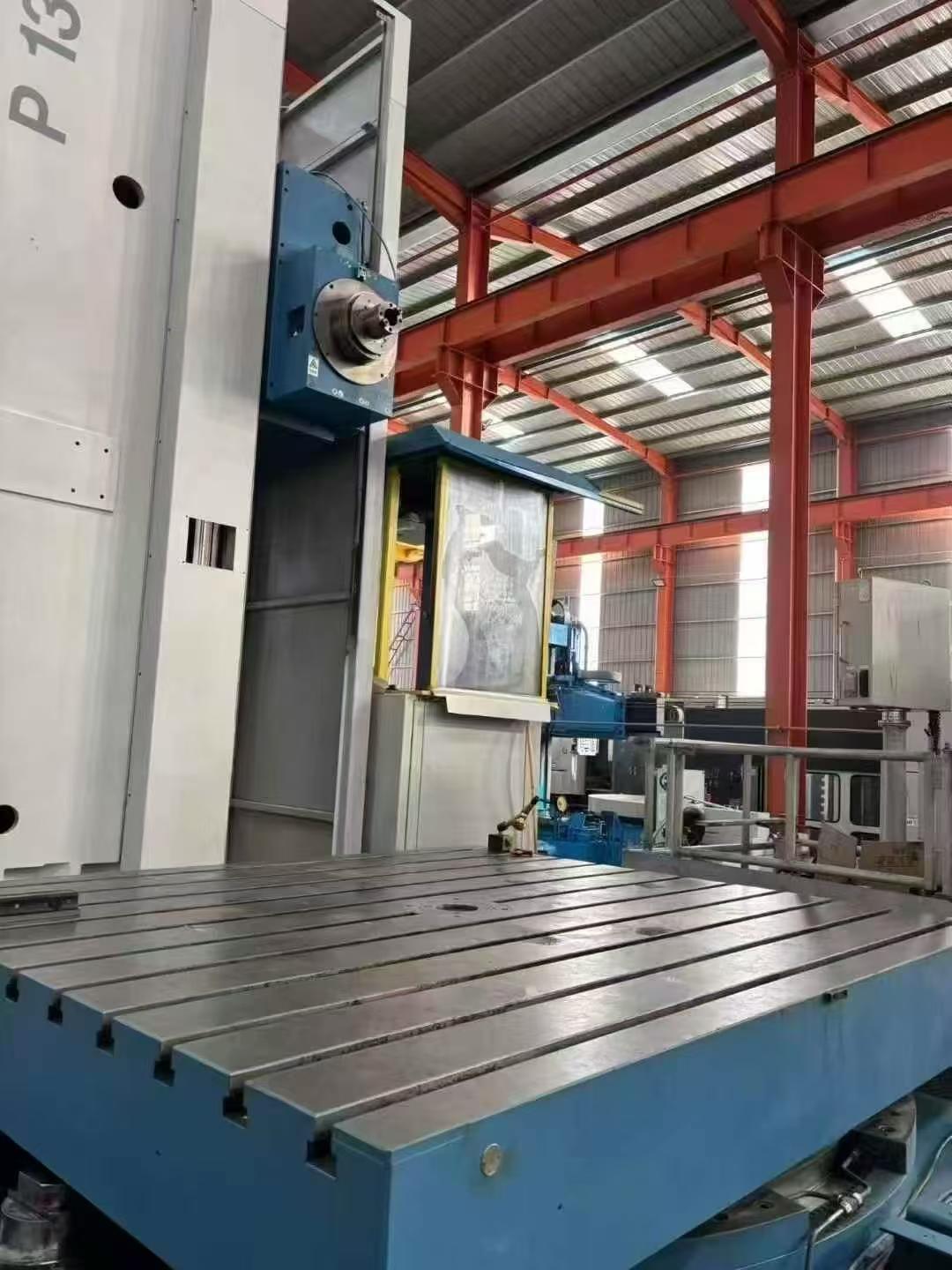

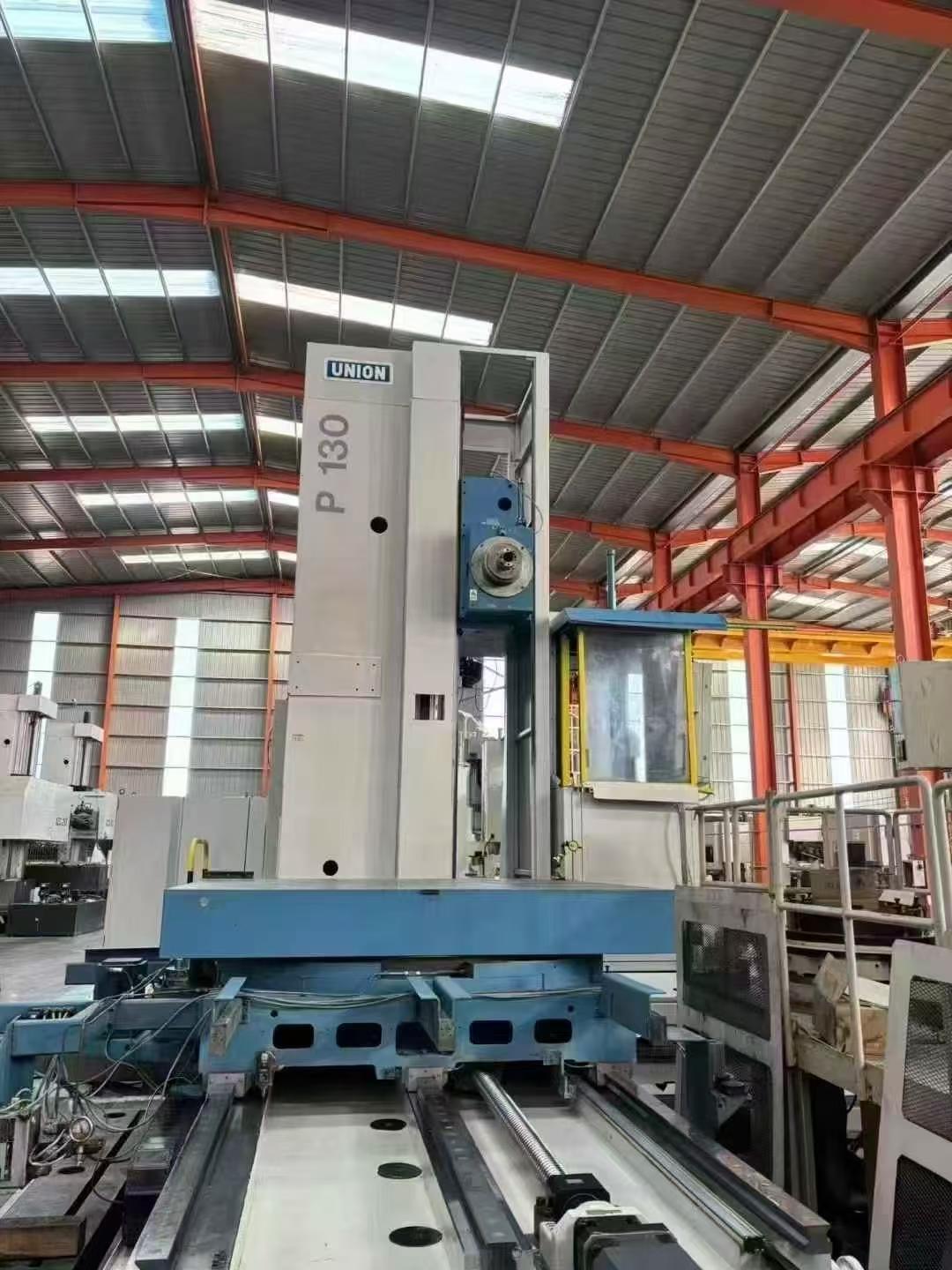

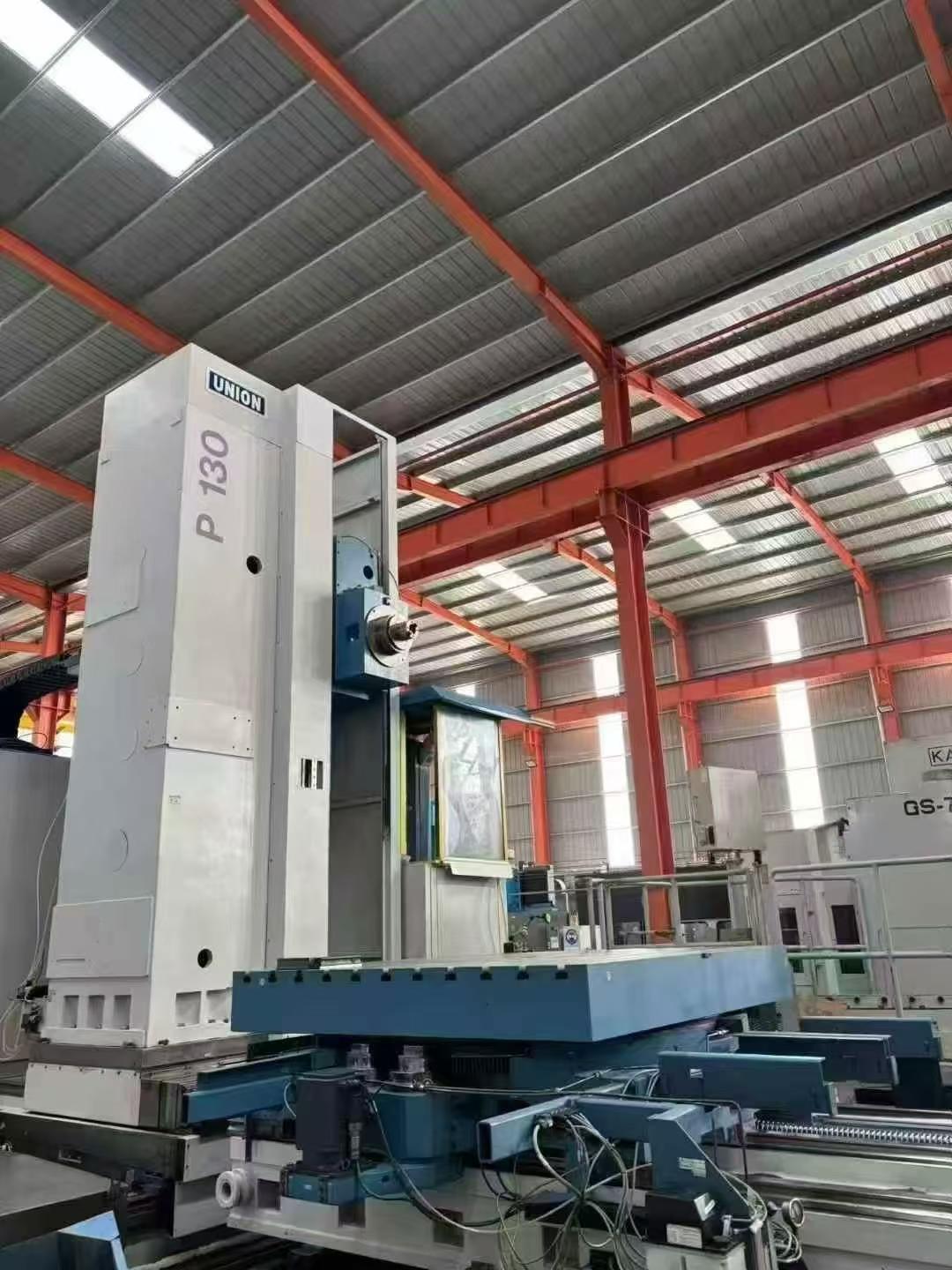

UNION P-130 Boring and milling machine

CNC System: Siemens 840D
Boring bar diameter: 130 mm
Three-axis travel (X × Y × Z): 5000 × 2500 × 800 mm
W-axis travel: 750 mm
V-axis travel: 1500 mm
Spindle speed: 3000 rpm
Number of axes / simultaneous control: 6 axes, 4-axis simultaneous interpolation
Worktable size: 1800 × 2000 mm
Worktable type: Floor plate
Milling heads: Universal milling head, angle milling head
Feedback system: Full closed-loop control, with glass scales on each axis
