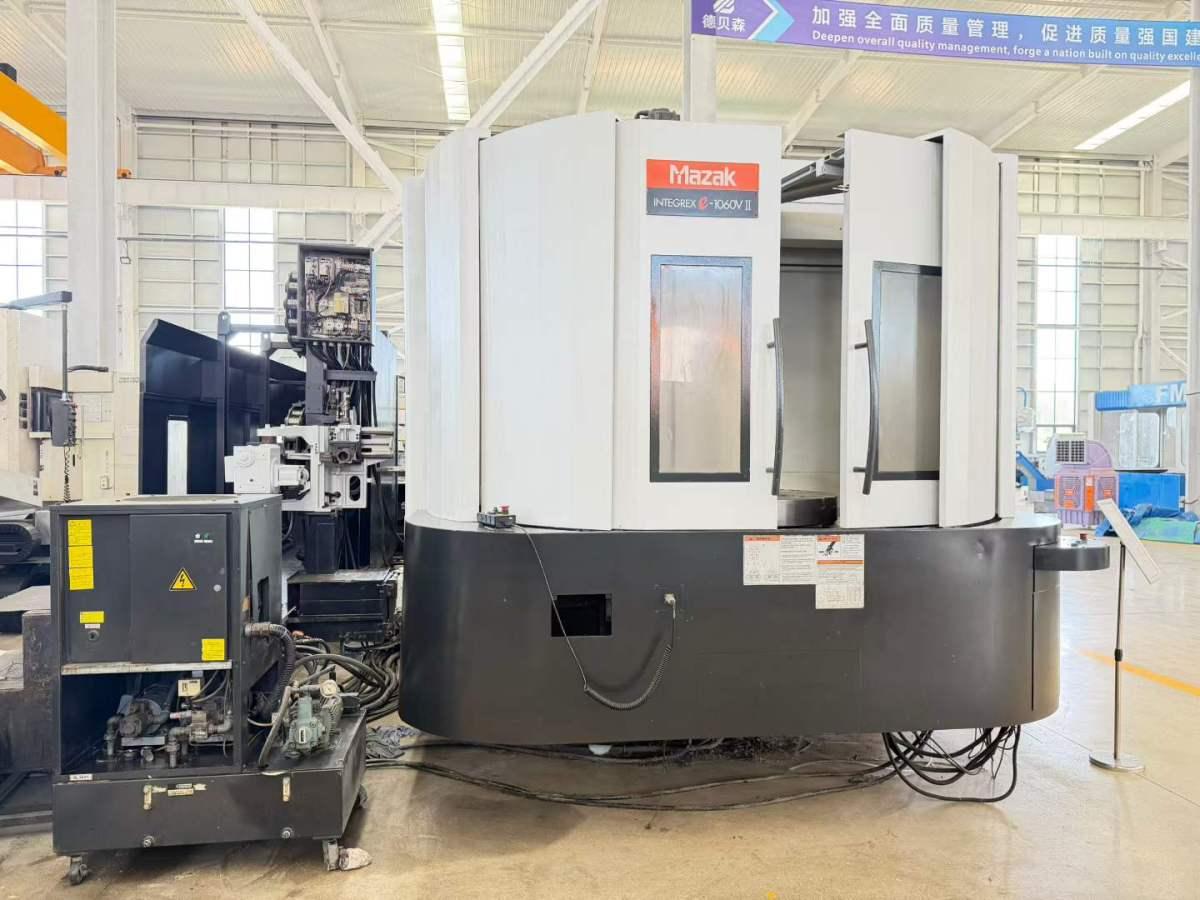

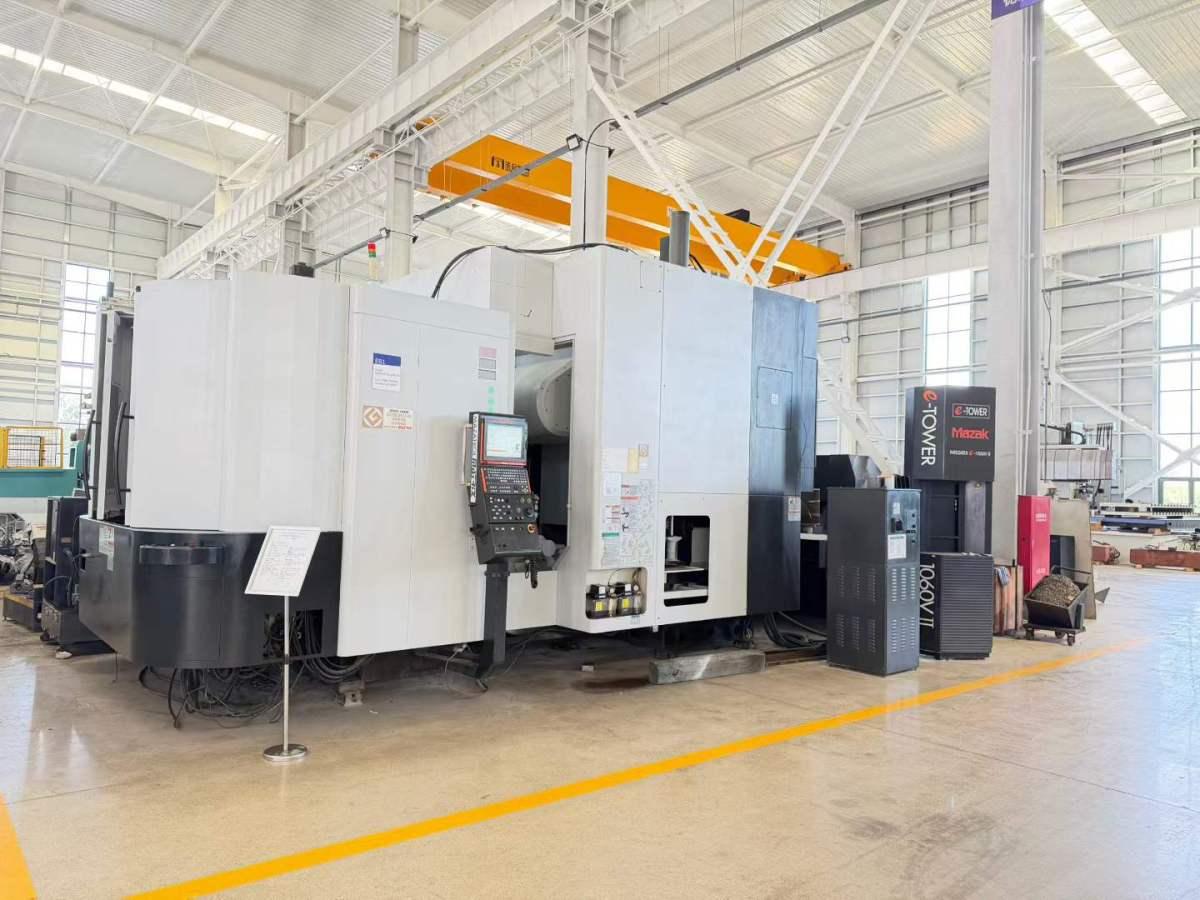

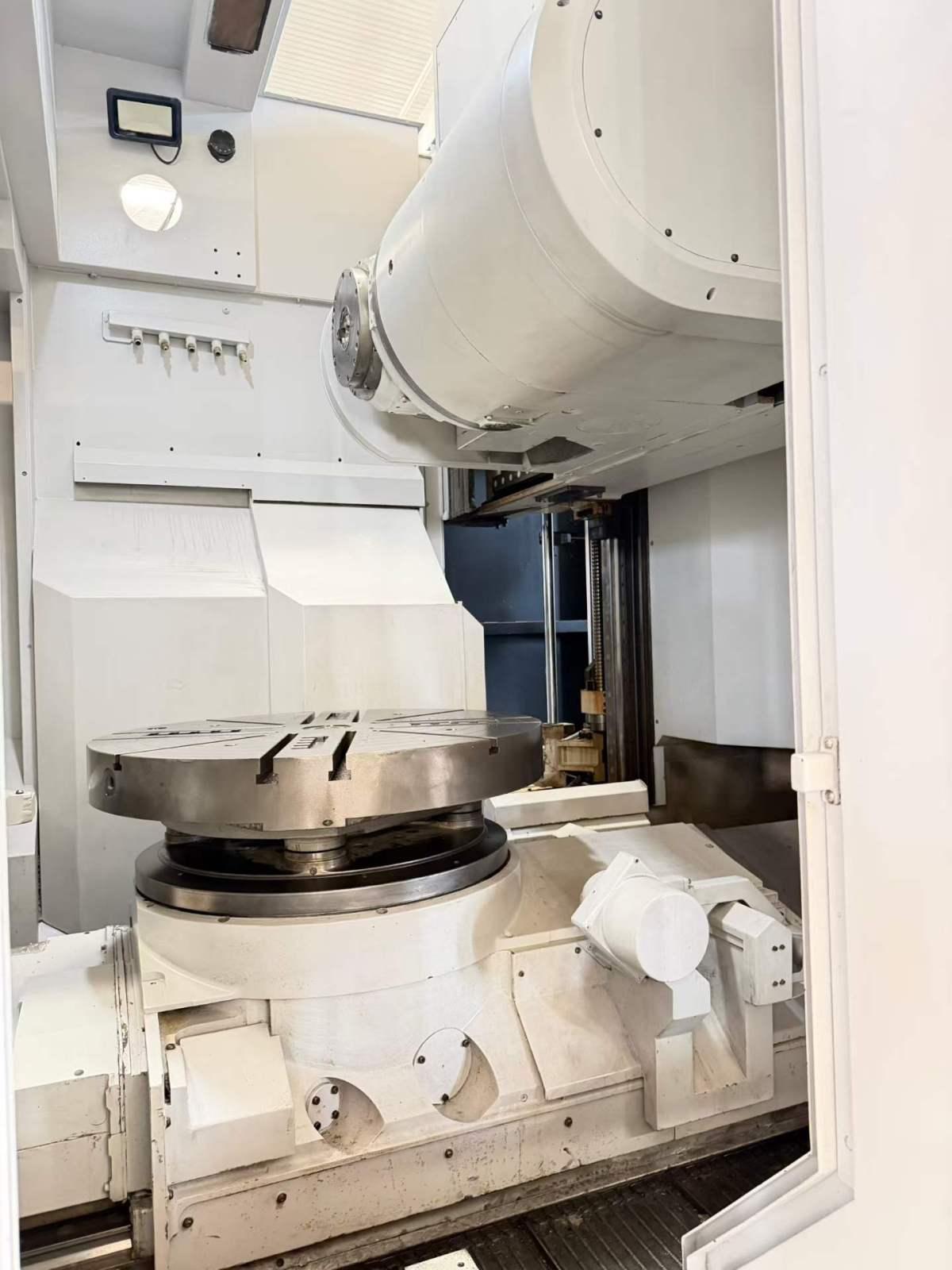

MAZAK INTEGREX e-1060V/8 Turn Mill Machining Centre
[Product Information]:
- Inventory number：813221
- Brand：MAZAK
- Model：INTEGREX e-1060V/8
- Origin："Japan
- Location：China
- Year：2011
- Create Time：2026-09-19

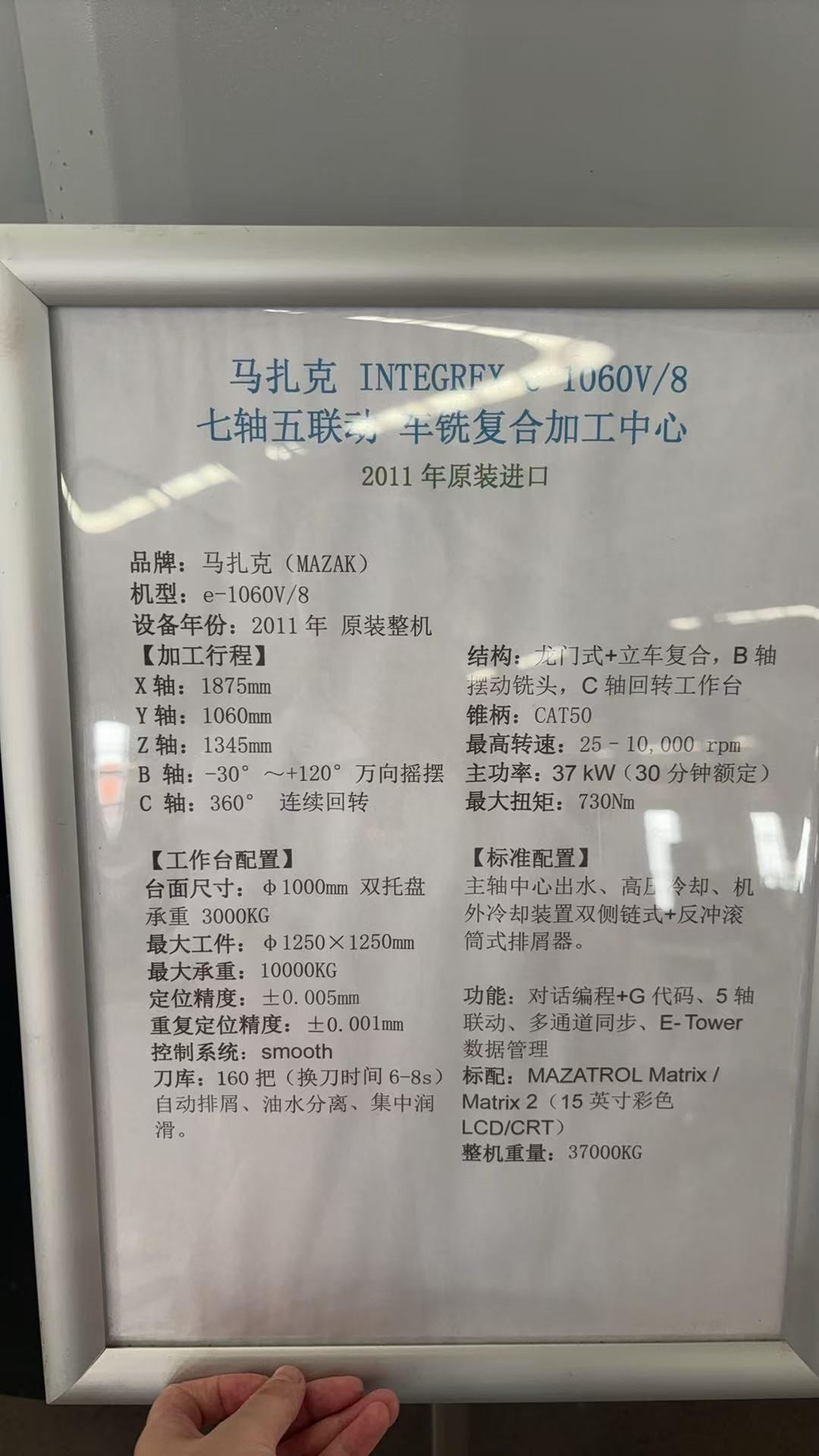

Specifications:
Three-axis travel: 1875 × 1060 × 1345 mm
B-axis swing range: -30° to +120°
C-axis: 360° continuous rotation
Machine structure: Gantry type + vertical turning composite
Milling head: B-axis swing milling head

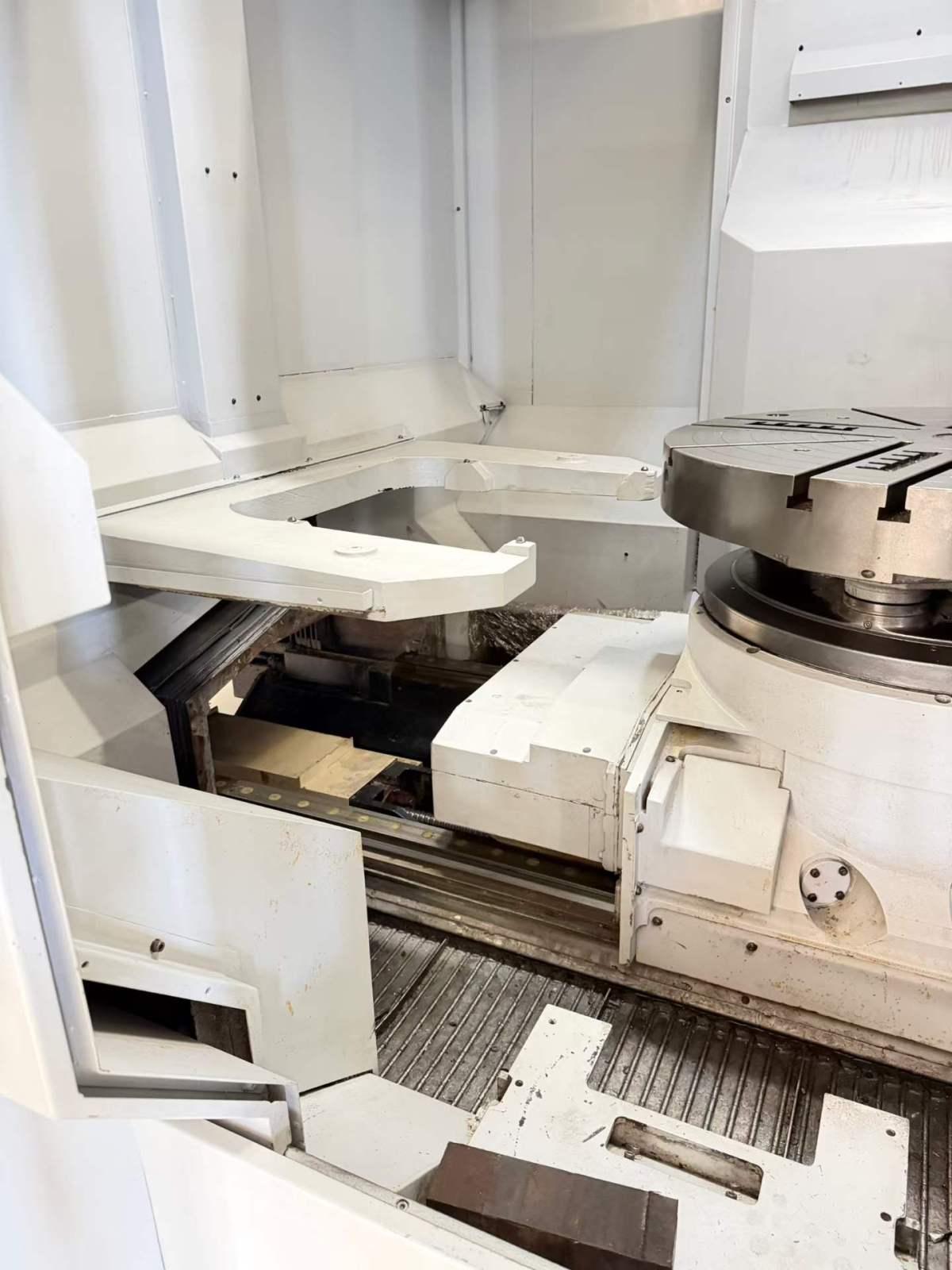

Worktable: C-axis rotary worktable
Spindle taper: CAT50
Spindle speed: 25 to 10,000 rpm
Spindle power: 37 kW (30-minute rated)
Maximum torque: 730 Nm
Worktable size: Ø1000 mm, double pallet
Worktable load capacity: 3000 kg
Maximum workpiece size: Ø1250 × 1250 mm
Maximum load capacity: 10,000 kg
Positioning accuracy: ±0.005 mm
Repeatability: ±0.001 mm
CNC system: MAZATROL Smooth

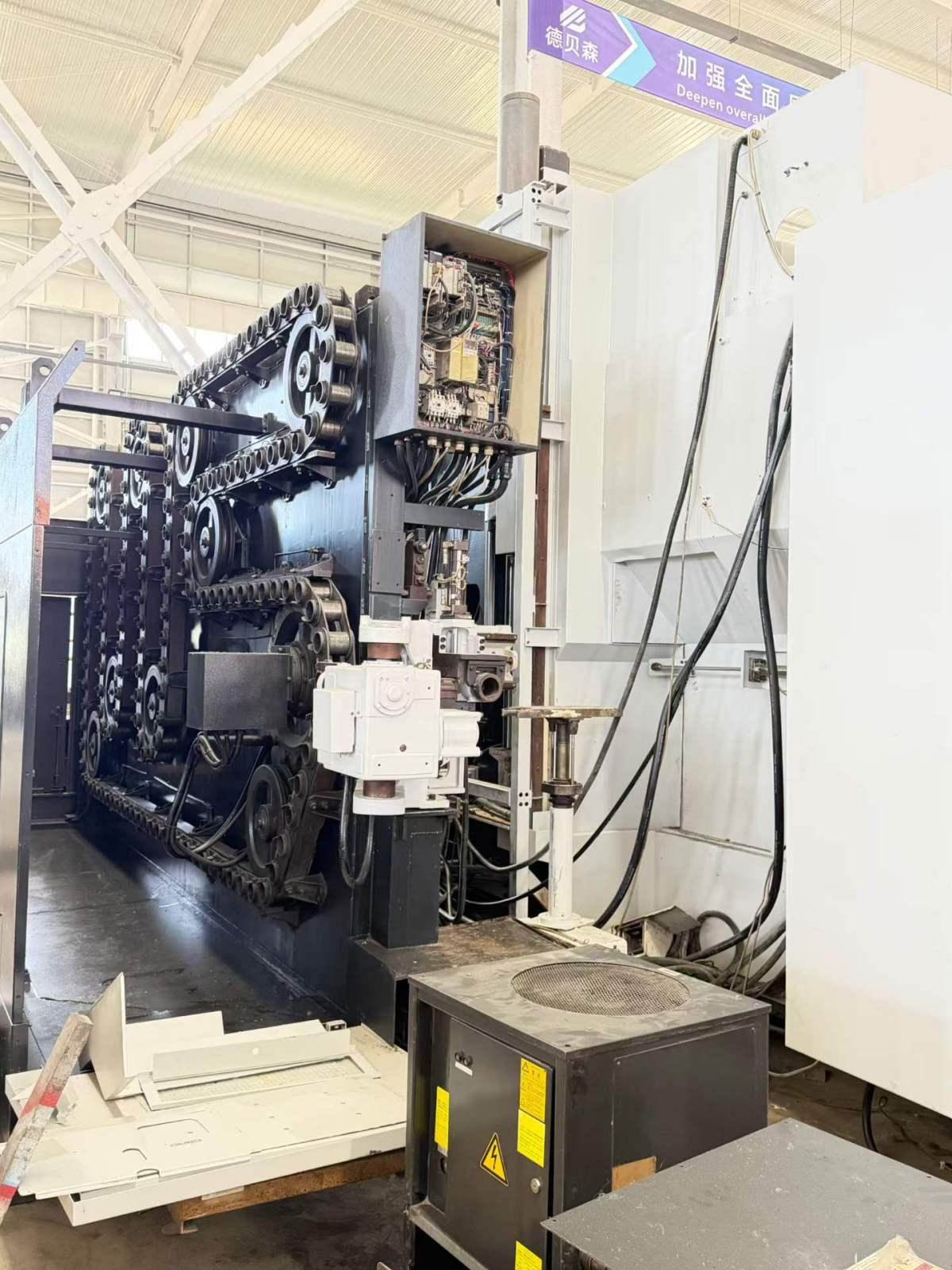

Tool magazine capacity: 160 tools (tool change time: 6 to 8 seconds)
Configuration
Spindle center-through coolant
High-pressure coolant
External cooling unit
Double-sided chain-type + backflush drum-type chip conveyors
Automatic chip removal
Oil-water separator
Centralized lubrication
Functions: Conversational programming + G-code, 5-axis simultaneous machining, multi-channel synchronization, E-Tower data management
Standard configuration: MAZATROL Matrix/Matrix2 (15-inch color LCD/CRT)
Overall weight: 37,000 kg
