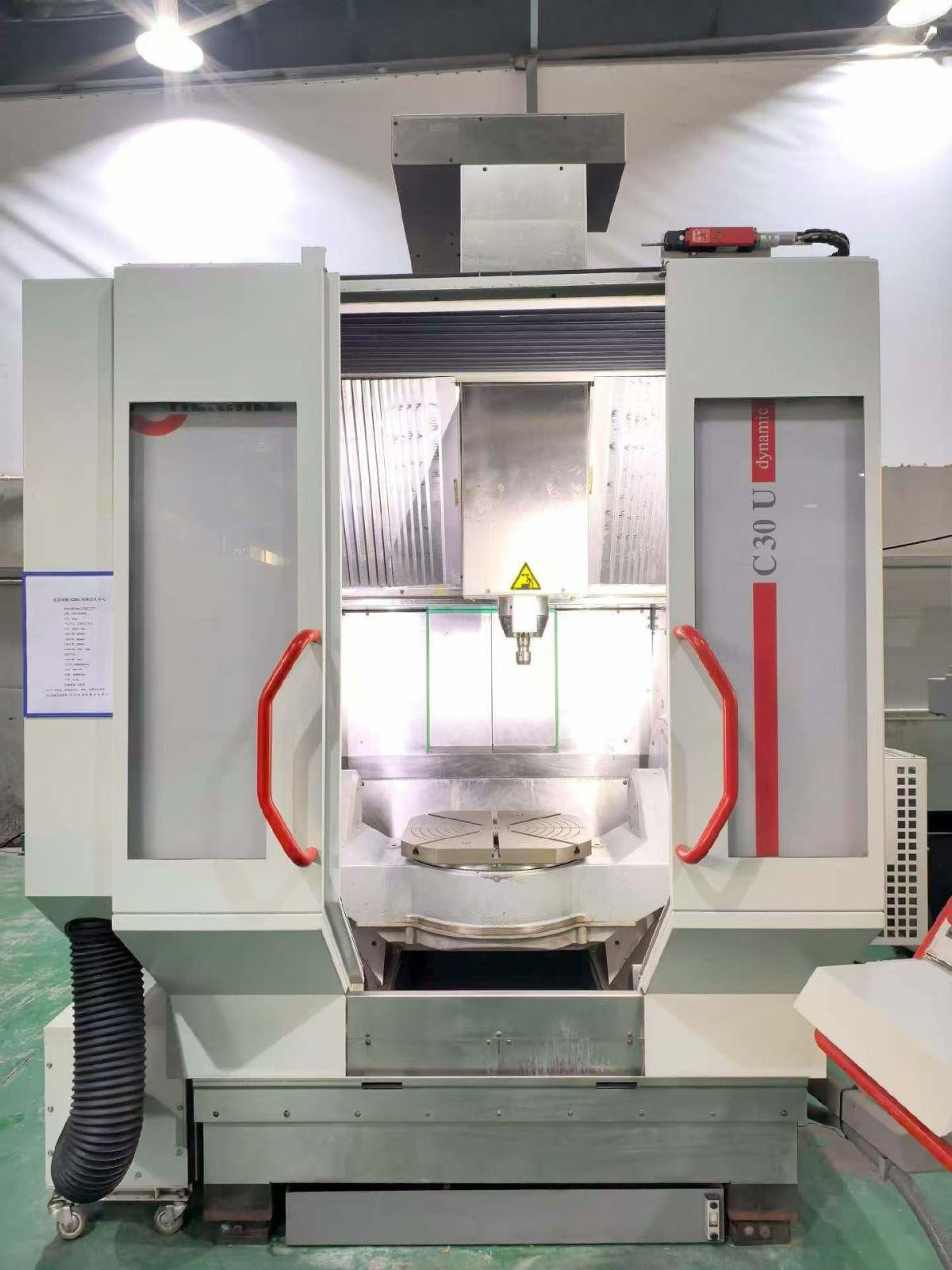

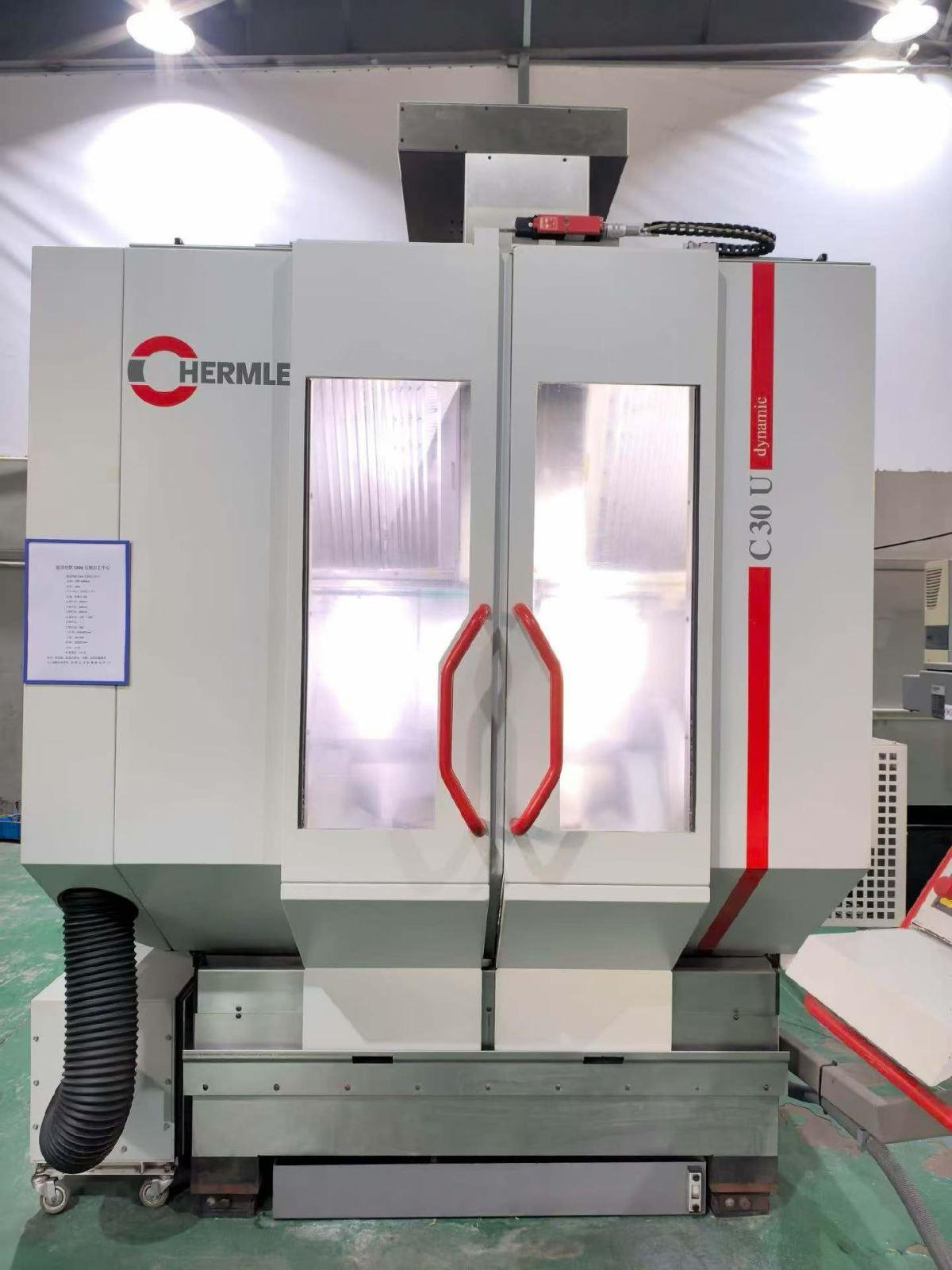

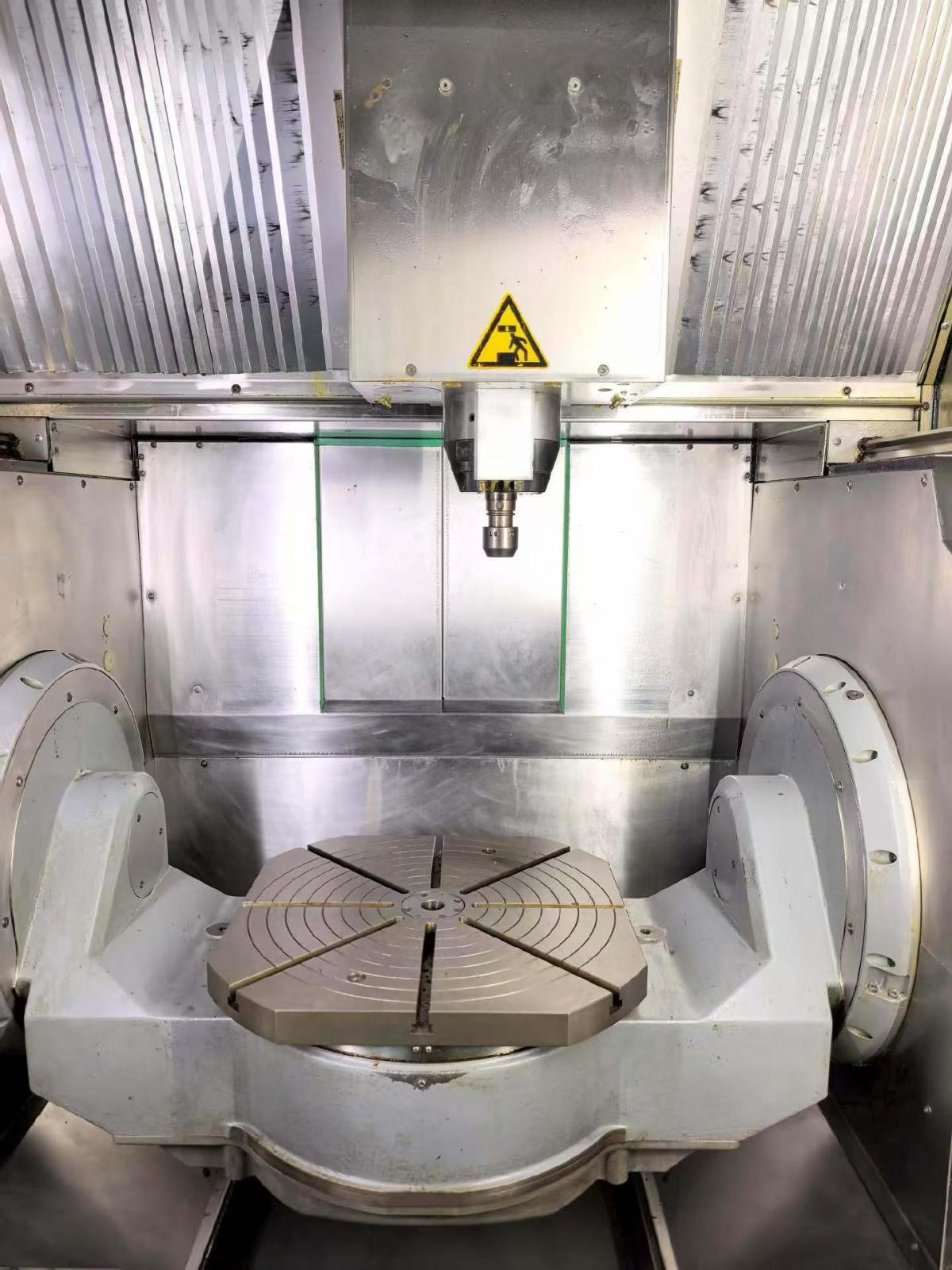

HERMLE C30U 5 axis machining centre

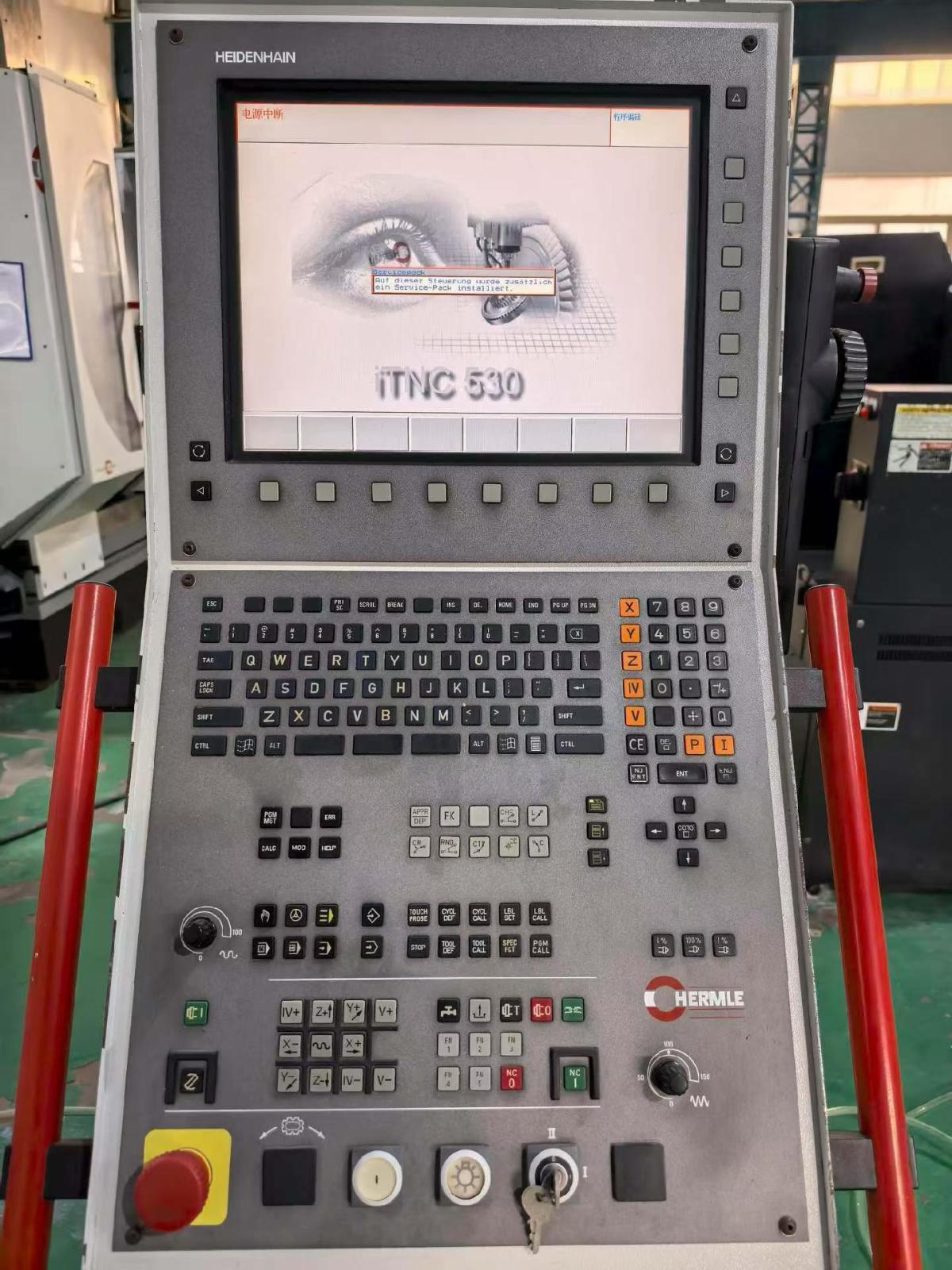

CNC System: Heidenhain iTNC 530
Three-axis travel (X/Y/Z): 650 × 600 × 500 mm
NC rotary swing table
Table diameter: 630 mm
C-axis rotation range: 360°
Spindle speed: 18,000 rpm
A-axis swivel range: +30° / -115°
Rapid traverse rate:
X/Y/Z axes: 45,000 mm/min

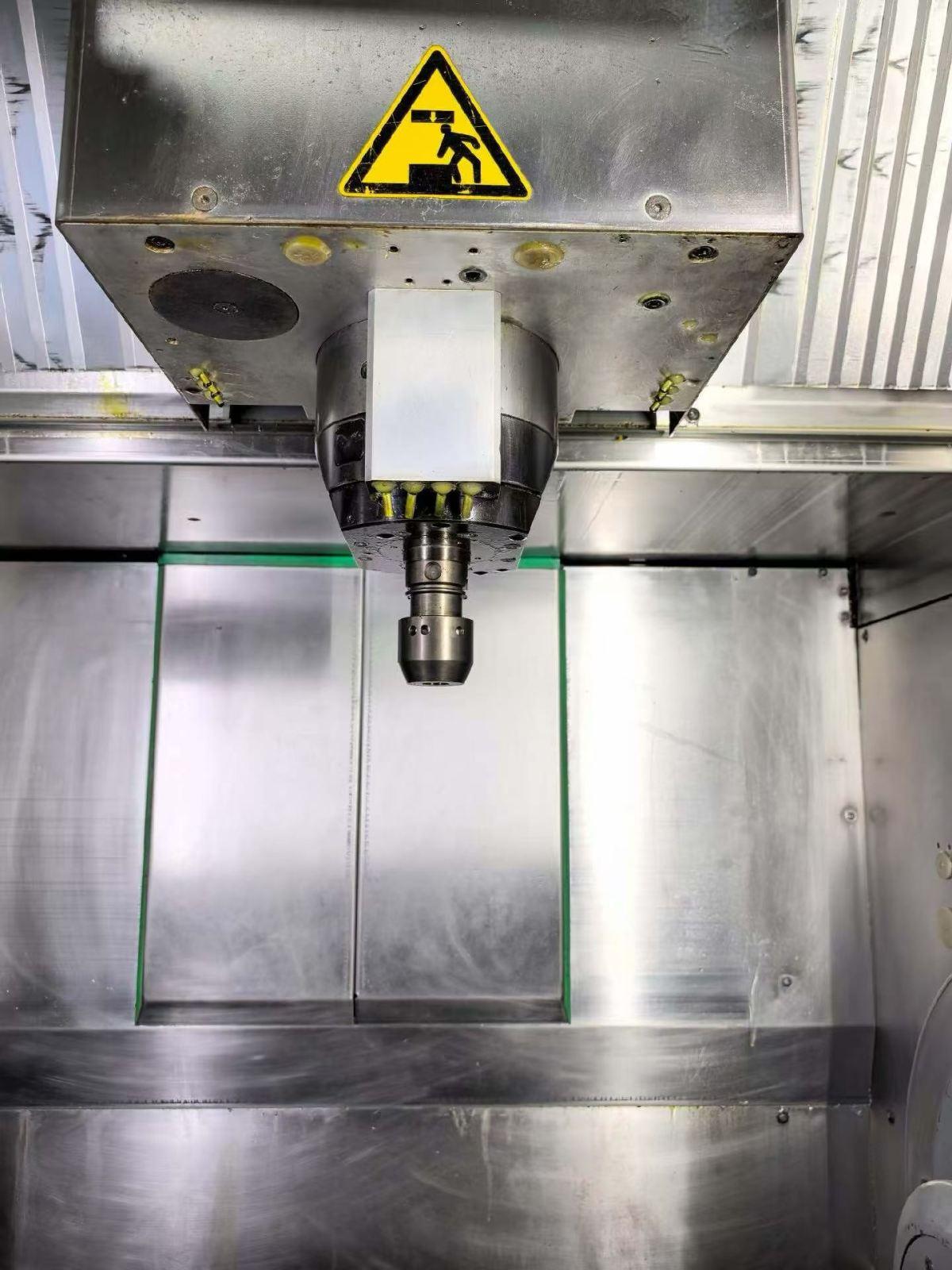

Spindle:
Taper: HSK 63
Maximum power (40% ED): 15 kW
Speed range: 20–18,000 rpm
Tool magazine capacity: 32
Spindle diameter: 70 mm
Feed rate:
XYZ axes acceleration: 6 m/s²
XYZ axes feed force: 7,000 N
Table load capacity: 1,000 kg
Maximum workpiece size: Ø630 × 400 mm
Machine dimensions (L × W × H): approx. 6.5 × 4.5 × 3.1 m
Machine weight: approx. 9,500 kg
